Electro-Voice EVID S Series User manual
EVID Surface Mount S Series ‑ X Models
EVID‑S5.2XB | EVID‑S5.2XW
Installation Manual
english
français
4en | Table of contents EVID Surface Mount S Series - X Models
2022-03 | 07 | F.01U.345.358 Installation Manual Electro-Voice
Table of contents
1Safety 5
1.1 Suspension 5
1.2 Notices 5
2Introduction 6
2.1 System features 6
2.2 Product information 6
2.3 Packing list 7
3Installation and wiring 8
3.1 Installing the speaker 8
3.2 U-Bracket installation options 9
3.3 Recommended wire gauge 11
3.4 Wiring 11
3.5 Transformer taps 13
3.6 Replacing the logo 13
4Troubleshooting 15
5Technical data (for non-UL, general use installations) 16
5.1 Dimensions 17
5.2 Frequency response and impedance 17
6Technical data for UL1480 / ULC-S541, UL1480A / CSA C22.2 NO.205 installations 18
7Technical data for EN54-24, Type B installations 20
8U-Bracket dimensions 22
EVID Surface Mount S Series - X Models Safety | en 5
Electro-Voice Installation Manual 2022-03 | 07 | F.01U.345.358
1 Safety
1.1 Suspension
!
Warning!
Suspending any object is potentially dangerous and should only be attempted by individuals
who have a thorough knowledge of the techniques and regulations of suspending objects
overhead. Electro-Voice strongly recommends that loudspeakers be suspended taking into
account all current national, federal, state, and local laws and regulations. It is the
responsibility of the installer to ensure all loudspeakers are safely installed in accordance
with all such requirements. When loudspeakers are suspended, Electro-Voice strongly
recommends the system be inspected at least once per year or as laws and regulations
require. If any sign of weakness or damage is detected, remedial action should be taken
immediately. The user is responsible for making sure the wall, ceiling, or structure is capable
of supporting all objects suspended overhead. Any hardware used to suspend a loudspeaker
not associated with Electro-Voice is the responsibility of others.
Safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).
Figure1.1: Redundant safety point
1.2 Notices
Old electrical and electronic equipment
This product and/or battery must be disposed of separately from household waste.
Dispose such equipment according to local laws and regulations, to allow their reuse
and/or recycling. This will help in conserving resources, and in protecting human
health and the environment.
Copyright and disclaimer
All rights reserved. No part of this document may be reproduced or transmitted in any form by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior
written permission of the publisher. For information on getting permission for reprints and
excerpts, contact Electro-Voice.
All content including specifications, data, and illustrations in this manual are subject to change
without prior notice.
6en | Introduction EVID Surface Mount S Series - X Models
2022-03 | 07 | F.01U.345.358 Installation Manual Electro-Voice
2 Introduction
The EVID-S series, from Electro-Voice, is a line of compact, high-performance, two-way, full-
range surface mount speakers, with excellent wide and uniform coverage, and outstanding
performance. Their design makes these practically invisible for use in background and
foreground music, paging, and sound reinforcement applications, making EVID-S ideal for
indoor and outdoor applications, such as restaurants, bars, patios, retail, fitness clubs,
hospitality, theme parks, leisure venues, and others. With unparalleled ease-of-installation,
sturdy weather resistance, modern and delicate look, and flexible mounting options, the EVID-
S series is the perfect solution for a wide variety of surface mount applications.
The EVID-S5.2X models are IP65 rated, designed to withstand the toughest weather
conditions. They are also UL1480 / ULC-S541, UL1480A / CSA C22.2 NO. 205 / EN54-24, type
B certified.
Read through this manual to familiarize yourself with the safety information, features, and
applications before you use these products.
2.1 System features
– Carefully engineered for the toughest weather conditions (IP65)
– Long throw 5.25" (133 mm) woofer housed in a UL 94-5VB fire rated ABS plastic for
extended LF performance down to 55 Hz
– 75 W power handling provides for 108 dB maximum SPL (114 dB Peak)
– 60 W transformer with 8 Ω pass-through
2.2 Product information
Item Description
A Grille
B Safety cable loop
C Weather input cover
D Gland nut
E U-Bracket
Table2.1: Product information
A
C
D
B
E
Figure2.1: Product information
EVID Surface Mount S Series - X Models Introduction | en 7
Electro-Voice Installation Manual 2022-03 | 07 | F.01U.345.358
2.3 Packing list
Item Quantity Component
A 2 Speakers
B 1 Allen wrench
C 4 Safety screws for the U-Brackets
D 2 U-bracket
E 2 Weather covers
F 8 Weather cover screws
G 2 Grille logos (spares)
H 1 Installation manual
Table2.2: Components list
A (x2) BD (x2)
C (x4)
E (x2) F (x8)G (x2) H
Figure2.2: Components list
8en | Installation and wiring EVID Surface Mount S Series - X Models
2022-03 | 07 | F.01U.345.358 Installation Manual Electro-Voice
3 Installation and wiring
3.1 Installing the speaker
For safety, ensure the mounting surface supports more than the weight of the speaker. Use
only industry-accepted fasteners and mounting methods when mounting the U-Bracket.
Consult an expert if you are unsure.
!
Warning!
Use a support system which has sufficient wind load strength to comply with the applicable
codes and standards.
Disregarding this warning could result in damage to the product and major injury or possibly
death may occur.
!
Caution!
It is the installer's responsibility to determine and use the proper mounting hardware for the
wall construction type.
Disregarding this caution could result in damage to the product and personal injuries may
occur.
i
Notice!
Connections shall not be made with rigid conduit but with flexible conduit or wiring only.
Installing the U-Bracket
To install the U-bracket, do the following:
1. Draw a level line.
2. Align screw holes on the level line.
3. Install two mounting screws to secure the U-Bracket to the wall.
Installing the speaker
To install the speaker, do the following:
1. Wire the speaker, as shown in the wiring section.
EVID Surface Mount S Series - X Models Installation and wiring | en 9
Electro-Voice Installation Manual 2022-03 | 07 | F.01U.345.358
2. Insert the two screws (provided) into the U-Bracket mounting points.
Loosely tighten the two screws using the Allen wrench (provided).
3. Aim the speaker.
4. Tighten the two screws to secure the U-Bracket to the speaker.
Ensure the speaker is secured to the U-Bracket.
Safety point
As an added safety measure, it is suggested the user install an extra suspension point back to
the building structural supports. This safety point should have as little slack as possible (less
than 1-inch is preferable).
Figure3.1: Redundant safety point
Refer to
– U-Bracket installation options, page 9
– Wiring, page 11
3.2 U-Bracket installation options
Using a U-Bolt
The U-Bracket can be mounted using a standard 2-inch or 4-inch U-Bolt.
10 en | Installation and wiring EVID Surface Mount S Series - X Models
2022-03 | 07 | F.01U.345.358 Installation Manual Electro-Voice

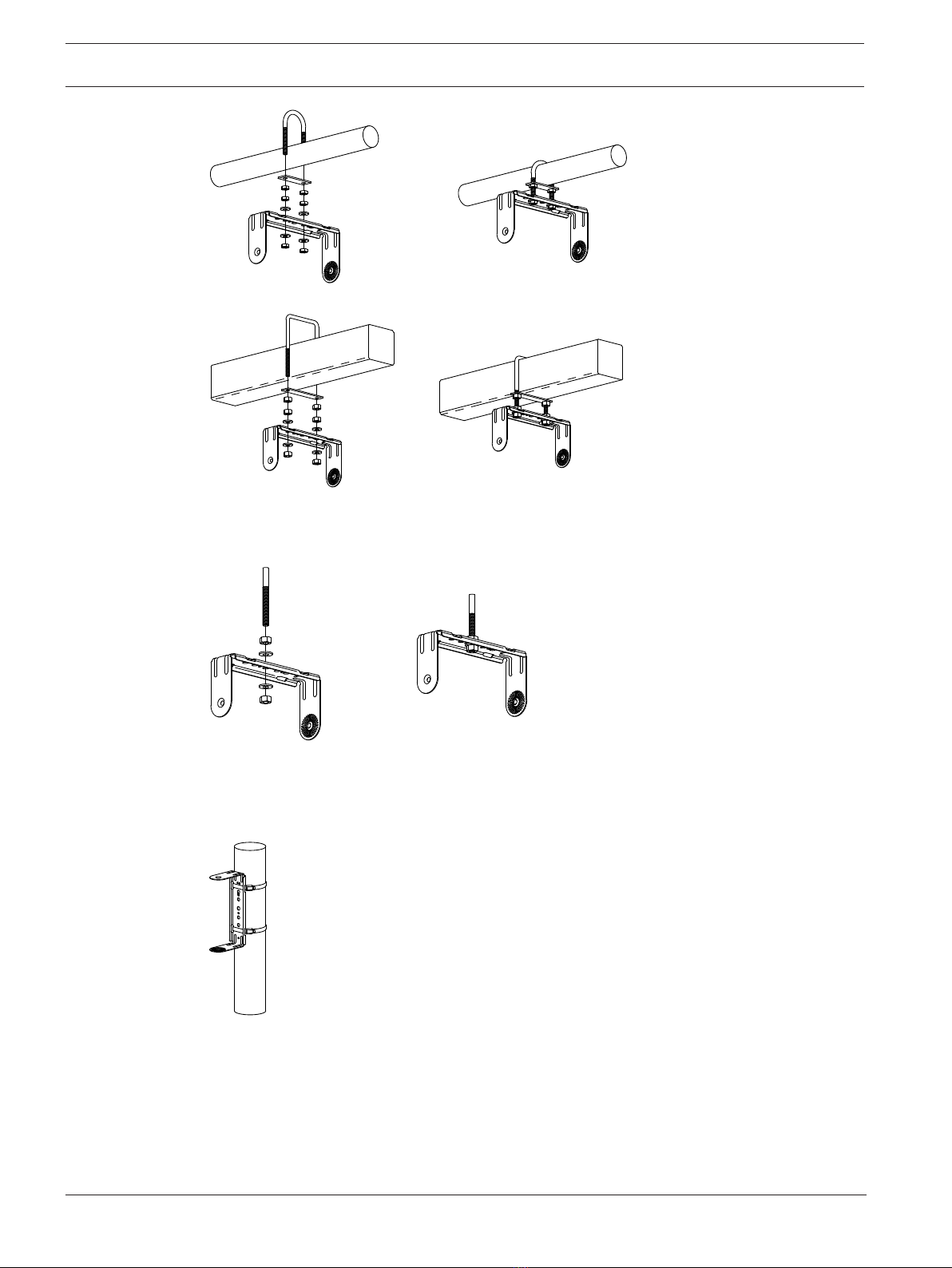

Figure3.2: U-Bolt — 2-inch
Figure3.3: U-Bolt — 4-inch
Using a threaded rod
The U-Bracket can be installed to a threaded rod.
Figure3.4: Threaded rod
Using a pole mount
The U-Bracket can be installed to a pole mount using steel band clamps.
Figure3.5: Pole mount
Using a junction box
The U-Bracket can be installed to a junction box using a 0.25” rubber grommet (not included)
for wiring.
