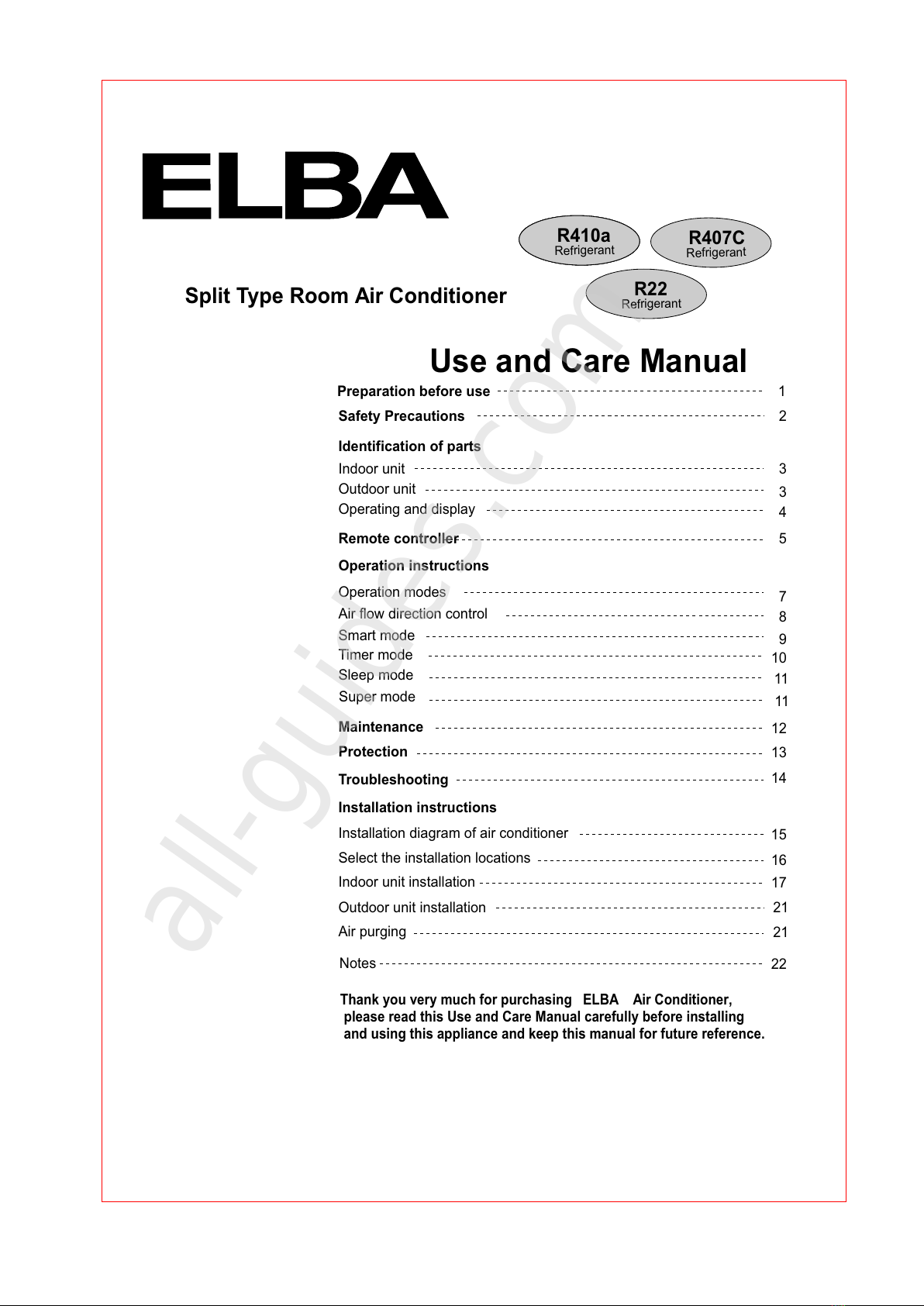

Elba K Series User manual

Split Type Room Air Conditioner

Use and Care Manual

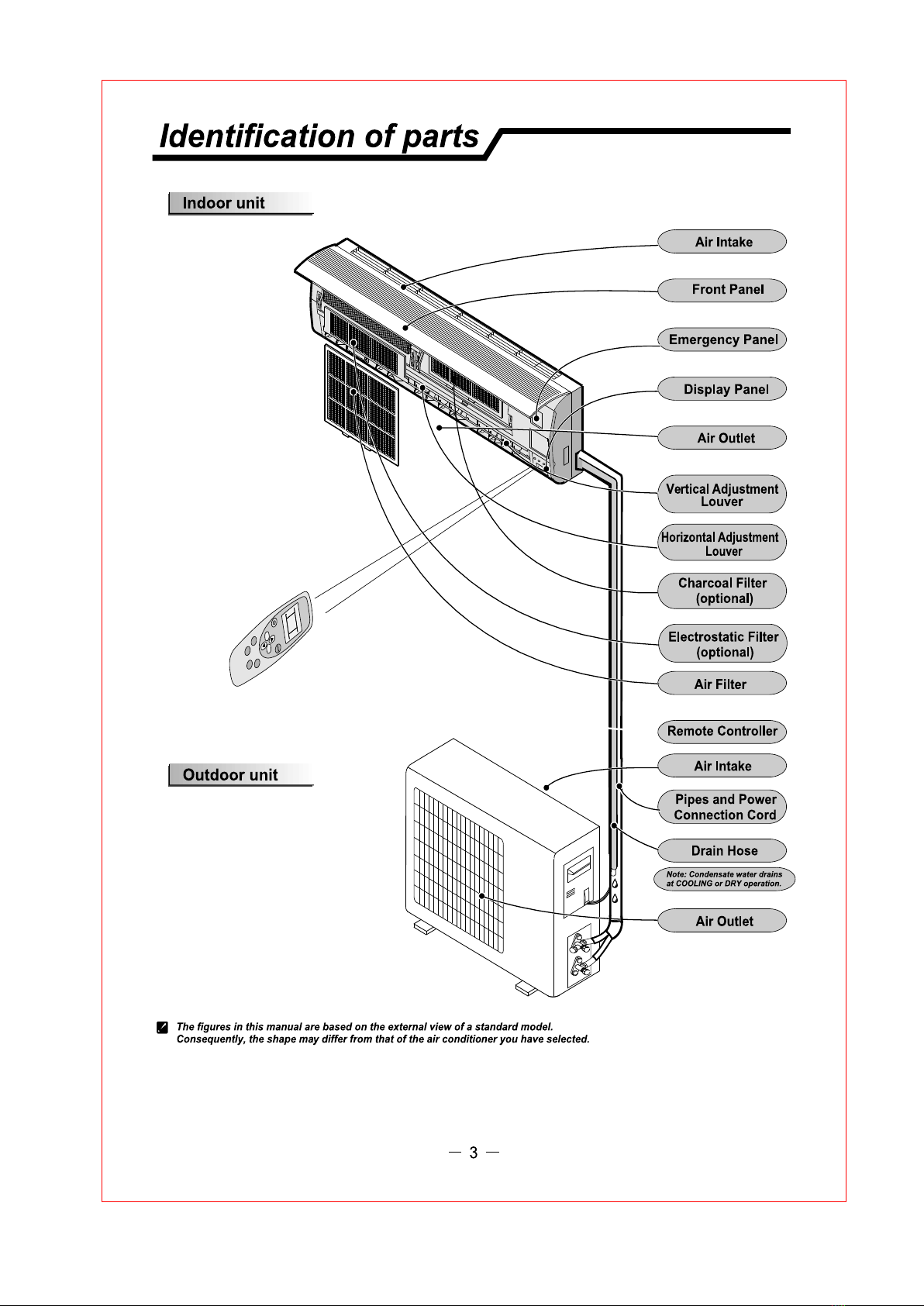

Identification of parts

Indoor unit

Outdoor unit

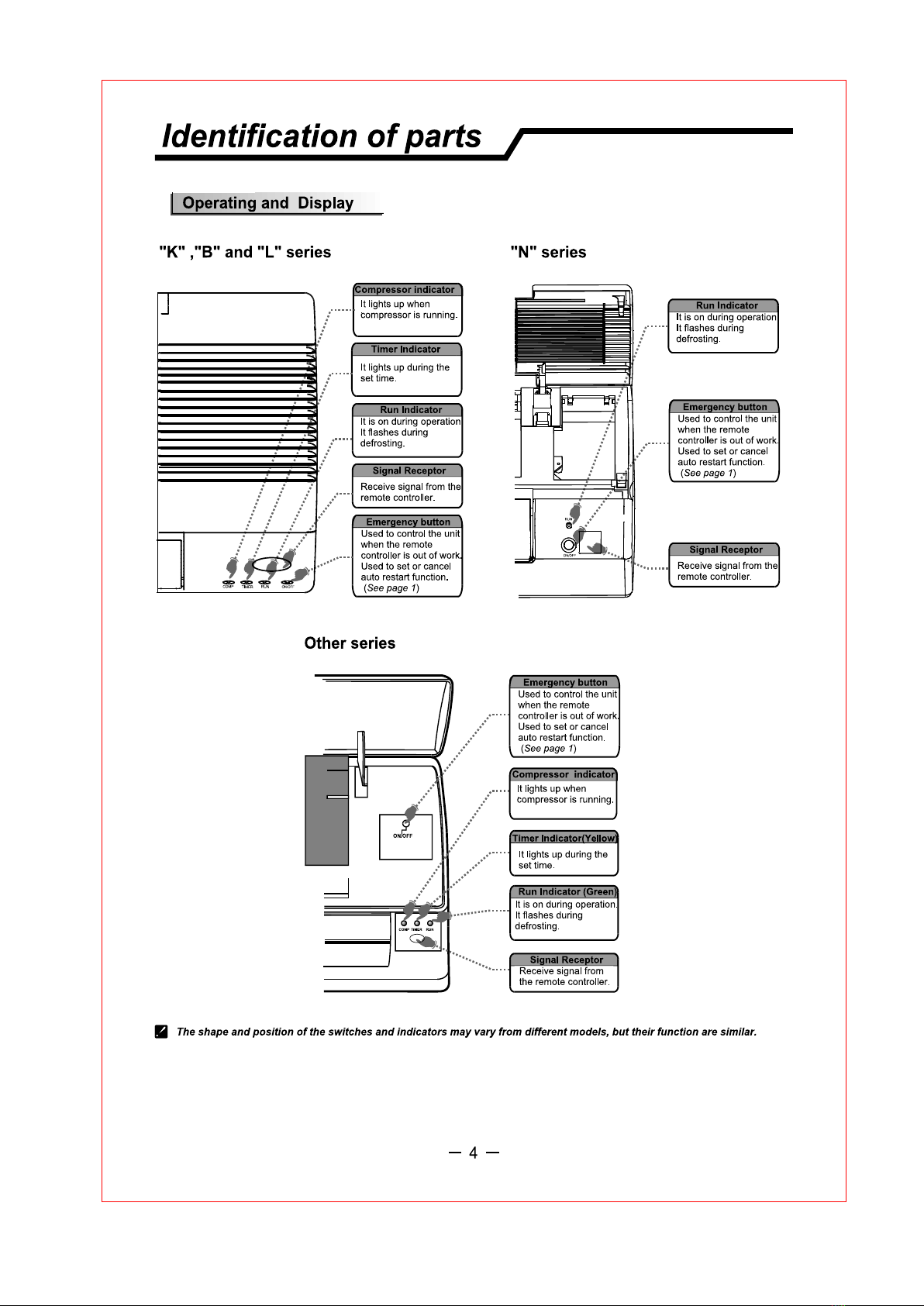

Operating and display

Remote controller

Operation instructions

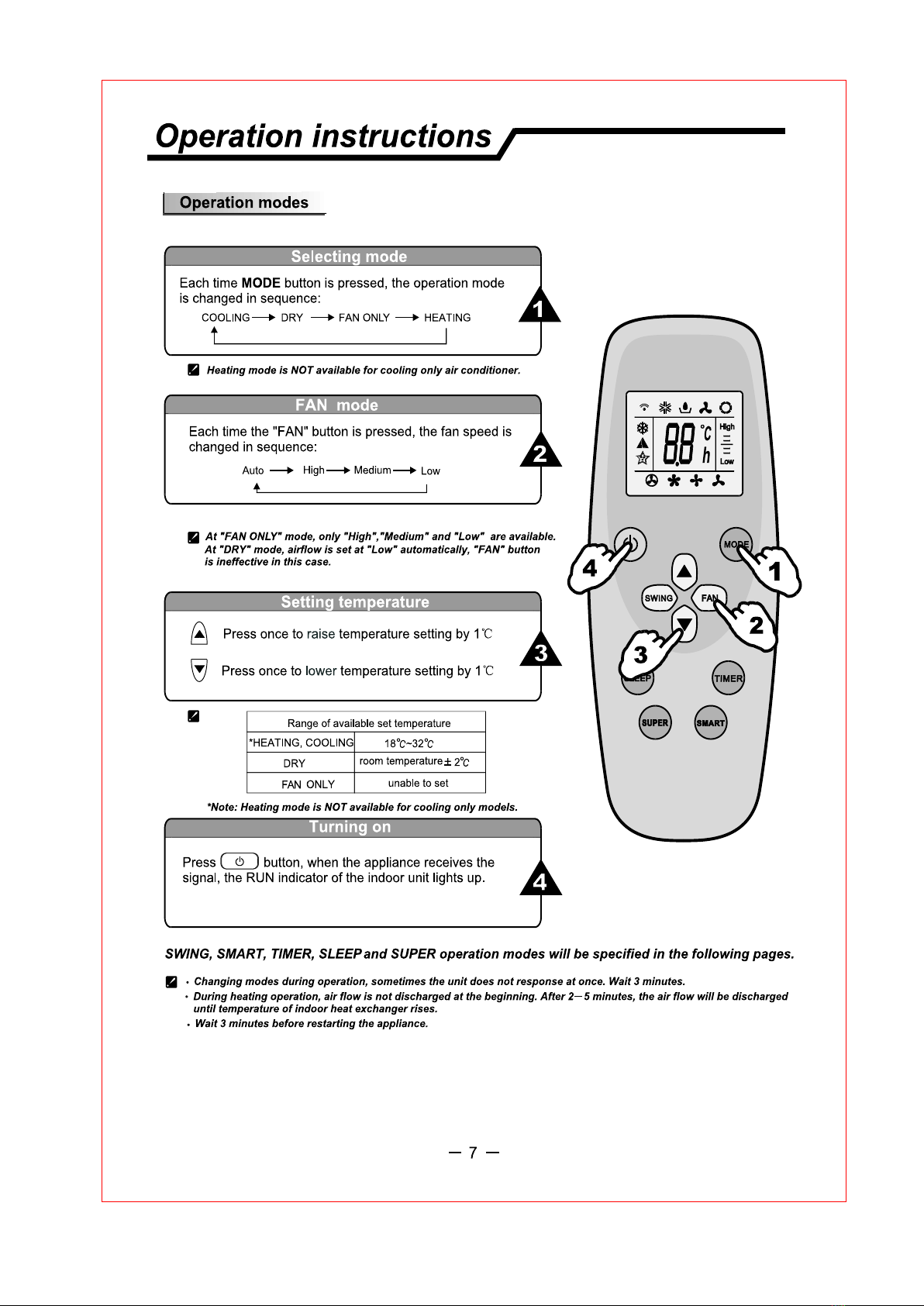

Operation modes

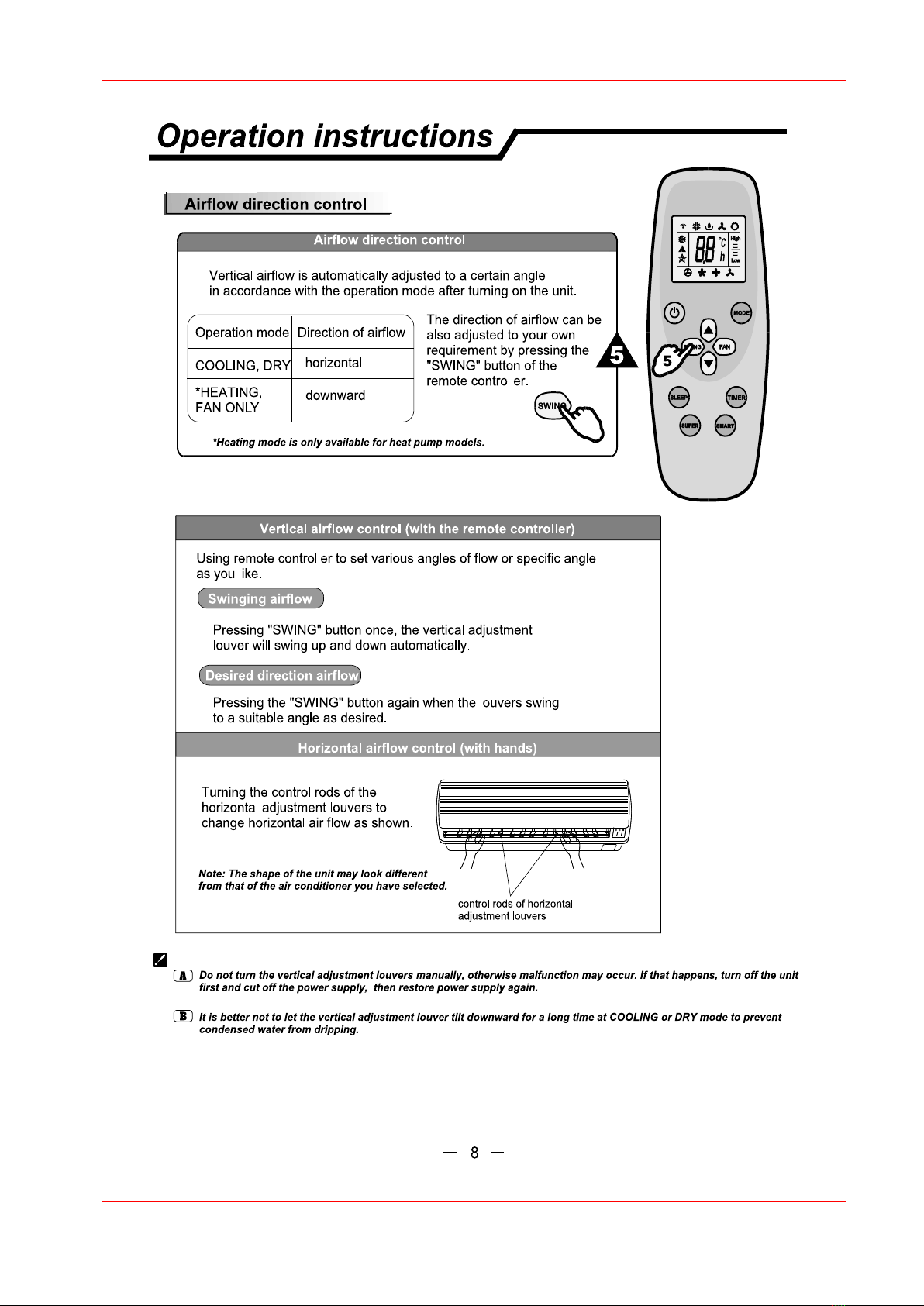

Air flow direction control

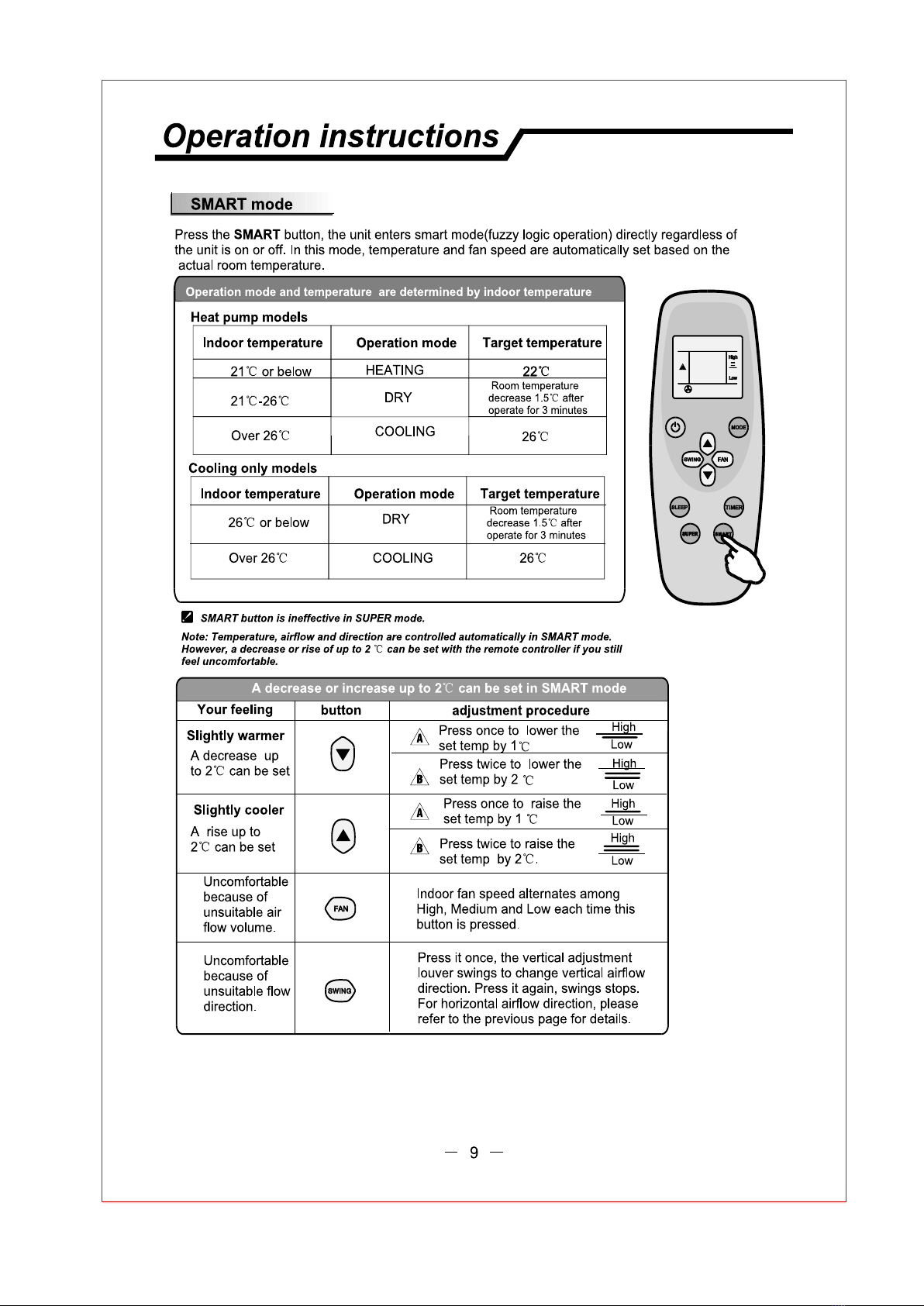

Smart mode

Timer mode

Sleep mode

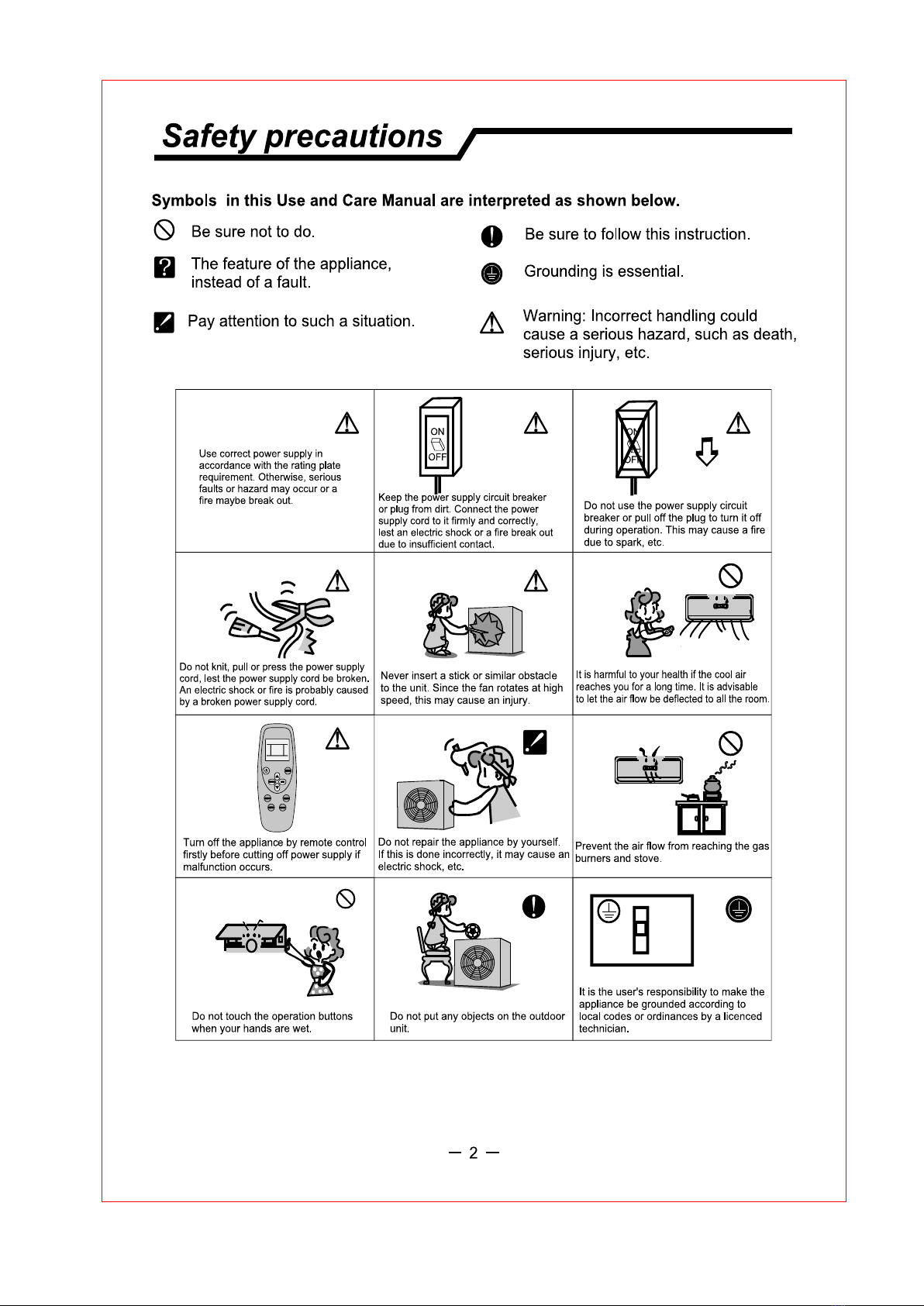

Safety Precautions

Preparation before use

Maintenance

Protection

Troubleshooting

Installation instructions

Installation diagram of air conditioner

Select the installation locations

Indoor unit installation

Outdoor unit installation

Air purging

Notes

R410A

Refrigerant

R407C

Refrigerant

R410A

Refrigerant

R410A

Refrigerant

R410a

Refrigerant

R22

Refrigerant

Super mode 11

Thank you very much for purchasing ELBA Air Conditioner,

please read this Use and Care Manual carefully before installing

and using this appliance and keep this manual for future reference.

All manuals and user guides at all-guides.com

all-guides.com

Each time after the remote controller replaces batteries or is energized, auto presettingremote controller

heat pump.If the air conditioner you purchased is a Cooling Only one, but you preset the remote controller

as Heat Pump, it doesn't bring any matter.

The appliance is preset as no auto restart function by manufacturer. If you want auto restart function,

let the appliance is energized, hold down the Emergency button (ON/OFF) on the indoor unit for over

5 seconds, auto restart function is set with buzz sound, air conditioner is on standby.

If auto restart has been set, hold down the Emergency button (ON/OFF) on the indoor unit for over 5

seconds, auto restart function is canceled with buzz sound, air conditioner is on standby.

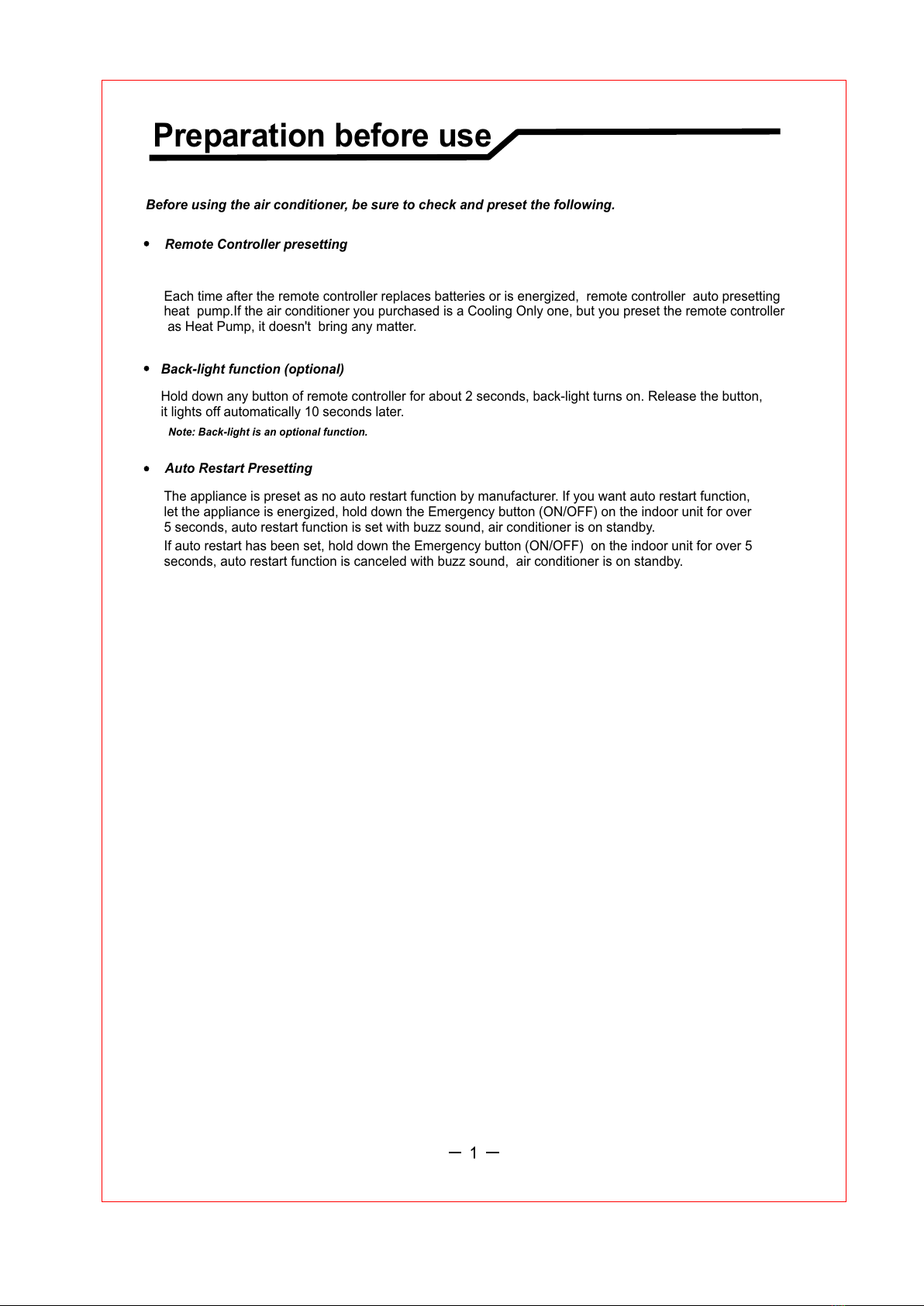

Remote Controller presetting

Before using the air conditioner, be sure to check and preset the following.

Auto Restart Presetting

Hold down any button of remote controller for about 2 seconds, back-light turns on. Release the button,

it lights off automatically 10 seconds later.

Note: Back-light is an optional function.

Back-light function (optional)

Preparation before use

All manuals and user guides at all-guides.com

all-guides.com

MODE

FAN

SWING

SLEEP

SUPER

SMART

TIMER

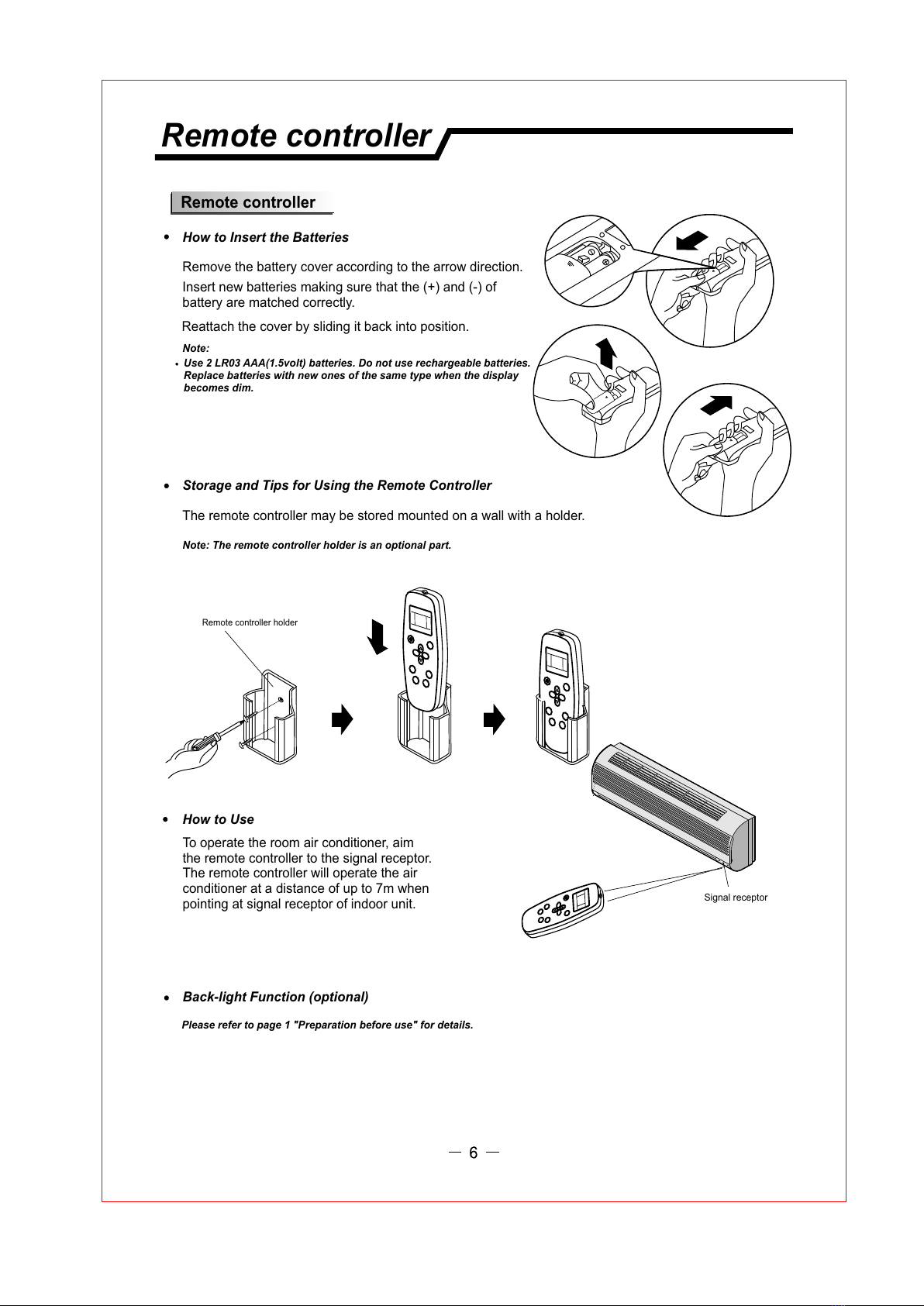

How to Insert the Batteries

How to Use

Remove the battery cover according to the arrow direction.

Insert new batteries making sure that the (+) and (-) of

battery are matched correctly.

Reattach the cover by sliding it back into position.

Note:

Use 2 LR03 AAA(1.5volt) batteries. Do not use rechargeable batteries.

Replace batteries with new ones of the same type when the display

becomes dim.

Storage and Tips for Using the Remote Controller

The remote controller may be stored mounted on a wall with a holder.

Note: The remote controller holder is an optional part.

To operate the room air conditioner, aim

the remote controller to the signal receptor.

The remote controller will operate the air

conditioner at a distance of up to 7m when

pointing at signal receptor of indoor unit.

Back-light Function (optional)

Remote controller holder

Signal receptor

Remote controller

Please refer to page 1 "Preparation before use" for details.

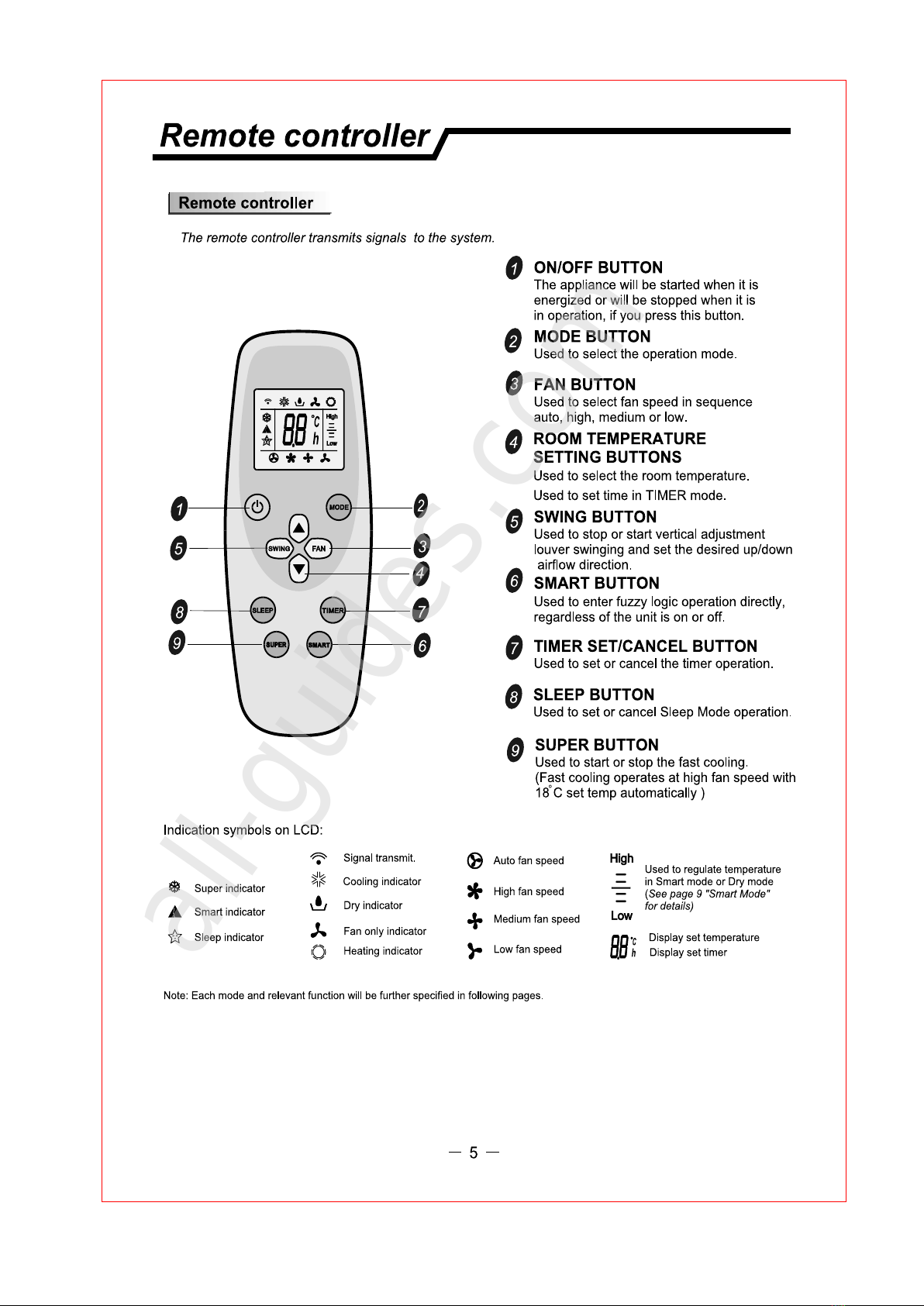

Remote controller

MODE

FAN

SWING

SLEEP

SUPER

SMART

TIMER

MODE

FAN

SWING

SLEEP

SUPER

SMART

TIMER
