Ei Electronics EIB140RC Series User manual

230V~ SMOKE & HEAT ALARMS

EIB140RC Series

Instruction Manual

with Alkaline Battery Backup

The EIB140RC series is supplied with an Easi-Fit

base that allows very quick and simple installation

of the Smoke Alarm, combined with simple detector

head removal and replacement. The Easi-Fit base

automatically connects both mains power and battery

as the detector head slides on to the Easi-Fit base.

Up to 12 Smoke/Heat Alarms can be interconnected so

that when one senses fire all the units alarm.

Interconnection can be achieved by hardwire or through

a RadioLINK Base, the EIB168RC.

A green LED indicates the presence of mains power. A

red LED will flash rapidly in an alarm scenario.

All Alarms feature a combined test/hush button.

The “Test/Hush” button will either silence false alarms

or perform a unit self-test.

In “Test” mode the Alarm will perform a self-test and

sound the horn.

In “Hush” mode the Alarm will be silenced for a period

of approximately ten minutes to overcome false alarm

conditions. It will then automatically reset itself.

Introduction to EIB140RC

Smoke/Heat Alarms

User Section

The EIB140RC series may be interconnected with

any other Brooks RadioLINK or RadioLINK+products

through fitting onto an EIB168RC RadioLINK Base.

This base will enable the EIB140RC series Alarms to

communicate RF messages to other Brooks products

such as the EIB450 RadioLINK Alarm Controller where

you can remotely locate, test and hush your EIB140RC

Series Alarms using this wireless controller.

For detailed instructions on using the RF interconnection

base EIB168RC with the EIB140RC series, please

consult the EIB168RC instruction manual.

Important Information

1. Switch off mains power to Alarm (green light on cover

should go out).

2. Remove unit as shown in “ALARM REMOVAL”

section on page 2.

3. Locate battery slot in base of Alarm as shown below.

4. Unclip battery from battery snap connectors.

5. Connect new battery by clipping back on to battery

snap connectors. Use only 9V Alkaline batteries

Duracell MN1604, Energizer 522. Other batteries can

cause problems.

We recommend that the “replace by date” on the battery

should still have at least 2 years to go. Older batteries

will give beeps prematurely.

6. Slide unit back on to the base. A click should be

heard as the alarm engages. (The unit cannot be

replaced on the base unless a battery is installed).

7. Press and hold the test button - horn should sound

loudly.

8. Reinstate mains power to Alarm (green light on cover

should come on).

Do’s Don’ts

Regularly check green mains

indicator is lit

Do not paint your Alarm. Do

not allow paint, water or dust

to contaminate the Alarm

Test Weekly – See testing

and maintenance

Your Alarm is powered by

230VAC. Do not open or

insert anything into the Alarm

If nuisance alarms occur –

press the test/hush button to

silence the Alarm for 10 mins

Remove or completely cover

your Alarm when decorating

to prevent dust or other

contamination damaging the

unit

Clean your Alarm regularly

RF Interconnection

Changing The Battery

(Ei141RC/144RC/146RC ONLY)

Check all Alarms weekly, especially after initial

installation or re-occupation (e.g. following a holiday)

1. Check that the green mains indicator light is on. (if it is

off check circuit breakers, fuses and wiring etc.)

2. Check that the red LED on the cover flashes once

every 40 seconds to indicate normal operation – If

the memory has been set indicating that the Alarm

has been activated in the last 24 hours, the red LED

will flash twice every 40 seconds. After 24 hours the

memory will be cleared.

3. Press the test button for up to 10 seconds to ensure

the sensor chamber, electronics and sounder are

working. A red light on the cover, will flash while horn

is sounding. The alarm will stop when the button is

released. Pressing the test button simulates the effect

of smoke or heat during a real fire and is the best way

to ensure the Alarm is operating correctly. This action

will also clear the memory.

WARNING: DO NOT TEST WITH FLAME

This can set fire to the Alarm and damage the house.

We do not recommend testing with smoke or heat as

the results can be misleading unless special apparatus

is used.

4. Check for any sign of contamination such as cobwebs

or dust and clean the alarm as described in the

“cleaning” section if necessary.

5. Interconnected Alarms only - Test the first unit by

pressing the button for 10 seconds. All the units

should alarm within 10 seconds of the first horn

sounding. The red light on the first unit only will flash

about once a second. On releasing the button the

local Alarm will stop sounding immediately and the

remote Alarms will stop sounding approximately 3

seconds later (if testing using RF interconnection

this could take slightly longer). This will verify that

the interconnect is working. Check all the other units

similarly.

6. Check the functioning of the mains battery back-up

directly after installation and then at least yearly as

follows:

- Turn off the mains power at the distribution board and

check that the green indicator light is extinguished.

- Press the test button and ensure the horn sounds

loudly for 10 seconds.

Turn on the mains supply at the distribution board only if

the unit passes the above test.

Note: If the mains is disconnected and the battery is

almost depleted the unit will beep every 40 seconds for

at least 30 days.

7. Monitor the Alarm over a short period of time for any

beeps.

Switching off Mains for long periods

If the premises are regularly being left without mains

power for long periods the Smoke/Heat Alarms should be

removed from their mounting plates to prevent the batteries

becoming fully depleted. (This is sometimes done with

holiday homes which are only occupied in the Summer).

The Alarms must be re-attached to the mounting plates

when the premises are re-occupied.

Testing and Maintenance

If the unit is beeping: Before replacing the battery,

check that the beeps are not due to one of the following:

(i) battery snaps not connected properly.

(ii) On the Optical Smoke Alarm only (EIB146RC) if the

unit beeps and the red light does not flash at the same

time it indicates a problem with the smoke chamber - see

“Cleaning Your Alarm” section.

(iii) If the beeps have continued for over 20 minutes

(and the other causes of beeps have been ruled out

- see “Troubleshooting” section) the battery must be

replaced.

See “Changing the Battery” section.

If all of the above possible causes of beeps have been

ruled out, but the beeping has still persisted for over

2 hours with the green light on - replace the battery.

The Smoke / Heat Alarm must be returned to the

manufacturer for repair or replacement - see “Service

and Guarantee” section.

WARNING: Electrical shock hazard. Disconnect the AC

mains at the fuse box or circuit breaker powering the

Alarm before following the cleaning instructions.

Clean your Alarm regularly, particularly in dusty areas.

Use the narrow nozzle attachment of your vacuum

cleaner to remove dust, insects and cobwebs from the

sides and cover slots where the smoke or heat enters.

To clean the cover, wipe with a damp cloth. Dry cover

thoroughly with a lint free cloth.

WARNING: Do not paint your Alarm.

Other than the cleaning described above, no other

customer servicing of this product is required. Repairs,

when needed, must be performed by the manufacturer.

All Alarms are prone to dust and insect ingress which

can cause nuisance/false alarms or failure to alarm.

In certain circumstances even with regular cleaning,

contamination can build up in the smoke sensing

chamber causing the Alarm to sound or fail. If this

happens the alarm must be returned to us for servicing

or replacement. Contamination is beyond our control, it

is totally unpredictable and is considered normal wear

and tear.

For this reason, contamination is not covered by the

guarantee and a charge is made for servicing such units.

If you experience persistent nuisance/false alarms it may

mean that the environment may not be suitable for your

particular Alarm type. If, for example it is due to dust

contamination or exposure to steam you should be using

an ionisation Alarm. If the false alarm is due to cooking

fumes an optical Alarm should be fitted.

The chamber inside the Ionisation (EIB141RC) Smoke

Alarms contains a small amount of radioactive material

(33kBq of Amercium 241). Do not tamper with the

chamber. You may safely install and clean the Smoke

Alarm following this leaflet’s instructions.

When sure that it is just a nuisance/false alarm, simply

press the test/silence button briefly on the Alarm to

silence the unit for 10 minutes.

If, when the alarm goes off, there is no sign of smoke,

heat or noise to indicate that there is a fire, you should

get your family into a safe place, before you start

investigating.

Nuisance / False Alarms

Check the house carefully in case there is a small fire

smouldering somewhere.

Check whether there is some source of smoke or fumes,

for example cooking fumes being drawn past the Smoke

Alarm by an extractor.

If there are frequent nuisance/false alarms it may be

necessary to re-locate the device away from the source

of the fumes or replace an Ionisation Alarm with an

Optical Alarm. If for some reason the Alarm continues

to sound without smoke or heat being present (due to

insect infestation or contamination build-up for example)

the units can be silenced by disconnecting the mains

power and removing the unit - see “ALARM REMOVAL”

section - page 9 (Installer section).

If cleaning the Alarm does not correct the problem

it can be returned to the manufacturer for repair or

replacement - see “Service and Guarantee” section.

Silence Feature

All the Smoke Alarms have a combined Test/Silence

Button to help you control nuisance/false alarms.

1. To silence a nuisance/false alarm, press the Test/

Silence Button located on the cover. The Alarm will

automatically switch to a reduced sensitivity condition

for a 10 minute period (very large levels of smoke

from a nearby fire will override the silence period).

The unit will flash the red light every 10 seconds (instead

of the normal 40 seconds) to indicate the sensitivity is

reduced.

On interconnected Alarms, pressing the Test/Silence

Button on the one sensing smoke (i.e. the one with the

red light flashing every second) will silence all alarms.

Pressing the Silence Button on any other Alarm will not

silence the alarm.

2. The unit will reset to normal sensitivity at the end of

the silenced period.

Use the Smoke / Heat Alarm Test Buttons to familiarise

your family with the Alarm sound and to practice fire drills

regularly with all family members. Draw up a floor plan

that will show each member at least 2 escape routes

from each room in the house.

Children tend to hide when they don’t know what to do.

Teach children how to escape, open windows, and use

roll up fire ladders and stools without adult help. Make

sure they know what to do if the alarm goes off.

1. Check room doors for heat

or smoke. Do not open a hot

door. Use an alternate escape

route. Close doors behind you

as you leave.

2. If smoke is heavy, crawl

out, staying close to floor.

Take short breaths, if possible,

through a wet cloth or hold

your breath. More people die

from smoke inhalation than

from flames.

Planning Your Escape Route

NEVER

3. Get out as fast as you can.

Do not stop for packing. Have

a prearranged meeting place

outside for all family members.

Check everybody is there.

4. Call the Fire Brigade

immediately on a mobile phone

or from a neighbour’s house.

Make sure to call the Brigade

for all fires no matter how small

- fires can suddenly spread. Also

call the Brigade even if the alarm

is automatically transmitted to a

remote monitoring centre - the

link may have failed.

5. NEVER re-enter a burning

house.

Smoke / Heat Alarms have significantly helped to reduce

the number of fire fatalities in countries where they are

widely installed.

However independent authorities have stated that they

may be ineffective in some circumstances. There are a

number of reasons for this:

• NOTE: Constant exposure to high or low temperatures

or high humidity may reduce the life of the battery.

• Smoke / Heat Alarms will not detect fire if sufficient

smoke / heat does not reach the alarm. Smoke / heat

may be prevented from reaching the Alarm if the fire is

too far away, for example, if the fire is on another floor,

behind a closed door, in a chimney, in a wall cavity,

or if the prevailing air draughts carry the smoke / heat

away. Installing Smoke / Heat Alarms on both sides

of closed doors and installing more than one Smoke

/ Heat Alarm as recommended in the ‘INSTALLER

INSTRUCTIONS’ section significantly improves the

probability of early detection.

• The Alarm may not be heard.

• A Smoke / Heat Alarm may not wake a person who has

taken drugs or alcohol.

• Smoke / Heat Alarms may not detect every type of fire

to give sufficient early warning.

• Optical and Ionisation Smoke Alarms should be fitted

for the fastest response to all types of fires.

• Smoke / Heat Alarms don’t last indefinitely. For

example if there is a build up of contamination,

performance will be impaired.

It is recommended that the Smoke / Heat Alarms are

replaced after 10 years as a precaution.

If your Alarm fails to work after you have carefully read

all the instructions, checked the unit has been installed

correctly, and is receiving AC power (green light on)

contact Customer Assistance at the address given at

the end of this leaflet. If it needs to be returned for repair

or replacement put it in a padded box and send it to

“Customer Assistance and Information” at the nearest

address given on the Alarm or in this leaflet. Do not snap

on to the mounting plate as this connects the battery and

NEVER

Limitations of Smoke / Heat Alarms

Service and Guarantee

the unit may beep or alarm in the post. State the nature

of the fault, where the Alarm was purchased and the

date of purchase.

Brooks guarantees this Alarm to the original consumer

purchaser for five years from date of purchase

against any defects that are due to faulty materials or

workmanship. This guarantee only applies to normal

conditions of use and service, and does not include

damage resulting from normal wear and tear, incorrect

installation, use of incorrect batteries, accident, neglect,

misuse, unauthorised dismantling, tampering, or

contamination howsoever caused. If this Alarm should

become defective within the guarantee period, it must

be returned to Brooks, with proof of purchase, carefully

packaged, with the problem clearly stated.

Within Australia this guarantee is provided to the

consumer in addition to any right or remedy afforded to

the consumer under Australian Consumer Law. Within

New Zealand this guarantee is provided to the consumer

in addition to any right or remedy afforded to the

consumer under the relevant New Zealand consumer

protection laws. This guarantee is in addition to your

statutory rights as a consumer and does not negate any

such statutory right.

1. ALARM SOUNDS FOR NO APPARENT REASON:

(1) Identify the alarm source. On interconnected units,

the red light on the cover will flash rapidly only on the

unit which is the source of the alarm. If an optional

EIB1529RC Control Switch or an EIB450 Alarm

Controller is installed, press Locate when the system is

sounding to identify source of alarm.

(2) Check for fumes, steam etc. from the kitchen or

bathroom. Paint and other fumes can cause nuisance/

false alarms.

(3) Press the test/silence button to silence the Smoke/

Heat Alarm for 10 minutes.

(4) If alarm does not stop, switch off mains and remove

unit - see “Important Information” section. (Only remove

the alarm with the red light flashing, the others are

probably satisfactory).

2. LOW BATTERY & OTHER BEEPS:

(1) If the battery is correctly connected and the unit

has beeped for over 20 minutes the battery is probably

depleted. Obtain a new battery, disconnect the mains,

then remove the Alarm and replace the depleted battery.

(2) If the EIB146RC beeps without the red light flashing

at the same time, the chamber is defective. Clean the

chamber.

(3) If the green mains light is on and replacing the battery

or cleaning the unit has not stopped the beeps, a fault

may exist. Disconnect the mains first and replace the

unit - see “Alarm Removal” section.

3. INTERCONNECTED ALARMS DO NOT ALL

SOUND:

(1) Hold test button for 10 seconds after first alarm has

sounded to ensure signal is transmitted to all units.

(2) One or more of the connections may not be correctly

connected. We recommend you consult a licensed

electrician.

Troubleshooting

Brooks Australia PTY Ltd.

4 Pike Street, Rydalmere NSW 2116

Australia

Tel: 0296841466

www.brooks.com.au

Ei Electronics. Shannon, Co Clare, Ireland.

Tel: 061 471277

www.eielectronics.com

Conforms To AS3786:2014

Installer Section

Installation Guide

Alarm Removal

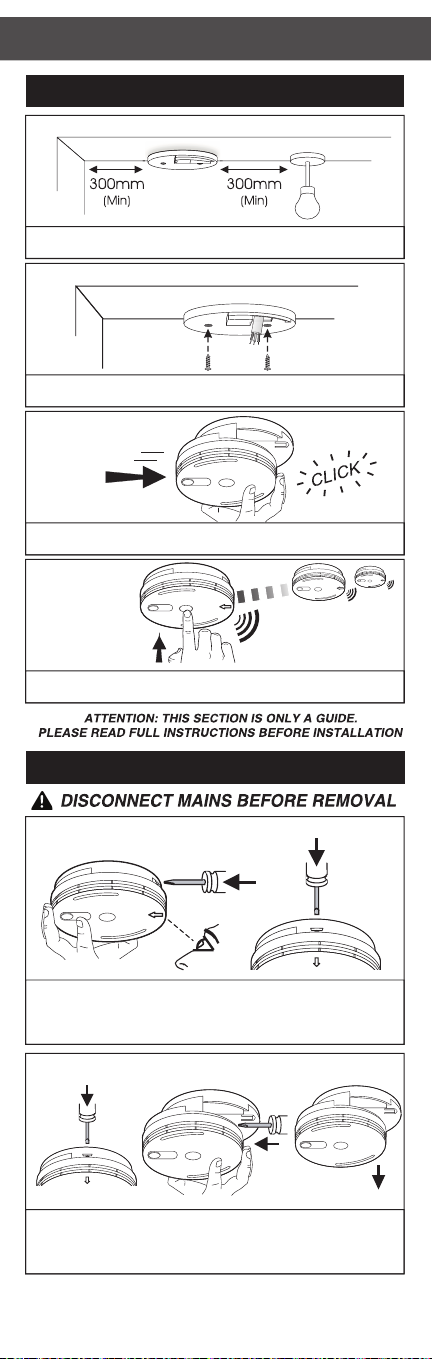

ALARM SHOULD BE CEILING MOUNTED AT LEAST 300mm FROM

WALLS & OBSTRUCTIONS, IDEALLY CENTRALLY IN ROOM/AREA

WIRE TO TERMINALS ON THE BASEPLATE AND FIX BASEPLATE

TO CEILING USING THE FIXINGS PROVIDED

LOCATE CORRECT SITING POINT

SLIDE ALARM ONTO BASEPLATE. A CLICK SHOULD BE HEARD

AS THE TAMPER-PROOF CATCH ENGAGES

SLIDE ON ALARM

LOCATE THE ARROW ON THE FRONT FACE OF THE ALARM

THE SLOT IS LOCATED DIRECTLY ABOVE THE ARROW

INSERT A FLAT-BLADED SCREWDRIVER HORIZONTALLY

APPROX. 1cm INTO THE CENTRE OF THE REMOVAL SLOT

LOCATE REMOVAL SLOT & INSERT SCREWDRIVER

WITH THE SCREWDRIVER STILL INSERTED, PUSH THE LOWER

HALF OF THE ALARM AWAY FROM THE SCREWDRIVER, IN THE

DIRECTION OF THE ARROW ON THE COVER

SLIDE ALARM OFF BASE & REMOVE ALARM

PRESS AND HOLD THE TEST BUTTON ON THE ALARM. THE

ALARM AND ANY OTHER INTERCONNECTED UNITS SHOULD SOUND

TEST ALARMS

FIX & WIRE BASEPLATE

The minimum number of smoke Alarms is set out in the

National Construction Code (NCC) Building Code of

Australia: Volumes 1 and 2, and/or the relevant State or

Territory Building Regulations.

The main reason for fitting Smoke & Heat Alarms in

dwellings is to ensure that when there is a fire, sufficient

early warning is given so that everybody can escape safely.

This means that the fire alarms should ideally be located

near all potential sources of fires and that the alarm

should be heard throughout the house – particularly in

the bedrooms.

It is also important that nuisance/false alarms are

minimised to ensure the units are not disabled or ignored.

The Australian Standard AS1670.1 gives guidance on:

- how many Alarms to install

- what type of Alarm to use

- where to position Alarms

The above points will depend on the type of dwelling to

be protected and the level of fire risk.

Fire Risk Assessment

The number of smoke and/or heat Alarms that need

to be installed depends on the fire risk. The risk

assessment is based on a combination of probabilities:

- fire occurring

- injury or death to occupant

- system operating correctly with a fire

- early detection and warning to occupants in the event

of a fire.

The greater the risks, the more comprehensive and

reliable systems need to be.

How Many Alarms To Install

This manual suits for next models

Table of contents

Other Ei Electronics Smoke Alarm manuals

Ei Electronics

Ei Electronics Ei 181 Ionisation User manual

Ei Electronics

Ei Electronics EI129 User manual

Ei Electronics

Ei Electronics B16009-R0-160RC Series User manual

Ei Electronics

Ei Electronics Ei175 Ionisation User manual

Ei Electronics

Ei Electronics Ei141RC - Ionisation User manual

Ei Electronics

Ei Electronics EI 170 Manual

Ei Electronics

Ei Electronics Ei 169 Manual

Ei Electronics

Ei Electronics EiA207 Series User manual

Ei Electronics

Ei Electronics Ei650 Series User manual

Ei Electronics

Ei Electronics Ei144 Heat User manual

Ei Electronics

Ei Electronics Ei141 Ionisation User manual

Ei Electronics

Ei Electronics Ei2110 User manual

Ei Electronics

Ei Electronics Ei 151TLR Ionisation User manual

Ei Electronics

Ei Electronics Ei100TY User manual

Ei Electronics

Ei Electronics Ei146 Optical User manual

Ei Electronics

Ei Electronics Ei127 User manual

Ei Electronics

Ei Electronics EI 100C Interconnect User manual

Ei Electronics

Ei Electronics Ei603CRF User manual

Ei Electronics

Ei Electronics Ei 176 Optical User manual

Ei Electronics

Ei Electronics EiA605MRF User manual

Ei Electronics

Ei Electronics Ei144 Heat User manual

Ei Electronics

Ei Electronics EI 159 User manual

Ei Electronics

Ei Electronics Ei 105C Optical User manual

Ei Electronics

Ei Electronics Ei3105RF Optical User manual

Popular Smoke Alarm manuals by other brands

x-sense

x-sense SD19-W user manual

BRK electronic

BRK electronic First Alert P1010 quick start guide

FireAngel

FireAngel Thermoptek ST-622 user manual

teko

teko Astra-42A user guide

Safetec

Safetec SDS-2/6 Additional Fault Finding Instructions

Siemens

Siemens PE-11C installation instructions

System Sensor

System Sensor DH500ACDC Installation and maintenance instructions

Resolution Products

Resolution Products RE612 CryptiX quick start guide

First Alert

First Alert PC900V user manual

Eminent

Eminent EM6590 E-Domotica user manual

Carrier

Carrier Kidde Quell Q301 user manual

VESDA

VESDA VLF-500 Product guide

ELRO

ELRO FS8110 instruction manual

Heiman

Heiman SMOKI NS-626PHS user manual

Regin

Regin SDD-S65 instruction manual

Family Gard

Family Gard FG225 user manual

Greystone

Greystone DSD120 Installation and maintenance instructions

Aparton

Aparton ASD-10 Instructions for use
