EFG Active - Sliding top (with screen)

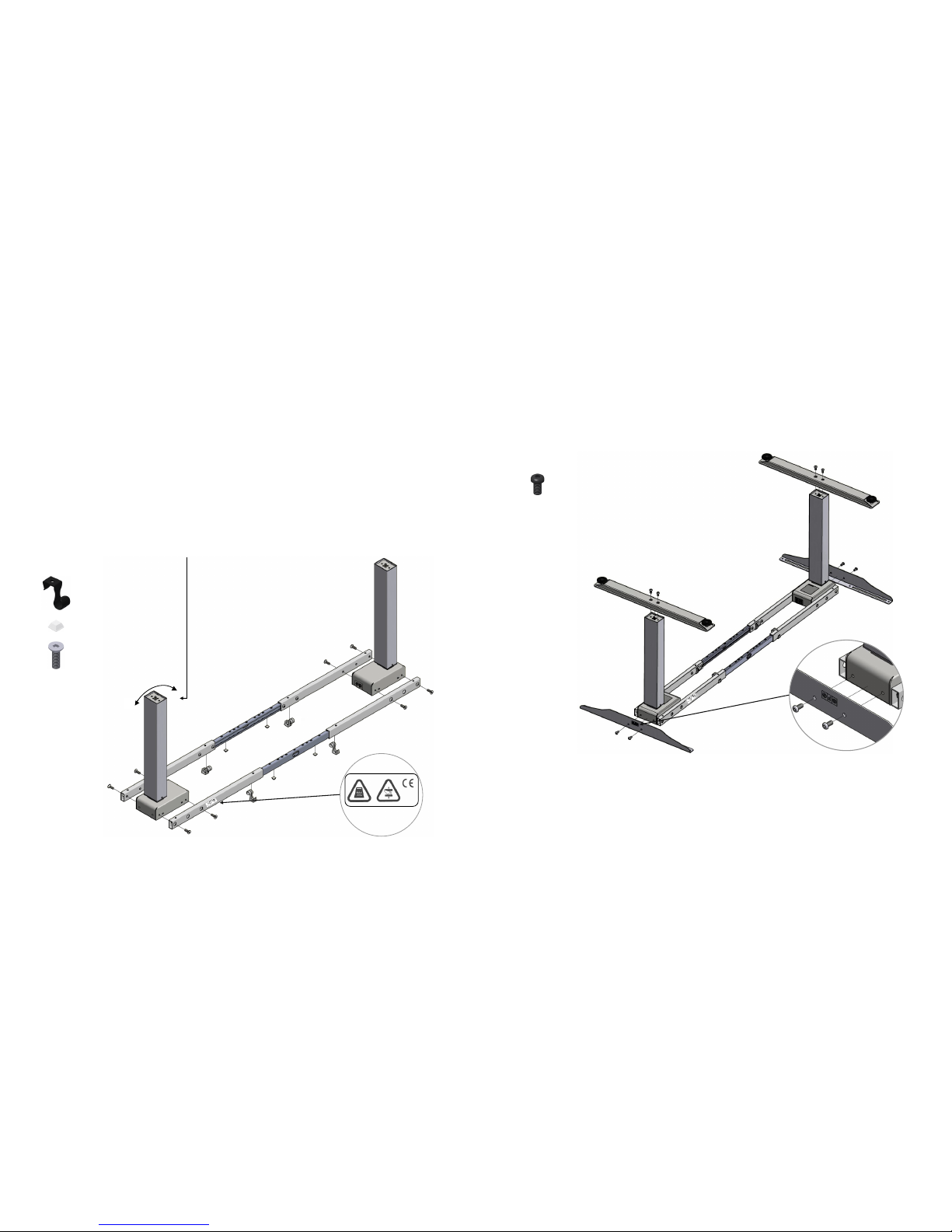

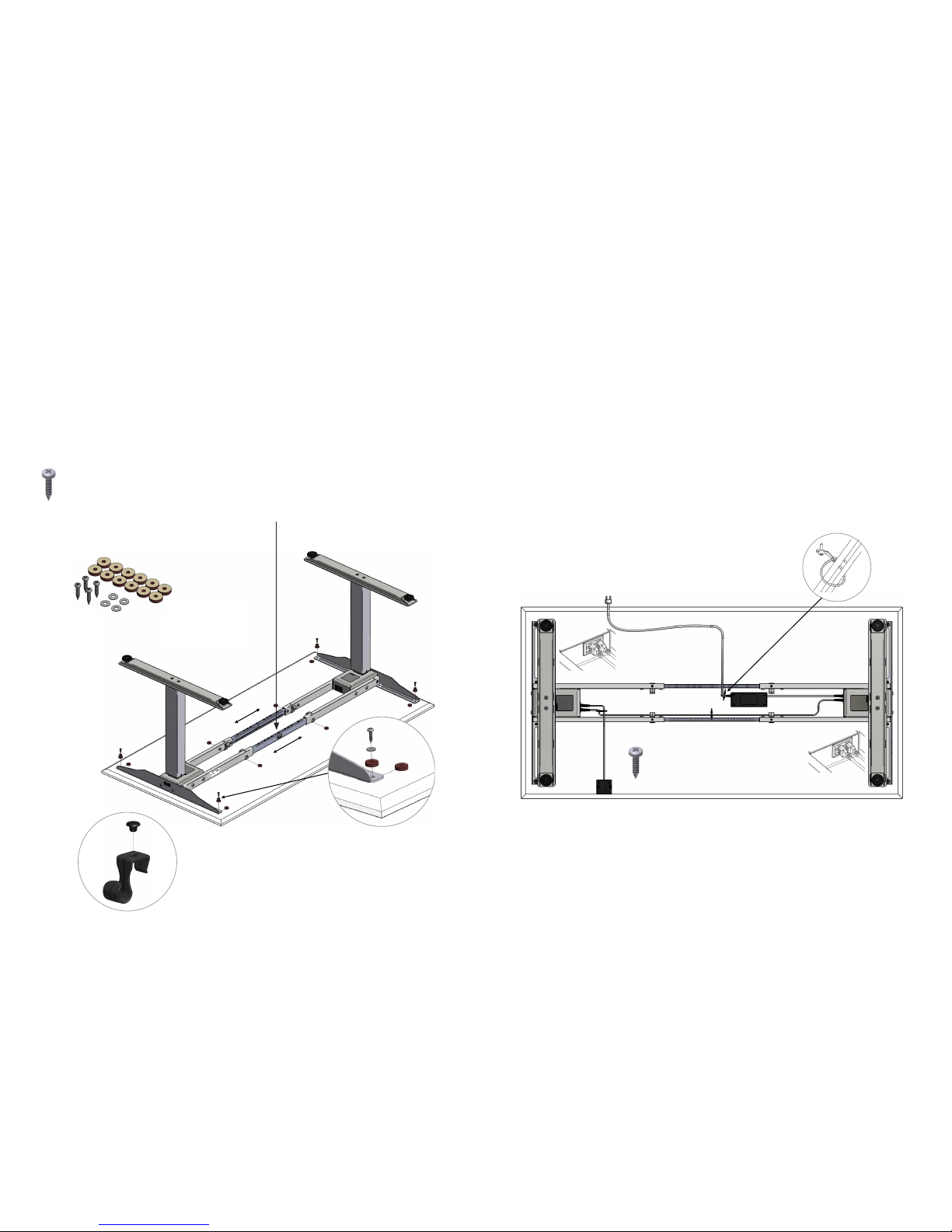

Start with doing steps 1 and 2 from Frame assembly (Page 2 and 3).
Except bumbers, do NOT use these! (1)

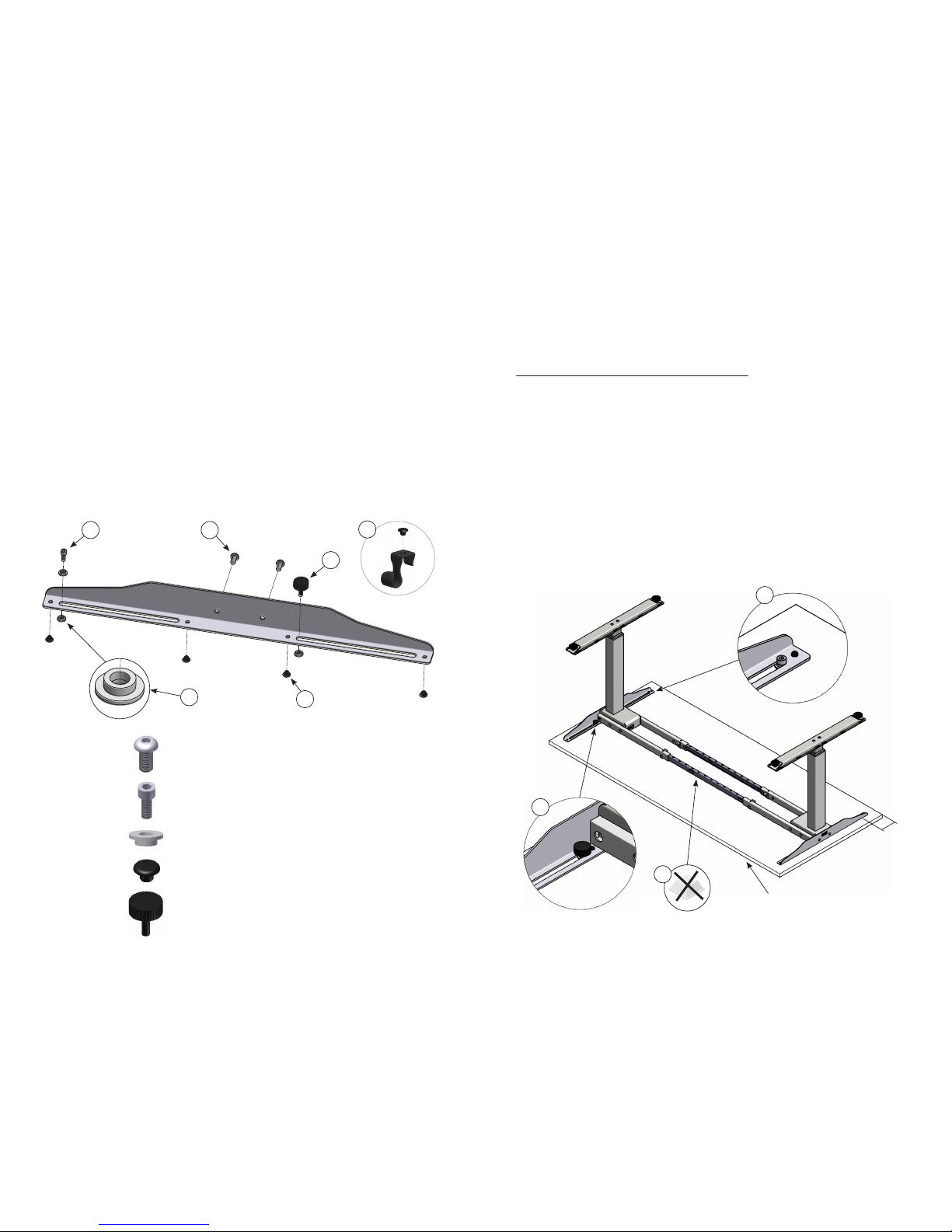

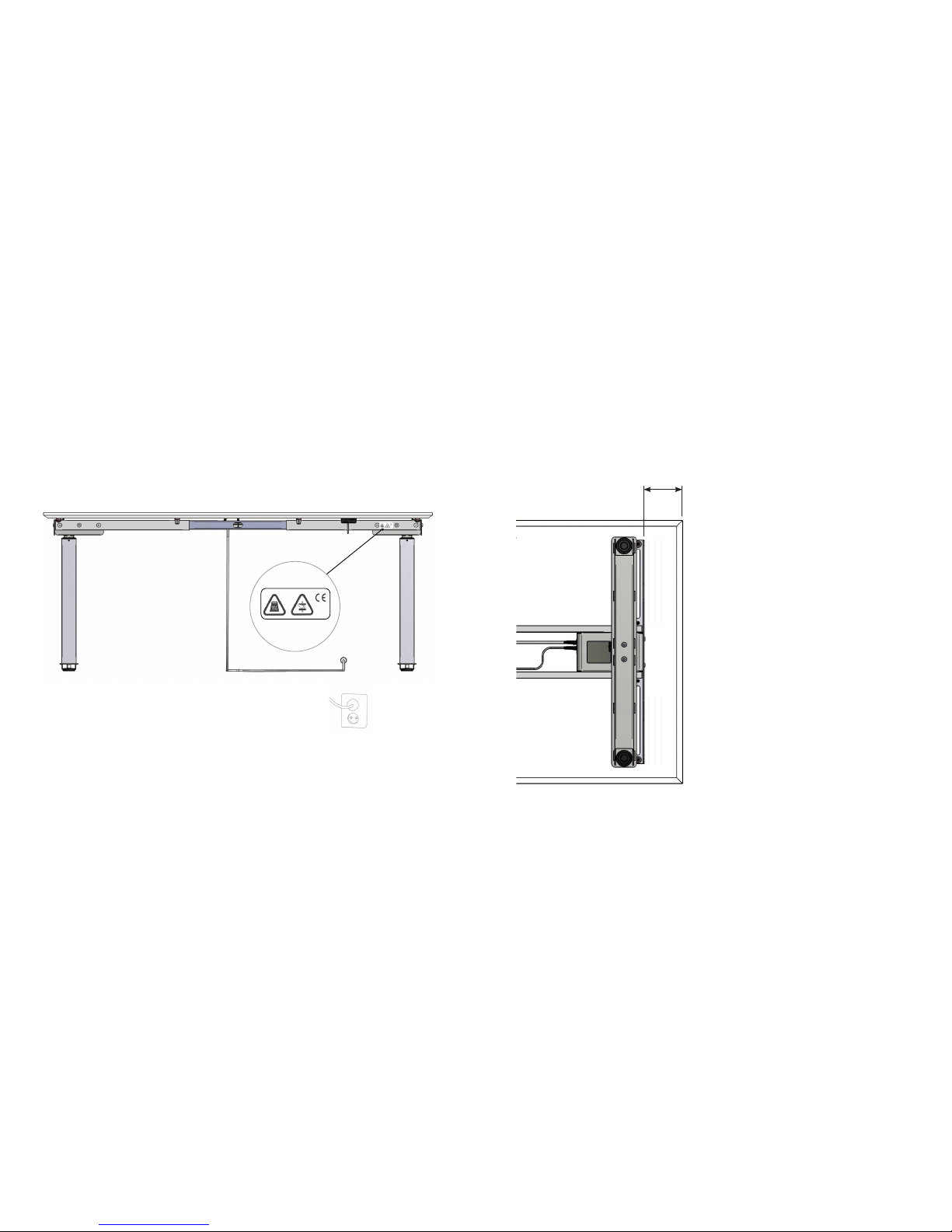

Step 3 - Assembly Frame to table top.
Loosen screws in beams and adjust frame width symmetric. Match the
threaded inserts in table top with slots on the sidebars of the frame.
Use washer and screw (B) for the inserts positioned at the back of the
table top with the shortest distance to the edge (2). For the remaining
two inserts, use washer and knob (3) and screw (B) and washer.
Tighten the screws just enough so you will get a steady slide on table
top. Use knobs for releasing the table top when to slide.
4x same screw as
in Step 2 (Page 3).
Screw M6x15 (x3)
Washer (x7)
Spacers (x8)
A=
B=
C=
D=
E= Knob (x1)
F= Screw KXTB Ø5x20 (x6)
For mounting screen
2
3
Shortest
distance
Towards user
(Front edge)
Screen
EFG Active - Sliding top (with screen)

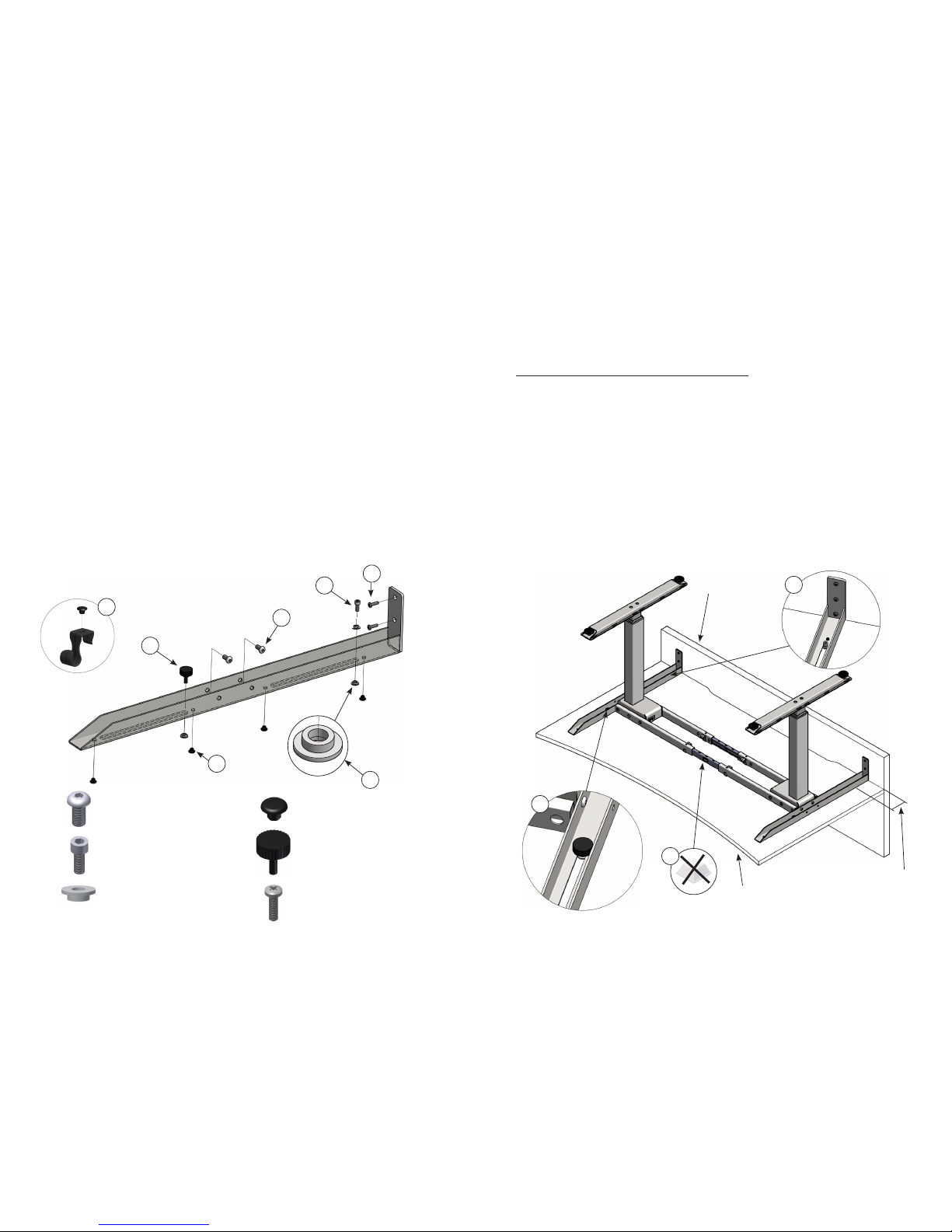

Exploded overview of the different parts used for a sidebar with sliding
top with screen. The amount of parts are for both sidebars.
Mount the spacers in the Ø7-holes on the surface towards the table top.
Place the washers (C) from the same surface as the spacers and let
the smaller outer diameter be placed inside the slots. Use a second one
and place it on the inside with the screws, not the Knob (E).
Cable hooks need to be upgraded with spacers (D). Illustration 1.
Use all three screws (F) for best result. Third screw not illustarted,
detailed illustration on page 11 with all screws (2).
Don´t tighten the screws (F) to hard. This will damage the
chipboardandthescreenwillnotbexedpropertothedesk.
1
D
A
B
C
C ( 3 )
C
