Eduard Zoom Bf 109E interior S.A. User manual

1/72 scale detail set for AIRFIX •sada detailù pro model 1/72 AIRFIX

Bf 109E interior S.A.

SS453

eduard

REMOVE

ODSTRANIT

OPTION

VOLBA

REPLACE

NAHRADIT

BEND

OHNOUT

GRIND

OBROUSIT

SYMETRICAL ASSEMBLY

SYMETRICKÁ MONTÁŽ

DRILL HOLE

VRTAT OTVOR

APPLY EXPRESS MASK AND PAINT BEFORE GLUING

POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM

1/3 SS 453

ORIGINAL KIT PARTS

PÙVODNÍ DÍLY STAVEBNICE PHOTO-ETCHED PARTS

LEPTANÉ DÍLY

PARTS TO BE REMOVED

DÍLY K ODSTRANÌNÍ

FILL

TMELIT

A11

A28

A23

22 29 28

plastic

A24

2/3 SS 453

A27

A2 27

20 33

A27

A16

3/3 SS 453

www.eduard.com

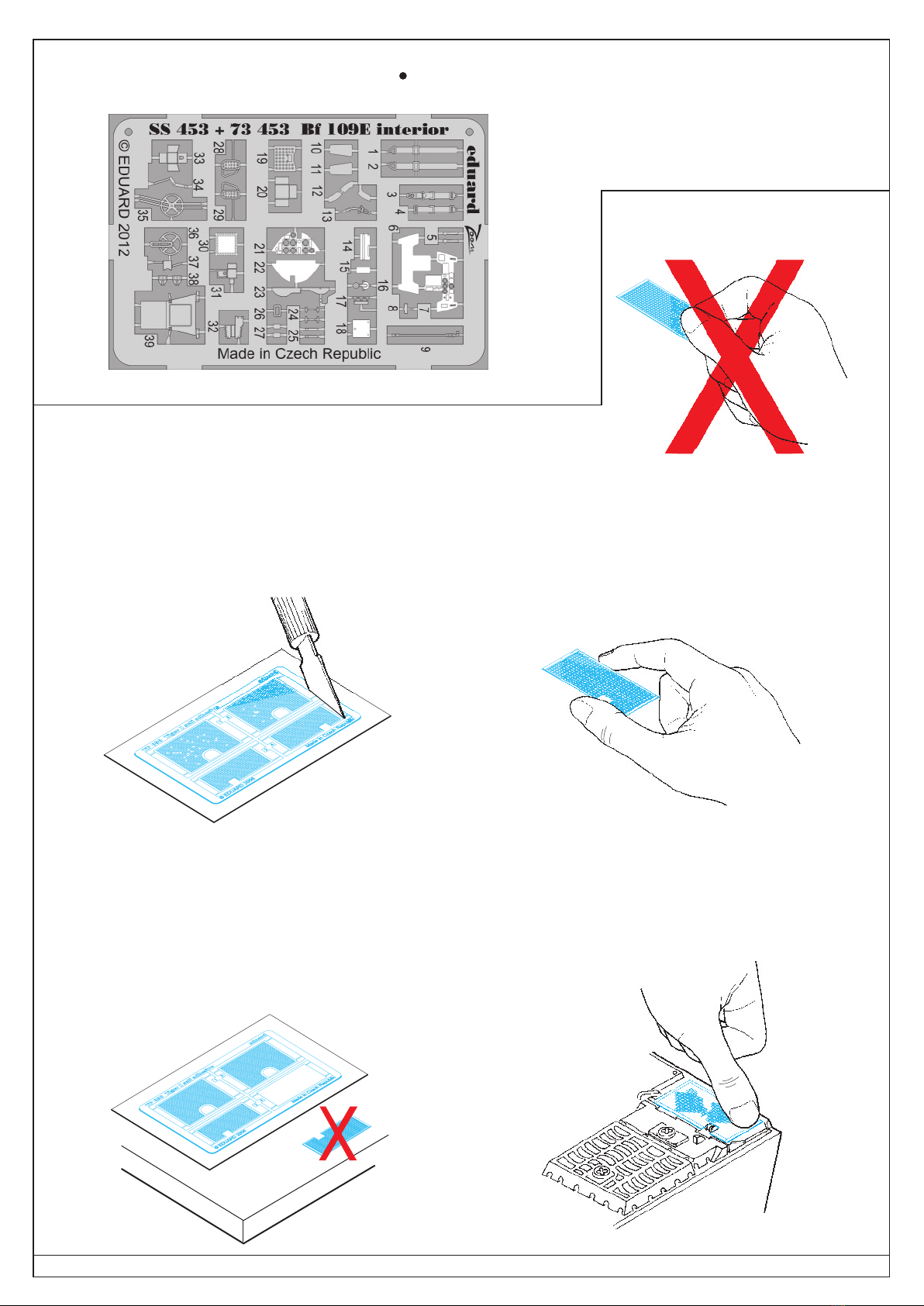

2. Do not inadvertently place etched componets on an

unwanted surface. Attempts to remove will result in

damage to your part.

2. Nepokládejte samolepící díly na volné plochy. Pokud

je omylem pøilepíte, pøi pokusu o odlepení dojde k

poškození dílu.

3. Do not touch the adhesive areas of the etched components.

3. Nesahejte na èásti dílù, na kterých je naneseno lepidlo.

1. Separate the etched components from their frames on the

protective paper. Removal from the paper is done only after

separation of the parts from the frames.

1.Samolepící díly oddìlujte od rámeèku na podkladovém

papíøe. Po oddìlení je sejmìte z krycího papíru.

4. Hold the parts by the edges, or at areas free of adhesive.

4. Samolepící díly berte za hrany nebo za èásti, na kterých

není nanesené lepidlo.

5. Lightly place the component in the desired location and

position. Adjust as required. The component will be

permanently affixed when pressed onto its intended

location, its location can be adjusted.

5. Díl lehce položte do pozice, ve které má být nalepen.

Upravte pøesnou pozici a pøimáèknìte. Díl dokonale pøilne

až po pøimáèknutí, pøed pøimáèknutím lze dílem opatrnì

manipulovat.

PARTS WITH GLUE DÍLY OPATØENÉ LEPIDLEM
