Eduard Bf 109E-4 interior S.A. User manual

1/4

Bf 109E-4 interior S.A.

32 701

1/32 scale detail set for Dragon/Cyber Hobby kit • sada detailù pro model 1/32 Dragon/Cyber Hobby

ORIGINAL KIT PARTS

PÙVODNÍ DÍLY STAVEBNICE PHOTO-ETCHED PARTS

LEPTANÉ DÍLY

PARTS TO BE REMOVED

DÍLY K ODSTRANÌNÍ

FILL

TMELIT

eduard

REMOVE

ODSTRANIT

OPTION

VOLBA

REPLACE

NAHRADIT

BEND

OHNOUT

GRIND

OBROUSIT

SYMETRICAL ASSEMBLY

SYMETRICKÁ MONTÁŽ

DRILL HOLE

VRTAT OTVOR

APPLY EXPRESS MASK AND PAINT BEFORE GLUING

POUŽÍT EXPRESS MASK NABARVIT PØED SLEPENÍM

Film

13 17

Film A

Film B

F41

F42

F11

F40

F42

F30

F17

MA11

MA12

MA13

C12

C19 C20

2/4 32 701

plastic

- 0,9mm

l - 1,2mm

C10, C11

F14

F29

F16

C17

A16

2 pcs

C15

F25

F27

3/4 32 701

A15

2 pcs

G8 (G12)

MB3, MB4

39 56

2 pcs

For further detail sets look for 32 282 Bf 109E-4 exterior

(not included in this set)

eduard

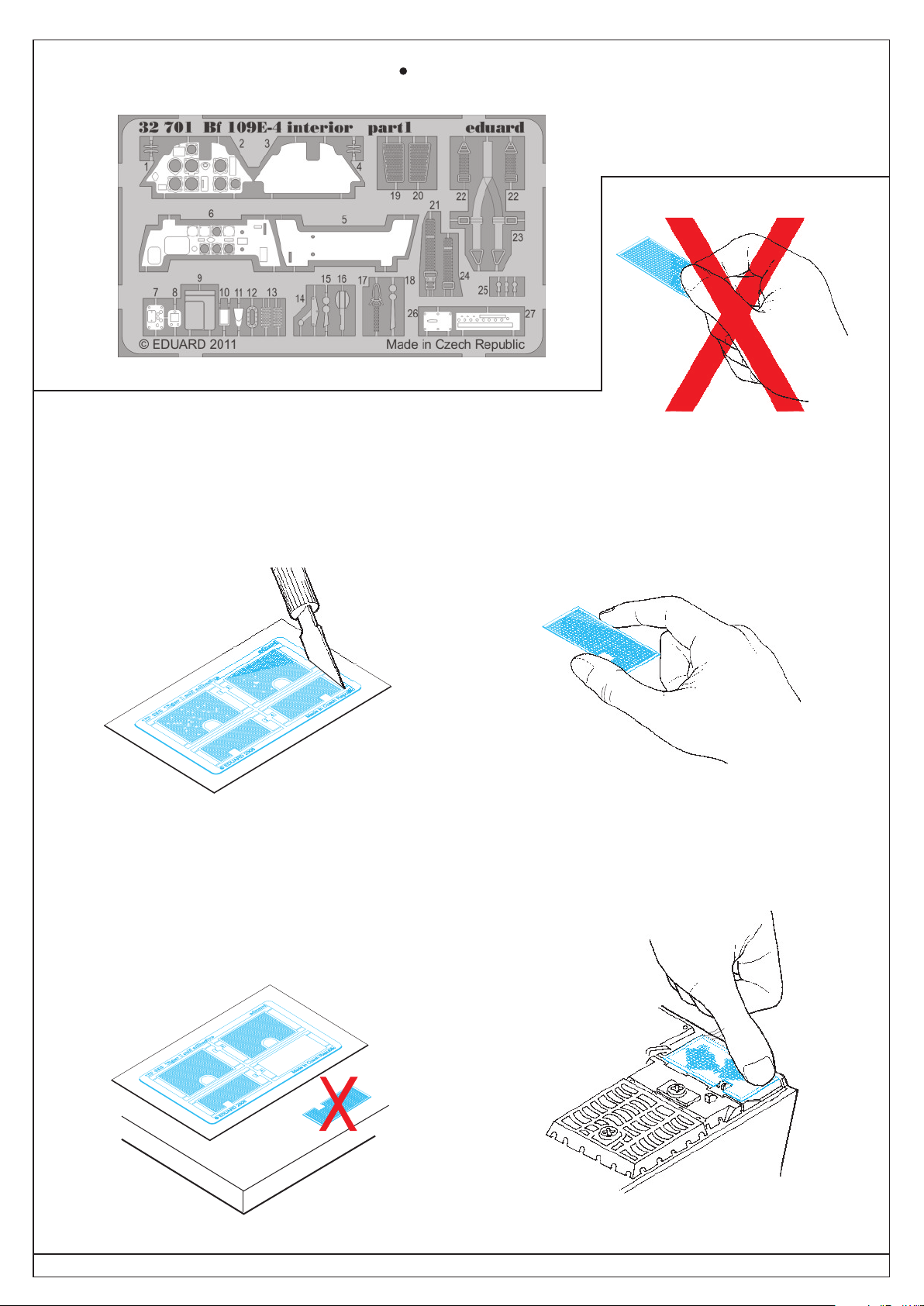

2. Do not inadvertently place etched componets on an

unwanted surface. Attempts to remove will result in

damage to your part.

2. Nepokládejte samolepící díly na volné plochy. Pokud

je omylem pøilepíte, pøi pokusu o odlepení dojde k

poškození dílu.

3. Do not touch the adhesive areas of the etched components.

3. Nesahejte na èásti dílù, na kterých je naneseno lepidlo.

1. Separate the etched components from their frames on the

protective paper. Removal from the paper is done only after

separation of the parts from the frames.

1.Samolepící díly oddìlujte od rámeèku na podkladovém

papíøe. Po oddìlení je sejmìte z krycího papíru. 4. Hold the parts by the edges, or at areas free of adhesive.

4. Samolepící díly berte za hrany nebo za èásti, na kterých

není nanesené lepidlo.

5. Lightly place the component in the desired location and

position. Adjust as required. The component will by

permanently affixed when pressed onto its intended

location, its location can be adjusted.

5. Díl lehce položte do pozice, ve které má být nalepen.

Upravte pøesnou pozici a pøimáèknìte. Díl dokonale pøilne

až po pøimáèknutí, pøed pøimáèknutím lze dílem opatrnì

manipulovat.

4/4 32 701

PARTS WITH GLUE DÍLY OPATØENÉ LEPIDLEM
