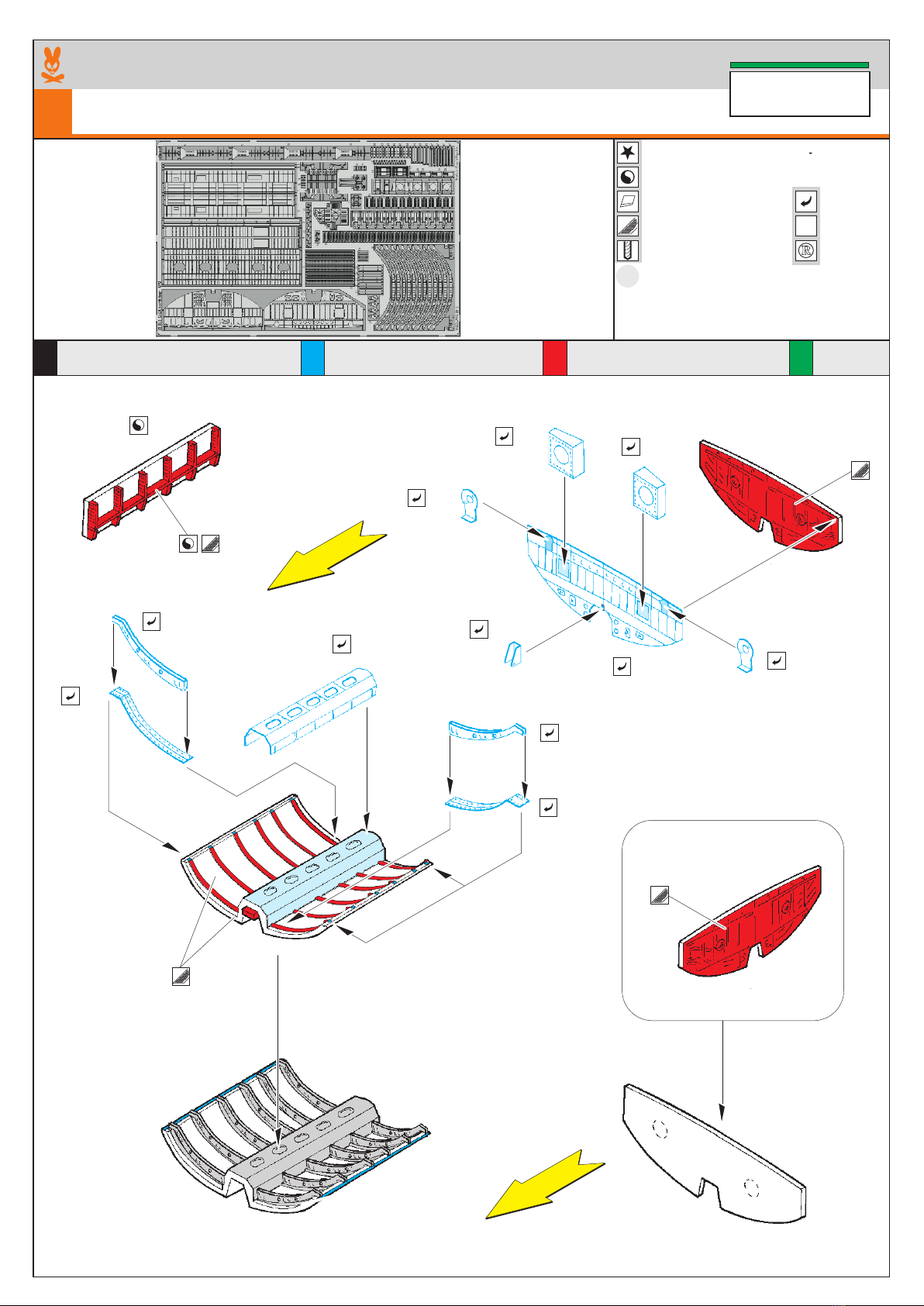

Eduard B-2A bomb bay User manual

REMOVE

ODSTRANIT

OPTION

VOLBA

REPLACE

NAHRADIT

BEND

OHNOUT

GRIND

OBROUSIT

SYMETRICAL ASSEMBLY

SYMETRICKÁ MONTÁŽ

DRILL HOLE

VRTAT OTVOR

APPLY EXPRESS MASK AND PAINT BEFORE GLUING

POUŽÍT EXPRESS MASK NABARVIT PRED SLEPENÍM

COLORED ETCHED PARTS

LEPTANÉ BAREVNÉ DÍLY

ETCHED PARTS

LEPTANÉ NEBAREVNÉ DÍLY

ORIGINAL KIT PARTS

PŮVODNÍ DÍLY STAVEBNICE

1/72 72 663

ORIGINAL KIT PARTS PHOTO-ETCHED PARTS PARTS TO BE REMOVED FILL

PŮVODNÍ DÍLY STAVEBNICE LEPTANÉ DÍLY DÍLY K ODSTRANĚNÍ TMELIT

eduard

1/9 72 663

detail set for MODELCOLLECT 1/72 kit • sada detailů pro stavebnici MODELCOLLECT 1/72

B-2A bomb bay

front

34 34

6 pcs.

C25 C26

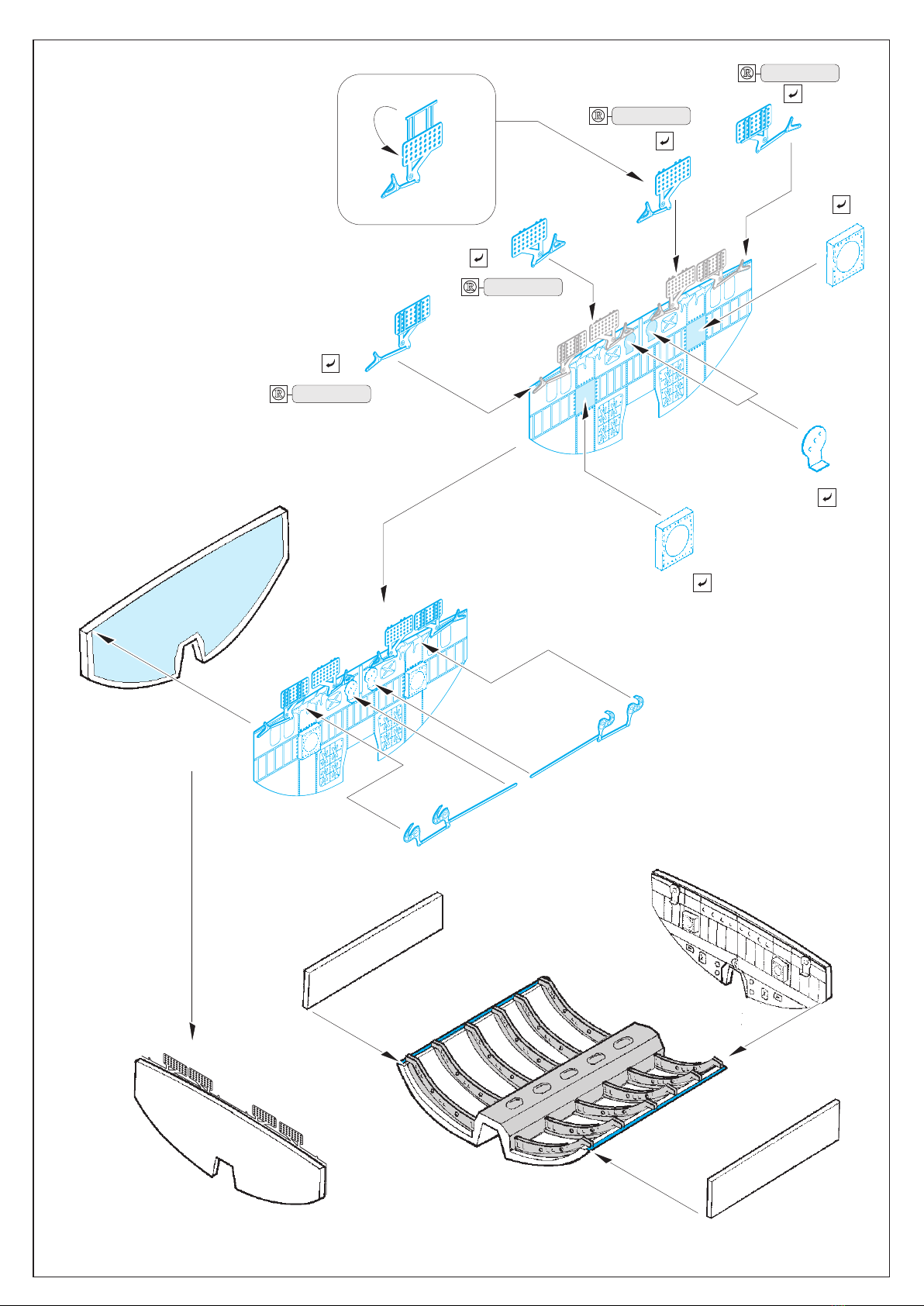

2/9 72 663

A29 / 31

A28 / 30

A29 / 31

A28 / 30

C26

C25

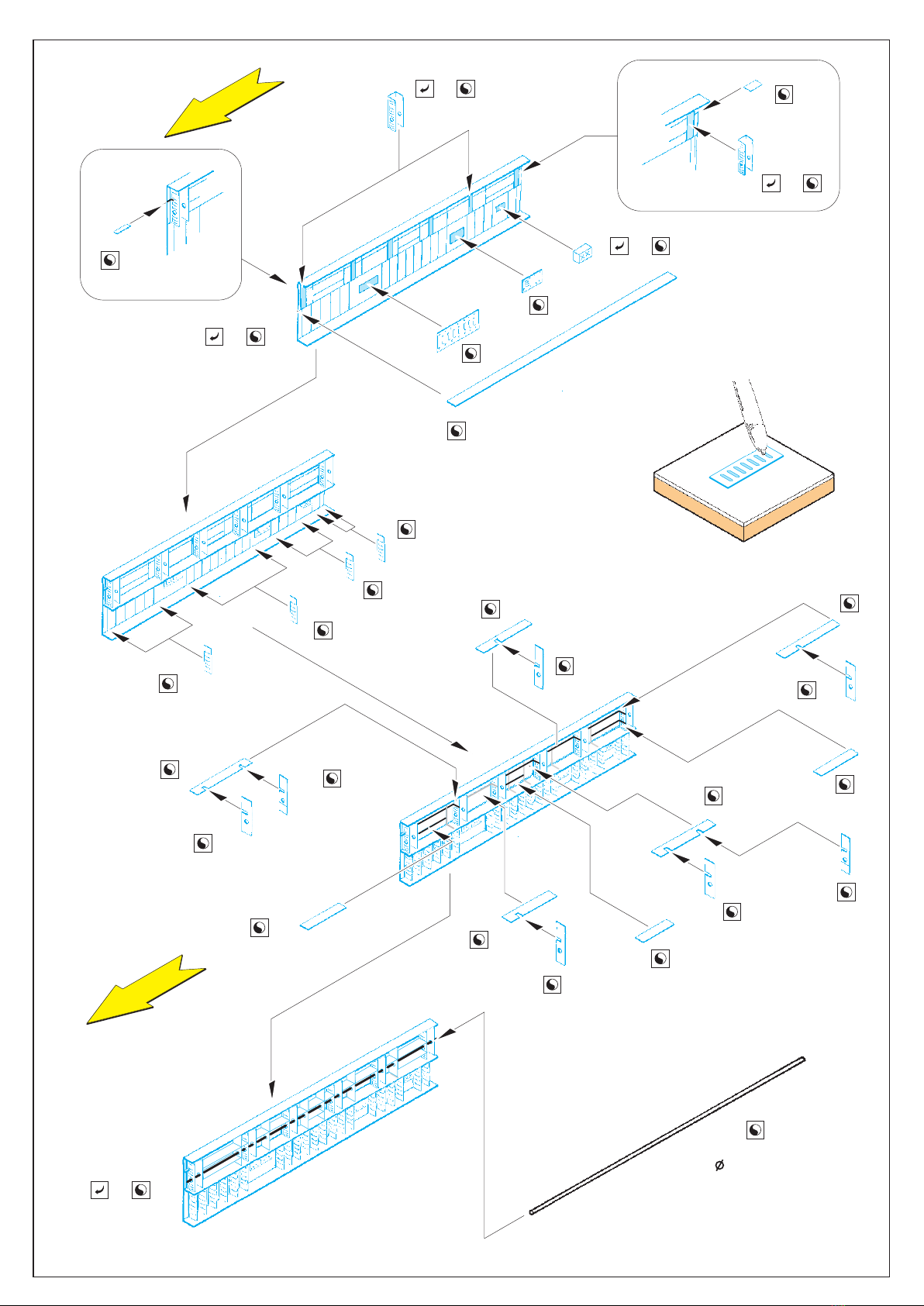

3/9 72 663

front

ball pen

HOW TO MAKE THE RELIEF ON

OPPOSITE - REVERSE -

OF THE PLATE

wire

0,3 x 91,0 mm

5 pcs.

6 pcs.

9 pcs.

4 pcs.

2 pcs.

43 39

42 40

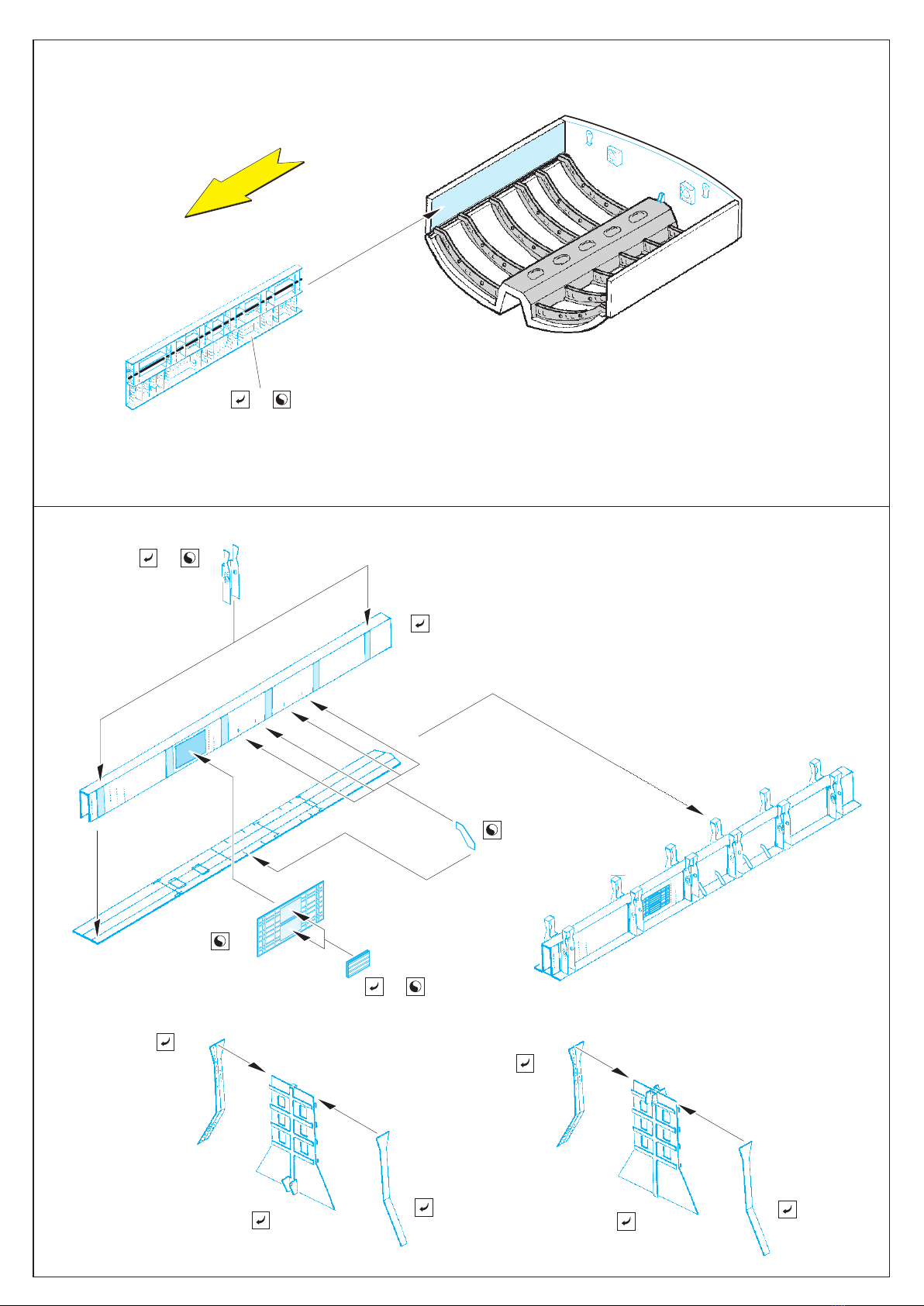

4/9 72 663

2 sets 47

2 sets

6 pcs.

C25

C26

front

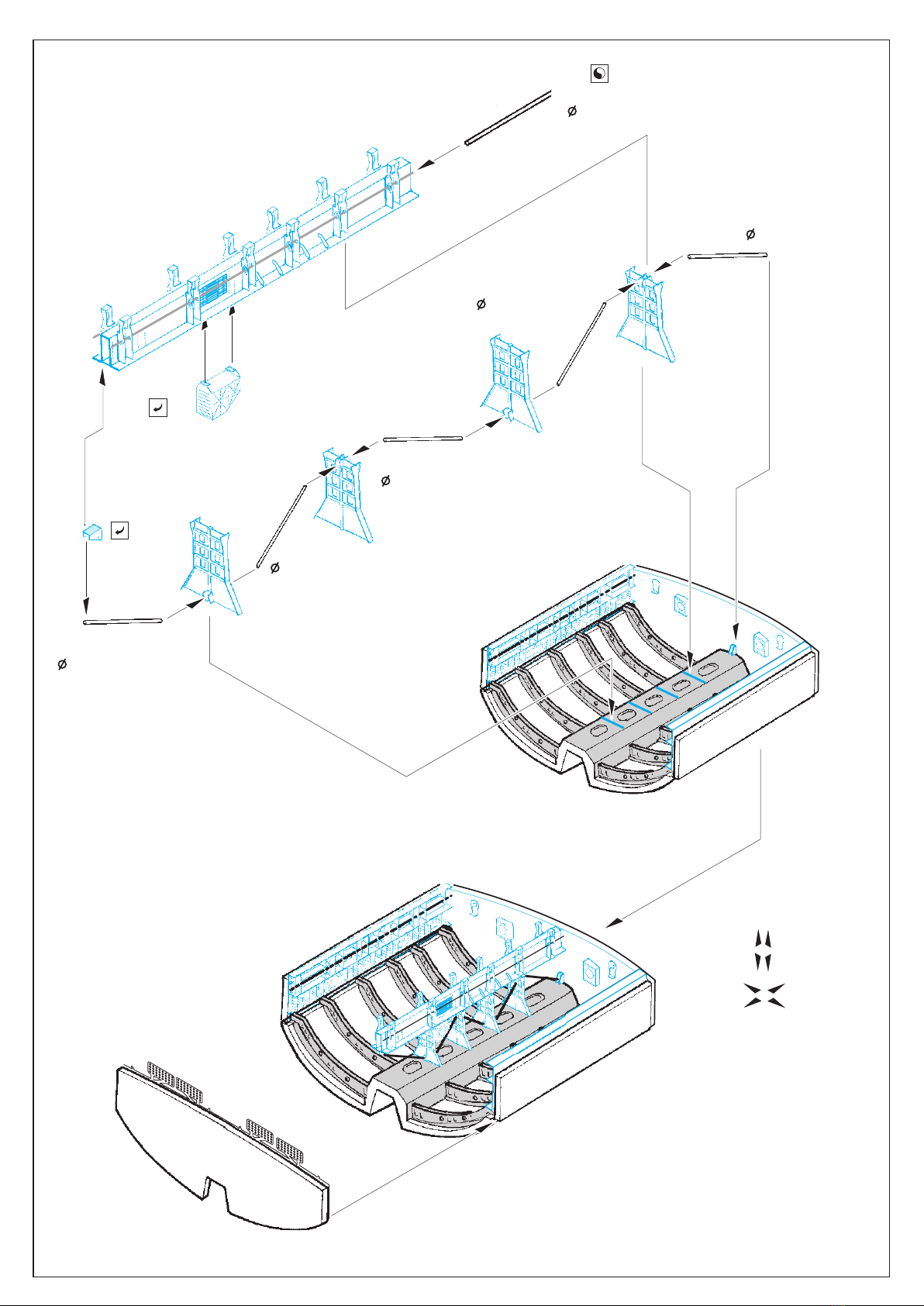

5/9 72 663

9+47

10+47

plastic

0,6 x 21,0 mm

plastic

0,6 x 21,0 mm

plastic

0,6 x 19,0 mm

plastic

0,6 x 19,0 mm

plastic

0,6 x 19,0 mm

wire

0,4 x 94,0 mm

C25

C26

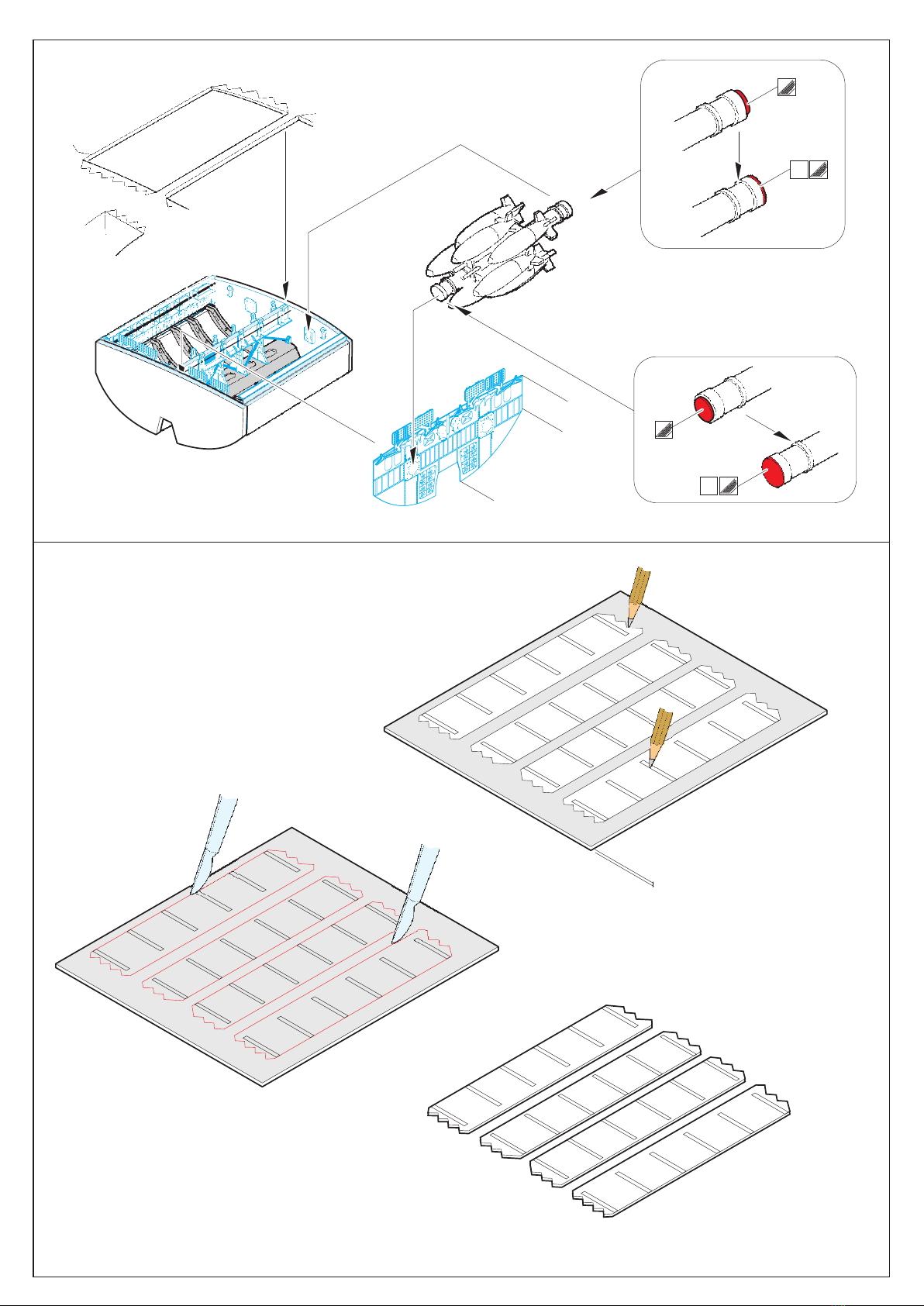

6/9 72 663

template

for plastic part B11

0,6mm

plastic

for plastic part B12

for plastic part B10

for plastic part B9

pencil

for plastic part B11

for plastic part B12

for plastic part B10

for plastic part B9

A17

correct position of bomb bay doors hinges

...use the paper template

to create new doors....

...continue on page 7....

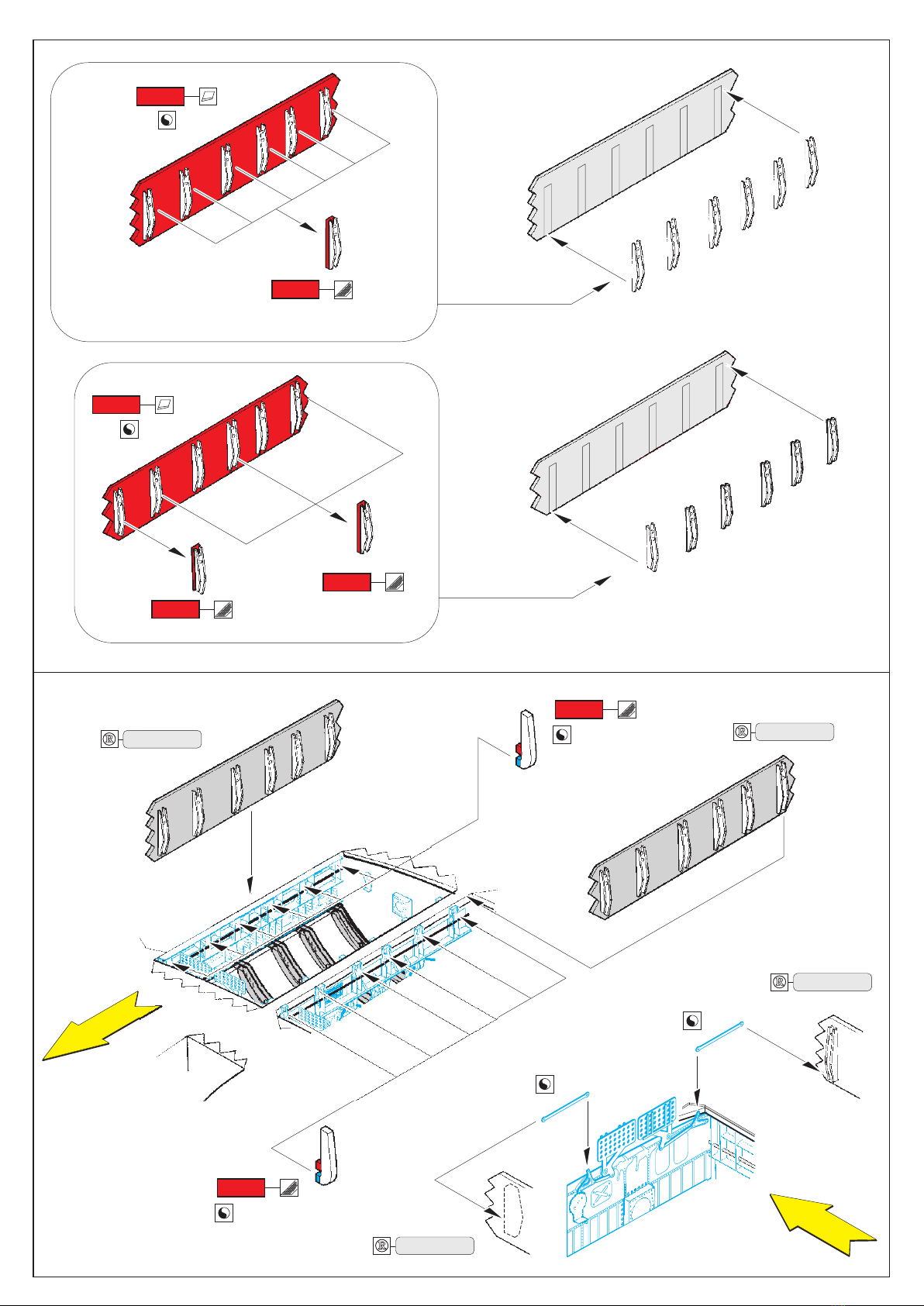

7/9 72 663

B9 B11

B12 B10

new plastic

A35

B9 / B11

6 pcs.

A35

6 pcs.

B12 / B10

B9 / B11

front

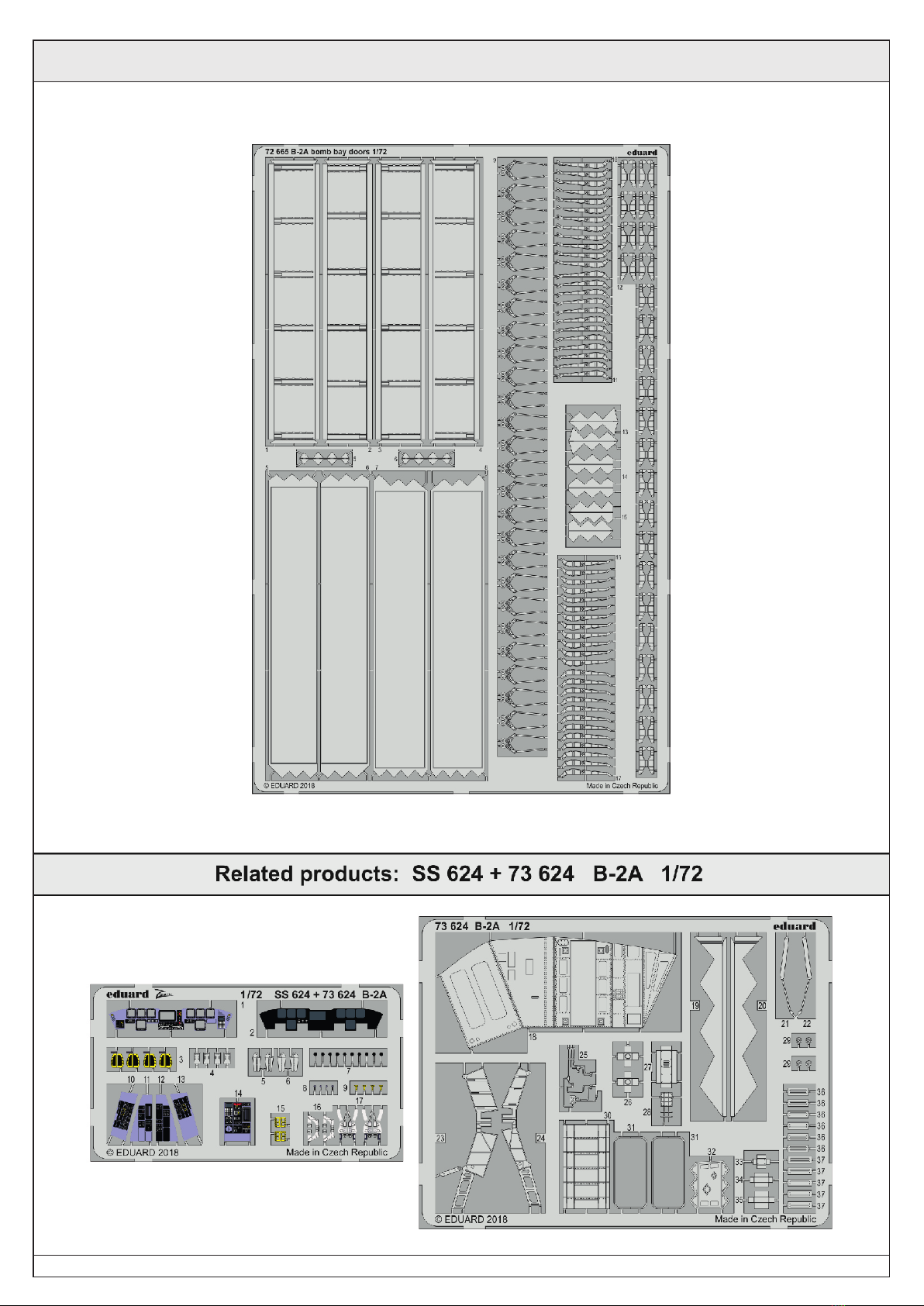

Related products: 72 665 B-2A bomb bay doors 1/72

8/9 72 663

www.eduard.com
