Edimax WRL-22824 User manual

EW-7611ULB V2

User Manual

08-2022 / V1.0

Contents

I. Product Information ..................................... 1

I-1. Package Contents ................................................1

I-2. Hardware Overview.............................................1

I-3. LED Status............................................................1

I-4. Supported System ...............................................1

II. Windows Plug-and-Play Installation ............. 2

II-1. Wi-Fi Installation..................................................2

II-1-1. Insert the USB Adapter ...................................................2

II-1-2. Wi-Fi Plug-and-Play.........................................................2

II-1-3. Select & Connect to the Wi-Fi Network ..........................3

II-2. Bluetooth Installation..........................................5

II-2-1. Insert the USB Adapter ...................................................5

II-2-2. Bluetooth Plug-and-Play .................................................5

II-2-3. Pair with Bluetooth Device .............................................6

III. Windows Driver Installation.......................... 7

III-1. Insert the USB Adapter........................................7

III-2. Download the Driver ...........................................7

III-3. Connect or Pair....................................................8

III-3-1.Wi-Fi Connection.............................................................8

III-3-2.Bluetooth Pairing ..........................................................11

IV. Advanced Feature........................................15

V-1. Software WPS....................................................15

V. Frequently Asked Question (FAQ) ................16

VI. More Information ........................................17

VII. Safety Instructions .......................................18

VIII. Simplified EU Declaration of Conformity ......18

I. Product Information

I-1. Package Contents

I-2. Hardware Overview

I-3. LED Status

LED Color

LED Status

Description

Blue

Bluetooth function ON.

Off

Bluetooth function Off.

Yellow

Off

Wireless turned on, waiting to be connected.

Quick Flash

Wireless connection established / wireless

activity.

I-4. Supported System

-Windows 7 / 8.x / 10 / 11

-Linux (Wi-Fi Only)

* Additional version information may be announced on the EDIMAX website.

Quick Installation Guide

USB Adapter

Dual Color LED

USB 2.0 Type A

Connector

II. Windows Plug-and-Play Installation

II-1. Wi-Fi Installation

II-1-1. Insert the USB Adapter

1. Insert the USB adapter into your

computer and then switch on your

computer.

Never use force to insert the USB

adapter.

II-1-2. Wi-Fi Plug-and-Play

1. The Network icon will be displayed on the bottom-right corner of the

Windows taskbar if Plug-and-Play is supported. (If the Network icon

doesn’t display, please refer to V. FAQ -> Q1)

Notice that the Network icon might be different depending on the version

of your Operating System.

If your Operating System does not recognize the USB adapter, you will

need to install an additional driver on your computer. Please refer to

“Section III”.

Insert Plug-and-Play Connect

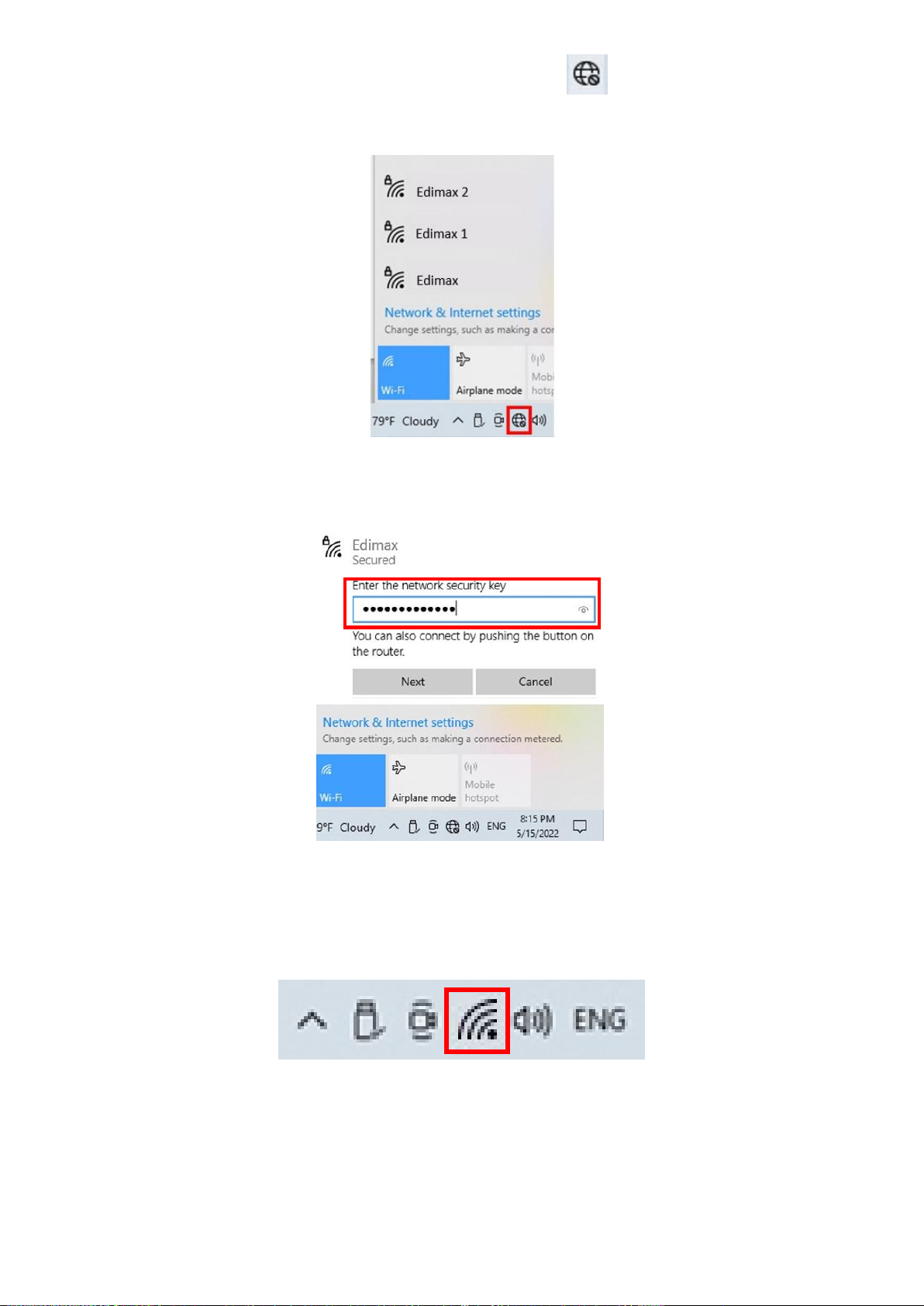

II-1-3. Select & Connect to the Wi-Fi Network

Select your Wi-Fi Network (SSID), click “Connect”and enter the password if it

is required.

1. For Windows 11 users, click the Network icon and then click the

right-arrow icon to show the existing Wi-Fi Network (SSID) and select

the one you want to connect. Move to step 3 if a password is required.

2. For Windows 10 users, click the Network icon to show the existing

Wi-Fi Network (SSID) and select the one you want to connect.

3. Enter the password if it is required.

4. Establish the Wi-Fi connection and you can access Internet when you see

the Wi-Fi icon on the bottom-right corner of the Windows taskbar.

II-2. Bluetooth Installation

II-2-1. Insert the USB Adapter

Insert the USB adapter into your computer

and then switch on your computer.

Never use force to insert the USB

adapter.

Please disable all the existing Bluetooth

devices before inserting the device into

your computer. (Refer to V. FAQ -> Q2)

II-2-2. Bluetooth Plug-and-Play

If your Windows OS supports Plug-and-Play, the Bluetooth icon will be

displayed on the bottom-right taskbar. (If Bluetooth icon doesn’t display,

please refer to V. FAQ -> Q4)

Notice that if the Bluetooth icon does not show up,

continue to click the arrow-up icon.

If your Operating System does not recognize the USB

adapter, you need to install an additional driver on

your computer. Please refer to “Section III”.

Insert Plug-and-Play Pair

II-2-3. Pair with Bluetooth Device

1. Click “Add a Bluetooth Device”.

2. Select existing Bluetooth devices from the list or click “Bluetooth & other

devices” to add an new Bluetooth device.

3. Select the Bluetooth device in “Paired” status you want to pair with and

click “Connect”.

4. Once the status is “Connected”, the connection is established.

III. Windows Driver Installation

III-1. Insert the USB Adapter

Insert the USB adapter into your computer and then switch on your computer.

Never use force to insert the USB

adapter.

Please disable all the existing

Bluetooth devices before inserting the

device into your computer. (Refer to V.

FAQ -> Q2)

III-2. Download the Driver

1. You can find the USB adapter driver from the Edimax website.

https://www.edimax.com/download

If your computer can not access the Internet directly, please use an

Internet-Enabled device to download the driver instead.

2. Enter the model number and click to continue.

Insert Download Connect or Pair
