Edimax EW-7108PCg User manual
1
Multi-Languages QIG in Driver CD
================================================
Český: Českého průvodce rychlou instalací naleznete na
přiloženém CD s ovladači
Deutsch: Finden Sie bitte das deutsche QIG beiliegend in der
Treiber CD
Español: Incluido en el CD el QIG en Español
Français: Veuillez trouver l’français QIG ci-joint dans le CD
Italiano: Incluso nel CD il QIG in Italiano
Magyar: A magyar telepítési útmutató megtalálható a mellékelt
CD-n
Nederlands: De nederlandse QIG treft u aan op de bijgesloten
CD
Polski: Skrócona instrukcja instalacji w języku polskim znajduje
sięna załączonej płycie CD
Português: Incluído no CD o QIG em Portugues
Русский: Найдите QIG на pусскoмязыке на приложеном CD
Romana: Cd-ul cuprinde Ghid de instalare rapida in limba
romana
Slovensky: Anglického sprievodcu rýchlou inštaláciou nájdete
na priloženom CD s ovládačmi.
Türkçe: Ürün ile beraber gelen CD içinde Türkçe HızlıKurulum
Kılavuzu'nu bulabilirsiniz
简体中文: 产品包装 CD 光盘中含有简体中文版快速安装手册
繁體中文: 產品包裝隨附 CD 中含有繁體中文版之快速安裝指南
2
Index
1. Product Information.........................................................................3
2. Package Contents ............................................................................4
3. Network Card Installation ................................................................6
3.1 Hardware Installation .................................................................6
3.2 Software Installation ..................................................................9
4. Connect to Wireless Access Point ...............................................12
3
1. Product Information
Main Features
zComplies with 802.11n, 802.11g and 802.11b standards.
zProvides further coverage, less dead spot and high throughput (11n
Adapter Up to 300Mbps with MIMO technology).
zSupports WMM, WMM-PS (IEEE 802.11e QoS standard).
zSupports 64/128-bit WEP, WPA (TKIP with IEEE 802.1x),WPA2 (AES
with IEEE 802.1x) for high security level.
zSupports operating system: Windows OS 2000/XP/XP64/Vista, MAC
OS 10.4.x /10.5.x and Linux
zSupports WPS configuration button. (EW-7717Un, EW-7727In,
EW-7738Pn, EW-7748In only)
zSupports USB 2.0/1.1 interface. (EW-7318USg, EW-7318Ug,
EW-7718Un, EW-7717Un only)
4
2. Package Contents
Before you starting to use this wireless network card, please check if
there's anything missing in the package, and contact your dealer of
purchase to claim for missing items:
EW-7318Ug / EW-7718Un / EW-7717Un
□USB wireless adapter with Protection Cap (1 pcs)
□USB Cable with Stand (1 pcs)
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7318USg
□USB wireless adapter with Protection Cap (1 pcs)
□USB Cable with Stand (1 pcs)
□Antenna (1 pcs) .
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7128g
□Wireless network PCI card (1 pcs)
□Antenna with extend cable (1 pcs) .
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7728In
□Wireless network PCI card (1 pcs)
□Antenna (3 pcs) .
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
5
EW-7748In
□Wireless network PCI Express Card (1 pcs)
□Antenna (3 pcs) .
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7727In
□Wireless network PCI card (1 pcs)
□Antenna (2 pcs) .
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7108PCg / EW-7708Pn / EW-7738Pn
□Wireless network cardbus (1 pcs)
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
EW-7738Pn
□Wireless network ExpressCard (1 pcs)
□Quick installation guide (1 pcs)
□User Guides / EZMAX Setup Wizard & driver CDROM (1 pcs)
6
3. Network Card Installation
Please follow the following instructions to install your new USB wireless
network card:
3.1 Hardware Installation
EW-7318USg/ EW-7318Ug / EW-7718Un / EW-7717Un
1. Fasten the antennas to the antenna connectors on the network card by
clockwise direction. (EW-7318USg only)
2. Insert the USB wireless network card into an empty USB 2.0 port of
your computer when computer is switched on.
Never use force to insert the card, if you feel it’s stuck, flip the
card over and try again.
3. The following message will appear on your computer, click ‘Cancel’.
7
EW-7128g / EW-7728In / EW-7727In / EW-7748In
1. SWITCH THE COMPUTER OFF, remove the cover and insert the
wireless network card into an empty PCI slot (EW-7128g/EW-7728In/
EW-7727In) or PCI Express slot (EW-7748In) of your computer.
2. Fasten the antennas to the antenna connectors on the network card by
clockwise direction.
3. You can bend the antenna to fit actual needs.
4. TSwitch the computer on, the following message will appear on your
computer, please click ‘cancel’.
8
EW-7108PCg/ EW-7708Pn / EW-7738Pn
1. Please insert the wireless network card into an empty PCMCIA slot
(EW-7108PCg/EW-7708Pn) or ExpressCard slot (EW-7738Pn) of
your computer. You can insert the card when the computer is power off
or on
Don’t use force to insert the card into PCMCIA or ExpressCard
slot; if you feel it get stuck, remove it and flip the card upside
down, and then try again

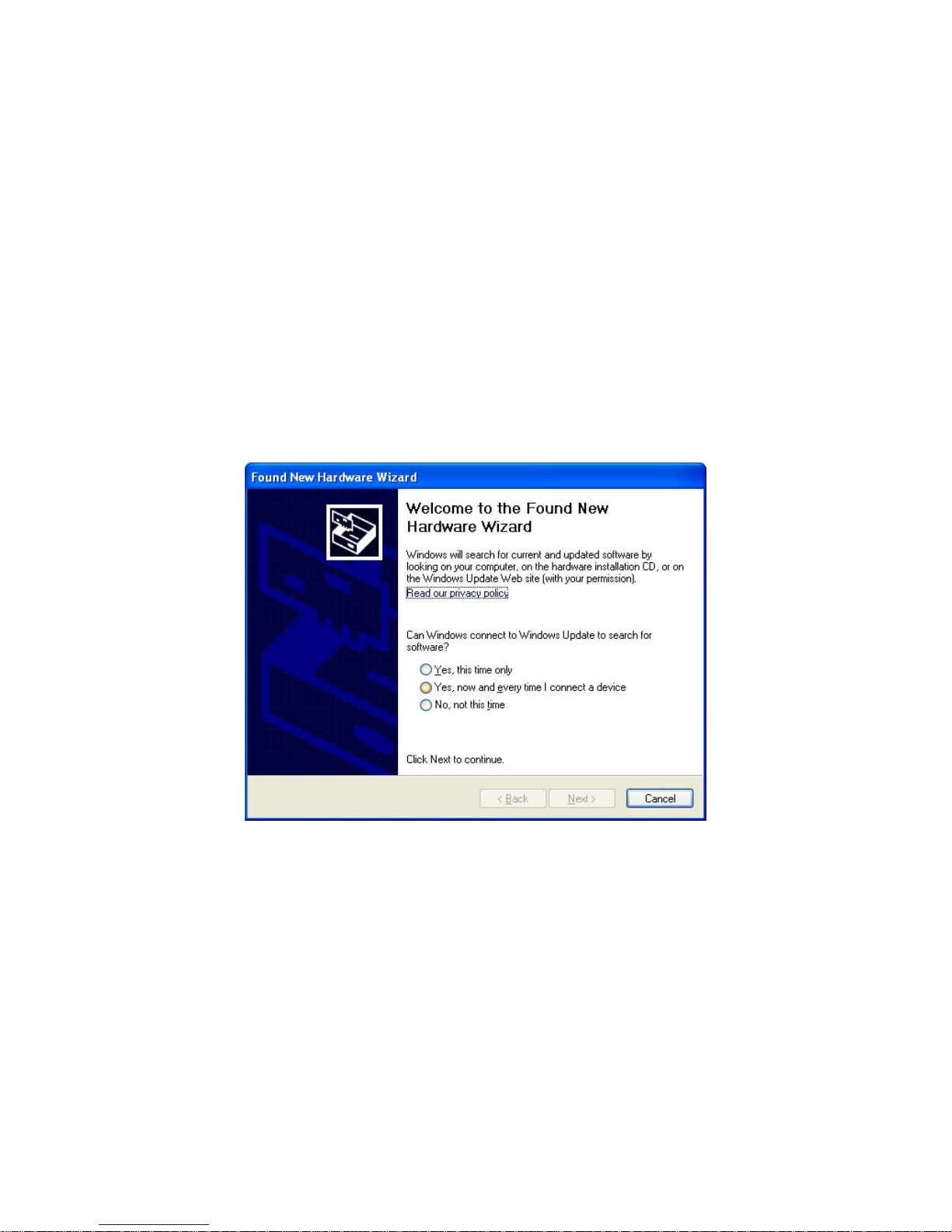

2. The following message will appear on your computer, click ‘Cancel’.
9
3.2 Software Installation
This wizard can be run in Windows 2000/XP/Vista. The following
procedures are operated in Windows XP.
You can install the Wireless Adapter by EZMAX Setup Wizard in the
CD-ROM including in the package. The wizard is an easy and quick
configuration tool for internet connection with series process. When you
start EZMAX Setup Wizard, you will get the following welcome screen.
Please choose the language to start the configuration. The wizard will
guide you to finish your network connection. We will not provide any
instruction for the EZMAX Setup Wizard here.
If you lose the CD ROM or you prefer the traditional setup procedure,
please follow the instruction as following step in this quick
installation guide.
