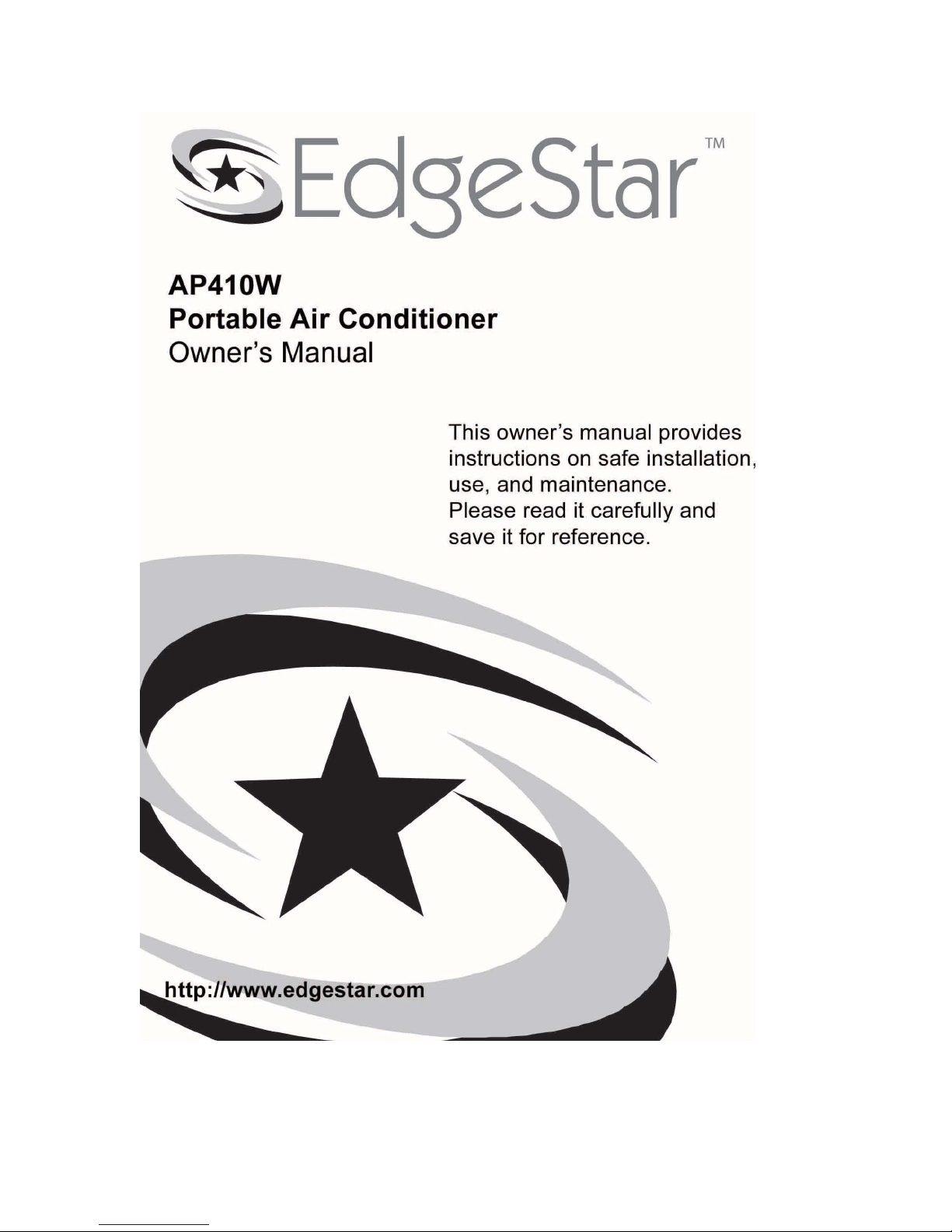

EdgeStar AP410W User manual

Table of contents

Table of contents 1

Thank you 2

Energy saving tips 2

Notes 2

Specifications 3

Safety precautions 3

Parts 5

Front view 5

Rear view 5

Accessories 6

Installation 7

Installing the exhaust hose 7

Window installation 8

Wall installation 9

Notes 10

Control panel 11

LED indicators 11

Buttons 12

Remote control 12

Setting up the remote control 12

Notes 12

Caution 13

Remote control functions 13

Regulating airflow direction 15

Manual drainage 16

Drain parts 16

Draining with the drain tray 16

Direct drainage 17

Maintenance 17

Notes 17

Cleaning the Exterior 17

Cleaning the condenser coils 17

Prefilter and charcoal filter 17

Notes 17

Installing the charcoal filter 18

Cleaning the prefilter 18

Long term storage 18

Troubleshooting 19

Limited warranty 22

Thank you

Thank you for purchasing an EdgeStar portable air conditioner. Rest assured that all

EdgeStar products are designed and manufactured to the highest standards. We would

like you to be able to fully utilize all features of this portable air conditioner, so

please take the time to read this owner’s manual in full prior to using the unit.

Energy saving tips:

1. Use the portable air conditioner for the recommended room size. Rooms that are

too small can cause the unit to short cycle and work inefficiently. Rooms that are

too large will never cool completely.

2. Be careful not to obstruct the air flow coming out of the portable air conditioner.

A powerful, unobstructed airflow is crucial for optimum cooling.

3. Keep blinds and curtains closed during the sunniest part of the day.

4. Clean the pre-filter often, and replace the activated carbon filter as needed (it

should be replaced twice a year under normal conditions).

5. Close your fireplace damper, floor grills, and wall grills to prevent cool air from

escaping.

6. Avoid opening doors frequently

7. Note that each additional person in room adds between 100-150 BTU of heat, so

the more people in a room, the more cooling capacity is required

8. Set the portable air conditioner to maximum cooling and high speed airflow when

you first start it up, and then adjust the unit to a comfortable setting.

Notes:

The portable air conditioner must be plugged into an appropriate power outlet. Refer

to the rating label on the back of the unit for more information.

The portable air conditioner is a compressor-driven cooling system. The air

conditioner has an anti-overheating safety feature that can delay the compressor from

starting for three minutes after the air conditioner turns on or when a mode change is

made. If the compressor does not immediately start, it is likely because of this feature.

To protect the compressor from overheating or freezing, it will only operate when the

ambient temperature is between 61°and 97°F.

Always unwind the power cord completely before use.

Please note that in Cooling, Auto, and Dry modes, the exhaust hose must be used.

When switching into the Cooling mode, cooling may be temporarily delayed as the

unit cools down.

Specifications

Model AP410W

Maximum Room Size (cooling)* 400 ft²

Power consumption for cooling mode 1000W

Air flow 212 ft³/m

Humidity removal capacity 2.11 p/h

Noise level <54 dbA

Power supply 115V/ 60Hz

Compressor Rotary

Refrigerant R-22

Refrigerant Load 15.2 oz

Timer 1-12 hours

Thermostat 61°-88°F

Net weight 70.5 pounds

Dimensions 29 1/4"h x 15"w x 14 3/4"d

Box dimensions 29 15/16"h x 21"w x 17 3/8"d

*Please note that maximum room sizes are

under ideal conditions. Actual cooling

performance may vary

Safety precautions:

1. Transport the portable air conditioner in an upright position only. If the unit is

tipped over, make sure it stands upright for at least 3 hours prior to turning it on.

2. Always place the unit on a level surface.

3. In order to cool, the hot air from the exhaust port in the rear of the portable air

conditioner must be exhausted outside the room.

4. Make sure the portable air conditioner is connected to a grounded power outlet.

5. This portable air conditioner is designed to operate in an ambient temperature of

61°-97° F.

6. This portable air conditioner has been designed for residential use.

7. Always turn the portable air conditioner off before unplugging it.

8. Do not damage the power cord.

9. Do not use this portable air conditioner for functions other than those described in

this owner’s manual.

10. Do not tilt the portable air conditioner.

11. Do not cover or obstruct the intake or outlet grills.

12. Do not use the portable air conditioner in a wet room- such as a bathroom or

laundry room- to avoid the possibility of shock.

13. Do not bend or crush the exhaust hose while in use.

14. Do not sit on, or place articles on, the portable air conditioner.

15. Do not touch the portable air conditioner with wet or damp hands

16. Do not let chemical substances come into contact with the portable air

conditioner.

17. Do not use the portable air conditioner in the presence of flammable substances or

vapors such as alcohol, insecticides, gas, etc.

18. Do not use the plug to start or stop the unit.

19. Do not yank on the electric cord or place it near a source of heat. If the electric

cord is damaged, it must be replaced by an authorized service agent.

20. Always use the control panel to start or stop the portable air conditioner.

21. Always allow for air flow around the portable air conditioner of at least 20”.

22. Always turn off the portable air conditioner when not in use.

23. Always turn the portable air conditioner off and unplug it after use, before

cleaning, before carrying out maintenance, and before moving it.

24. It the electrical socket is different from the plug, have a professionally qualified

electrician replace the socket with a suitable one. Do not use adapter plugs,

multiple sockets, or extension cords.

25. The filter must be used at all times. When removing the filter for cleaning, turn

off the unit and unplug it.

26. Make sure all children are properly supervised around this portable air

conditioner.

Parts

Front view

1. Control panel

2. Adjustable louvers

3. Carry handles

4. Caster wheels

Rear view

1. Air inlet

2. Exhaust port

3. Power cord hooks

4. Caster wheels

5. Drain plug (a plastic drain cap covers a rubber stopper)

Accessories

Owner’s manual and

warranty card

Drain hose

Exhaust hose

Rectangular vent

connector Round adapter

Drain tray

Carbon filter Cap for round

adapter

Plastic window kit

and screws

Remote and batteries

Installation

Installing the exhaust hose

In order to be used effectively, the exhaust hose must be mounted to the back of the

unit.

1. Make sure the rectangular vent connector is fitted to one end of the exhaust hose

and fit the round adapter to the other end.

2. Insert the rectangular vent connector into the exhaust port on the back of the unit.

Window installation

This portable air conditioner ships with a plastic window kit for temporary mounting

in standard windows. The plastic window kit comes in three sections, and its size is

adjustable. If you window is too small to fit the plastic window kit in, the parts may

be easily cut to size with a hacksaw.

CAUTION: Do not attempt to cut the window kit to size unless you are a skilled

hacksaw operator and please take all necessary safety measures.

1. Open your window, insert the plastic window kit, and adjust the window kit to the

appropriate size.

2. Once you have properly sized the window kit for the window, close the window

tightly onto the window kit. You may need to use screws to hold the window kit

in place.

3. Position the portable air conditioner near the window, extend the exhaust hose as

far as you need to, and place the end of the exhaust hose (which is in the round

adapter) into the hole in the window kit.

4. Match up the holes in the round adapter with the holes in the window kit and

screw the round adapter to the window kit.

CAUTION: Use appropriate safety measures while working with screws or tools.

CAUTION: Once the window kit is in place, it is unlikely that your window can then

be locked shut. Please take all necessary precautions.

Wall installation (permanent mounting)

Key for the above diagram:

1. Exhaust port

2. Vent connector

3. Exhaust hose

4. Round adapter

1. Drill a 5 1/8” diameter (approx.) hole through the wall. For safety and to avoid

cutting into structural support beams or electrical wires, please have a qualified

technician drill this hole.

2. Insert the round adapter into the hole (from inside the room) and mark the screw

hole positions on the wall

3. Remove the round adapter from the wall and drill four screw holes in the

positions marked.

4. Replace the round adapter into the wall and screw it into place.

5. Move the portable air conditioner into place near the wall and insert the exhaust

hose into the round adapter. Twist the exhaust hose into the adapter in a clockwise

direction.

6. When not in use, remove the exhaust hose from the round adapter and place the

round adapter cap over the hole.
