EdgeStar Ap12000s User manual

Welcome

Welcome and thank you for purchasing this EdgeStar Portable Air Conditioner.

We are glad you chose us. We take pride in knowing that, like our products,

our customer service will be just as dependable. Once you complete our easy

unit set up by following this manual, your portable air conditioner will provide you

years of great service.

Please save the original product packaging in case you need to safely transport

this portable air conditioner in the future.

For your reference:

Please write down the model and serial number here, as they are

needed to obtain service for your unit, if necessary. The two numbers

are on the label located on the back of your unit. You may also

want to staple your receipt to this manual. This will provide you with a

quick reference, as this information is needed for any service under

your warranty.

Model Number: ______________

Serial Number: _______________

Date Purchased: ______________

Need Assistance?

To better serve you, please do the following before contacting our customer service:

• Read this manual: it contains instructions to help you use and maintain

your portable air conditoner properly.

• If you received a damaged appliance: please contact the dealer that sold

you the appliance immediately.

• Read the section titled troubleshooting. This section will help you solve

common problems that might occur. If you do require service, our friendly and

efficient customer service representatives are available online via email at

[email protected] or by telephone at 1-866-319-5473.

could

• If the power cord on this unit is damaged it must be replaced by the manufacturer, its service agent or

qlified persons.

• This appliance is not inte

• • nded for use by children.

• This appliance is intended for domestic use only. Any other use may invalidate the warranty and might

be dangerous.

Make sure that the back of the unit is at least 4 inches or more away from a wall. Do not place

the unit in front of curtains or drapes to ensure they do not obstruct the air intake. Route the

power cord carefully to avoid a tripping hazard.

• If the power cord on this unit is damaged it must be replaced by the manufacturer, its service agent

or a qualified person.

• This appliance is not intended for use by children.

• This appliance is intended for domestic use only.

Warning

Remove the plug from

the socket if the unit is

not going be used for

a long period of time.

Do not wet the housing or

control panel.

Do not cover the air

outlet, while unit is in

use.

Improper handling may cause serious damage to the unit. Read this

manual carefully before operating the unit.

Do not allow children to play

with the controls or drop any

objects into the air outlet.

Do not place objects or

let any person sit on top

of the unit.

Always turn the unit off and

remove the power plug from

the socket when cleaning.

Do not attempt to remove any

part of the casing unless by an

authorized technician.

Use only the correct power

supply-AC115V/60Hz.

Do not operate the unit with a

damaged plug or loose outlet.

Warning

On/Off

Timer Button

yard

Time/Temperature Buttons

and new batteries

Use only AAA batteries.

Remove the batteries if the remote control will not be used for a month or longer.

Do not attempt to recharge the supplied batteries.

All batteries should be replaced at the same time; do not mix old and new batteries.

Do not dispose of the batteries in a fire, as they may explode.

Setting the Timer

If the unit is on:

• Press the timer button.

• Use the “ ”and “ ” buttons to set the

time (displayed in hours).

•After the selected time elapses, the unit will

automatically shut off.

If the unit is off:

• Press the timer button.

• Use the “ ” and “ ” buttons to set the

time (displayed in hours).

•Then select which mode you want the unit to

automatically start in and make the

necessary adjustments.

• After the selected time elapses, the unit will

automatically turn on.

Power Button

Fan Speed Button

Mode Button

Operation

Cooling Dehumidifying

or .

The functions work the same as your air conditioner’s touch controls.

All key functions can be accessed from the remote control.

either

Note:

- Do not drop the remote control.

- Do not place the remote control in a

location exposed to direct sunlight.

- The remote control should be placed

about 3 feet or more away from any

electrical appliances.

Battery replacement: Remove the cover on the back of the remote control and insert the

batteries with the (+) and (-) ends pointing in the correct direction.

Modes

Cooling

Timer

High

Low

Medium

WATER Fan Only

Dehumidify

Speed

Mode Timer

POWER

Timer/Temp Set Buttons

After turning the air conditioner off, wait 3 minutes before turning it back on again.

During cooling mode, room air is cooled and hot

air is exhausted to the outside through the air

exhaust hose. Adjust the fan speed and

temperature to suit your desired comfort level.

Note: The air exhaust hose must be vented

through a window when using the cooling mode.

To set the temperature in cooling mode, use the up and down

buttons. The temperature setting range is from 61ºF - 89ºF.

Note: When in dehumidifying or fan modes, no

temperature setting is required or allowed.

This unit has 3 fan speeds: High, Medium and Low. Press the

speed button to toggle the speeds.

Temperature

• Used for adjusting the timer and thermostat.

•The default display is room temperature.

• In cooling mode, you can set the temperature by

pressing the “▲” or “▼” button. The set temperature

will be displayed for 15 seconds, then revert back to

room temperature. The temperature is only adjustable

in cooling mode. The time is adjustable between 1-12

hours.

Note: By pressing both of the Timer/Temp button

the same time, the display will toggle between Celsius

and Fahrenheit.

Note: The displayed range of the ambient temperature

in both celsius and farenheit is from 0° to 99°. Any

temperature above 99° will be displayed as “HI” on

the indicator, and any temperature below 0° will be

displayed as “LO.”

Operation

W ater Light

Power Button

Mode Button

Fan Speed Button

The settings are toggled by the mode button.

Note: Your settings will be indicated on the

the control panel with an illuminated LED

This unit has 3 settings:

Cooling

This unit has 3 fan speeds: High, Medium and Low. Press

the speed button to toggle the speeds.

Note: The unit does not need to be vented in fan mode.

Cooling Mode

Fan Mode

Fan Speed

Dehumidifying Fan

Display

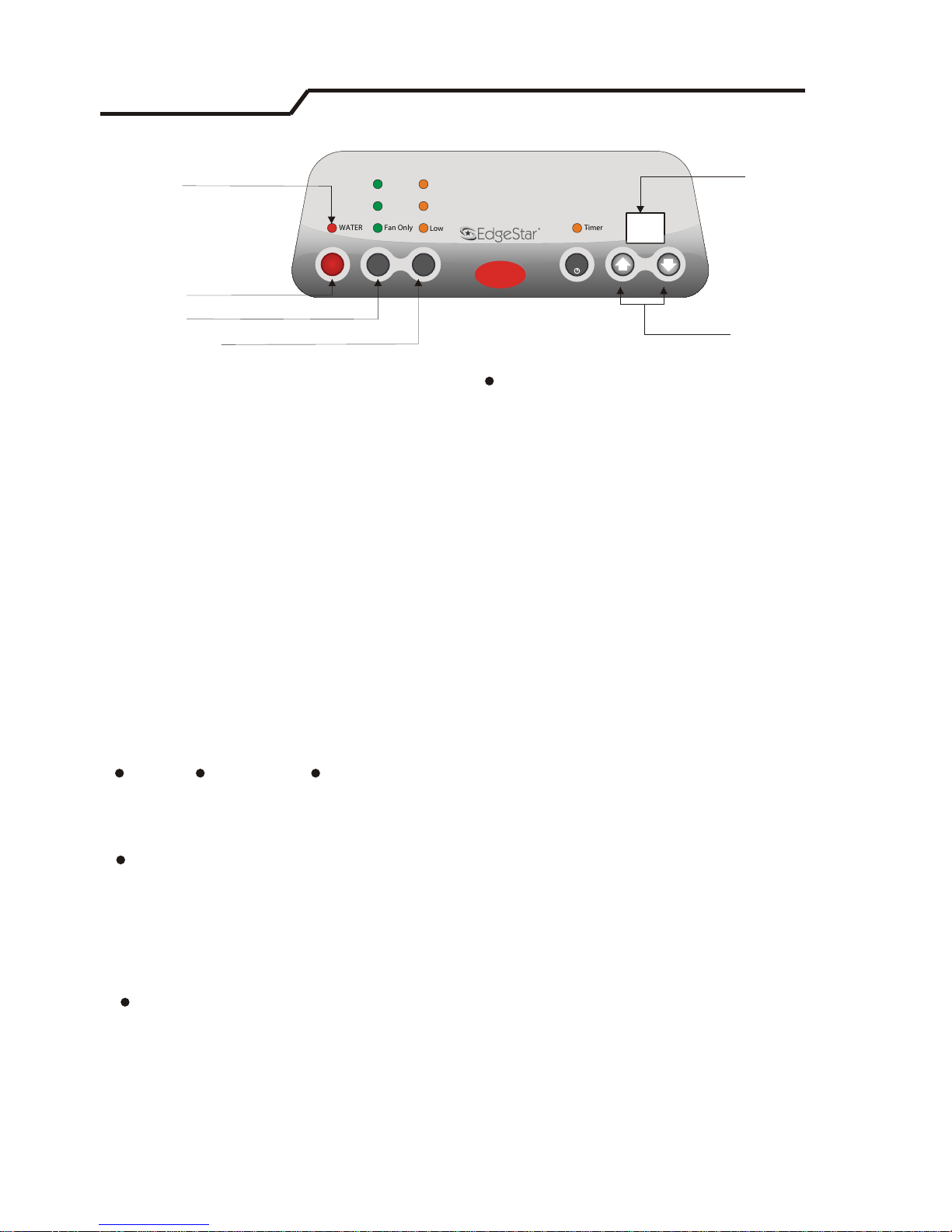

Control Panel

Power

• The power button turns the unit on and off.

• When you first press the power button, the unit will

begin to operate in cooling mode. After you have

used the unit, and turned it off, it will default to the

last used mode/settings upon turning the unit on again.

If power to the unit is interrupted while the unit is running,

the air conditioner will restart itself in its last used

mode/settings once power is restored.

Note: This "auto restart" function will restart the

unit after power is restored. The compressor will

resume after 3 minutes, if it was on prior to the

interruption

Water Light

This portable air conditioner is designed to exhaust

most or all water condensed from the air (in cooling

mode). In high humidity situations, the internal water

reservoir may fill. The unit will automatically shut off

and the water light will turn on. Once the water is

manually drained, the unit will operate as normal.

Timer/Temp

Set Button

The dehumidifying mode removes water from the

air without cooling the room. If the room temperature

is below 77ºF, the fan speed will be locked on “low,”

above 77ºF, the fan speed is adjustable.

Note: The exhaust hose is not required in

dehumidifying mode.

Note: The internal water tray will fill with water in

this mode.

Dehumidifying Mode

Installation

Duct Connector Exhaust Hose Window Kit Connector

1. Plastic window kit.............................2 pieces

2. Grated adapter.................................1 piece

3. Screws..............................................4 pieces

4. Duct connector .................................1 piece

5. Exhaust hose....................................1 piece

6. Window kit connector........................1 piece

7. Vent cap............................................1 piece

2. Place the grated adapter(2) into the large hole on the flush side of the plastic window kit(1). Line up

the 4 holes in the grated adaptor(2) with the pilot holes in the plastic window kit and fasten them

togethe with a screw driver.

3. Install the plastic window kit(1) into your window. If necessary, use duct tape to better secure the window kit.

4. On the air conditioner, connect the duct connector(4) (the connector with the smaller slots) into the unit

by aligning the tabs inside the unit with the slots and snapping them together. (See Fig. 1).

Note: Once inserted, duct connectors cannot be removed.

5. Attach the window kit connector(6) (the connector with the larger slots) onto the exhaust hose(5) by

stretching the hose completely out and turning the window kit connector(6) clockwise, screwing it

into the exhaust hose(5).

6. Screw on the exhaust hose(5) to the duct connector(4) by turning it clockwise.

7. Move the air conditioner towards the window. Align the slots on the window kit connector(6) to the tabs

on the grated adapter(2) and snap them together. (See Fig. 2)

8. To remove the window kit connector(6) from the grated adaptor(2), push in the tabs on the grated

adaptor(2) and pull the window kit connector(6) away from the grated adaptor(2)

9. To remove the window kit connector(6) and duct connector from the exhaust hose, twist the

connections counterclockwise. To remove the grated adaptor(2) unscrew the 4 screws(3).

10. The vent cap(7) may be installed on the grated adapter(2) (by aligning the slots with tabs and snapping

them together) when the air conditioner is not in use. (See Fig. 3)

1. Loosen the screws on the plastic window kit(1) and adjust the sliding kit to the width or height

of your window. Then tighten the screws to secure your adjustments to the window kit.

(See below images for setup examples)

For Maximum Performance and Efficiency:

1. Do not cover the air outlet (exhaust) while in use.

2. Do not place the unit in front of curtains or drapes- to ensure they do not obstruct the air

intake.

3. Minimize the length of the exhaust hose.

4. Make sure the exhaust hose is as straight as possible.

5. Keep curtains, blinds or drapes closed during the sunniest part of the day.

6. Use the timer to operate the unit before it is needed. For example, set the timer to turn on

the unit in cooling mode for 3 or more hours to cool the room before you arrive. You may

want to operate the unit all day if you live in a warmer climate.

7. Minimize the heat sources (direct sunlight, computers, servers, people, etc.) in the room.

8. Close all windows and doors.

9. Use the unit in a contained room. For example, a room with four walls and a roof, instead

of a partitioned studio, or warehouse.

10. Make sure the unit is on a level surface.

11. Minimize the amount of humidity in the room. For example, adding a dehumidifier.

12. To prolong the compressor's life, please wait at least 3 minutes before turning the unit

back on after shutting it off.

13. Inspect and keep the pre-filters clean by cleaning regularly.

14. Inspect and replace the activated carbon filters regularly.

15. Perform routine maintenance.

Optimizing Performance

Maintenance

Never spray water onto the main

unit.

Never use volalile substances such

as gasoline or polishing powder to

clean the appliance.

It is necessary to clean or replace

the air filters periodically.

Clean as follows:

Use lukewarm water

(below 104˚F) to clean

the appliance.

1. If you are not going to use this unit for a long time, be sure to drain the water from the

reservoir by removing the drain cap and the rubber plug.

2. Before storing the unit, run it in fan mode for a few hours to dry any moisture on the coils to

prevent mold.

3. Turn the unit off, clean the air filter and reinstall it.

4. Remove the exhaust hose and connectors and keep them in a safe place.

Maintenance and Storage

Replace the activated carbon filter

The activated carbon filter cannot be cleaned

and needs to be disposed of when cleaning the

pre-filter. EdgeStar sells replacement activated carbon

filters. Contact customer service via email at

service@edgestar.com or by telephone at

1-866-319-5473 to purchase additional activated carbon

filters.

Stop the appliance and

remove the activated carbon

filter and the pre-filter.

The activated carbon

filter attaches to the

standard pre-filter. The

activated carbon filter

removes smoke, odors

and other harmful

particles, while the

pre-filter removes dust.

Clean and reinstall the

pre-filter

Dirt can be cleaned off the pre-filter

by washing it with a solution of soap in

lukewarm water. After cleaning the pre-filter,

allow it to air dry in shaded and cool place, then

reinstall. Clean the pre-filter

every two weeks if the air

conditioner operates in a

dusty environment.

Turn off the appliance

first before disconnecting

from the power supply.

Cut off the power supply

Wipe with a soft

and dry cloth

Troubleshooting

Why is my air conditioner not functioning at all?

oMove the air conditioner to another outlet, and test the outlet with a voltage tester or another appliance

that is known to be non-defective. If the outlet is bad, contact an electrician and move the air conditioner to

another outlet.

oIf the remote will not work, first, check the batteries. The control panel may be unplugged from the circuit board.

Contact customer service to repair.

Why is my air conditioner not cooling at all?

oThe unit should be in a room where the ambient temperature is below 95˚F . If the ambient temperature is

above 95˚F, the unit will likely not blow cold air but is not defective. Follow the below steps to increase the

efﬁciency of your unit’s compressor:

oMinimize heat in the room.

oMinimize the size of the area to be cooled (close doors and windows).

oClose curtains or pull down blinds; minimize direct sunlight into the room.

oRemove additional heat sources such as computer equipment (servers), etc.

oRun the unit before it is needed (e.g., run the unit in the morning before the area gets hot, and

continue to run the unit all day long in order to maintain a low temperature).

oUse more than one unit or a larger unit to cool the area.

oRemove the exhaust hose and run the unit for 5 minutes. Stick your hand in front of the exhaust and then

in front of the internal air louvers. Is the exhaust noticeably hotter than the interior air? If so, the unit is not

defective; follow the above steps to maximize efficiency of your unit’s compressor.

oIf your unit has a filter, the filter may be dusty or otherwise blocked. Clean the ﬁlter or contact customer

service to replace if necessary.

oCheck to make sure the air intake or exhaust ports are not partially obstructed. If they are, remove the

obstruction.

My unit turns on, but one of the fans is not turning or makes a loud noise? (Exhaust and evaporator fan)

oIf the fan spins freely while the unit is off, but does not spin when the unit is on, then the probable

cause is a loose wire from the fan motor to the circuit board, or a faulty fan motor. Contact customer

service to replace faulty wiring or fan motor.

oIf the fan does not spin freely, then the probable cause is a broken fan, or a foreign object has

jammed the fan. Contact customer service if fan is broken, or unplug unit and attempt to remove

foreign object.

oThe air conditioner may not be receiving electrical power. Press the test/reset buttons on the LCDI power

cord.

Troubleshooting

Why are the control panel lights blinking randomly?

oYour air conditioner may have a minor electrical fault. Move the unit to another outlet or unplug the unit and

plug it in again.

oYour air conditioner may be plugged into an outlet that cannot supply the correct voltage to the unit. Move the

air conditioner to another outlet, and test the outlet with a voltage tester or another appliance that is known to

be non-defective. If the outlet is bad, contact an electrician and move the air conditioner to another outlet.

oIf that is not the problem, the unit may have a faulty control panel. Contact customer service.

My unit runs for a little while (generally about 90 seconds) and then suddenly trips its power cord (and/or the

circuit breaker).

oYour air conditioner may need to be reset. Move the unit to another outlet or unplug the unit for 1 minute and

plug it in again.

oYour air conditioner may be plugged into an outlet that cannot supply the correct voltage to the unit. Move the

air conditioner to another outlet, and test the outlet with a voltage tester or another appliance that is known to

be non-defective. If the outlet is bad, contact an electrician and move the air conditioner to another outlet.

My air conditioner is too loud?

oYour air conditioner may be positioned on a hard or uneven ﬂoor causing your unit to vibrate. Move the unit

onto a level, carpeted surface.

oIf the unit is level and a “knocking” noise is audible, the unit may have a faulty compressor. Contact customer

service.

Why is my air conditioner leaking?

oMake sure the unit on a level surface.

oMake sure you are running the unit with the drain plug installed. Make sure the drain cap as well as the rubber

drain plug is attached to the unit.

Both fans are blowing, but only room temperature air is coming out of both fans?

oCheck to see if there is any oily residue on the bottom of the unit or inside the unit on the panels, or

components. If this is the case, then the compressor has a cracked coil that is leaking oil and the unit must be

replaced. Contact customer service to replace.

oCheck for damage to the bottom of the unit. If damage is present, contact customer service.

oMake sure the unit is on “cooling” mode.

oNote that the compressor may take up to 3 minutes to turn on.

Table of contents

Other EdgeStar Air Conditioner manuals

EdgeStar

EdgeStar AP1200S-1 User manual

EdgeStar

EdgeStar WAC Series Reference manual

EdgeStar

EdgeStar AP13500HG User manual

EdgeStar

EdgeStar AP14001HS User manual

EdgeStar

EdgeStar AP14003W User manual

EdgeStar

EdgeStar AP12000HS-1 User manual

EdgeStar

EdgeStar Koldfront CAC10000W User manual

EdgeStar

EdgeStar AP14001HS User manual

EdgeStar

EdgeStar Evaporative Air Cooler - Tower Design... User manual

EdgeStar

EdgeStar AP8000W User manual

EdgeStar

EdgeStar AP13500G User manual

EdgeStar

EdgeStar Koldfront PAC8000S User manual

EdgeStar

EdgeStar AP10002BL User manual

EdgeStar

EdgeStar AP8000W User manual

EdgeStar

EdgeStar AP16000G User manual

EdgeStar

EdgeStar EAC420 User manual

EdgeStar

EdgeStar AP12000S-1 User manual

EdgeStar

EdgeStar AP14000HS User manual

EdgeStar

EdgeStar AP310SS User manual

EdgeStar

EdgeStar AP13500G User manual

EdgeStar

EdgeStar AP10002BL User manual

EdgeStar

EdgeStar AP10002BL User manual

EdgeStar

EdgeStar Koldfront WAC12000W User manual

EdgeStar

EdgeStar AP10002BL User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

EdgeStar ap12000s User manual

Popular Air Conditioner manuals by other brands
