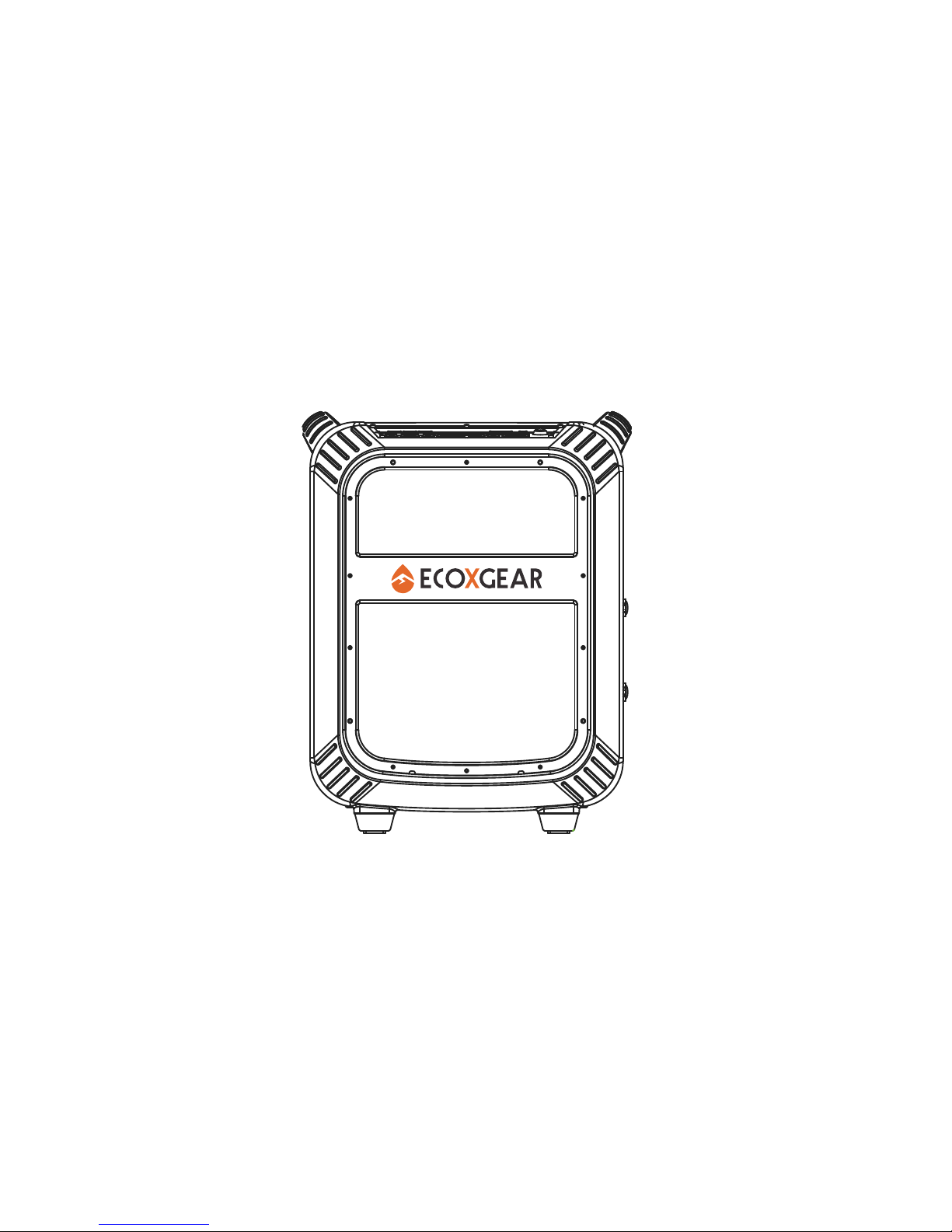

EcoxGear EcoBoulder User manual
User's Manual
EcoBoulder
Bluetooth Compliance Bluetooth V 4.0
Frequency Band 2.4~2.4835GHz ISM Spectrum
Operating Range
Tweeter
Woofer
Output Power
Modulation GFSK (Gaussian Frequency Shift Keying)
Up to 10m (indoor)
3 ' (76.2mm) tweeter'
8 ' (203.2mm) woofer'
50 W (peak)
Battery Capacity
Charging Time
Link
Link Range
12V, 7.0Ah
About 10 hours
TrueWireless Stereo (TWS)
30' (9.1 m) from left to right speaker
Compatibility Mobile phone/device supporting Bluetooth
V1.1 (and above)
Power Supply Input voltage: 100-240V~50/60Hz
Size
Radio Frequency Range
504mm*393mm*287mm
US: AM 520 - 1710 kHz, FM 87.5 - 107.9 kHz
Specifications
21
FCC
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC's RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied
antenna.
FCC ID: 2AIF5-EM200
FCC
FCC
This device complies with part 15 of the FCC Rules. Operation is
subject to the condition that this device does not cause harmful
interference (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including
interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance
could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference
will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception,
which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more
of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
To maintain compliance with FCC's RF Exposure guidelines, This
equipment should be installed and operated with minimum distance
between 20cm the radiator your body: Use only the supplied
antenna.
FCC
FCC ID: 2AAUI-GDIEXBM901
Congratulations
Thanks for purchasing the EcoBoulder.
Enjoy this smart product, please read below instructions carefully.
It's more than just a Bluetooth speaker!
Care and Maintenance
1.Read the
2.Do not attempt to service the EcoBoulder yourself. Opening or
removing covers may expose you to dangerous voltages or other
hazards. Please contact your local reseller before you send the
EcoBoulder for repair.
3.Make sure that you have completely charged the battery prior to
first use for maximum battery life.
4.Do not use the EcoBoulder in temperatures exceeding the
standard. Extreme temperature will lead to damage of the
EcoBoulder, decrease of battery capacity or the EcoBoulder
durability.
5.Place the EcoBoulder in an appropriate position for operation.
6.Use the product in proper volume, extremely high volume can be
harmful for your ear.
7.Return the Master Volume to zero when you are finished using
the product.
8. Switch everying on in the following order:
audio input source(i.e. microphones, instruments, CD/MP3
Players)
EcoBoulder
User' s Manual before using the EcoBoulder.
1
•
•
Contents
Congratulations
Care and Maintenance
Features List
Unpacking
Layout
Battery/Charger
Connections
LCD Icons Description
Key Functions
Operations
Troubleshooting
Specifications
1
3
4
5 ~ 8
9
10
11
12 ~ 13
14 ~ 19
20
21
Page 1
2
Features List
1.
2. Waterproof
3. Bluetooth mode, FM mode, AM mode, AUX 1 mode, AUX 2
mode Optional
4. Bluetooth Connection (Bluetooth V4.0)
5. Music Playing Control
6. Bluetooth Stereo (A2DP/AVRCP)
7. EQ(Default,Bass Boost, Treble Boost, Rock, Jazz) Optional
8. Microphone Input
9. AUX 1, AUX 2 Input
10. USB Charging Ports
11. Master Volume Adjustable(30 levels)
12. Microphone Volume Adjustable(30 levels)
13. Preset the AM/FM Station
14. Store 6 AM Stations
15. Store 6 FM Stations
16. Link Two EcoBoulders
17. Indication(Low battery/Charging/Full charged)
18. Turn On/Off Backlight
19. Bluetooth for 10m distance
Clear and Crystal Sound , Superior Stereo Performance
Bluetooth Compliance Bluetooth V 4.0
Frequency Band 2.4~2.4835GHz ISM Spectrum
Operating Range
Tweeter
Woofer
Output Power
Modulation GFSK (Gaussian Frequency Shift Keying)
Up to 10m (indoor)
3 ' (76.2mm) tweeter'
8 ' (203.2mm) woofer'
50 W (peak)
Battery Capacity
Charging Time
Link
Link Range
12V, 7.0Ah
About 10 hours
TrueWireless Stereo (TWS)
30' (9.1 m) from left to right speaker
Compatibility Mobile phone/device supporting Bluetooth
V1.1 (and above)
Power Supply Input voltage: 100-240V~50/60Hz
Size
Radio Frequency Range
504mm*393mm*287mm
US: AM 520 - 1710 kHz, FM 87.5 - 107.9 kHz
Specifications
3
21
Unpacking
Once you have unpacked your product, make sure that all the parts
shown below are available. If any pieces are missing or broken,
please promptly call your dealer.
EcoBoulder Power cable User’s Manual
User's Manual
EcoBoulder
4
Layout
Top View
Panel
Handle
Front View
Top Cover
Speaker mesh
Rear Cover
Lower Cover
Bar
Rear View
Bottom View
Wheels
Layout
56
Layout
Top View
Panel
Handle
Front View
Top Cover
Speaker mesh
Rear Cover
Lower Cover
Bar
Rear View
Bottom View
Wheels
Layout
56
Side View
Power jack cover
4
Connect jack cover
Side View
4
USB jack
AUX 1 jack
Microphone jack
Power cable jack
Closed
Open
Closed
Open
Bolt
AUX 2 jack USB jack
Layout Layout
78
