Introduction

Dear Music Lover,

thank you for your decision to acquire Dynaudio loudspeakers.

Every Dynaudio model features the advanced Dynaudio loudspeaker technology, resulting in music reproduction

at a very high level, making many familiar recordings a new listening experience altogether. This technology results

from many years of intense research and development, the highest quality standards in production, and

Dynaudio‘s enduring passion for musical truth.

Dynaudio is one of very few companies who can realize such loudspeaker concepts through its own in-house

development and production facilities. These facilities are so advanced and the quality control is so strict that

Dynaudio is TS16949 certiﬁed.

Each loudspeaker is constructed by Dynaudio’s master craftsmen in Denmark to these high standards of quality.

To realize the highest sound quality from the loudspeakers, some areas should be addressed, as will be explored

on the following pages.

By considering the tips and suggestions, you will achieve the maximum performance and enjoyment of the

loudspeaker and it‘s advanced musical capabilities for a long time to come.

We wish you many years of enjoyment experiencing music.

Dynaudio

Introduction 5

Initial Setup

The initial set-up of a Dynaudio loudspeaker is relatively easy. Please take your time reading the guidelines and

more detailed instructions on the following pages of this manual after completing the ﬁrst four steps as listed

below.

6Passive Speakers User manual

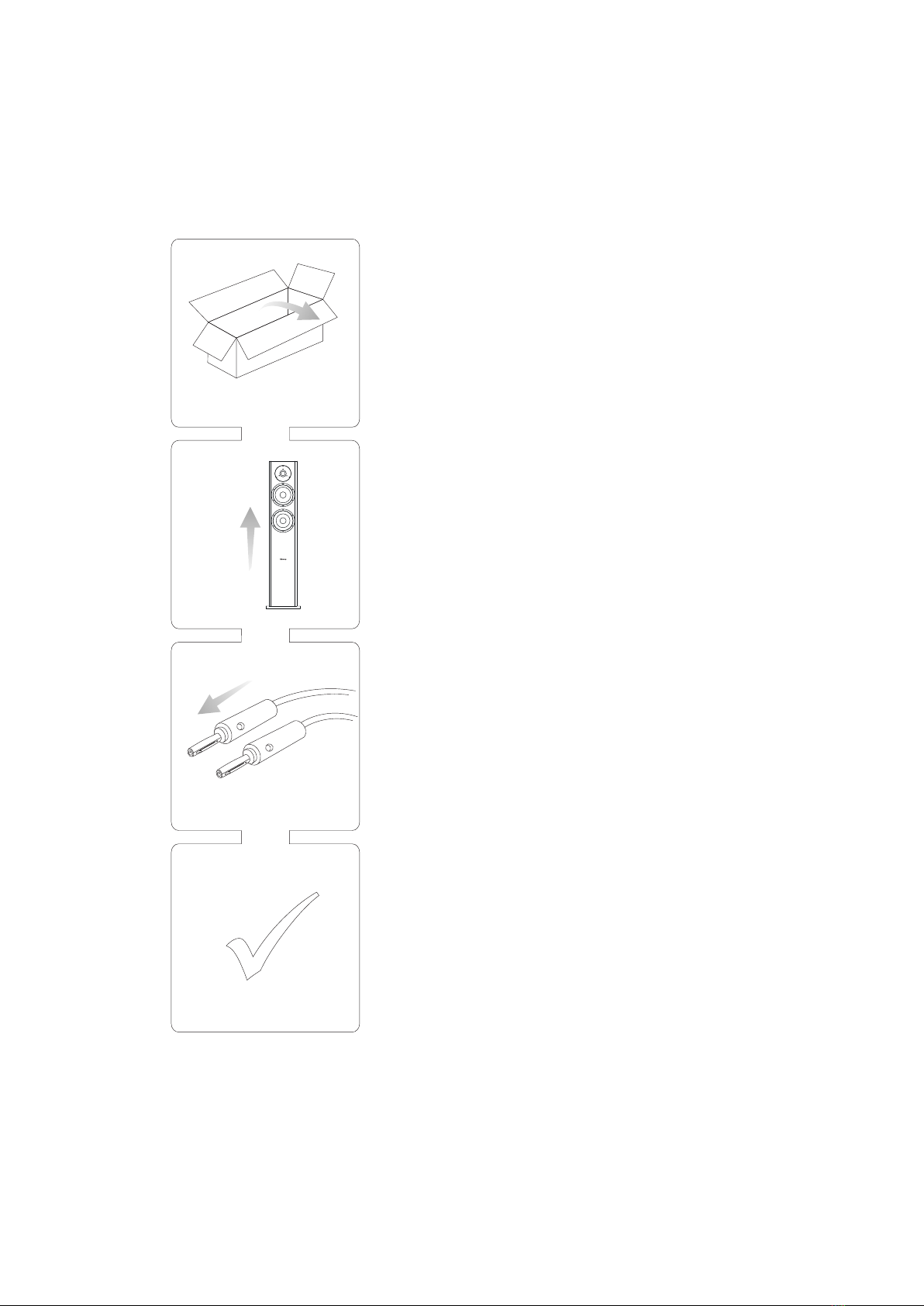

1. Unpacking

Carefully remove the loudspeaker from the packaging and position it with its underside on the ﬂoor. Remove the

white cloth cover around the loudspeaker. We suggest that you keep the box and white cloth for future use.

2. Positioning

Place the loudspeaker facing the listening area at its desired position in the room. Remove the foam plugs from

the rear bass reﬂex port (if provided with your loudspeaker model).

3. Connecting

While the ampliﬁer is switched o, connect each loudspeaker to the ampliﬁer with the speaker cable. Turn the

volume level all the way down and power the ampliﬁer on.

4. Listening

The loudspeaker is now ready to play. Optimal performance will only be realised after careful positioning and

running in the speakers as described over the course of the following pages. Enjoy your new Dynaudio

loudspeakers!

Feel free to contact the Dynaudio Customer Service department with any further questions or for additional

assistance.

www.dynaudio.com/support

Initial Setup 7

Safety Instructions

High Sound Pressure Levels

Caution

Listening to high sound pressure levels over a longer period of time may harm your hearing.

▪To avoid auditory eect, do not listen to music at high sound levels over a longer period of time.

8Passive Speakers User manual

About this guide

Used expressions and symbols

In this operating manual, the following signs and symbols are used:

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the literature accompanying the product.

Caution

Indicates (in combination with a safety sign) a potentially hazardous situation which, if not avoided, could result in

minor or moderate injury or damage to equipment.

Note

Additional information is provided, which is important to fully understand the loudspeaker and how to operate it.

About this guide 9

Connecting the loudspeakers

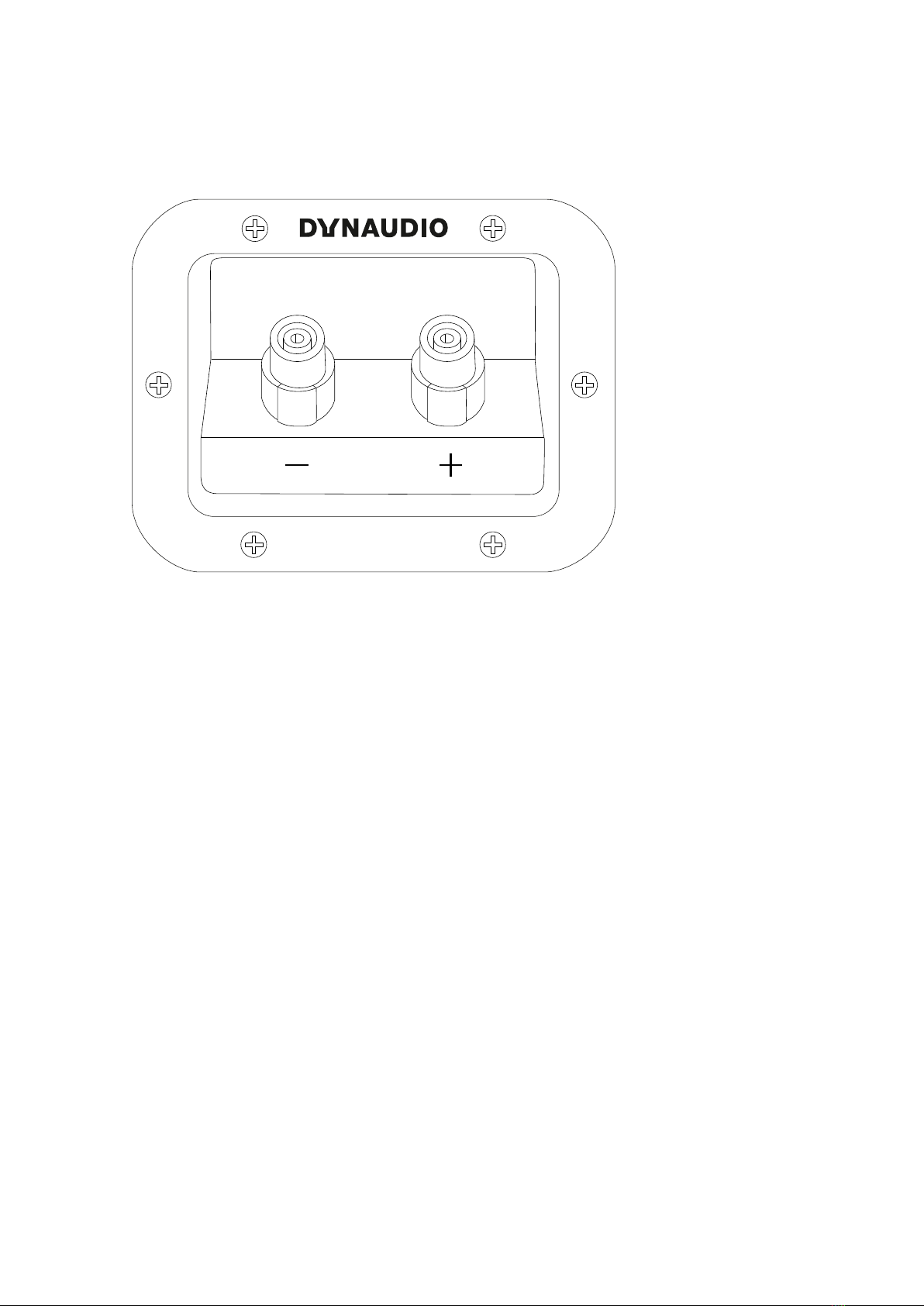

Figure 1: Binding posts at rear of cabinet (example)

Connect a two-pole (+/-) loudspeaker cable to the binding posts, located at rear of the cabinet (see Figure 1). The

high quality, gold plated binding posts can accommodate dierent connection systems:

▪4.0 mm banana plugs: The pins can be put directly into the binding post without any tightening necessary.

▪Cable spades: Untighten the binding posts, insert the spade into the opening, and secure the spade by tightening the

posts.

▪Bare wires: Untighten the binding posts and place the cable into the binding posts. Tighten the posts.

Note

▪With every connection system, ensure that the contact is tight and has a proper contact area.

▪Connectors with similar gold plating as binding posts will typically oer the best results and remain corrosion-free.

▪Please ensure that the positive and negative cables do not make contact with each other. Tighten the posts, and check

the contact after a few days to make sure that it hasn’t loosened.

10 Passive Speakers User manual
