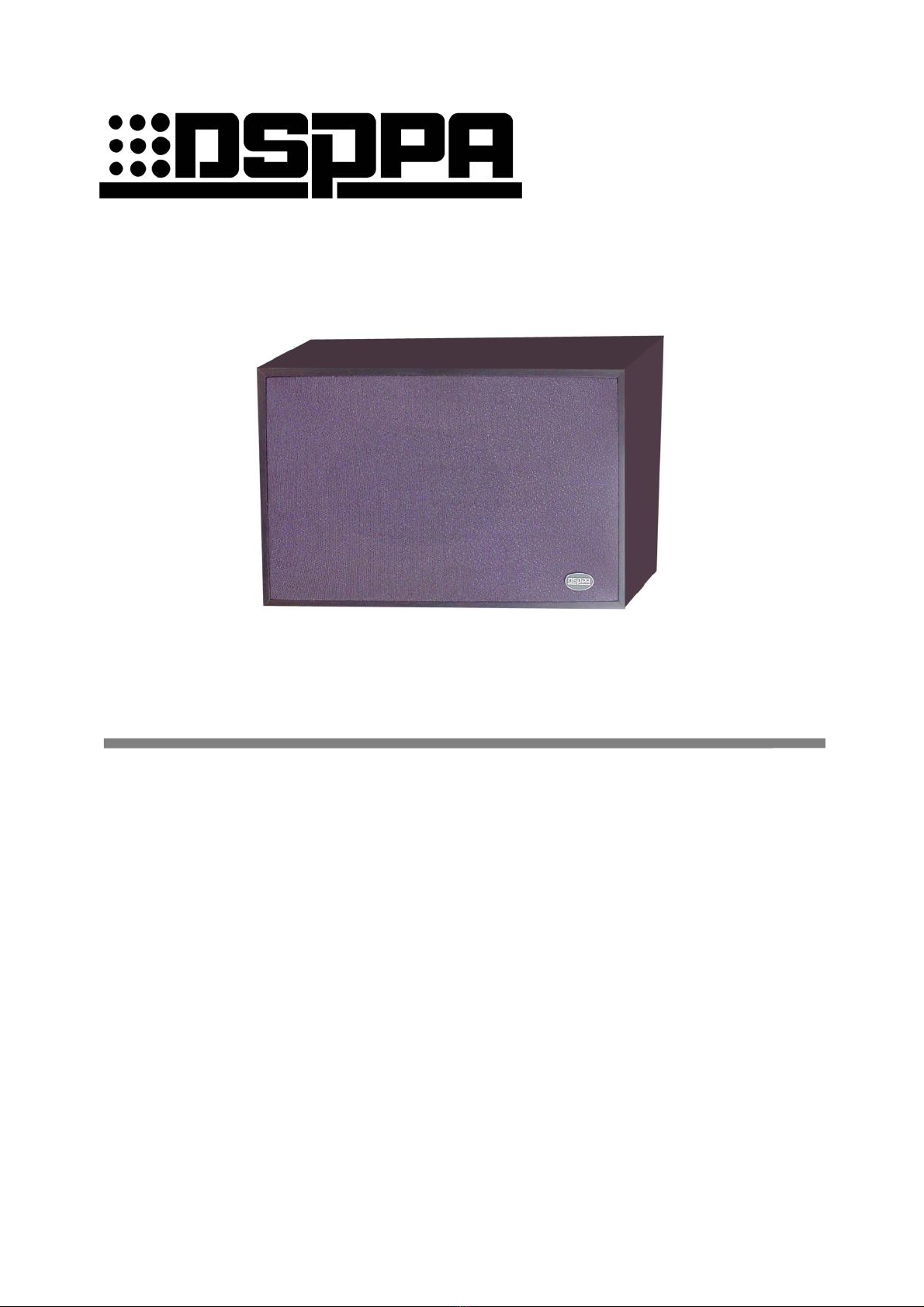

Wall Mount Speaker System DSP406

OWNER’S MANUAL

Thanks for purchasing PA speaker system of DSPPA series. All of DSPPA series

products have been tested strictly before shipping. DSPPA series PA speaker system is

widely used in hotel, trade building, supermarket, school, entertainment, etc. It’s the most

ideal choice of you! In order to facilitate installing, modulating and running please read this

manual carefully before setup.

FEATURES:

Made of high beaverboard, hard to vibrate, sounds clear and

sonorousness;

Weight 2 kg, equipped with hanging holes for mounting convenient;

70/100V, 5-10W, suited for different field;

Effective Freq. Range 80Hz-18kHz, high sensitivity (91±2dB), Max.

Sound Pressure Level 101±2dB.

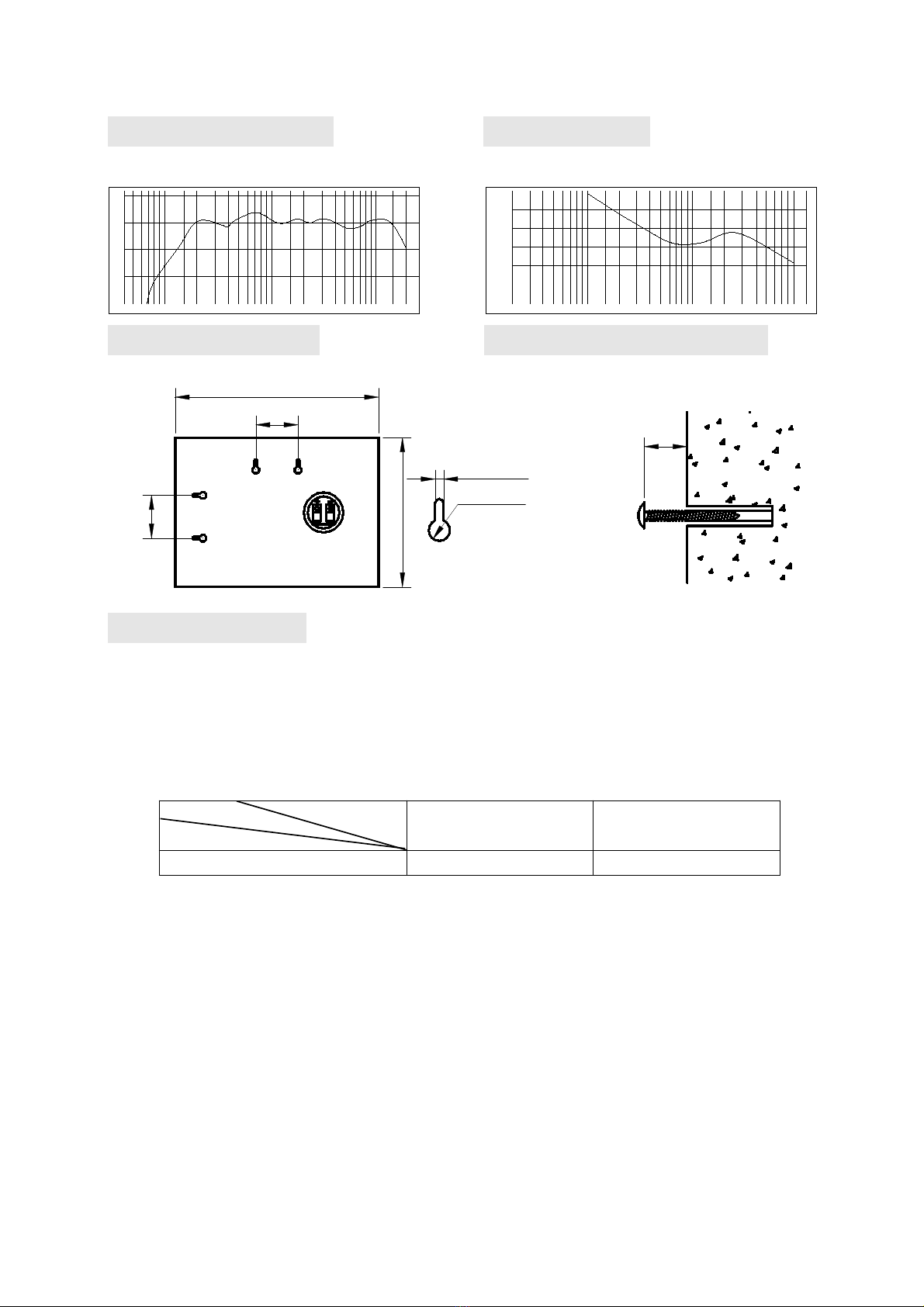

FREQ. RESPONSE DISTORTION

(dB SPL、1W、1m) (THD< 1.5% 1W、1m、100Hz-10kHz)

HANGING HOLE NAIL FOR MOUNTING

4.5mm

10mm

31.5cm

4mm-6mm

6cm

6cm

20.5cm

INSTALLATION

1. Fit two Ø4mm nail on wall where it is needed to install a speaker system as

shown above.

2. Connect audio broadcasting wire to the terminals according to the table

below.

Red-Black

5W

10W

3. Position the speaker, then adjust the direction of it and examine whether it is

steady.

Guangzhou DSPPA Audio Co., Ltd.

Line Voltage

Terminals

Power

50050

80

70

100 300200

90

100

1K 2K 3K 5K 20K10K 20020 5030 100

1.000

500 1K 2K 3K 10K

5K

0.010

0.032

0.100

0.316

3.162

10.000

300 Hz

D istortion / %

Public Address System
