DS18 PRO- TW1L User manual
PRO- TW1L
OWNER'S MANUAL
400W MAX
200W RMS
4 OHMS

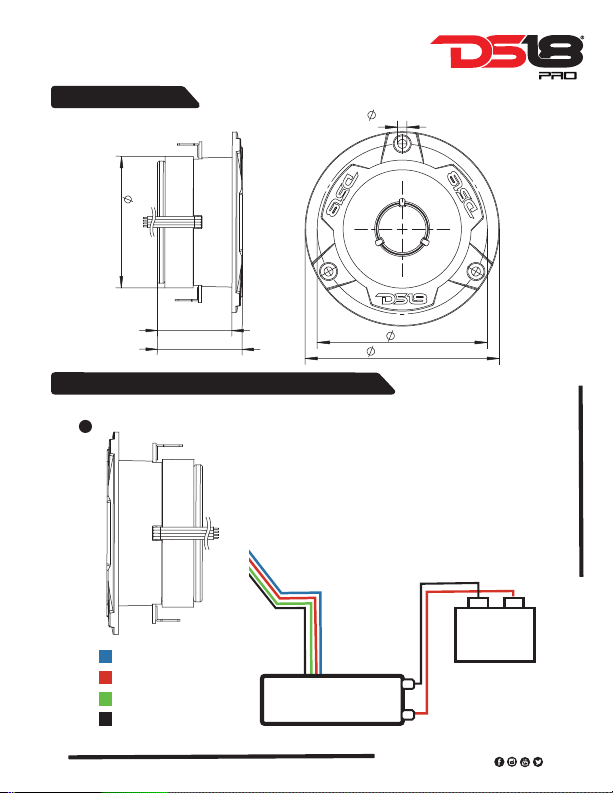

INSTALLATION & CONNECTION OPTIONS:
DIMENSIONS
1
PRO-TW1L
#WeLikeItLoud
LED-BTC
+
-
Green LED (-)
12V DC (+)
Red LED (-)
Blue LED (-)
BATTERY
+-
BATTERY
96mm (3.78”)
84mm (3.31”)
45mm (0.18”)
70mm (2.76”)
40mm (1.57”)
45mm (1.78”)
To connect without LED Control Module (LED-BTC),
Connect as Shown in the Following Diagram:
2
PRO-TW1L
Black wire “BK” Connected to Battery Positive (+) 12V
White Color Light “R” ; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative (-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative (-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative (-)
Cyan Color Light ”B” and “G” Connected to Battery Negative (-)
#WeLikeItLoud
+
-
Green LED (-)
12V DC (+)
Red LED (-)
Blue LED (-)
BATTERY
+-
BATTERY
’
PRO-TW1L
ALUMINIUM SUPER BULLET TWEETER
TRANSPARENT POLYCARBONATE BODY AND BULLET
RGB LED BUILT IN BODY
1 METER RGB LED INPUT WIRE
BT CONTROL MODULE APP (LED-BTC)FOR
MULTI-FUNCTION FOR RGB LED LIGHTING SOLD SEPARATELY
SURFACE RING BRUSHED SILVER FILM HOT STAMP
8 OZ Y30 FERRITE MAGNET
ZINC PLATED TOP AND BACK PLATE
1”HIGH TEMPERATURE KAPTON VOICE COIL
200 WATTS RMS POWER
400 WATTS MAX POWER
IMPEDANCE 4 OHMS
SENSITIVITY 103 dB
FREQUENCY RESPONSE 3.5KHz-20KHz
CAPACITOR CROSSOVER INCLUDED
