Dometic CoolAir SP950C User manual

SP950C

Fastening frame

for MAN TGA/TGX/TGS L, LX, XL

Installation Manual. . . . . . . . . . . . . . . . . . . . .6

Befestigungsrahmen

für MAN TGA/TGX/TGS L, LX, XL

Montageanleitung. . . . . . . . . . . . . . . . . . . . 10

Cadre de fixation

pour MAN TGA/TGX/TGS L, LX, XL

Instructions de montage . . . . . . . . . . . . . . . 14

Bastidor de fijación

para MAN TGA/TGX/TGS L, LX, XL

Instrucciones de montaje . . . . . . . . . . . . . . 18

Estrutura de fixação

para MAN TGA/TGX/TGS L, LX, XL

Instruções de montagem . . . . . . . . . . . . . .23

Telaio di fissaggio

per MAN TGA/TGX/TGS L, LX, XL

Indicazioni di montaggio . . . . . . . . . . . . . .27

Bevestigingsframe

voor MAN TGA/TGX/TGS L, LX, XL

Montagehandleiding . . . . . . . . . . . . . . . . . 31

Fastgørelsesramme

til MAN TGA/TGX/TGS L, LX, XL

Monteringsvejledning . . . . . . . . . . . . . . . . 35

Fästram

för MAN TGA/TGX/TGS L, LX, XL

Monteringsanvisning . . . . . . . . . . . . . . . . . 39

Festeramme

for MAN TGA/TGX/TGS L, LX, XL

Monteringsanvisning . . . . . . . . . . . . . . . . . 43

Kiinnityskehys

malliin MAN TGA/TGX/TGS L, LX, XL

Asennusohje . . . . . . . . . . . . . . . . . . . . . . . . 47

Крепежная рамка

для MAN TGA/TGX/TGS L, LX, XL

Инструкция по монтажу. . . . . . . . . . . . . . . 51

Rama mocująca

do MAN TGA/TGX/TGS L, LX, XL

Instrukcja montażu . . . . . . . . . . . . . . . . . . . 56

Upevňovací rám

pre MAN TGA/TGX/TGS L, LX, XL

Návod na montáž . . . . . . . . . . . . . . . . . . . . 60

Upevňovací rám

pro MAN TGA/TGX/TGS L, LX, XL

Návod k montáži . . . . . . . . . . . . . . . . . . . . . 64

Rögzítőkeret

MAN TGA/TGX/TGS L, LX, XL

Szerelési útmutató . . . . . . . . . . . . . . . . . . . 68

AIR CONDITIONERS

COOLAIR

CoolAir SP950C

Explanation of symbols CoolAir SP950C

Please read this manual carefully before installing and starting up and

store it in a safe place. If the device is resold, this instruction manual must

be handed over to the purchaser along with the device.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

2 General safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Target group for this manual. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

6 Fitting the fastening frame . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

1 Explanation of symbols

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

CoolAir SP950C General safety instructions

2 General safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

3Scopeofdelivery

Installation kit for MAN TGA/TGX/TGS L, LX, XL,

ref. no. 9100300049

Before starting the system, check that all the parts belonging to the scope of delivery

are present.

NOTICE!

The freedom of movement of semi-trailers (of the outer edges of the

semi-trailer when turning or jackknifing) and other vehicle attachments

must not be restricted.

NOTE

Observe the safety instructions in the installation manual for the CoolAir

SP950 parking cooler.

Quantity Designation Ref. number

1 Fastening frame 4442500732

1 Installation manual 4445102216

13 Retainer nut M8

7 U washer M8 (d1 = 8.4 mm, d2 = 20 mm)

2 Bolt M8 x 16

4 Bolt M8 x 30

12 U washer M8 (d1 = 8.4 mm, d2 = 16 mm)

Target group for this manual CoolAir SP950C

4 Target group for this manual

The installation information in this manual is only intended for qualified personnel at

workshops, who are familiar with the guidelines and safety precautions to be applied

during the installation of vehicle accessory parts.

5 Intended use

The fastening rail is used for installing the SP950C condenser unit for the CoolAir

SP950 parking cooler to the following vehicles: MAN TGA/TGX/TGS L, LX, XL. The

fastening frame is attached on the left of the rear cab wall.

When fastening the fastening frame, use existing fastening points on the vehicle. You

do not need to drill new holes.

6 Fitting the fastening frame

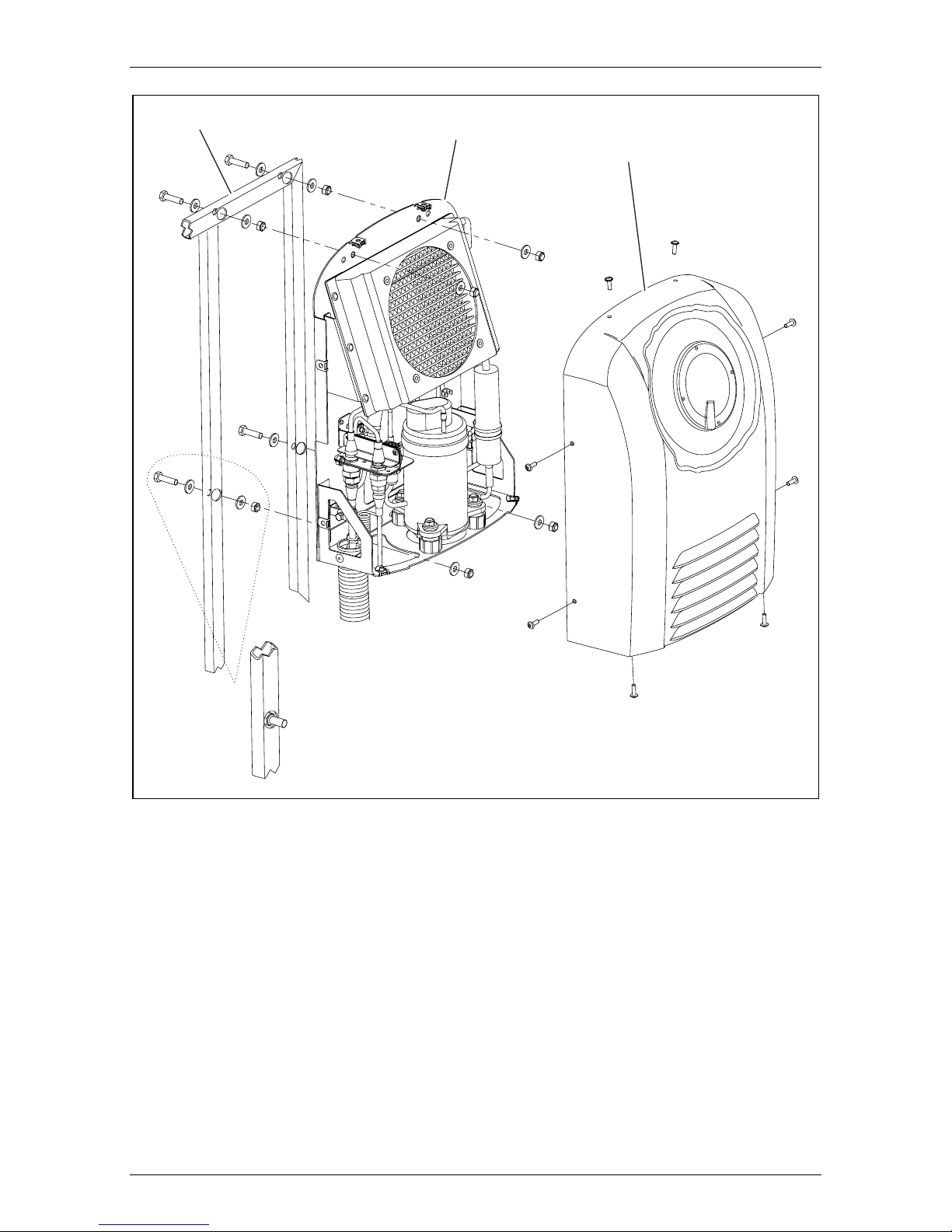

Basic assembly is described in fig. 1, page 3:

NOTICE!

Observe the information in the installation manual when fitting the

CoolAir SP950 parking cooler.

NOTE

Operating instructions can be found in the operating manual for the

CoolAir SP950 parking cooler.

Item Designation

1 Fastening frame

2Condenserunit

3Cover

CoolAir SP950C Guarantee

Fit the fastening frame and the CoolAir SP950 parking cooler on the

MAN TGA/TGX/TGS L, LX, XL as follows:

➤Insert and tighten the four M8 x 30 bolts, eight U washers M8 8.4 x 16 mm and

four M8 retaining nuts (fig. 1, page 3) in the mounting frame for the condenser

unit.

➤Remove the existing nuts (fig. 21,page 4) from the fastening of the air intake

housing.

➤Fasten the fastening frame to the fastening bolts using the U washers

M8 8.4 x 20 mm and M8 retaining bolts provided (fig. 21,page 4).

➤Fasten the fastening frame to the bottom of the bracket with the M8 x 16 bolts,

U-washers M8 8.4 x 16 mm and M8 retaining nuts provided (fig. 22,page 4).

➤Place the condenser unit on the projecting bolts of the mounting frame and bolt

to the four U washers M8 8.4 x 16 mm and four M8 retaining nuts.

➤Check that all bolts are still tight after travelling approximately 200 km.

7Guarantee

The statutory warranty period applies. If the product is defective, please contact the

service partner in your country (addresses on the back on the instruction manual).

Our experts will be happy to help you and will discuss the warranty process with you

in more detail.

Erklärung der Symbole CoolAir SP950C

Bitte lesen Sie diese Anleitung vor Einbau und Inbetriebnahme sorgfältig

und bewahren Sie sie auf. Geben Sie sie im Falle einer Weiterveräußerung

des Geräts an den Käufer weiter.

Inhaltsverzeichnis

1 Erklärung der Symbole . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

2 Allgemeine Sicherheitshinweise . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

3 Lieferumfang . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4 Zielgruppe dieser Anleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

5 Bestimmungsgemäßer Gebrauch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

6 Befestigungsrahmen montieren. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

7 Gewährleistung. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

1 Erklärung der Symbole

WARNUNG!

Sicherheitshinweis: Nichtbeachtung kann zu Tod oder schwerer

Verletzung führen.

VORSICHT!

Sicherheitshinweis: Nichtbeachtung kann zu Verletzungen führen.

ACHTUNG!

Nichtbeachtung kann zu Materialschäden führen und die Funktion des

Produktes beeinträchtigen.

HINWEIS

Ergänzende Informationen zur Bedienung des Produktes.
