Dimplex Revillusion RBF30-FG User manual

Installation and User’s Guide

7214620200R03

Share the warmth and leave a review.

dimplex.com/sharethewarmth

Your input helps to create even

better products and experiences.

We value your feedback!

IMPORTANT SAFETY INFORMATION:

Read this manual first before attempting to install or use this electric fireplace. Always comply with the

warnings and safety instructions contained in this manual to prevent personal injury or property damage.

To view the full line of Dimplex products, visit www.dimplex.com

We value your feedback!

Models

500002388 RBF30-FG

500002389 RBF30WC-FG

500002400 RBF36-FG

500002401 RBF36WC-FG

500002398 RBF36P-FG

500002399 RBF36PWC-FG

500002410 RBF42-FG

500002411 RBF42WC-FG

2www.dimplex.com

Conventions used in this manual:

!NOTE: Procedures and techniques that are considered important enough to emphasize.

CAUTION: Procedures and techniques which, if not carefully followed, will result in damage to the equipment.

WARNING: Procedures and techniques which, if not carefully followed, will expose the user to the risk of re,

serious injury, or death.

Table of Contents

Welcome .................................................................... 3

IMPORTANT INSTRUCTIONS ................................................ 4

Technical Speciﬁcations ....................................................... 6

Electrical Rating .............................................................6

Product Reference ...........................................................6

Product Dimensions ..........................................................6

Package Contents ............................................................ 7

Installation................................................................... 8

Placement..................................................................8

Preparing the Firebox for Installation .............................................8

Installation Instructions........................................................9

Front Glass Installation .......................................................11

Electrical Installation .........................................................12

Plug Kit Installation ..........................................................14

Heater Hardware Disconnect ..................................................14

Wiring Diagram .............................................................. 15

Operation .................................................................. 16

General Operation ..........................................................16

Resetting the Temperature Cutoff Switch.........................................18

Maintenance ................................................................ 19

Remote Control Battery Replacement ...........................................19

Cleaning ..................................................................19

Troubleshooting ............................................................. 20

Warranty ................................................................... 21

NO NEED TO RETURN TO THE STORE

If you have questions regarding the operation of this product or if you require

service, before returning this product to the place of purchase,

For Troubleshooting and Technical Support

OR Toll-Free 1-888-346-7539

Please have your model number and product serial number ready.

Welcome

Thank you for purchasing a Revillusion®Built-in Electric Firebox by Dimplex.

Please carefully read and save these instructions.

WARNING: Read all instructions and warnings carefully before starting installation. Failure to follow these

instructions may result in a possible electric shock, re hazard and will void the warranty.

Please record your model and serial numbers for future reference. Model and serial numbers can be found on the

label located behind the front glass of your replace.

to ensure our customer service team can quickly acess your information when you contact us, allowing them to help

you sooner.

Model

Serial Number

Model

Serial No.

Model Number

Serial Number

4www.dimplex.com

When using any electrical appliance, basic

precautions should always be followed to reduce

the risk of fire, electric shock, and injury to persons.

These precautions include:

① Read all instructions before using the

Revillusion® Built-in Electric Firebox.

DANGER: High temperatures may be generated

under certain abnormal conditions. Do not

partially or fully cover orobstruct the front of

the firebox.

② This firebox is hot when in use. To avoid burns,

do not let bare skin touch hot surfaces. The trim

around the heater outlet becomes hot during

heater operation. Keep combustible materials,

such as furniture, pillows, bedding, papers,

clothes, and curtains at least 3 feet (0.9 m) from

the front of the firebox.

③Extreme caution is necessary when the firebox

is used by or near children or invalids and

whenever the firebox is left operating and

unattended.

④Always turn off the firebox when it is not in use.

⑤Do not operate the firebox after it malfunctions,

has been dropped, or damaged in any manner.

Disconnect power at the service panel and have

the firebox inspected by a reputable electrician

before using.

⑥Do not use this firebox outdoors.

⑦Never locate the firebox where it may fall into a

bathtub or other water container.

⑧Do not insert or allow foreign objects to enter

any ventilation or exhaust opening as this may

cause an electric shock, or fire, or damage the

firebox.

⑨To prevent a possible fire, do not block air

intakes or exhaust in any manner

⑩To disconnect the heater, turn the controls to

OFF and turn off the power to the heater circuit

at the main disconnect panel.

⑪All electrical heaters have hot and arcing or

sparking parts inside. Do not use it in areas

where gasoline, paint, or flammable liquids are

used or stored.

⑫Do not modify this firebox. Use it only as

described in this manual. Any other use may

cause fire, electric shock, or injury to persons.

⑬Do not burn wood or other materials in this

firebox.

⑭Disconnect all power coming to the firebox at

the main service panel before performing any

cleaning or maintenance.

⑮When transporting or storing the firebox, keep it

in a dry place, free from excessive vibration, and

store to avoid damage.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

NO USER-SERVICEABLE PARTS INSIDE

SAVE THESE INSTRUCTIONS

IMPORTANT INSTRUCTIONS

FCC Compliance

CAUTION: This unit has been tested and found

to comply with the limits for Class B digital

device, pursuant to part15 of the FCC Rules.

These limits are designed to provide reasonable

protection against harmful interference in a

residential installation. This unit generates, uses

and can radiate radio frequency energy and, if

not installed and used in accordance with the

instructions, may cause harmful interference

to radio or television reception, which can be

determined by turning the unit OFF and ON,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

Reorient or relocate the receiving antenna.

Increase the separation between the unit and the

receiver.

Connect the unit into an outlet on a circuit different

from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV

technician for help.

This unit complies with Part15 of the FCC Rules.

Operation is subject to the following two conditions:

(1) This unit may not cause harmful interference,

and (2) this unit must accept any interference

received, including interference that may cause

undesired operation.

FCC CAUTION: Any changes or modications

not expressly approved by the party responsible

for compliance could void the user’s authority to

operate this equipment.

IMPORTANT INSTRUCTIONS

CAUTION: Always use a qualified technician

or service agency to repair the built-in electric

firebox.

WARNING:

Remote control contains small batteries.

Keep away from children. If swallowed, seek

medical attention immediately.

Do not install battery backwards, charge, put

in re or mix with used or other battery types -

may explode or leak causing injury.

6www.dimplex.com

Electrical Rating

Voltage: 120 V 60 Hz (3-Wire), 208 V 60 Hz (4-Wire), or 240 V 60 Hz (4-Wire)

Power: 1300W at 120V (10.8 A), 1975 W at 208 V (9.5 A), 2575W at 240V (10.7 A)

Product Dimensions

Technical Speciﬁcations

RBF30-FG

RBF30WC-FG

500002388

500002389

RBF36-FG

RBF36WC-FG

500002400

500002401

RBF36P-FG

RBF36PWC-FG

500002398

500002399

RBF42-FG

RBF42WC-FG

500002410

500002411

Width 31 ⅛"

792 mm

37 ⅛"

944 mm

37 ⅛"

944 mm

43 ¼"

1098 mm

Height 26 ⅝"

676 mm

26 ⅝"

676 mm

31"

788 mm

31"

788 mm

Depth 12 ⅛"

307 mm

12 ⅛"

307 mm

12 ⅛"

307 mm

12 ⅛"

307 mm

Weight 66.5 lb

30.2 kg

74.7 lb

33.9 kg

81.1 lb

36.8 kg

88.6 lb

40.2 kg

Product Name Model/SKU Product Name UL Number Size

30" Firebox Insert 500002388 RBF30-FG

690978xxxx* 30"

30"Firebox Insert - Weathered

Concrete 500002389 RBF30WC-FG

36"Firebox Insert 500002400 RBF36-FG

690979xxxx*

36"

36"Firebox Insert - Weathered

Concrete 500002401 RBF36WC-FG

36"Firebox Insert - Portrait 500002398 RBF36P-FG 36"

Portrait

36"Firebox Insert - Portrait

Weathered Concrete 500002399 RBF36PWC-FG

42"Firebox Insert 500002410 RBF42-FG

690980xxxx* 42"

42"Firebox Insert - Weathered

Concrete 500002411 RBF42WC-FG

*where xxxx is a non-safety critical sufﬁx

Product Reference

UL Listing File Number: E71416

Package Contents

Image Description Quantity

Firebox 1

Remote control 1

Owner’s Manual

IMPORTANTSAFETY INFORMATION:

Read this manual first before attempting to install or use the Revillusion™ Electric Fireplace.Always

comply with the warnings and safety instructions contained in this manual to prevent personal injury or

property damage.

Toview the full line of Dimplex products, visit www.dimplex.com

7214620100R07

Share the warmth and leave a review.

dimplex.com/sharethewarmth

Your input helps to create even better

products and experiences.

We value your feedback!

Models

RBF30 RBF30WC

RBF36 RBF36WC

RBF36P RBF36PWC

RBF42 RBF42WC

User’s and installation guide 1

Front glass 1

Glass trim 1

Plug Kit

(Power cord assembly, and 4 wire connectors) 1

Glass Hardware

Glass bracket 2

Door pin 2

Nut 2

Countersunk screw

3.5 mm x 8 mm 2

Pan head screw

3.5 mm [#6] x 8 mm 2

*Package contents are subject to change

8www.dimplex.com

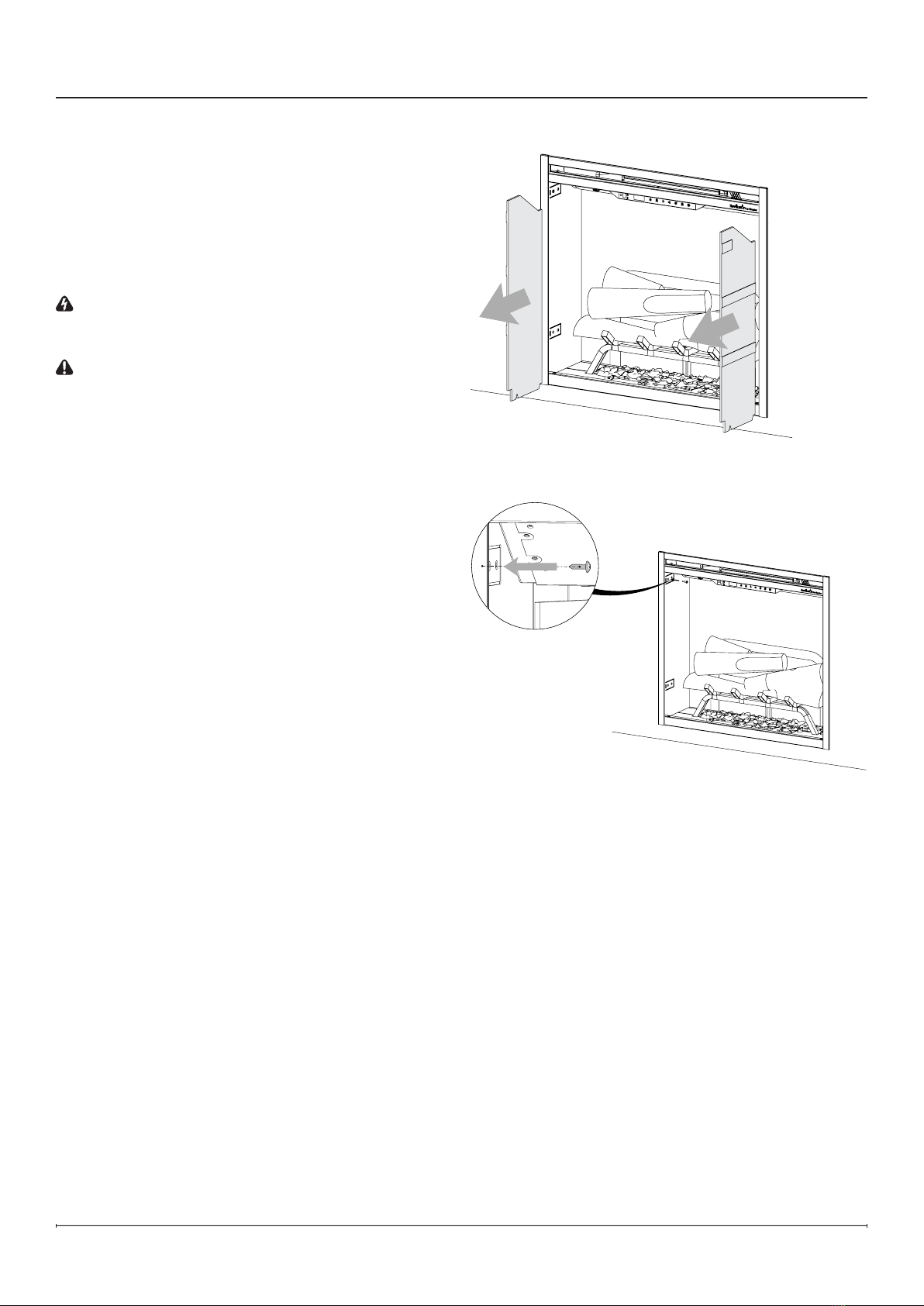

Installation

Preparing the Firebox for Installation

The unit comes packed with a protective sheet covering the front of the unit. This sheet is intended to prevent

dust and debris from entering during construction. This sheet can be partially removed to complete the wiring and

unpacking and can be used to protect the replace until the nal installation is complete.

Carefully remove the packaging from around the log set. Make sure the wires from the log set are connected securely

to the grate box.

CAUTION: Handle the log set carefully. They are fragile and can crack or break if dropped.

• If permanent disconnection of the heater is required, follow steps for Heater Hardware Disconnect on page14

of this manual before installing the replace.

• If the plug kit will be used, follow the instructions on page 14 and connect the power cord before installing the

replace.

Placement

This is a zero clearance design, with the exception of the top of the unit, where any insulation and vapor barrier

should be placed a minimum of 2"(5.1cm) from the firebox.

The Revillusion®Built-in Electric Firebox does not require any special venting.

Installation in a Bathroom

If this unit is installed in a bathroom, it must be protected by a GFCI receptacle or circuit. If a receptacle is used, it

must be readily accessible.

This electrical appliance is NOT watertight. To prevent electric shock, it must be installed as to prevent water from

entering unit, or installed away from showers, tubs, etc. Never locate replace where it may fall into a bathtub or

other water container. Keep towels and other combustible materials 3 feet (0.9 m) away from the front of the unit.

Installation

Figure1

Installation Instructions

1. Rough-in the framing opening, following the recommended framing dimensions below.

!NOTE: The materials used for the nished surround must be cut to precise dimensions (dimensions B & C) as the

¼"(0.6cm) self-trimming ange is only to create a nished appearance.

RBF30-FG

RBF30WC-FG

500002388

500002389

RBF36-FG

RBF36WC-FG

500002400

500002401

RBF36P-FG

RBF36PWC-FG

500002398

500002399

RBF42-FG

RBF42WC-FG

500002410

500002411

Figure 1

A12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm) 12 1/2" (318 mm)

B30 5/8" (778 mm) 36 5/8" (930 mm) 36 5/8" (930 mm) 42 5/8" (1083 mm)

C26 3/16" (665 mm) 26 3/16" (665 mm) 30 5/8" (778 mm) 30 5/8" (778 mm)

Figure 2

D25 3/4" (654 mm) 25 3/4" (654 mm) 30 1/4" (768 mm) 30 1/4" (768 mm)

E12" (306 mm) 12" (306 mm) 12" (306 mm) 12" (306 mm)

F29 3/8" (746 mm) 35 3/8" (898 mm) 35 3/8" (898 mm) 41 1/2" (1053 mm)

G31 1/8" (792 mm) 37 1/8" (944 mm) 37 1/8" (944 mm) 43 1/4" (1098 mm)

H22 3/4" (578 mm) 22 3/4" (578 mm) 27 1/4" (691 mm) 27 1/4" (691 mm)

I26 5/8" (6764 mm) 26 5/8" (674 mm) 31" (788 mm) 31" (788 mm)

Figure 3

J54 1/4" (1378 mm) 60" (1524 mm) 60" (1524 mm) 66 1/2" (1689 mm)

K38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)

L38 1/2" (978 mm) 42 1/2" (1080 mm) 42 1/2" (1080 mm) 47" (1194 mm)

Framing Dimensions

Firebox Dimensions Dimensions for Corner Installation

Figure2 Figure3

10 www.dimplex.com

Installation

2. Remove the screws that secure the electrical cover

in the top right corner at the back of the rebox to

complete the wiring.

3. Complete the wiring according to instructions in the

Electrical Installation section (pages 12–13). Reinstall

the electrical cover after completing wiring.

4. Place the rebox into the framed opening. Level with

shims if necessary.

WARNING: The built-in electric rebox must NOT be

in direct contact with any building vapor barrier or

insulation.

CAUTION: The front of the rebox must not be

recessed as this will prevent adequate airow out of

the heater.

5. Remove inner decorative side panels from the

replace (attached magnetically) by tilting the top

inwards, then pull up and out. (Figure 4)

6. Secure the rebox to the frame using the four

bendable mounting anges on the sides of the

rebox and suitable hardware (not included).

(Figure 5)

7. Reinstall the inner decorative side panels by inserting

the bottom rst, then tilting upward to place.

8. Install the front glass. (Reference page 11)

Figure4

Figure5

This manual suits for next models

Table of contents

Other Dimplex Indoor Fireplace manuals

Dimplex

Dimplex OptiMyst CAS400NHLL User manual

Dimplex

Dimplex DF2600CG User manual

Dimplex

Dimplex ROTHESAY RSY20 User manual

Dimplex

Dimplex DF2608-AU User manual

Dimplex

Dimplex Optiflame MiniMozart FGA15E Instruction Manual

Dimplex

Dimplex BLF3451 User manual

Dimplex

Dimplex VCX1525 User manual

Dimplex

Dimplex SAHARA FIREPLACE 6903950000 User manual

Dimplex

Dimplex CAS500R-RGB-EU Instruction Manual

Dimplex

Dimplex BLF50 User manual

Dimplex

Dimplex 500002573 User manual

Dimplex

Dimplex OptiFlame Cheriton Deluxe Instruction Manual

Dimplex

Dimplex 3 Step E User manual

Dimplex

Dimplex OS2527GB User manual

Dimplex

Dimplex SCANDIC DELUXE User manual

Dimplex

Dimplex Optiflame Diamantique DIAM14E Instruction Manual

Dimplex

Dimplex FABER ALBANY ECO ABN15 ECO User manual

Dimplex

Dimplex DNV20AB User manual

Dimplex

Dimplex XHD23L-EU User manual

Dimplex

Dimplex Dakota DKT20 User manual

Dimplex

Dimplex BURLINGTON BLN12 User manual

Dimplex

Dimplex Bari 2kW Optiflame User manual

Dimplex

Dimplex OPTIFLAME BF Series Quick start guide

Dimplex

Dimplex 30" FIREPLACE User manual

Popular Indoor Fireplace manuals by other brands

Brigantia

Brigantia 35-DVRS31N-2 User's installation, operation and maintenance manual

Nordpeis

Nordpeis Bergen Installation and user manual

Superior

Superior BCT2536TMN Installation and operation instructions

Quadra-Fire

Quadra-Fire 5100I-GD-B owner's manual

Renaissance

Renaissance RUMFORD 1000 user manual

Lacunza

Lacunza IV-800 Instruction book

Baxi

Baxi 940 Installer and owner guide

Dru

Dru Maestro 60/2 Tall RCH installation manual

Diamond Fireglass

Diamond Fireglass SS-O22 General assembly, installation, and operation instructions

HearthStone

HearthStone Windsor Bay 8830 Owner's manual and installation guide

Napoleon

Napoleon ASCENT B42 quick start guide

Enviro

Enviro E33GI owner's manual

Smeg

Smeg L30 FABE Installation & user's instructions

KEDDY

KEDDY K700 Installation instructions care and firing instructions

Godin

Godin 3451 manual

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Installation and operation instructions

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 operating manual

Desa

Desa CCFPDFT Owner's operating & installation manual
