Dimplex Contempra ef KDS6401E Quick start guide

CONTEMPRA

MODEL KDS6401E

PARTS & SERVICE MANUAL

7400060000R02

"Click" on the replacement part number to

view price and availability.

www.morelectricheating.com

Table of Contents

OPERATION ............................................................................................................................. 2

MAINTENANCE ........................................................................................................................ 5

EXPLODED DIAGRAM ............................................................................................................. 6

REPLACEMENT PARTS........................................................................................................... 7

WIRING DIAGRAM ................................................................................................................... 8

LIGHT BULB REPLACEMENT.................................................................................................. 9

TO REPLACE MAIN ON/OFF SWITCH .................................................................................. 10

TO REPLACE FLAME MOTOR/FLAME ROD......................................................................... 11

TO REPLACE HEATER ON/OFF SWITCH............................................................................. 12

TO REPLACE HEATER THERMOSTAT................................................................................. 13

TO REPLACE POWER CORD................................................................................................ 14

TO REPLACE THE HEATER ASSEMBLY.............................................................................. 15

TROUBLESHOOTING GUIDE................................................................................................ 16

GENERAL............................................................................................................................ 16

APPEARANCE .................................................................................................................... 16

HEATER .............................................................................................................................. 17

NOISE.................................................................................................................................. 18

KDS6401E

OPERATION

To access the controls go to the front panel of the unit (refer to diagram below)

1. Three position ON/OFF switch

The switch has two ON positions marked with “-“ and “=”. The “-“ position is for manual

operation. In this position the built-in remote control is bypassed. The “=” position is for

operating the unit with the provided remote control. When in “=” position the unit is operated

with the ON and OFF buttons of the remote control. When the switch is in the center position

the unit is off.

2. HEATER ON/OFF SWITCH

The HEATER ON/OFF SWITCH supplies power to the heater fan and the heater element

and must be turned on before heat can be created.

3. HEATER THERMOSTAT CONTROL

To adjust the temperature to your individual requirements, turn the heater thermostat control

knob clockwise all the way to turn on the heater. When the room reached the desired

temperature, turn the thermostat knob counter clockwise until you hear a click. Leave in this

position to maintain the room temperature at this setting. For additional heat, turn clockwise

until you hear the click again and the heater will turn on. To turn the heater off, switch the

HEATER ON/OFF SWITCH to the OFF position.

NOTE: When the heater is switched ON, the heater fan will operate. The heater element may

or may not be on, depending on the thermostat control setting (SEE “HEATER THERMOSTAT

CONTROL”).

RESETTING THE TEMPERATURE CUTOFF SWITCH

This unit is equipped with a thermostat that controls the temperature of the room. It

does this by turning the heater on and off. The heater is protected with a safety device

to prevent overheating. Should the heater overheat, an automatic cut out will turn the

heater off and it will not come back on without being reset. To reset the temperature

cut-off switch turn the main power switch to the OFF position and wait five minutes

before switching the unit back on.

CAUTION

If you need to continuously reset the heater, unplug the unit and call Dimplex North

America Limited at 1-800-668-6663.

KDS6401E

REMOTE CONTROL USAGE

This stove is supplied with a radio frequency remote control. This remote control has a range of

approximately 50 feet (15.25m); it does not have to be pointed at the fireplace and can pass

through most obstacles (including walls). It is supplied with one of 243 independent frequencies

to prevent interference with other units. The frequency code is indicated on the back of the

transmitter.

Note: Ensure that the fireplace 3 position switch is

set to the remote control setting.

To operate, push the ON button to turn fireplace on,

push the OFF button to turn the fireplace off.

BATTERY REPLACEMENT

To replace the battery, slide battery cover open on the

hand held transmitter. Correctly install one 12 volt (A23)

battery in the battery holder. Close the batter cover.

Remote Control Initialization

This procedure is required every time there is a loss of

power to the remote control in the fireplace. (I.e. power

failure, breaker tripped, main power switch is turned off)

1. Ensure that power is supplied through main

service panel.

2. Locate manual controls.

3. Toggle the main power switch, to the“=” position.

4. Press ON button located on the remote control

transmitter. This will synchronize the remote

control transmitter and receiver.

KDS6401E

OPTIONAL EXTERNAL REMOTE CONTROL

The remote control has a range of approximately 50ft. (15.25m) it does not have to be

pointed at the stove and can pass through most obstacles (including walls). It is

supplied with one of 243 independent frequencies to prevent interference with other

units. The frequency designation is indicated on the back of the transmitter (FIGURE 3)

REMOTE CONTROL INSTALLATION

1. Plug stove cord set into the outlet located on the side of the receiver. (FIGURE 2)

2. Plug receiver into the wall outlet.

3. Install a 9 volt battery into the transmitter. (FIGURE 3)

4. Turn the stove main power switch to the on position prior to using the remote control.

5. The remote control works up to 50 feet away.

6. Push the ON button to turn stove on, push the OFF button to turn the stove off.

NOTE

To prevent the risk of fire, the stove plug must be inserted fully into the receiver.

NOTE

•Stove MAIN on/off switch must be in the

ON position prior to using the Remote Control.

•ON/OFF Remote Control may be used to

control most other electrical devices including

T.V.’s, stereos and lamps.

CAUTION

•For indoor use in dry areas only

•For use on electrical devices with 15 amp

resistive load or 1/3 HP inductive load

•120 volt AC only

FIGURE 2

Receiver

Outlet

OPEN

Frequency

Code

Battery

Cover

FIGURE 3

KDS6401E

MAINTENANCE

LIGHT BULB REPLACEMENT

Allow at least 5 minutes for light bulbs to cool off before touching bulbs to avoid accidental

burning of skin.

Light bulbs need to be replaced when you notice a dark section of the flame or when the

clarity and detail of the log exterior disappears. There are two bulbs under the log set

which generate the flames and embers.

TO REPLACE THE LIGHT BULBS

1. On the back of the Contempra®remove the screws from the light access cover.

2. Remove the light access cover.

3. Reach into the opening, locate and examine the bulbs to determine which bulb(s)

required replacement.

4. Unscrew the bulb(s) counter clockwise.

5. Insert new bulb(s).

6. Install the light access cover and install the screws

HELPFUL HINTS

It is a good idea to replace all light bulbs at one time if they are close to the end of their

rated life. Group replacement will reduce the number of times you need to open the unit

to replace light bulbs.

BULB REQUIREMENTS

Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60

watt rating. Example GE 60BC of Philips 60 CTC.

GLASS CLEANING

The glass is cleaned in the factory during the assembly operation. During shipment,

installation, handling, etc., the glass surface may collect dust particles; these can be

removed by buffing lightly with a clean dry cloth.

To remove fingerprints or other marks, the glass can be cleaned with a damp cloth using

a good quality household glass cleaner. The glass should be completely dried with a lint

free cloth or paper towel. Do not use abrasive cleaners on glass surface or spray liquids

directly onto any surface.

Contempra® SURFACE CLEANING

Use warm water only to clean painted surfaces of the Contempra®. Do not use abrasive

cleaners on surface or spray liquids directly onto any surface.

KDS6401E

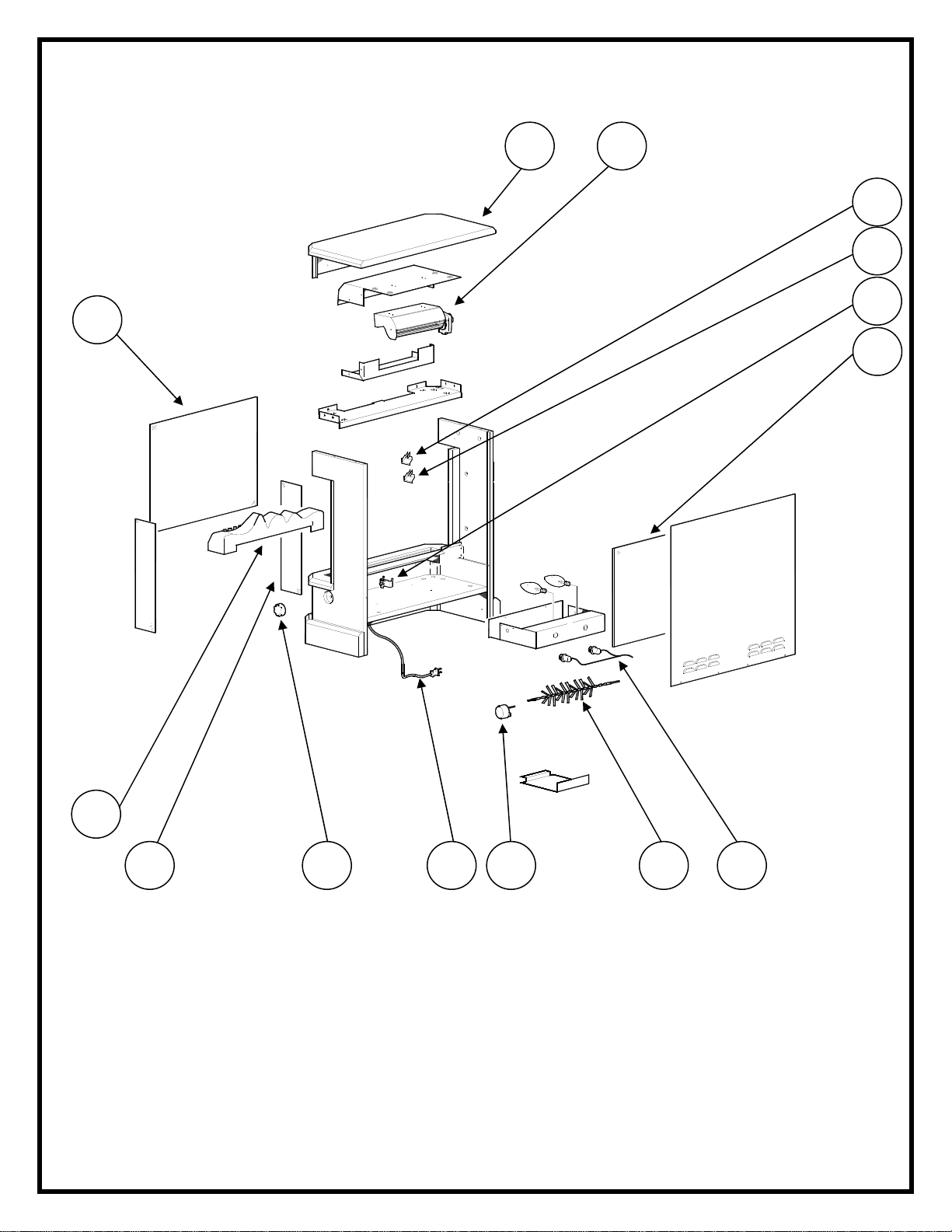

EXPLODED DIAGRAM

KDS6401E

REPLACEMENT PARTS

STOVE- CONTEMPORARY - MATTE BLACK

PART NO. 6900940159

MOD LEVEL NONE

REPLACEMENT PART REPLACEMENT PART NO.

1. FRONT GLASS 5900230100RP

2. LEFT HAND & RIGHT HAND SIDE GLASS 5900240100RP

3. LOG SET 0438270100RP

4. TOP PANEL 1103820171RP

5. MIRROR 5900210200RP

6. REFLECTOR ROTISSIERE 5900080600RP

7. MOTOR, ELECTRIC 2000140300RP

8. THERMOSTAT 2300150100RP*

9. POWER ON/OFF/ON SWITCH 2800071100RP

10.THERMOSTAT KNOB 0437930159RP

11.HEATER ASSEMBLY 2200490900RP

12.HEATER ON/OFF SWITCH 2800070200RP

13.LOWER LIGHT HARNESS 2500170100RP

14.CORDSET 4100040300RP

15.REMOTE TRANSMITTER 3000370500RP

16.REMOTE RECEIVER 3000380200RP

"Click" on the replacement part number to

view price and availability.

www.morelectricheating.com

KDS6401E

WIRING DIAGRAM

With Integrated On/Off Receiver Board

Main

On/Off

Switch

On/Off

Integral

Receiver

ELEMENT

THERMOSTAT

HEATER

ON/OFF

CUTOUT

THERMAL

LOWER

MOTOR

FAN FLICKER

A.C.

MOTOR

LIGHTS

With Optional External Plug-In Remote Control

KDS6401E

If unit was operating prior to servicing allow at least 10 minutes for light bulbs and

heating element to cool off to avoid accidental burning of skin.

Disconnect power before attempting any maintenance or cleaning to reduce the risk of

electric shock or damage to persons.

Light bulbs need to be replaced when you notice a dark section of the flame. There are

two bulbs under the log set which generate the flames and embers.

It is a good idea to replace all of the light bulbs at one time if they are close to the end of

their rated life. Group replacement will reduce the number of times you need to open

the unit to replace the light bulbs.

LIGHT BULB REPLACEMENT

1. On the back of the Contempraremove the screws from the light access cover.

2. Remove the light access cover.

3. Reach into the opening, locate and examine the bulbs to determine which bulb(s)

require replacement.

4. Unscrew the bulb(s).

5. Insert new bulb(s).

6. Install the light access cover and install the screws

BULB REQUIREMENTS

Quantity of 2 clear chandelier or candelabra bulbs with an E-12 (small) socket base, 60

watt rating. Example GE 60BC of Philips 60 CTC.
