Dimplex GDC-AC12RCW User manual

DATE OF ISSUE：05 Feb.2009

SERVICE MANUAL

MODEL ：GDC-AC12RCW/GDC-AC12RCB

GDC-AC9RCW/GDC-AC9RCS

NAME：PC32-06PMI，PC26-06PMI

ITEM MODEL DATE VERSION NOTE

APPROVAL MADE BY

MR. YEI

INDEX

CONTENT

1.NAME OF SEPARATE PART

2.SPECIFICATION

3.WIRING DIAGRAM

4.ELECTRIC CIRCUIT DIAGRAM

5.1：GDC-AC12RCW- Explode(S2008066-2)

5.2：GDC-AC12RCB Explode(S2008050-3)

6.1：GDC-AC9RCS- Explode(S2008050-2)

6.2：GDC-AC9RCW-Explode(S2008066-1)

7.STRUCTURE OF COOLING SYSTEM

8.SEQUENCE OF DISASSEMBLE

9.TROUBLE SHOOTING

10.ELECTRIC CIRCUIT FIX

1. NAME OF SEPARATE PART

UPPER COVER-REAR

HORIZONTAL BLADE

UPPER COVER-FRONT

KEY BOARD

FRONT PANEL-MIDDLE

DISPLAY WINDOW

FRONT PANEL

WHEEL

BASE

BACK PLATE-R

PIPE OUTER

PIPE EXHAUST

PIPE INNER

LEFT

SIDE

PANEL RIGHT SIDE

PLATE

BACK

PLATE-R

EVA FILTER

POWER

CORD

BACK PLATE-L

DRAIN

PIPE

PLUG

BACK

PLATE-BOTTOM

COND FILTER RUBBER STOPPER

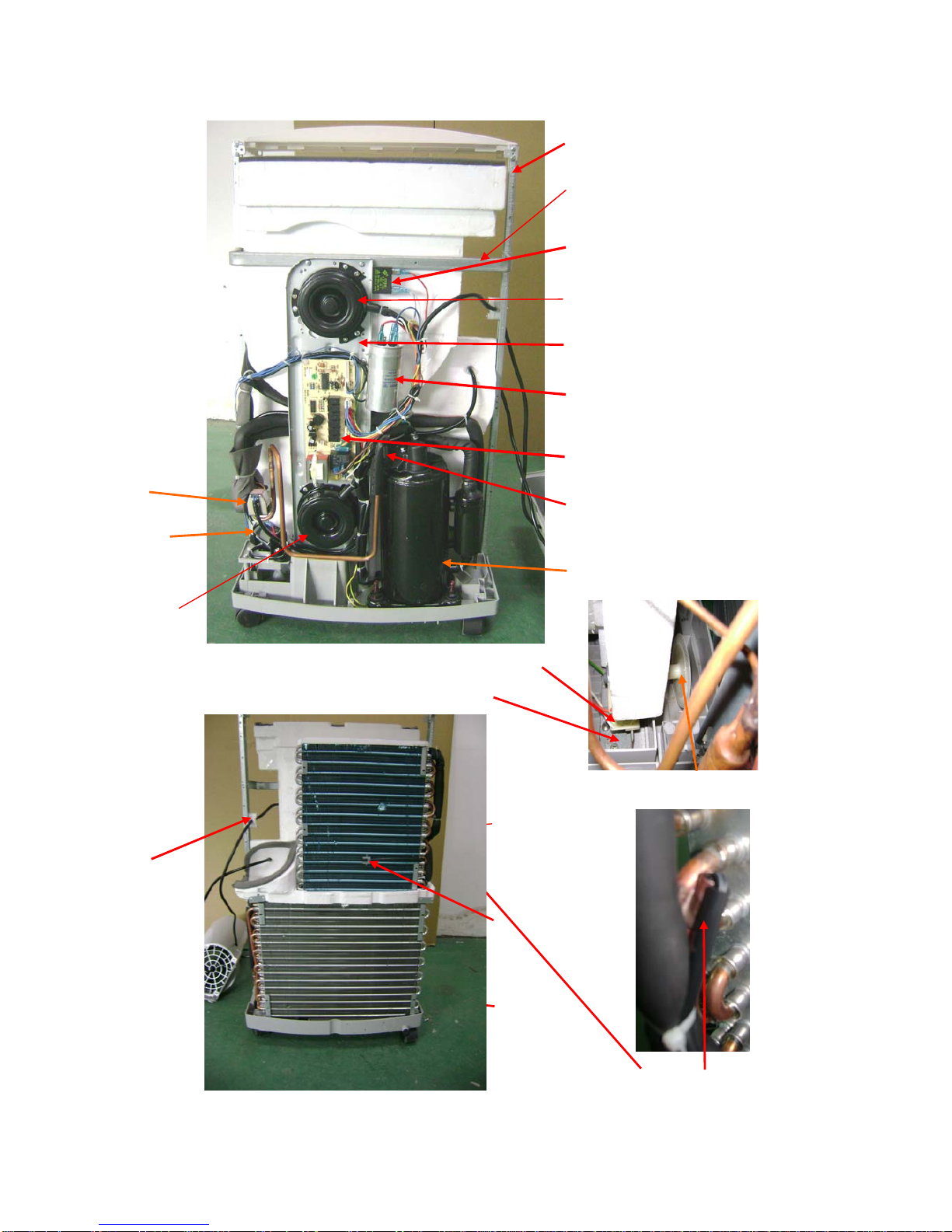

MAIN BRACKET

TRAVERSE BRACKET

CAPACITANCE OF

INNER MOTOR

INNER MOTOR

BRACKET MOTOR

CAPACITANCE OF

COMPRESSOR

4-WAY PCB

VALVE

CAPACITANCE OF

PUMP OUTTER MOTOR

MOTOR

COMPRESSOR

显示基板

OUTTER

MOTOR

WATER MOTOR

MOTOR BRACKET FOR WATER MOTOR

WHEEL WATER

EVAPORATOR

FIXER OF

CORD

TEMPERATURE

SENSOR

CONDENSER

COIL TEMPERATURE SENSOR

CAPILLARY STRAINER

DRAIN PAN

SCREW OF WHEEL BLOWER

L-JOINER

HOUSING BLOWER,TOP

WHEEL BLOWER SCREW OF

φ215,ABS+GF WHEEL BLOWER

HOUSING BLOWER, BACK

HOUSING BLOWER, FRONT

BLOWER FAN,∮240,ABS+GF

2. SPECIFICATION

MODEL (UNITED) PC26-06PMI PC32-06PMI

MODEL（DIMPLEX）GDC-AC9RCW/S AC12RCW/B

POWER SOURCE 1∮220-240V 50Hz AC

MAX POWER

COOLING 1250W 1480W

MAX POWER

HEATING 1350W 1530W

COOLING CAPACITY 2600W 3500W

HEATING CAPACITY 3000W 3700W

MOISTURE

REMOVED 32L/Day 50 L/Day

AIR VOLUME (M³/H) 400 500

REFRIGERANT R410A R410A

UNIT DIMENSION W 476 x D 358 x H 840

WEIGHT 29.5Kg 30.5Kg

REMOTE CONTROL Y Y

TIMER SETTING 0 ~ 24 hrs 0 ~ 24 hrs

SLEEP Y Y

DEHUMIDITY Y Y

CONTROL Y Y

HEATING YY

DEFROST YY

ANION N/A N/A

3. WIRING DIAGRAM

4. ELECTRIC CIRCUIT DIAGRA

M

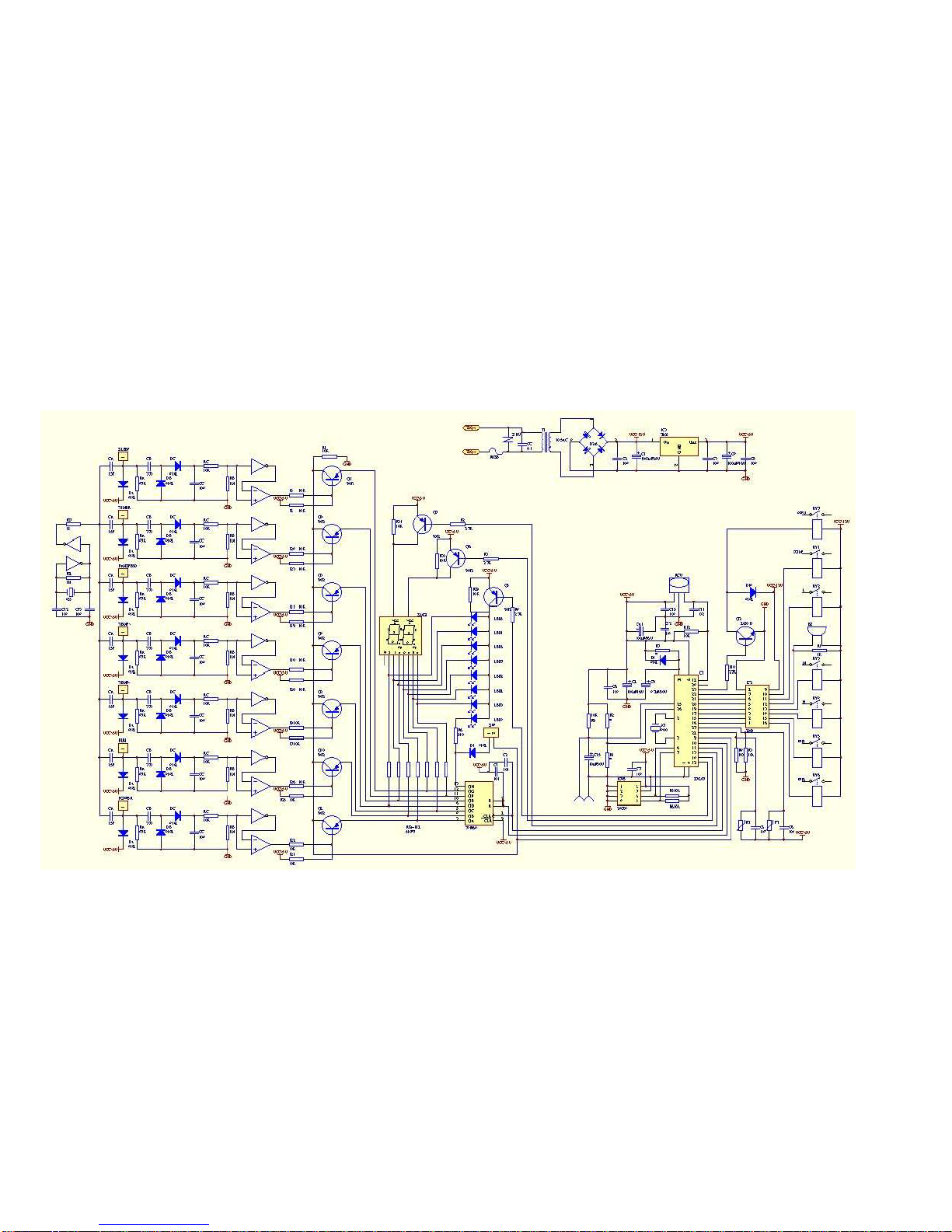

1:Electric Circuit Schematic Diagram

2. Main PCB silkscreening diagram & Copper oil tunnel diagram

This manual suits for next models

3
