Digitus DS-16100 User manual

USB Keyboard and Mouse

Console Switch

User Manual

(DS-16100)

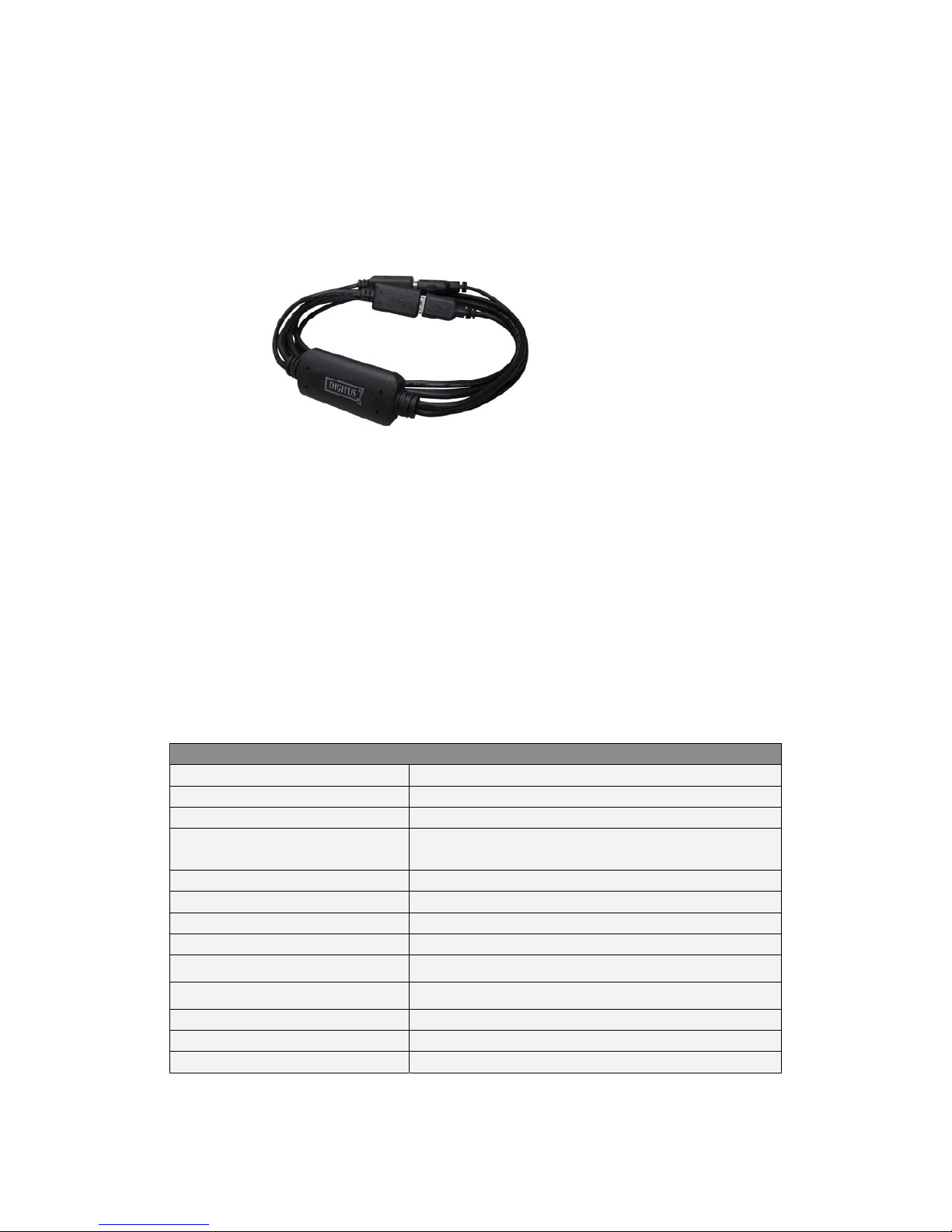

INTRODUCTION

The USB Keyboard and Mouse Console Switch provides a user to control two

computers and associated display screens by using a mouse to move the cursor and

switch without the panel select buttons. It is great to work easily between your

computers by a set of keyboard/mouse.

FEATURES

The Switch allows a user to view and access one computer while also allowing the user

to view the other "non-accessed" computers. You can use keyboard Hot Keys and

Mouse Keys to switch between your computers. *The Switch also features a Mouse

to move the cursor for enabling quick and seamless navigation between both your

computers without any lag.

*Need to install provided software.

SPECIFICATIONS

Host Interface USB 2.0

PC Port USB A-Type (M) Cable x 2 (1.2m), USB 1.1/2.0 compatible

USB Device Port USB A-Type (F) Cable x 2 (10cm)

Operating System Support Windows 2000 SP4, XP SP2, Vista 32-bit/-64bit, Mac OS

10.3 and up

Compatible USB Device Standard Keyboard and Mouse

Power Mode Bus Power

Module Weight Approximately 89g

Dimension Main body without cables: 50 (L) x 25 (W) x 13 (H) mm

Operating Temperature / HR 0~40; 10~95%

Storage Temperature / HR 0~60; 0~95%

Power Consumption 5V / 105mA (Maximum)

Safety, EMI FCC, CE

RoHS RoHS compliant

* Specification is subject to change without further notice. Patent pending.

Hardware Installation

Connect USB devices to the USB port of Switch as shown below.

Note: Make sure that the cables are properly connected between the Switch and the computers, and the

keyboard/mouse to the Switch. Please check that the USB 1/USB 2 is plugged into correct Left

PC/Right PC USB port.

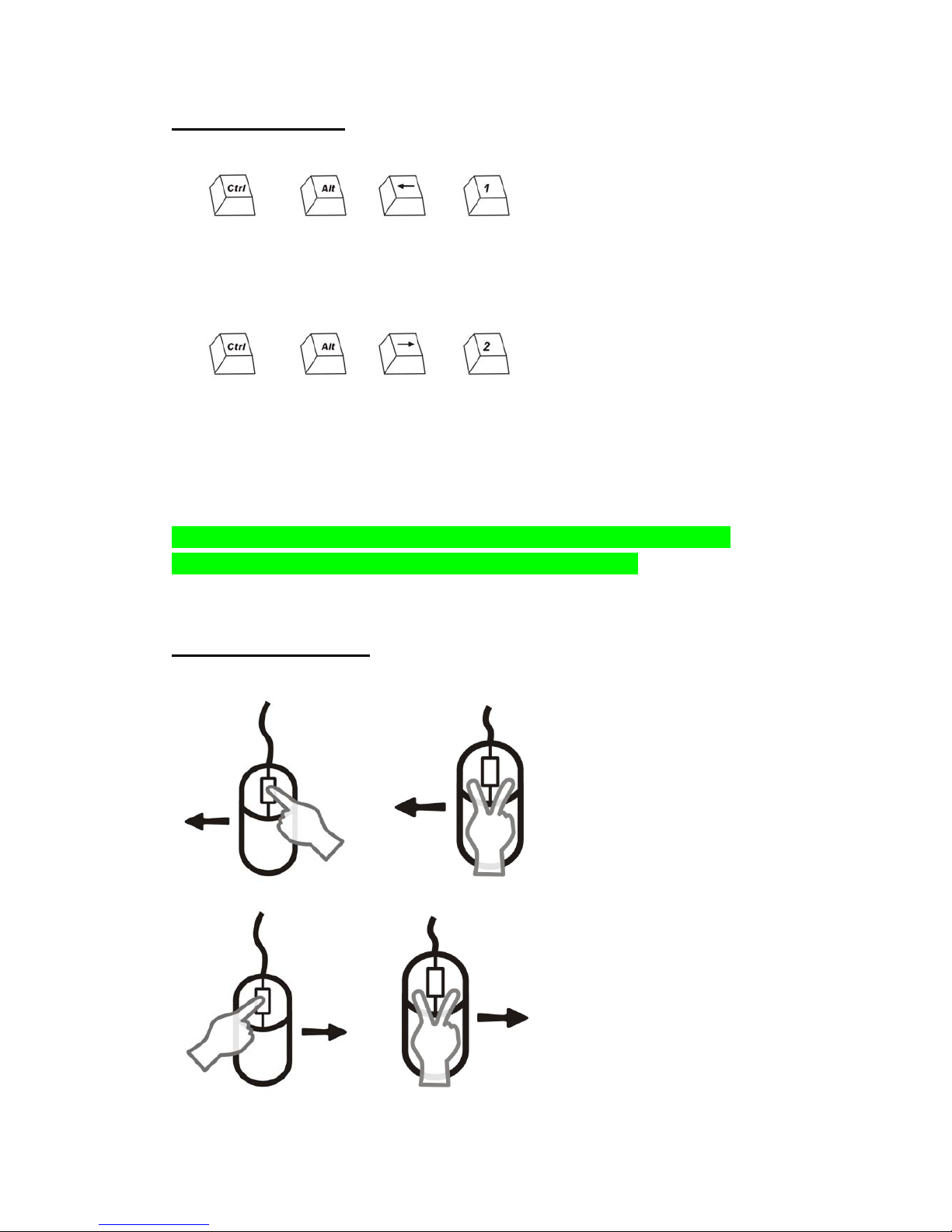

Hot Keys Functions

To hold down “Ctrl” + “Alt” + “1” (Å) to select Left PC and release all keys.

+ + or

To hold down “Ctrl” + “Alt” + “2” (Æ) to select Right PC and release all keys.

+ + or

Note: Before you start the OS operation, you have to use the Hot Key function to switch. And when

you boot up to OS without install software, you still can work with Hot Key function to select the PC.

The Green LED glows when the PC1 or PC2 is in use.

If computer built-in the INTEL Video Graphics Card with loading it management software, we

recommend you to use Hot Key function “Ctrl” + “Alt” + “1” or “2” command.

Mouse Keys Functions

To hold down mouse “Wheel” key or buttons then move the mouse to Left (Right).

or : To select the Left PC

or :To select the Right PC

Note: When you boot up to OS without install software, you still can work with Mouse Key function to

select the PC. The Green LED glows when the PC1 or PC2 is in use.

Software Installation

Windows

1. Please insert the CD into your computer’s CD-ROM or DVD drive.

2. When the Installation Wizard window of the KM Switch appears, click Next.

3. Please follow the process of Installation step by step.

4. When the following screen appears, click Finish.

5. When the Installation is complete, a pop-up icon will appear in the task bar area

indicating the ready status as shown below.

Note: The software must be installed for all connected computers before you use a USB mouse to move

the cursor seamlessly between your computers. You do not need to restart your computers after the

software installation.

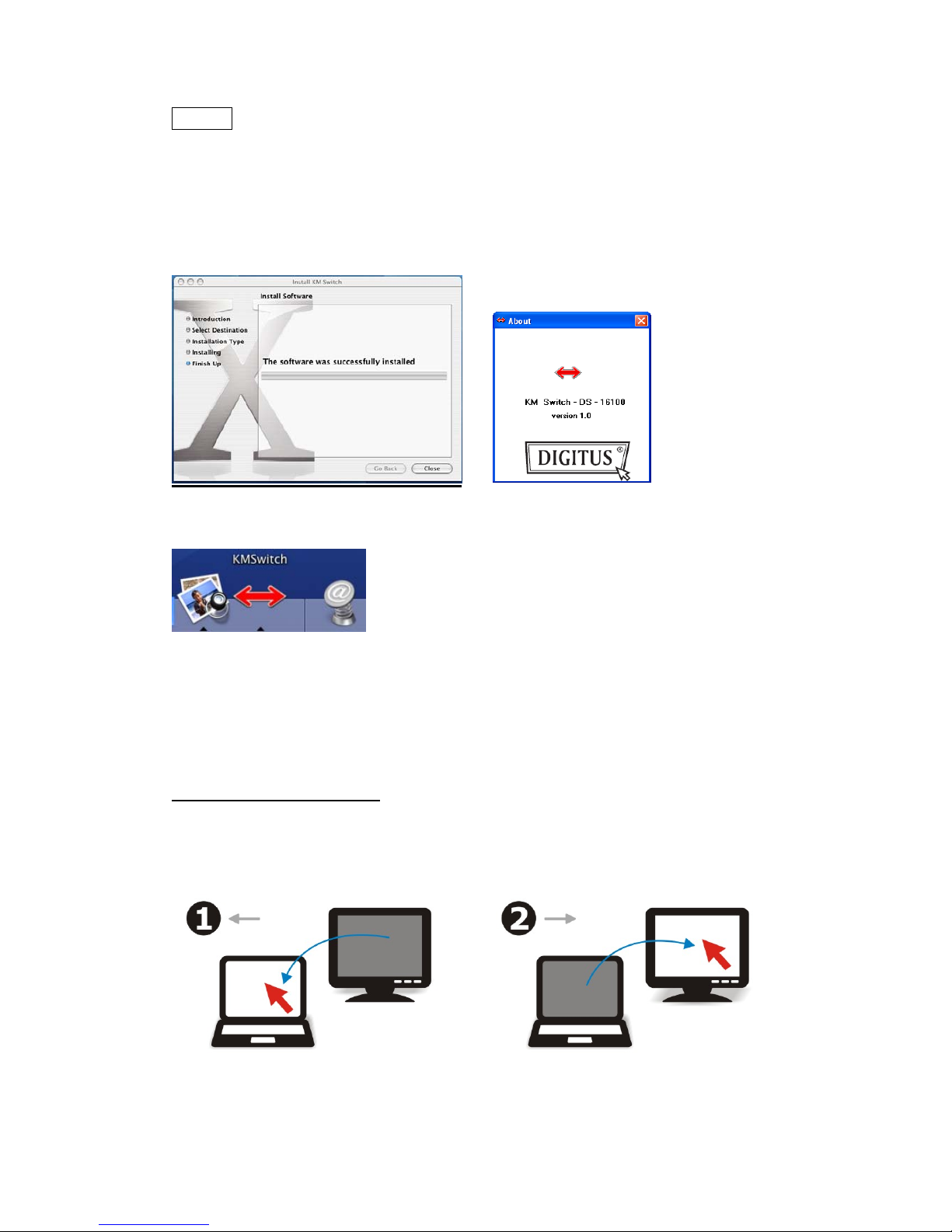

MAC

1. Please insert the CD into your computer’s CD-ROM or DVD drive.

2. Open KMS_Setup.pkg

3. Please follow the process of Installation step by step.

4. When the Installation is complete, the screen appears and you can use Switch.

Note: The software must be installed for all connected computers before you use a USB mouse to move

the cursor seamlessly between your computers. You do not need to restart your computers after the

software installation.

Hot Moving Instruction

If you install the software we provided you can easy move the cursor by a mouse and

sliding between two PCs.

Note: Before the software is running, you have to use the Hot Keys or Mouse Keys function to switch.

Auto-Detect Functions

Switch can auto switch from one PC to the other when shutting down one of PCs.

Note: The auto-detect function may not be activated on some PCs because some PCs support USB port

connection-oriented after shutting down.

Troubleshooting

1. The keyboard hot-keys / mouse-keys may have an incompatible conflict with one

of the programs within OS such as certain game software. If the conflict occurred,

please disable it or try to select different function modes to operate properly.

2. Some of application software like “Vista’s device manager, cpu-z” can manage

keyboard and mouse movement during the operation causing Switch (Hot Moving

mode) reduce its moving efficiency. However, Hot Keys and Mouse Keys still

work well.

3. Switch will activate the function of Auto-Detect while you start the OS that is due

to the reset action of USB.

4. Before starting the OS (under the User’s entry mode), you have to use the Hot Keys

function for switching.

5. Switch does not support a non-standard keyboard and mouse.

Note: The following keyboard / mouse are unable to use with Switch due to some extensions on

protocol.

a. The custom-built application or driver.

b. Built-in devices such as USB Hub, Audio, Card Reader, Combo Device.

c. Special functional keyboard / mouse with gaming functions.
