Digitus DS-11402-1 User manual

2-Port

Pocket USB KVM switch

Users Manual

(DS-11402-1)

Index

1. INTRODUCTION……………………………………………………………………………………………2

1.1 FEATURES …………………….…..………………………………….………………………… ………2

1.2 PHYSICAL DIAGRAM…….…………………………………...…..………………………………………3

1.3 PACKAGE CONTENTS…………………………………...……………..………………………………...3

2. SPECIFICATIONS………………………………………………………………………………………….4

2.1 GENERAL……………………………………………………………...…………………………………4

3. INSTALLING THE CABLE KVM SWITCH………………………………………………………………5

3.1 SYSTEM REQUIREMENTS………………………………………….…………………………………….5

3.2 HARDWARE INSTALLATION………...………………………...……………..……………………………5

3.3 HOT SWAPPABLE……………………….……………...……………………..………………………….6

3.4 DRIVER INSTALLATION(WINDOWS 98/SE ONLY)..………………………………………………………6

4. OPERATION………………………………………………………………………………………………..9

4.1.PUSH BUTTON OPERATION .................................................................................................9

4.1.1.PC SELECTION ...............................................................................................................9

4.1.2.AUTO-SCAN....................................................................................................................9

4.2.HOT KEY OPERATION .......................................................................................................10

4.2.1.PC SELECTION .............................................................................................................10

4.2.2.AUDIO SELECTION.........................................................................................................10

1. Introduction

Thank you for your purchase of the 2-port USB/VGA Cable KVM Switch with

Audio! You now have a high quality, durable system that enables you to control two

computers and/or servers from one console (USB Mouse, Keyboard, and Monitor).

In addition, proprietary new technology allows you to independently control and

switch audio between two computers.

1.1 Features

1. Controls 2 computers from a single console (Keyboard/Mouse) over USB

connection.

2. Support Windows (98SE or above), Sun Micro , Mac , Linux

3. Supports speaker and Microphone.

4. Emulates a keyboard on each PC to allow your computers to boot normally

without a keyboard error.

5. Supports hot-swap. All devices connected to the KVM can be added or

removed at any time, without shutting the unit down.

6. Supports USB keyboard Hot-Key Switch (for Microsoft Windows series) and

push buttons for easy operation.

7. Supports Auto-Scan function to alternate video between both computers in

preset intervals.

8. Supports LED display for PC and audio status monitoring.

9. Supports VGA resolutions up to 2048x1536 @ 85HZ.

10.Supports Plug and Play.

11.Self powered through USB connection.

12.Supports independent audio switching.

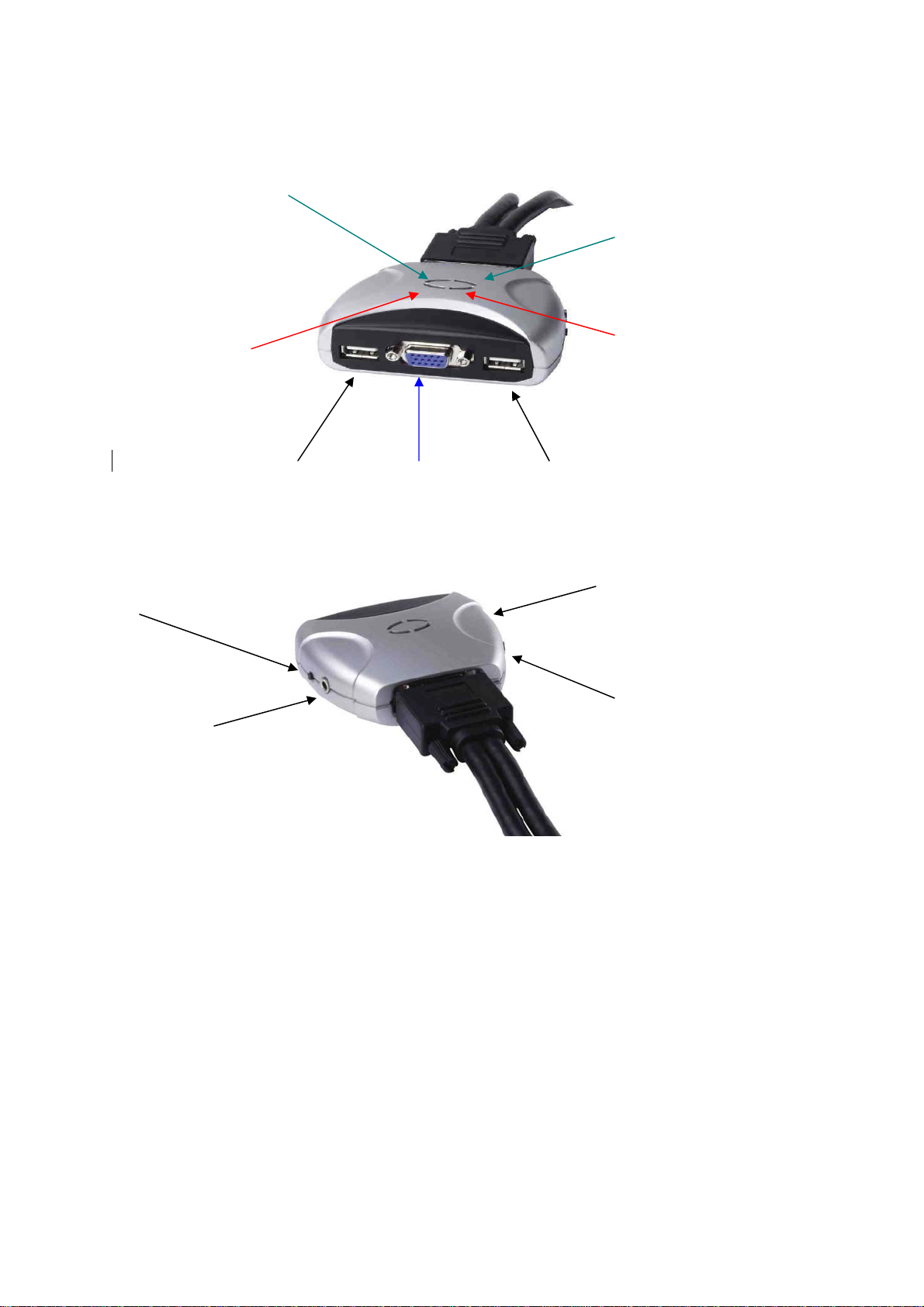

1.2 Physical Diagram

PC LED Indicators:

RED LED indicates that the 2-port USB/VGA Cable KVM Switch is switched to

the corresponding PC.

PC connection LED Indicators:

GREEN LED indicates the status of PC connection.

1.3 Package Contents

The product you purchased should contain the following equipment and

accessories:

1. One 2-port USB/VGA Cable KVM Switch with Audio.

2. User Manual.

USB Keyboard USB Mouse

VGA Output

PC 1 LED Indicators (Red)

MIC Jack

PC connection 1 LED Indicators (Green)

PC connection 2 LED Indicators (Green)

PC 2 LED Indicators (Red)

Speaker Jack

PC Selection Push Button PC Selection Push Button

2. Specifications

2.1 General

Specification

Number Of Computers Controlled 2

Selection Method USB Keyboard Hot Key and Push button

USB Versions supported 1.1/2.0

LEDs

Red for PC Selection

Green for PC ON-Line Selection

Connectors

USB 2 x Type A USB Connectors

Video 2 x HDB-15 male

Speaker 2 x Stereo speaker plugs

Microphone 2 x Mono microphone plugs

KVM Body 1 x DVI 24+5 Connector (male)

Console Ports

Keyboard / Mouse 2 x Type A USB Connectors (female)

Video 1 x HDB-15 female

Speaker 1 x Stereo speaker jack

Microphone 1 x Mono microphone jack

HOST 1 x DVI 24+5 Connector (female)

Auto-Scan Interval 10 Seconds

DDC, DDC2 monitor Yes (Max. Resolution: 2048x1536)@85Hz

Hot Swappable Yes

Operating systems supported Windows (98SE or above), Sun Micro, Mac,

Linux

Device driver No

Power By PC USB power

Cable Length 1.20 Meter

Dimensions (LxWxH) 65 x 85 x 25 (mm)

Unit Weight 450 g

3. Installing the Cable KVM Switch

3.1 System Requirements

(1) A PC with USB port and 1 VGAport.

(2) Windows 98 or later, Mac OS 8/9/OS X, Linux Kernel 2.3 or later.

(3) USB Keyboard and mouse.

(4) Monitor with VGA port.

3.2 Hardware Installation

Plug the USB keyboard, USB mouse, and monitor into the corresponding

connectors of your 2-port USB/VGA Cable KVM Switch.

Plug the speakers into the corresponding jacks of your 2-port USB/VGA Cable

KVM Switch.

Connect the KVM cables into the corresponding ports on the computers.

3.3 Hot Swappable

The 2-port USB/VGA Cable KVM Switch supports hot-swap technology. All the

components can be added or removed at any time without shutting the PC down.

3.4 Driver Installation (Windows 98/SE only)

After you connect the 2-port USB/VGACable KVM Switch to your PC, Win 98

will automatically detect the device and prompt for the driver installation. Please

install the 2-port USB/VGACable KVM Switch by the following instruction from Step

A-E.Please have your Windows 98 CD ready.

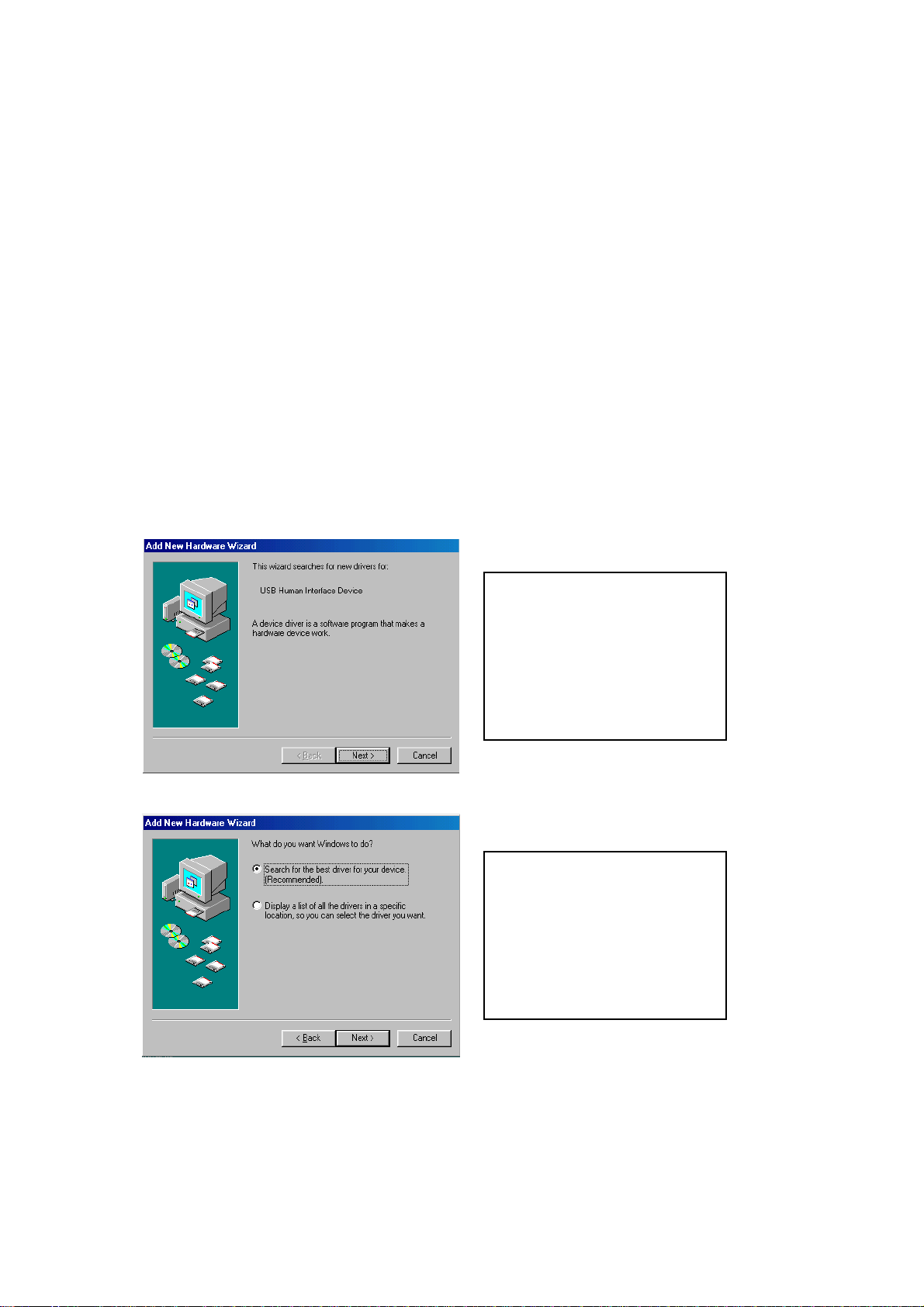

Fig.A

Fig.B

A. Press “Next” to Continue.

(Ref. Fig. A)

B. Select “Search for the

best driver for your device”

and press “Next” to

continue.

(Ref. Fig. B).

Fig.C

Fig.D

Fig.D1

C. Please insert the

“Windows 98” CD into your

CD-ROM drive. Click

“CD-Rom drive” and press

“Next” to continue.

(Ref. Fig. C)

D. Press “Next” to start the

installation process.

(Ref. Fig. D)

D1. Sometimes Windows

cannot locate the necessary

driver automatically. So you

need to choose “Browse” to

specify the location of the

driver on your “Windows

98” CD manually. *

(Ref. Fig. D1)

* The driver might be located in a different directory from the figure above.

Fig.D2

Fig.E

D2. Press “OK” to continue

(Ref. Fig. D2)

E. Press “Finish” and

Windows has finished

installing the USB Human

Interface Device driver for

PS/2 keyboard & mouse.

(Ref. Fig. E)

4. Operation

The 2-port USB/VGA Cable KVM Switch can switch the keyboard, video, mouse

by pushing button and Hot Key.

The switching of Audio inputs (speaker & microphone) is independent and be

controlled by Hot Key only. TheAudio inputs is not be switched with PC

selection.

4.1. Push Button Operation

4.1.1. PC Selection

User can switch Computers (Keyboard, Mouse and Video inputs) by

pressing push button directly.

4.1.2. Auto-Scan

Start Auto-Scan

Press and hold push button for longer than 3 seconds will turn the

system into auto-scan mode. The auto-scan time interval is fixed to 10

seconds.

Stop Auto-Scan

Under auto-scan mode, press any push button will stop auto-scan.
