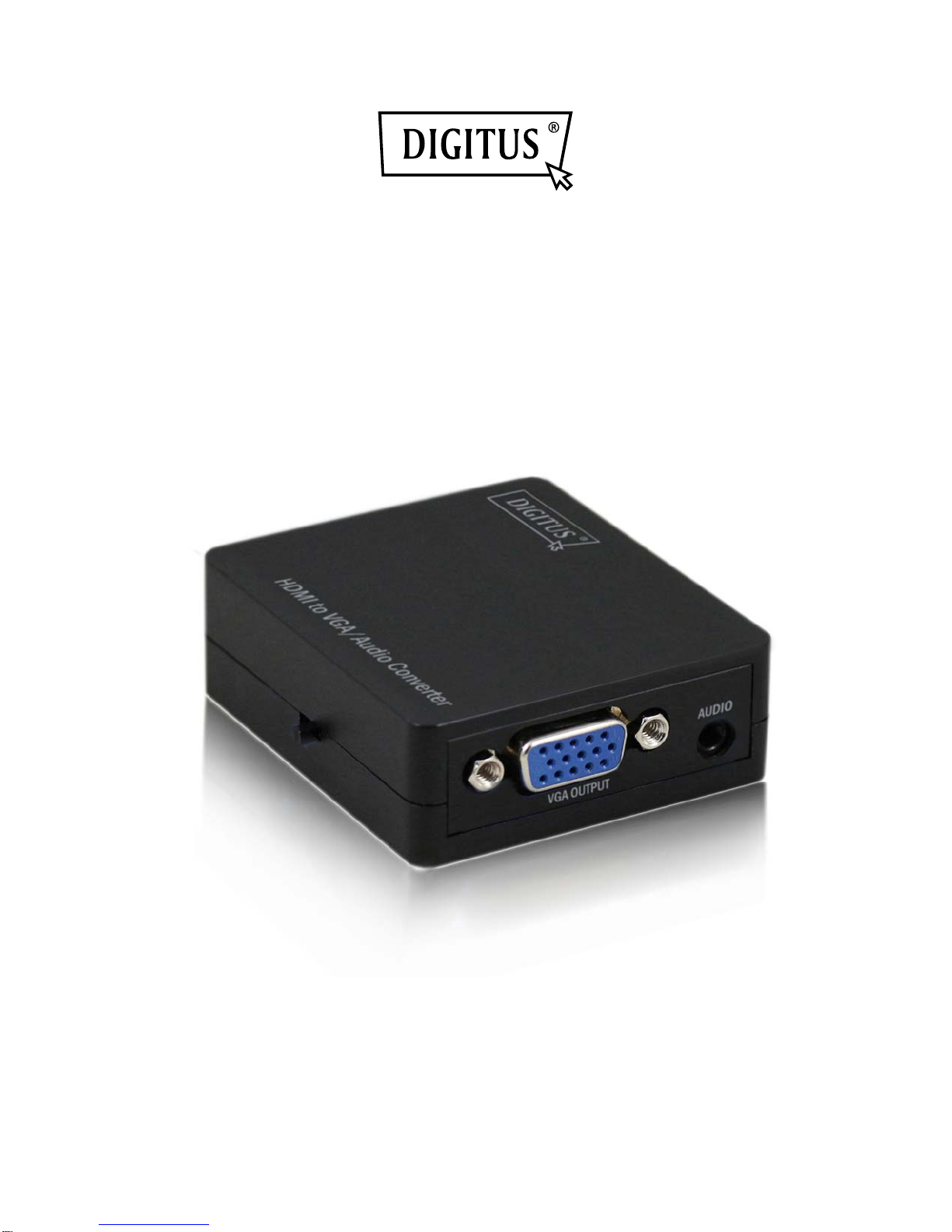

Digitus DS-40310-1 User manual
HDMI to VGA + Audio
Multimedia Converter
Manual
DS-40310-1
HDMI to VGA + Audio Multimedia Converter
1.0 Introduction
The DS-40310-1 converts your digital HDMI signal to an analog VGA signal.
This would enable you to use HDMI players with VGA displays. The
Multimedia converter does not only transfer the video signal, but also extract
the audio to a 3.5mm audio jack port. This allows an extra audio playback by
connecting your speaker or your surround system.
2.0 Features
Converts video and audio signals from HDMI to VGA
Use your modern devices with older VGA displays as well
Input: HDMI
Output: VGA + 3.5 mm Audio
Bandwidth 225 MHz/ 2.25 Gbps per channel (6.75 Gbps total)
No software or driver installation required
HDMI resolutions:
480P@60Hz
720P@50/60Hz
1080p@60Hz
800*600@60Hz
1024*768@60Hz
1920*1080@60Hz
VGA resolutions:
640*480p@60Hz
1280*720@60Hz
1920*1080@60Hz
800*600@60Hz
1024*768@60Hz
Dimensions: 60.5 x 54 x 20.5 mm
Weight: 42 g
3.0 Specifications
Signal Input HDMI Signal
Input Video Signal 0.5-1.0volts/p-p
Output Video VGA signal
DTV/HDTV 480P/576P/720P/1080P
Video. Amplifier Bandwidth 2.25Gbps/225MHz
Vertical Frequency Range 60Hz
Progressive Resolutions(60Hz) 480p,576p,720p,1080p
Operating Temperature 0℃to 70℃
Operating Humidity 10% to 85% RH (no condensation)
Storage Temperature -10℃to +80℃
Storage Humidity 5% to 90% RH (no condensation)
Power Supply USB Power Cable
Power consumption(MAX) 5W
Converter Unit Cert FCC.CE
Note: Specifications are subject to change without notice.
4.0 Package Contents
Full HD HDMI to VGA Converter
USB Power Cable
Manual

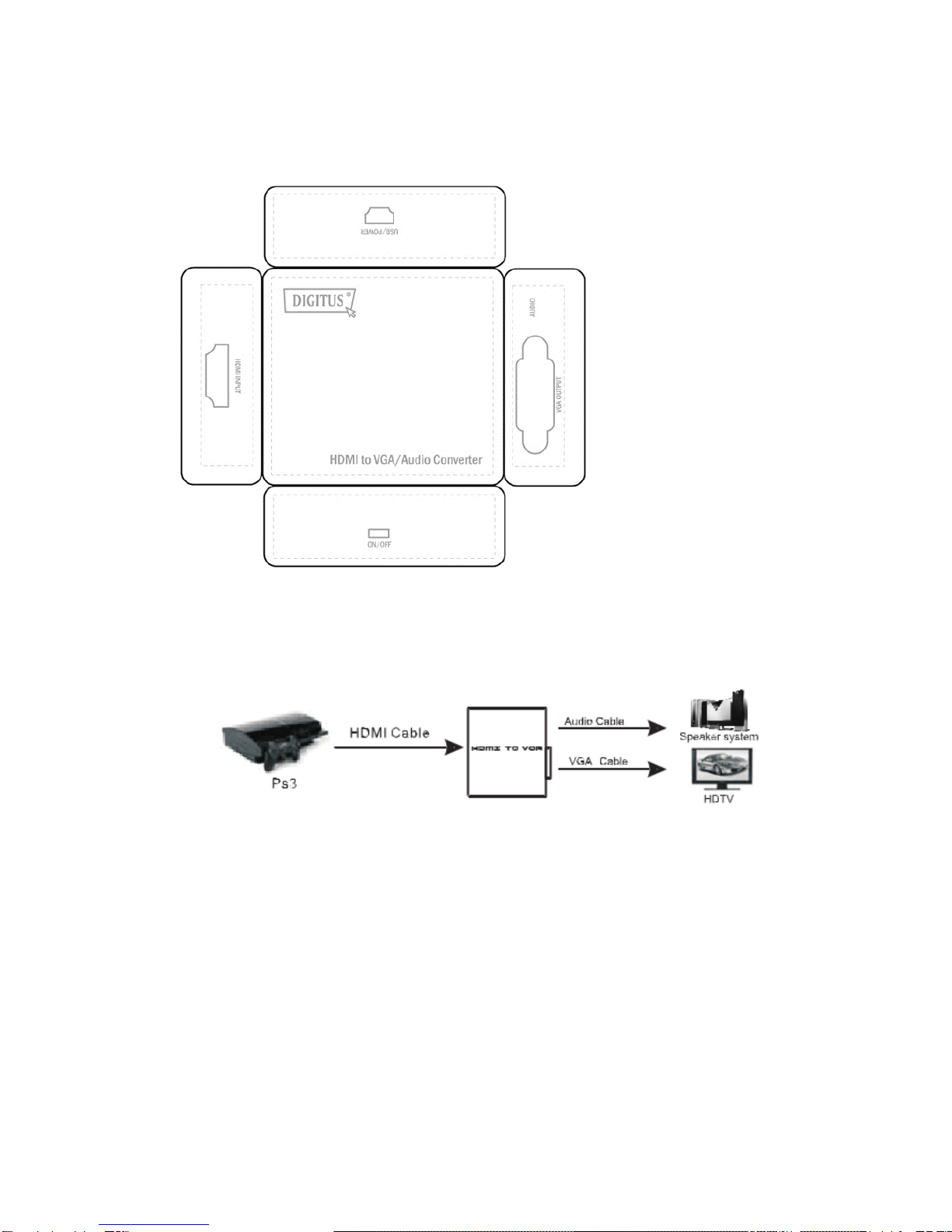

5.0 Panel Descriptions
6.0 Connection and Operation
