Digitus DN-651140 User manual

INDUSTRIAL PoE

SPLITTER, DIN RAIL, 60 W,

IEEE802.3at, af, bt

Quick Installation Guide

DN-651140

1Product Introduction

The DN-651140 PoE splitter splits the 48VDC over the RJ45

Ethernet cable into 12VDC power output. Supports PoE

applications in Gigabit Ethernet environments. The modules

compliant with IEEE 802.3bt power classification and support

PSE Alternative A and Alternative B connections. Maximum

power output can reach 51W. 36Vdc to 57Vdc and less external

components needed one output decoupling capacitor.

2Features

•Complies with IEEE802.3af, IEEE802.3at, IEEE802.3bt

•Support PoE applications in Gigabit Ethernet environments

•Auto-Sensing Algorithm enables taking power from

IEEE802.3at PSE.

•Splits the 48VDC power over RJ45 Ethernet cable into

different DC output.

•Support wide input voltage range 36Vdc to 57Vdc.

•Maximum power output up to 51W

•Output 12VDC/4.25A

•Thermal cut off.

•Short circuit protection

•High efficiency DC/DC converter

•LED indicators for power input indication

•DIN-Rail installation

3Package Contents

•1x PoE Splitter

•1x User Guide

•1x DC-DC Power Cable

4Hardware Specifications

Ports

1x 10/100/1000M RJ45 PoE Port

(DATA + POWER IN),

1x 10/100/1000M RJ45 LAN Port

(Only DATA),

1x Connector (DC OUT)

Network Media

10Mbps:

Cat 3,4,5 Unshielded Cable,

100Mbps:

Cat 5,5E Unshielded Cable,

1000Mbps:

Cat 5E, 6 Unshielded Cable

Network

Media(cable)

10BASE-T:

UTP category 3,4,5 cable (≤100m)

100BASE-TX:

UTP category 5 cable (≤100m)

1000BASE-T:

UTP category 5e cable (≤100m)

Pass Through Data

Rates

10/100/1000 Mbps

Standards

IEEE802.3, IEEE802.3u,

IEEE802.3az, IEEE802.3x,

IEEE802.3af, IEEE802.3at,

IEEE802.3bt

Indicators PoE ready / in-use

Connectors

Shielded RJ-45, EIA 568A

and 568B

Operating Ambient

Temperature

-40 to 75°C

Operating Humidity

Maximum 90%,

non-condensing

Storage Temperature -40 to 75°C

Storage Humidity

Maximum 95%,

non-condensing

Dimensions

103 x 177 x 32 mm

5Product Outlook

Front Panel

The front panel composed by PSE output ports with data link

port, the relevant indicator, as shown below:

PoE In: connect to the PSE or PoE Injector with a UTP cable.

Data: Connect to the Ethernet device with CATS UTP cable to

transmit data.

DC Out: Connect to the power port of the Ethernet device

with the provided power cable to supply the power 12V DC.

6Installation the Switch

This part describes how to install your Ethernet Switch and

make connections to it. Please follow the following

instructions in avoid of incorrect installation causing device

damage and security threat.

6.1 Notice the matters

•Before cleaning the switch, unplug the power plug of

the switch first. Do not clean the switch with wet cloth

or liquid.

•Do not place the switch near water or any damp area.

•Prevent water or moisture from entering the switch

chassis.

•Do not place the switch on an unstable case or desk.

The switch might be damaged severely in case of a fall.

•Ensure proper ventilation of the equipment room and

keep the ventilation vents of the switch free of

obstruction.

•Make sure that the operating voltage is the same one

labelled on the switch.

•Do not open the chassis while the switch is operating

or when electrical hazards are present to

avoid electrical shocks.

6.2 Installation environment

Before the installation, should first confirm that there is a

suitable working environment.

Installation requirements:

•Avoid direct sunlight, away from the heat source or

strong electromagnetic interference.

•Check cable and connector according to reasonable

configuration requirements, the cable (<100m)

•The product does not provide installation component:

screws, nuts, and other installation tools.

•Power requirements: PD voltage input range 36~57V,

power 60W

•Working temperature of -40°C ~ 75 °C, relative humidity

is 5% ~ 95%

6.3 Installation

This section describes how to install the Gigabit PoE switch

and make connections to it, please read the following topics,

and perform the procedures in the order being presented.

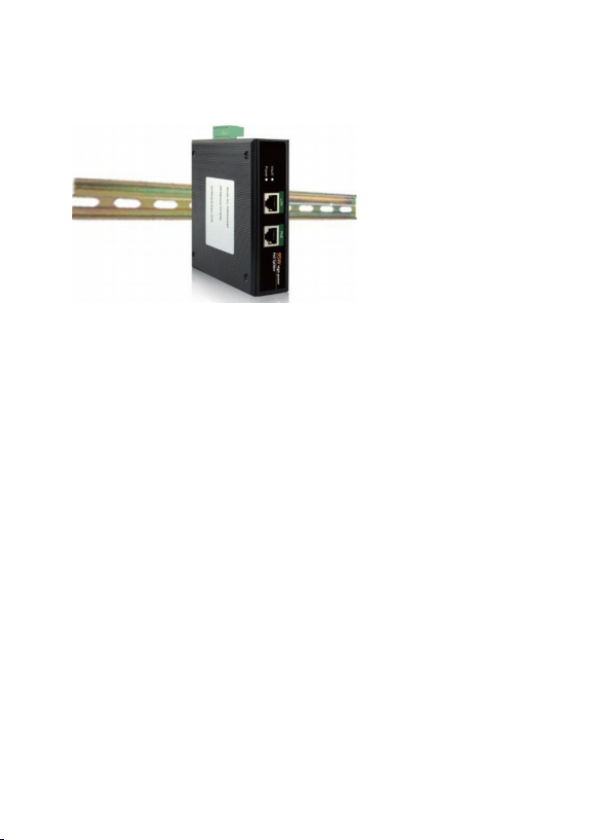

DIN-rail mounting

Adopt the 45mm standard DIN card rail type installation,

check whether the DIN-rail rail mounting tool accessories

(this product has supplied installation fittings) check whether

the DIN rail is firm.

The DIN card into the DIN rail connector, check and confirm the

product reliable installation to DIN rail.

7Connecting the PoE Splitter

You can use 60W PoE Splitter with PSE to expand your

network to where there are no power lines or outlets, where

you wish to fix devices such as APs, IP Cameras, or IP Phones,

etc. The following steps will tell you how to connect the PoE

Splitter correctly.

1. Use a UTP cable to connect a PoE port of the PSE

(ex. PoE Switch) to the PoE port.

2. Connect the Data port to the Ethernet device with

UTP cable for data transmitting.

3. Connect the DC(Vout1) port to the power port of

the same Ethernet device with the provided power cable.

1: PoE Network

Switch

2: PoE Splitter

3: non-PoE IP

Camera

A: Power + Data B: Power C: Data

This is a Class A product. In home environment, this product

may cause radio interference. In this case, the user may be

required to take appropriate measures.

Hereby Assmann Electronic GmbH, declares that the

Declaration of Conformity is part of the shipping content. If the

Declaration of Conformity is missing, you can request it by post

under the below mentioned manufacturer address.

www.assmann.com

Assmann E

lectronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
