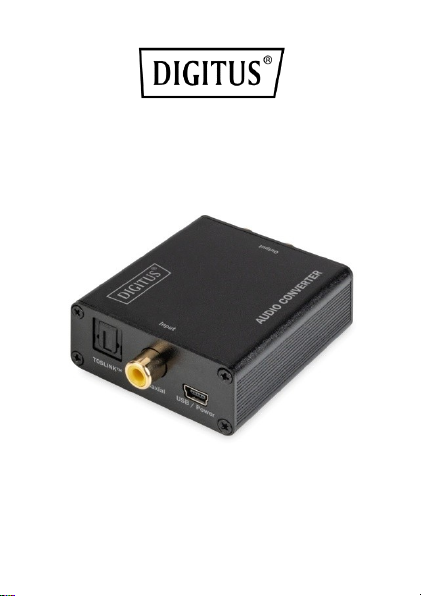

Digitus DS-40138 User manual
AUDIO CONVERTER,
COAXIAL / TOSLINK™, DIGITAL <=> ANALOG
Manual
DS-40138
1
Dear Customer
Thank you for purchasing this Audio Converter. For optimum performance
and safety, please read these instructions carefully before connecting,
operating or adjusting this product. Please keep this manual for future
reference.
1.0 Introduction
The Digital TOSLINK™/Optical SPDIF to RCA Audio Converter lets you
convert a 2-channel Digital Coaxial or TOSLINK™/Optical SPDIF input signal
into an RCA and 3.5mm analog stereo output.
Perfect for home and professional audio applications, this SPDIF to RCA
audio converter saves the cost of upgrading equipment for compatible
connections, and offers separate Digital Coax and TOSLINK™ inputs for
dual-function conversion. The small form factor design makes it suitable
for installation into virtually any location, regardless of space constraints,
while still providing a lossless audio signal. Plus, the digital coaxial or
TOSLINK™ to RCA converter supports plug-and-play installation, saving
you time and hassle.
2.0 Features
Supports two-way conversion: Coaxial to TOSLINK™ or
TOSLINK™ to Coaxial
Converts SPDIF Optical or Coaxial digital PCM audio input to analog
stereo L/R RCA and 3.5mm Cable outputs simultaneously
Supported sample rates including 32 KHz 44.1 KHz, 48 KHz, 96 KHz
and 192 KHz
Support 24-bit S/PDIF incoming bit stream
2
Ultra low jitter and high fidelity design using new receiver &
D/A converter chips
Auto sensing input selection with priority given to SPDIF;
disable / disconnect SPDIF input for coaxial Input application
3.0 Specification
Input Audio
Coaxial or TOSLINK™ digital audio
Output Audio
L/R audio or 3.5 mm
Input Audio Connector
TOSLINK™, 1 x RCA (Coaxial)
Output Audio Connector
2 x RCA (R/L), 3.5 mm
Sampling Rate
32, 44.1, 48 and 96 KHz
Size(L-W-H)
56 x 53 x 21mm
N.W.
63g
Operating Temperature
0 °C to +70 °C
Operating Humidity
10% to 85 % RH (no condensation)
Storage Temperature
-10 °C to +80 °C
Storage Humidity
5 % to 90 % RH (no condensation)
Power Consumption
0.5 watts (Max)
Powered By
USB Power Cable
Note: Specification is subject to change without notice.
3
4.0 Package Content
1) Main Unit
2) USB Power Cable
3) User Manual
5.0 Panel Description
4
6.0 Connection and Operation
A
Gaming console
B
Blu-Ray / DVD
C
TOSLINK™ cable
D
Coaxial cable
Before installation, please make sure all devices you wish to connect
have been turned off.
1) Connect the audio source device to the Converter using
appropriate TOSLINK™ or Coaxial cables
2) Connect the A/V Receivers or Amplifiers to the Converter
using appropriate R/L cable
3) Powered on the converter by USB cable
Note: When connected to the TOSLINK™ and Coaxial cables at the same
time, the product will give priority to TOSLINK™ input
Attention: Insert / Extract cable gently.
E
R/L cable
F
3.5 mm stereo cable
G
Amplifier
H
Headphones
5
Hereby Assmann Electronic GmbH declares that the Declaration of
Conformity is part of the shipping content. If the Declaration of Conformity
is missing, you can request it by post under the below mentioned
manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
