Digital Watchdog STAR-LIGHT FLEX DWC-VS753WT6666 User manual
06/2016
ABOUT MANUAL
Before installing and using the camera, please read this manual carefully.
Be sure to keep it handy for future reference.
HIGH DEFINITION ANALOG
Multi-Sensor Outdoor Dome
Camera
DWC-VS753WT
a
3WT
3W
T
2
SAFETY INFORMATION
Warning Precaution
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK)
NO USER SERVICEABLE PARTSINSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
CAUTION:
CAUTION
RISK OF ELECTRIC
SHOCK. DO NOT OPEN.
WARNING
This symbol indicated that dangerous
voltage consisting a risk of electric
shock is present within this unit.
This exclamation point symbol is intended to alert the
user to the presence of important operating and
maintenance (service) instructions in the literature
accompanying the appliance.
Warning
Magnets could affect the function of pacemakers and implanted heard defibrillator.
A pacemaker could switch into test mode and cause illness.
A heart defibrillator may stop working.
If you wear these devices, keep a sufficient distance from the magnets.
Warn others who wear these devices from getting too close to the magnets
To prevent damage which may result in fire or electric shock hazard, do not expose this appliance to rain
or moisture.
1. Be sure to use only the standard adapter that is specified in the specifications. Using any other adapter
could cause fire, electrical shock, or damage to the product.
2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock,
or damage to the product.
3. Do not connect multiple cameras to a single adapter. Exceeding the capacity may cause excessive heat
generation or fire.
4. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.
5. When installing the camera, fasten it securely and firmly. A falling camera may cause personal injury.
6. Do not place conductive objects (e.g. screw drivers, coins, metal items, etc.) or containers filled with water
on top of the camera. Doing so may cause personal injury due to fire electric shock, or falling objects.
3
WARNING (CONT.)
SAFETY INFORMATION
7. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.
8. If any unusual smells or smoke come from the unit, stop using the product. Immediately disconnect the
power source and contact the service center. Continued use in such a condition may cause fire or electric shock.
9. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify
this product in any way.
10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or
electric shock.
PRECAUTION
Operating
Handling
Installation and Care
• Before using, make sure power supply and all other parts are properly connected.
While operating, if any abnormal condition or malfunction is observed, stop using the camera immediately
and contact your dealer.
Do not disassemble or tamper with parts inside the camera.
Do not drop the camera or subject it to shock or vibration as ths can cause damage to the camera.
Clean the clear dome cover with extra care. Scratches and dust can ruin the quality of the camera image.
Do not install the camera in areas of extreme temperature, exceeding the allowed range.
Avoid installing in humid or dusty environments.
Avoid installing in places where radiation is present.
Avoid installing in places where there are strong magnetic fields and electric signals.
Avoid installing in places where the camera would be subject to strong vibrations.
Never expose the camera to rain or water.
•
•
•
•
•
•
•
•
•
•
4
TABLE OF CONTENTS
Introduction
Installation
Module OSD Menu
Troubleshooting
Warranty Information
Specifications
Features
Parts and Descriptions
Dimensions
Inside the Box
Installation Instructions
Connecting to Monitors 12
Cabling
5
6
7
8
9
10-11
13
16-27
28
29-30
31
Adjusting the Camera Angle 14-15How to Access the Camera’s OSD Menus
5
FEATURES*
High Definition Analog (HD Analog) HD over Coax Technology
Four Cameras in One, One Installation
4x Panasonic® 1/3" CMOS Sensor
Flexible Sensor Positioning with Magnets
8 Megapixel Resolution at 30fps (4x 2.1MP)
4x 2.8mm, 4.0mm, 6.0mm and 8.0mm Fixed Lenses Options
Customizable 2.8mm, 4.0mm, 6.0mm and 8.0mm Lens Options
OSD Control Via Coaxial (UTC)
Easy Icon Driven OSD Menu with Built-in Joystick
Secondary Video-BNC Output
STAR-LIGHT™ Super Low Light Technology
True Day/Night Mechanical IR Cut Filter
Dynamic Range Compressor (DRC) Reveals Low Light Detail
Wide Dynamic Range (WDR)
Smart DNR™ 3D Digital Noise Reduction
Highlight Masking Exposure (HME)
Programmable Privacy Zones
Auto Gain Control (AGC)
Backlight Compensation (BLC)
Auto White Balance (AWB)
RS-485 Built-in
Auto Sensing 24VAC/12VDC with Line Lock
De-Fog™ Extreme Weather Image Compensation
IP66 Certified (Weather Resistant)
6

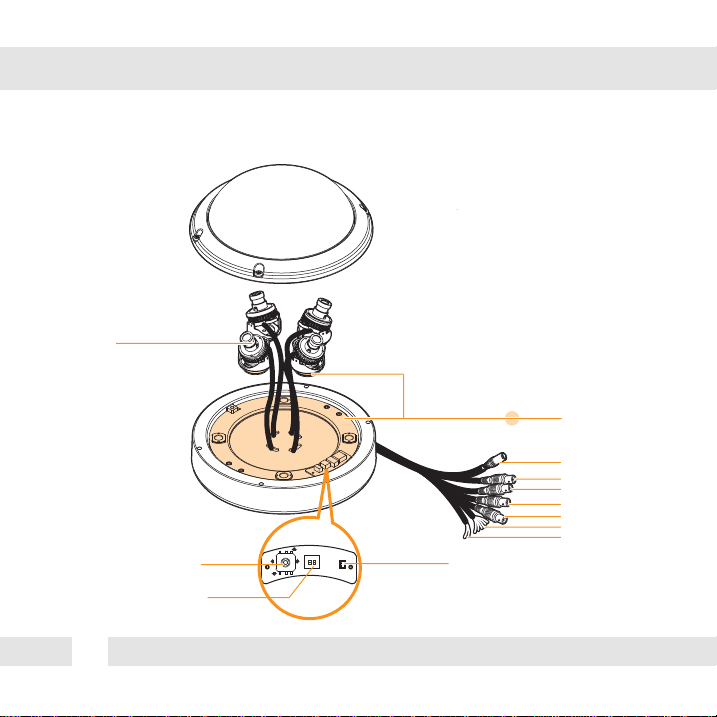

PARTS & DESCRIPTION*
POWER
HD Analog1CH
HD Analog2CH
HD Analog3CH
HD Analog4CH
Alarm Input
RS485
RL
UP
D
OSD Joystick
BNC Local Output Switch
Test Monitor Cable Slot
camera modules
Magnetic Track
7
DIMENSIONS IN MILLIMETERS (IN)*
95.8 (3.77”)
89.50
(3.5”)
8
INSIDE THE BOX*
Included with your camera:
Camera Cables
Screw &
Plastic Anchor-4pcs
Torx Wrench
Installation ManualMounting Template
9

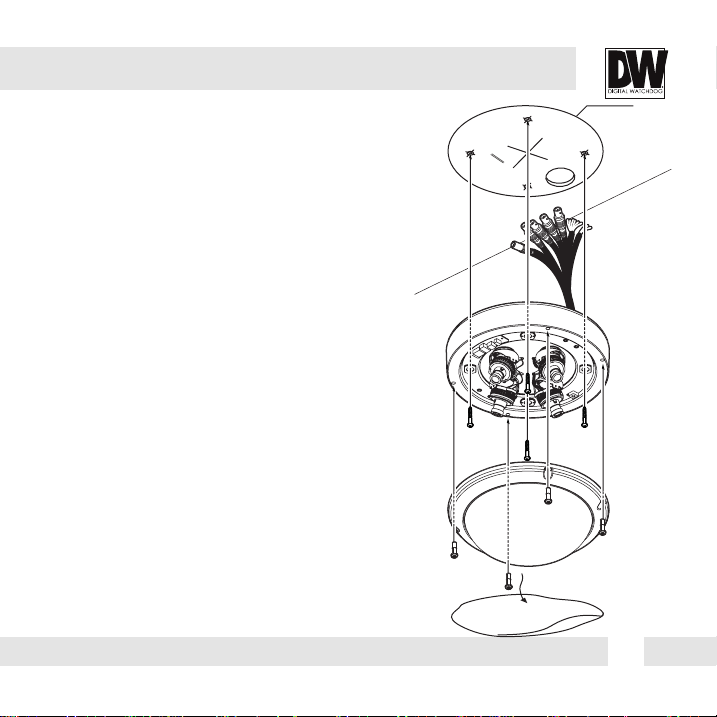

INSTALLATION* Template Sheet
1. Using the mounting plate or the camera’s bottom case,
mark and drill holes into the mounting surface.
2. Pull wires through and make all necessary connections.
See pages 9-10 for more information.
3. Using the four (4) included screws, mount the camera’s
bottom case to the mounting surface.
4. Adjust the camera module on the magnetic surface for
the ultimate coverage and view. Each camera module snaps
into position using the magnetic track, allowing for
maximum customization and fully adjustable views. See
page 12 for tilting and adjustment specications.
5. Secure the cover dome to the camera’s bottom case using
the torx wrench.
6. Remove the protective lm from the camera’s dome to
complete the installation.
10

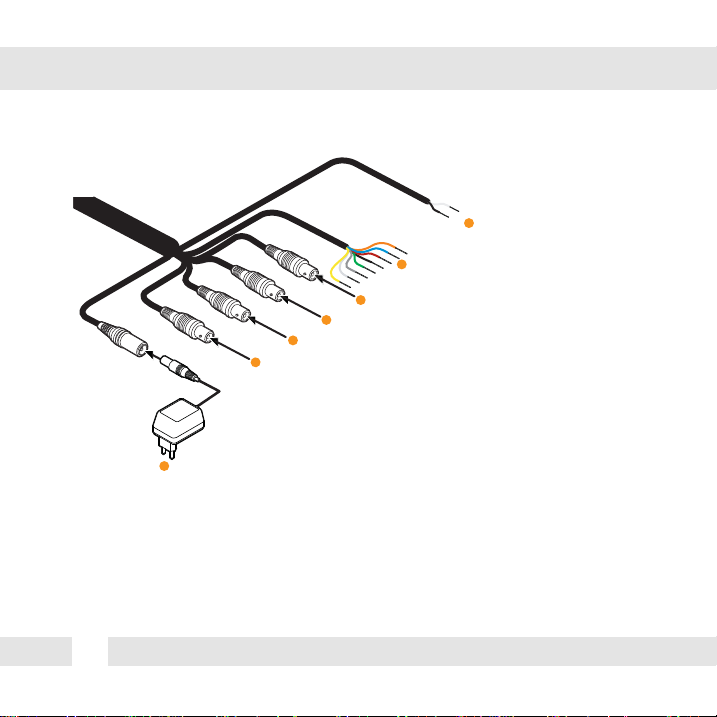

INSTALLATION-CONNECTING CABLES*
1Power
7RS485
6ALARM
2AHD 1CH
3AHD 2CH
4AHD 3CH
5AHD 4CH
1. Power: connect the camera to a proper power supply. The camera supports both 12VDC
and 24VAC. Below are the maximum power supplies for the camera:
DC12V : 8.36W
AC24V : 8.36W
2~5. AHD BNC Outputs 1~4: Connect each of the camera’s lenses as a separate output to a
DVR supporting AHD signal such as the VMAX A1. On the DVR side, each lens will be set as a
dierent channel.
Use the diagram below to connect the camera to external devices:
