Digital Watchdog Snapit DWC-V4363D User manual

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

SNAP-IT

Outdoor Dome Camera

DWC-V4363D

DWC-V4363TIR

DWC-V4367WD

DWC-V4367WTIR

DWC-V4382TIR

DWC-V4365T

DWC-V4363DH

DWC-V4382TIRH

03022011

PRECAUTIONS

FCC COMPLIANCE

WARNING : Changes or modifications are not expressly approved by the manufacture.

Do not open or modify.

Do not open the case except during maintenence and installation,

for it may be dangerous and can cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room,

as the temperature may rise to high levels.

Cleaning

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface.

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B

digital device, pursuant to part 15 of the FCC rules. These limits are designed to

Provide reasonable protection against harmful interference. when the equipment is

operated in a residential environment. This equipment generates, uses, and radiates

radio frequency energy; and if it is not installed and used in accordance with the

instruction manual, it may cause harmful interference to radio communications.

TROUBLESHOOTING

No VIDEO

Out-of-Focus VIDEO

Before sending your camera for repair, check the following or contact our technical specialist.

Check the coaxial cable and make sure it is connected securely.

Check the lens’ iris adjustment at the menu setup of the camera.

Check the power supply and make sure the camera has the proper voltage and current.

Check the clear dome cover and the lens for dirt or fingerprints. Use a soft cloth and gently clean.

Check the lens manual focal and zoom adjustment. Field test monitor is recommended.

PART & DESCRIPTIONS*

Lens

Power Input Connector

DC 12V /AC 24V Voltage

UPT

RS 485

Video Output Connector - BNC

Camera Control Board

Bubble

Upper Case

Flush Mount Case

Surface Mount Case

Assembly Screws

#8 - 32 x 0.75

2nd Video Connector

Safety Wire

Mounting Screws

NO IR IR

INSTALLATION*

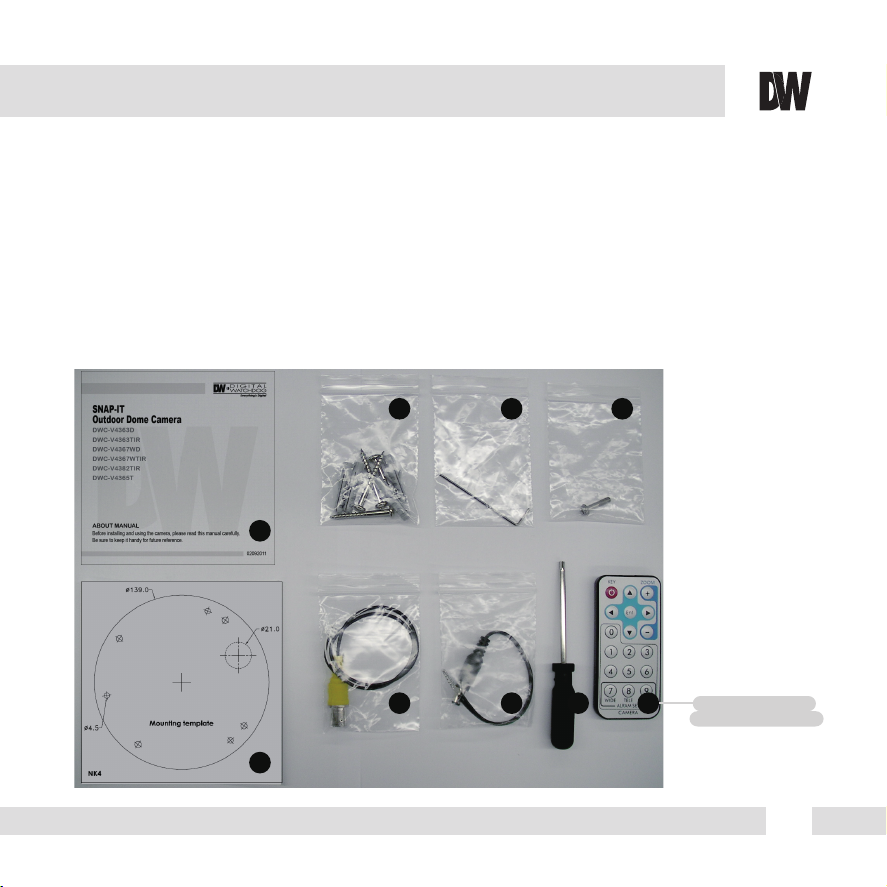

Included with DW Outdoor Dome Camera

1. User Manual

2. Mounting Template

3. Four(4) Screw and Four(4) Dry Wall Anchors

4. L-Wrench

5. TORX-T20 Bolt

6. 2nd Video Jack

7. DC Plug

8. Tool

9. IR Remote Controller

DWC-D4382TIR

DWC-D4382TIRH

3 4 5

6 7 98

DIMENSIONS IN MILLIMETERS*

139

101

137

98,8

121

118,8

139

53,8

121

Flush Mount

Top View

Surface Mount

BASE INSTALLATIONS*

Remove the dome cover by loosening the 3 screw located at the Lid(Upper).

Vandal dome uses the torx screws. Use the supplied Torx Wrench.

Surface Mount

Using four ST4X35 screws provided, mount the surface mount plate to a sturdy

surface. Using three screws, fix flush mount base to the surface mount plate.

Flush Mount

Using four ST4X35 screws supplied, mount the surface mount plate to a sturdy

surface.

T20 M4 X 16

Plastic Anchors

ST4X35

ST #8 - 32 x 0.75

Surface Mount Flush Mount

NO IR NO IRIR IR

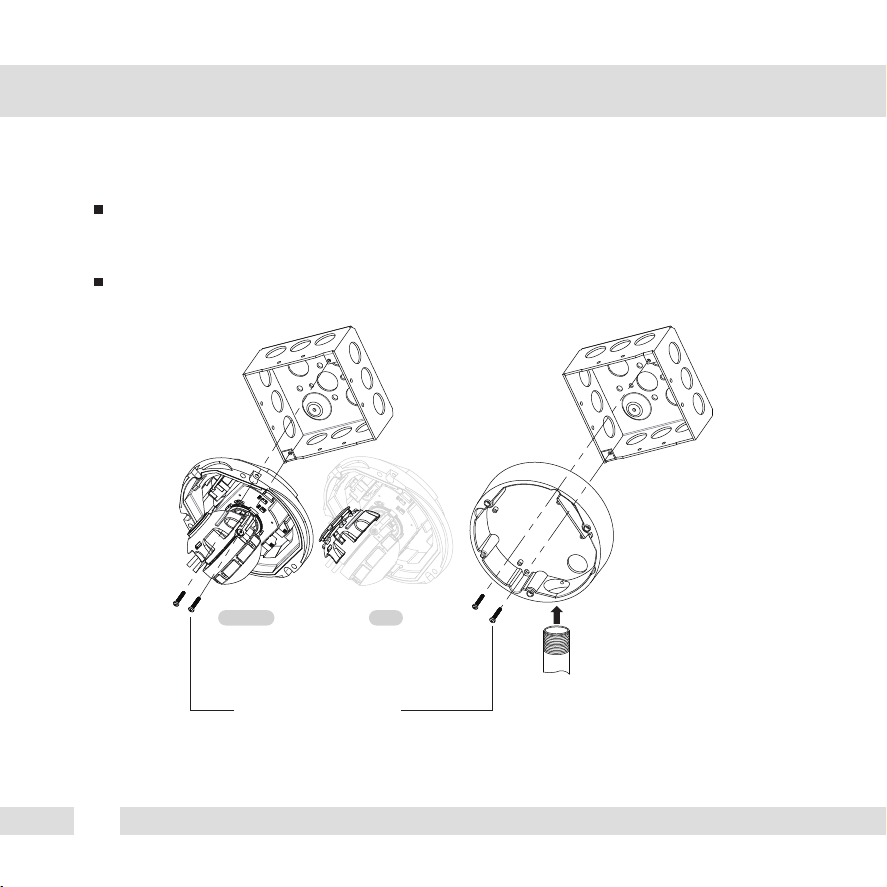

MOUNTING ON ELECTRICAL JUNCTION BOX*

NOTE : Screws required for electrical junction boxes are not supplied.These

screws are readily available at well-stocked electrical supply store.

Designed for both flush mount or surface mount applications, pre-drilled mounting holes

on EasyView dome accommodate various electrical junction boxes, making installation

easy and less time consuming.

When mounting the flush mount base, surface mount plate, or both together, use the

pre-drilled holes marked with the symbol for proper installation.

Screws UNC 8-32 x 0.75

NPT 3/4” Pipe

4S 4S

NO IR IR

CONNECTING TO MONITORS*

Power Connection - 12V DC / 24V AC Dual Voltage(Auto Polarity Detection and Protection)

All cameras are equipped with a 2nd video output on the camera Main Board.

Follow the diagram below to make proper connections to CRT Monitor or the Monitor.

DC 12V / AC 24V

CCTV Monitor

Monitor

300.0

2nd Video Output

Down

Left Right

NO IRIR

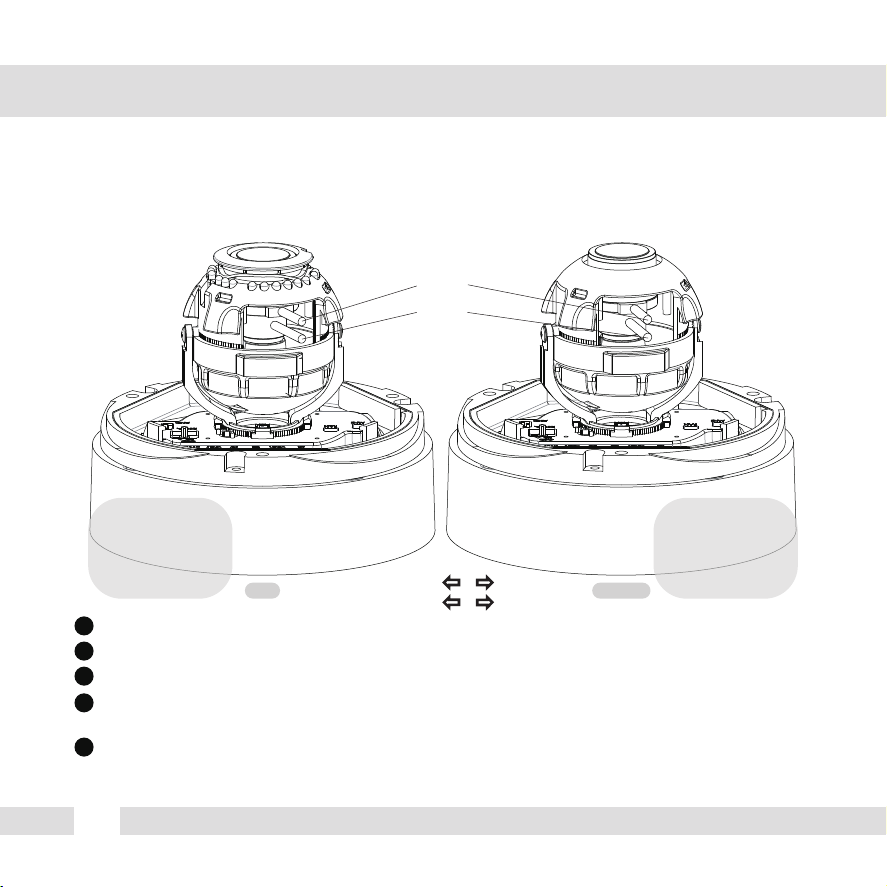

ADJUSTING THE VARI-FOCAL DC AUTO IRIS LENS*

Follow the instructions provided below to make any lens adjustments.

1Loosen the Zoom & Focus screws.

2Using the screw, move it RIGHT or LEFT to the desired position.

3Once the desired adjustments have been made, tighten the screw to lock in place.

4Adjust the Field of View by moving the screw towards the RIGHT(Tele) to zoom in, or

towards the LEFT(Wide) to zoom out.

5Adjust the Focus the same way as described above after the desired zoom position is

estabilished.

Zoom:

Focus:

Tele - Wide

Far - Near

Focus

Zoom

NO IRIR

DWC-V4363TIR

DWC-V4367WTIR

DWC-V4382TIR

DWC-V4382TIRH

DWC-V4363D

DWC-V4367WD

DWC-V4365T

DWC-V4363DH
