Digital Watchdog MEGApix DWC-MPA20M User manual

Before installing or operating the camera, please read and follow this manual carefully.

04132012

DWC-MPA20M

IP 2.1MP Armored Vandal Dome Camera

PRECAUTIONS

Do not open or modify.

Do not open the case except during maintenance and installation, for it may be dangerous and can cause

damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera. It can cause fire, short-circuits, or

other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect the camera from humidity and dust.

Protect the camera from high temperature.

Be careful when installing near the ceiling of a kitchen or a boiler room, as the temperature may rise to high

levels.

Cleaning: To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface: The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of

the FCC rules. These limits are designed to provide reasonable protection against harmful interference, when the

equipment is operated in a residential environment. This equipment generates, uses, and radiates radio frequency

energy, and if it is not installed and used in accordance with the instruction manual, it may cause harmful interference

to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

FCC COMPLIANCE

TABLE OF CONTENTS*

FEATURES. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PARTS & DESCRIPTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

DIMENSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSIDE THE BOX. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

NETWORK CONNECTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

IP FINDER SOFTWARE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

CAMERA REBOOT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

WEBVIEWER. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

WARRANTY INFORMATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

LIMITS & EXCLUSIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

ONVIF Conformant

1/2.7” CMOS Sensor (12% Larger than 1/3” CMOS Sensor)

Highest Resolution 2.1 Megapixels

1080P (1920X1080) at 30fps

4.3mm Fixed Lens

8X Digital Zoom

Power over Ethernet [PoE] & DC12V

Web Server Built-in

H.264 and MJPEG Dual Stream

Electronic Day and Night

3D-DNR (3D Digital Noise Reduction)

Programmable Privacy Zones (30) & Motion Detection

Mirror

E-mail Event Notifications

Max 20 Users

Panic Recording

Export & Print Image

IP66 Certified (Weatherproof)

FEATURES*

1. Lens

2. RJ45 Cable

3. DC Cable

4. IP Module

5. Bottom

6. Bottom Pad

7. Gimbal Tilt Stopper

8. Mounting Screws

9. Dome Cover Support

10. Dome Cover

11. Gasket Rubber

12. Upper Case Rubber

13. Upper Case

14. Assembly Screws

M3.0 X 15.0

15. FA Buttons

PARTS & DESCRIPTIONS*

DIMENSIONS*

The following items are included with the MEGAPIX camera.

INSIDE THE BOX*

1 2

1. User Manual

2. Quick Start Guide

3. CD (Manual & Software)

4. L-Wrench (T10-M3X15.0)

5. 4 Screws & 4 Dry Wall

Anchors

6. Mounting Template

1. Camera Input Sensor

2. Power Supply DC12V

Max 5.16W, 430mA

3. RJ45 Connector

T h e r e a r e t w o o p t i o n s .

U s e a P o E - e n a b l e d s w i t c h t o c o n n e c t d a t a a n d p o w e r t h r o u g h a s i n g l e

c a b l e a n d b e g i n v i e w i n g a n d r e c o r d i n g i m a g e s i n s t a n t l y . A n o n - P o E

s w i t c h w i l l r e q u i r e a n a d a p t o r f o r p o w e r t r a n s m i s s i o n .

1. Using a PoE-Enabled Switch

The MEGAPIX Camera is PoE compliant, allowing transmission of power and data via a single Ethernet cable.

PoE eliminates the need for the different cables used to power, record, or control the camera. Follow the

illustrations below to connect the camera to a PoE-enabled switch using an Ethernet cable.

1. Using a Non-PoE Switch

If a PoE-enabled swithc is not u sed, use a power adaptor for power transmission and a non-PoE switch for data

transmission. Follow the illustrations below to connect the camera without a PoE-Enabled Switch.

NETWORK CONNECTION *

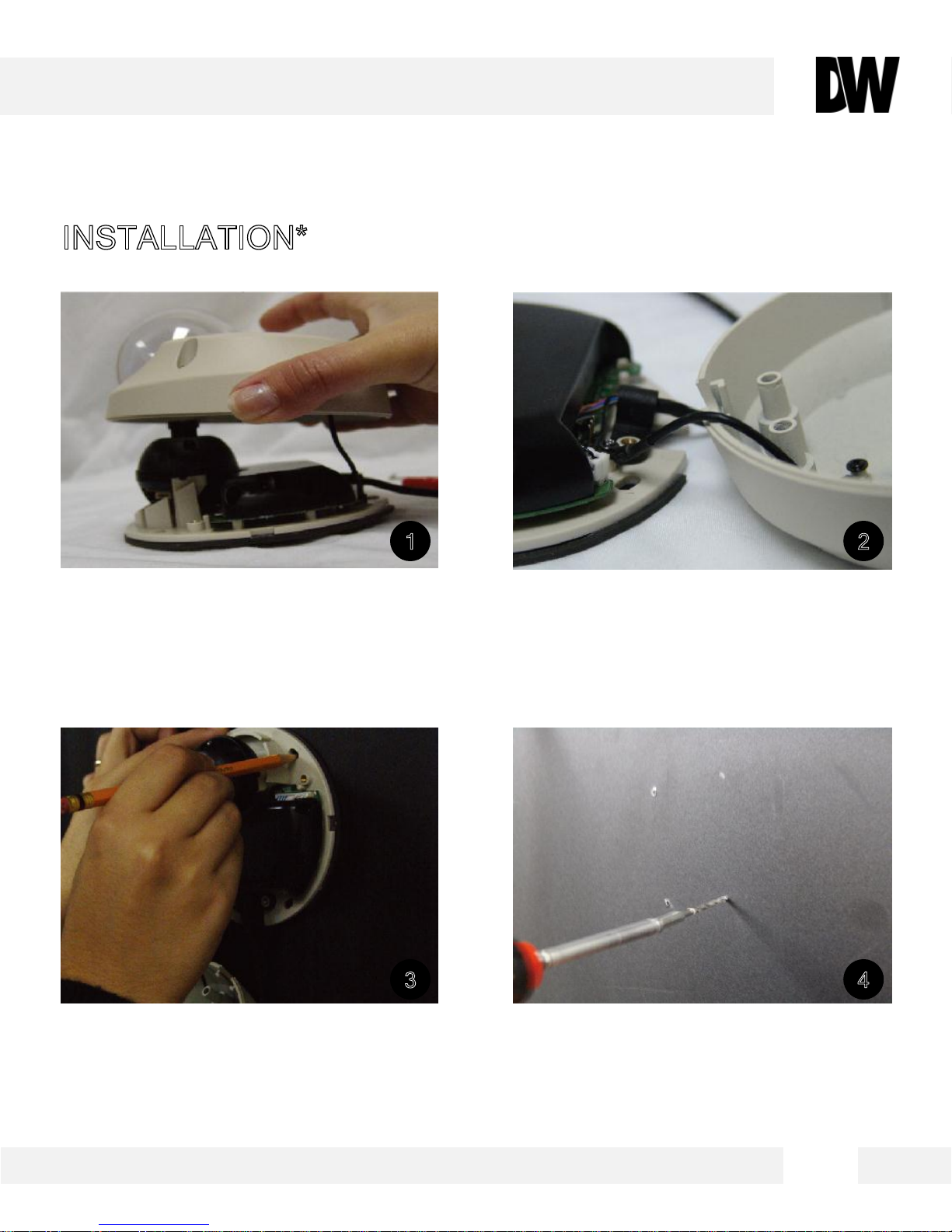

1. Using the supplied L-Wrench (T10-M3X15.0), loosen the four security screws. Carefully remove the dome cover.

2. The MEGAPIX camera comes with a safety wire attached.

The Safety Wire will secure the dome cover to the camera module during the installation process. To remove

the safety wire, remove the screw that is keeping the wire in place. We recommend that you use the safety wire.

INSTALLATION*

3. Use the camera mounting template or your camera to mark the holes as required.

4. Drill the holes into the drywall and insert the drywall mounts into the holes.

1 2

3 4

INSTALLATION*

5. Pull wires through and make connections. Connect the RJ45 to a CAT5 cable or power adaptor. Refer to

“NETWORK CONNECTIONS” for further explanation.

6. Mount the camera to the wall or ceiling, using the screws provided with the camera.

7. Adjust the camera pan and tilt. See page11 for details. Check the LED light. Green light flickers when the

camera is booting, and Red light turns on when booting is complete.

8. Tighten the four locking screws with the L-Wrench.

5 6

7 8
