CPU INSTALLATION CARD

ER–PD02U–IN. A01

Use this card as a quick reference to install the CPU

module in DIGITAL Server 5300 and DIGITAL Server

7300/7300R systems.

WARNING: CPU modules and memory modules have

parts that operate at high temperatures. Wait 2 minutes

after power is removed before touching any module.

CAUTION: Wear an antistatic wrist strap when working

on this system.

Overview

• Expose the system board or drawer in the pedestal or

cabinet.

• Install the CPU module.

• Verify the installation.

DIGITAL Server 5300

Expose the System Board

NOTE: Before removing the CPU module, you must

remove the memory card adjacent to it. Refer to the

DIGITAL Server 5300 User’s Guide for memory card

removal procedures.

1. Shut down the operating system and power down the

system.

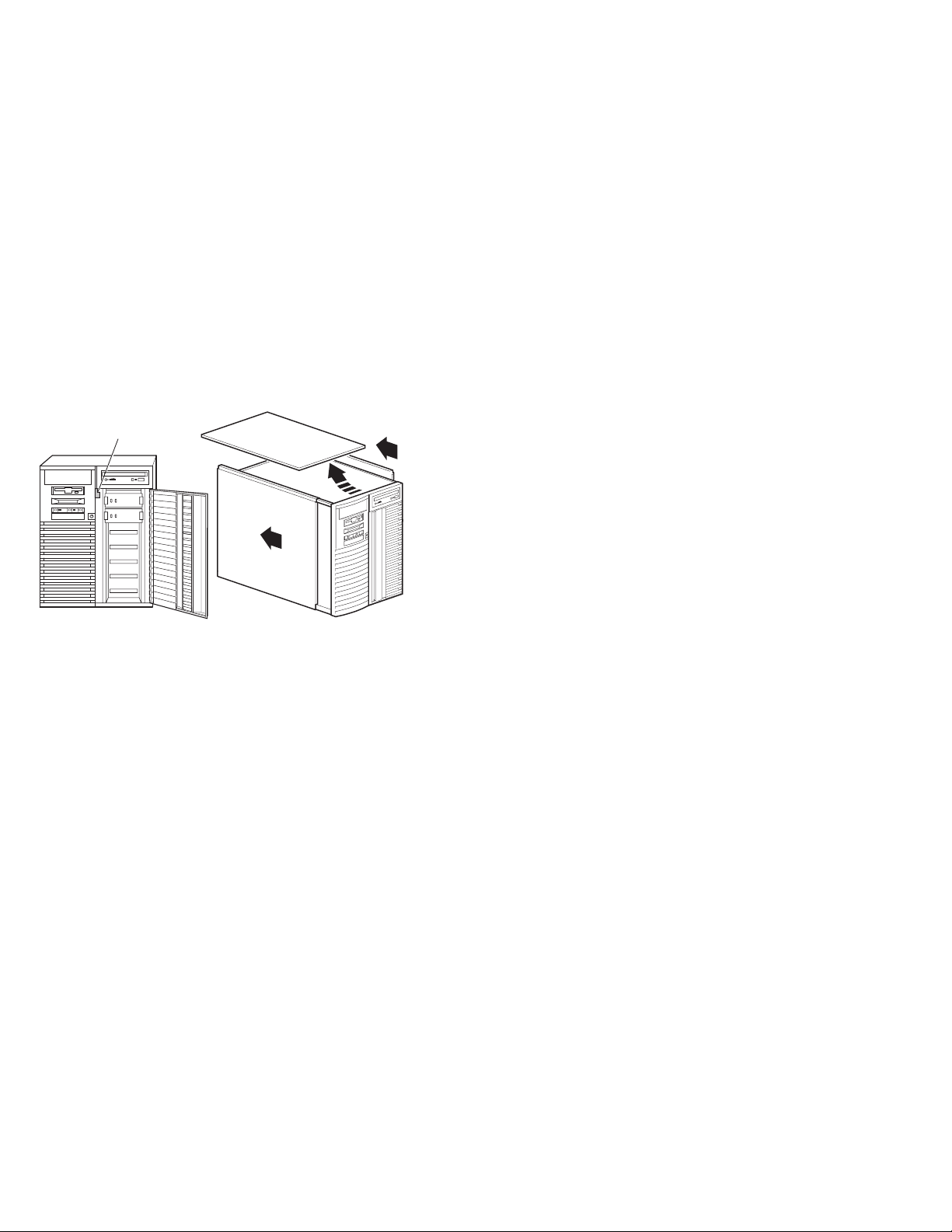

2. Remove the top cover and left side panel as shown in

the following illustration.

Top Cover

Release Latch

IP00205

Install the CPU Module

1. Unscrew the module handle that secures the outer edge

of the CPU module (two retainer screws).

2. Release the card by extending the handle clip on each end

outward.

3. Holding the outer edge of the card, gently pull it out of

the slot.

4. To install the new CPU card, slide it into the system

board slot.

5. Visually align the CPU card with the system board white

connector and press the card into the connector. Check

to see that the module handle clips are aligned with the

slot notches.

6. Press inward on the handle clip on each end of the card

until they catch in a closed position, as shown in the

following illustration.

7. Secure the card by tightening the two captive retainer

screws.

8. Replace the memory card.

IP00215

Verify the Installation

1. Start AlphaBIOS Setup, select Display System

Configuration, and press Enter.

2. Using the arrow keys, select MC Bus Configuration

to display the status of the new module.

DIGITAL Server 7300/7300R

Expose the System Drawer in the Pedestal

1. Shut down the operating system and power down the

system.

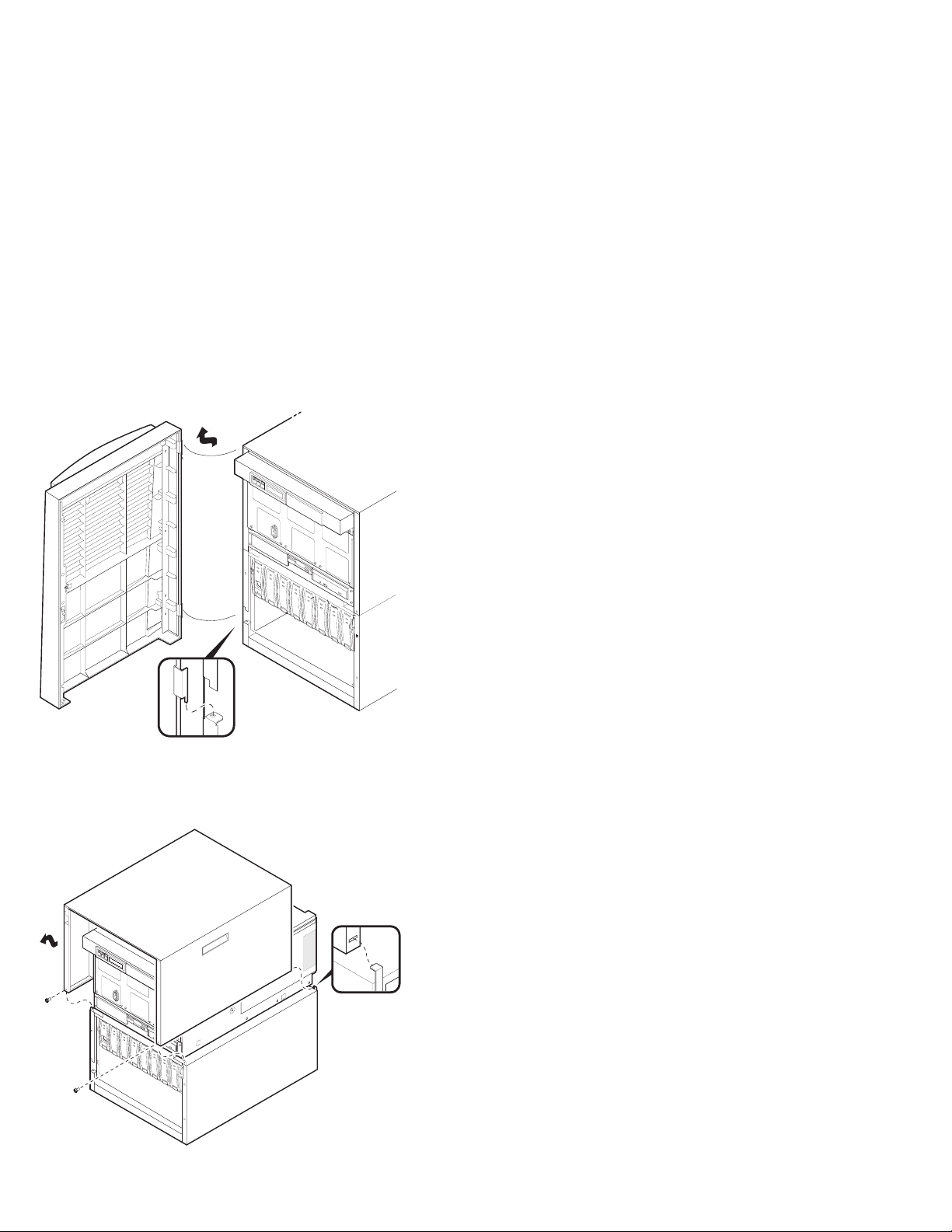

2. Open the front door of the pedestal and remove it by

lifting and pulling it away from the system, as shown

in the illustration below.

PK-0752-96

3. Remove the top cover from the pedestal. Remove the

two Phillips head retaining screws midway up each

side of the pedestal, tilt the cover up, and lift it away

from the frame.

PK-0753-96

Expose the System Drawer in the H9A10–EN/EP

Cabinet

WARNING: Only DIGITAL Customer Service

representatives or customer maintenance personnel who

are familiar with computer hardware should slide system

drawers out of the cabinet. Personnel should be

experienced and trained in installing computers and

related equipment. Before pulling a system drawer out,

make sure the stabilizer bar is fully extended; then adjust

the foot at the end of the bar so it touches the floor.

1. Open the front door of the cabinet.

2. Pull out the stabilizer bar at the bottom of the cabinet

until it stops.

3. Extend the leveler foot at the end of the stabilizer bar

to the floor.

4. Unplug the power supplies in the drawer.

5. Slide the drawer out until it locks.

PK-0457R-97

Stabilizer bar

Leveler foot

Install the CPU Module

1. Remove the cover from the system card cage section

of the system drawer. Remove the two Phillips head

screws and slide the cover off the drawer.

PK-0705AR-96

2. Insert the new CPU module:

a. Determine the slot on the system motherboard for

the new module. The first CPU module is in slot

0, the second in slot 1, and so on.

DIGITAL Server 7300 Mother Board

CPU 3

CPU 2

CPU 1

CPU 0

ML014253

b. The module handle has a lever at each end. Insert

the module in the slot and push down on both

levers at the same time.

PK-0718R-96

Verify the Installation

1. Replace the cover on the system bus card cage. Power

up the system with the HALT button in the depressed

position and verify that power-up diagnostics pass.

2. From the SRM console, issue the command >>>test

CPUnwhere nis 0 ,1,2,3, o r *. The value indicates

the specific CPU number or all CPUs.

3. Change the HALT button to the OUT position, and

press the RESET button.

4. Start AlphaBIOS Setup, select Display System

Configuration, and press Enter.

5. Using the arrow keys, select MC Bus Configuration

to display the status of the new module.

ER-PD02U-IN. A01
