Digiguard C-TVI-5124W User manual
▶
▶
Product
SPECIFICATION
DIMENSION
Video Output: TVI/AHD/CVI/CVBS
Electronic Shutter
Product
exchange
5MP TVI, All-in-One HD CAMERA
WARRANTY
chargeable
case even
within
warranty
1. Damage by customer’s careless handling
2. Damage by natural disaster (Fire, Flood, etc.)
3. Damage by not keeping the cautions and instructions on manual
4. Damage by not using appointed power(frequency, voltage) or adapter.
5. Damage by disassemble or cleaning by customer
6. Damage by repairment by a person excepting the dealer
A/S with cost
Within Warranty Period
When
damages
occurred in
nomal
working
environment
Repair or Replace
A/S without cost
The warranty period is 2 years from Invoice date.
Please contact purchasing office or service center when you find any damage or
problem with this product.
Key Features:
C-TVI-5124W
Operating Temp/Hum.
-10ºC~ +50ºC / 30% ~ 80% RH
Storage Temp. / Hum.
-20ºC ~ +60ºC / 20% ~ 90% RH
∙
∙
∙
TVI 5M/AHD 5M/ CVI 4M/CVBS
Weight(g)
800
Input Voltage
DC 12V(±10%)
Power Consumption
IR OFF : 210mA / IR ON : 700mA(±10%)
MOTION
ON/OFF
Digital Effect
OFF / V-FLIP / MIRROR / ROTATE
Dimension (mm)
120x93(H)
DNR
LEVEL(0~100)Adjustment
Digital Zoom
1.0X-8.0X
SENS-UP
0FF/ X2-X8
Auto Gain Control
Auto
Day&Night
Auto
Privacy Masking
On / Off (Programmable)
Gama Characteristic
0.45
IR Distance
30 Meters
IR Status
Under 10 Lux by CDS
LENS
2.8~12 Manual Zoom Lens
Auto/FLK/1/25s~1/50,000s , 1/30s~1/60,000s
MANUAL(X2~X512)
IR LEDs
24Pcs LEDs
S/N Ratio
More than 50dB (AGC Off)
Min. Illumination
0.001Lux(Color)/F1.2
IRIS Adjustment
Auto
Synchronization
Internal, Negative Sync
Horizontal Resolution
TVI 5M/AHD 5M/ CVI 4M/CVBS
Video Output
TVI 5M/AHD 5M/ CVI 4M/CVBS
Imaging Device
1/2.9" SONY 6MP CMOS sensor
Effective Pixels
5MP (2592*1944)
Scanning System
Progressive Scan
◈A/S with cost◈
Damage by customer’s negligence
Warranty details
DESCRIPTION
PAL
With IR‐CUT, DNR, UTC, OSD
1/2.9" SONY 6MP CMOS sensor
◈A/S without cost◈
Warranty details
Within warranty
After Warranty
Product
Address
Dealer
Representative
Warranty Period: 2 years
Model
C-TVI-5124W
Serial No.
Purchase
Customer
GIMBAL DOME CAMERA
CAUTION
CAUTION IN INSTALLATION
Do not try to fix even if the camera does not work.
If you would like to relocate the already installed product,
be sure to turn off the power and then move or reinstall it.
Be careful not to drop this camera and not to impact on it.
CCTV camera is a precision device.
Do not install the camera opposite of the sun so that it be
avoided direct light.

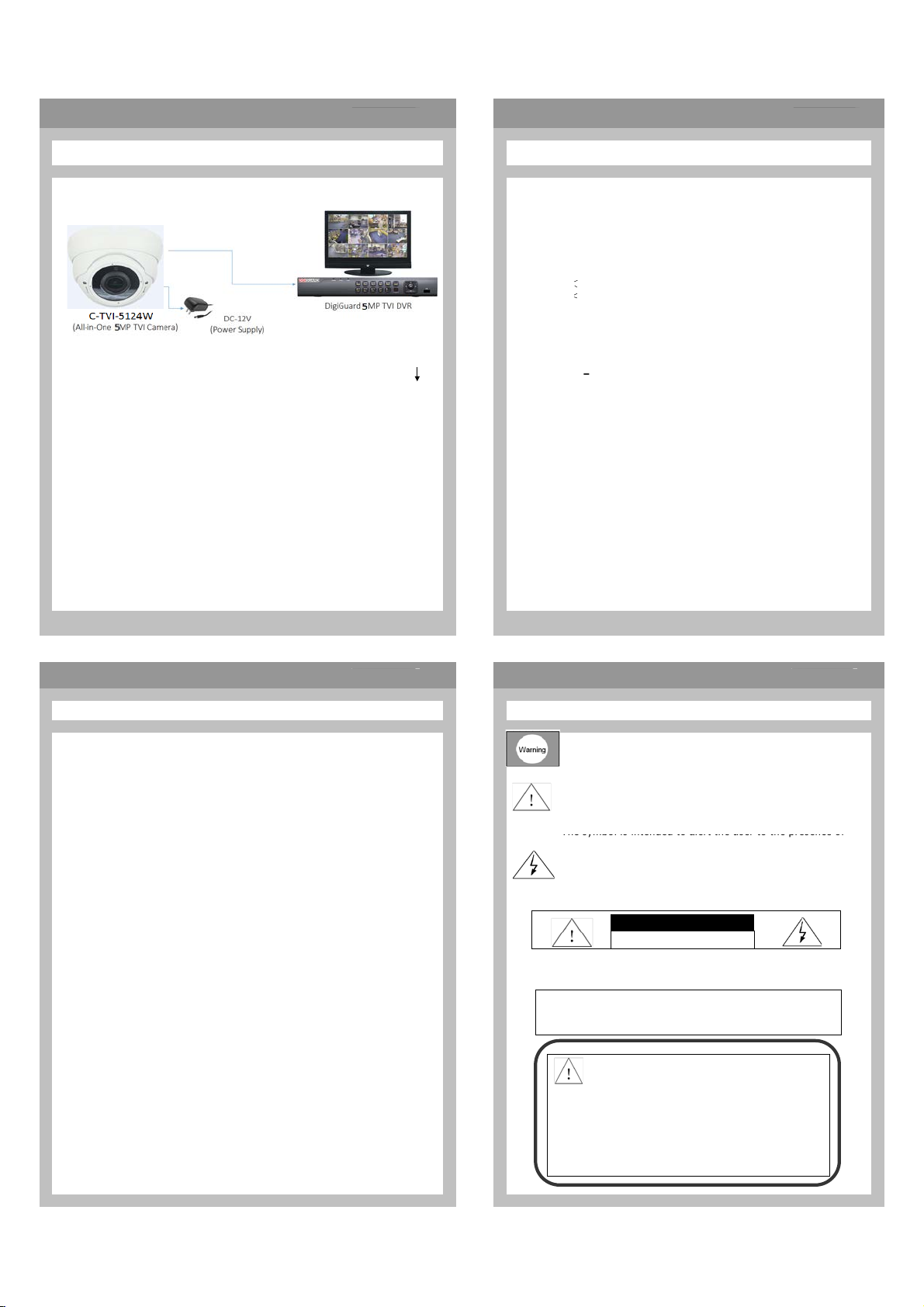

CONNECTING OF CAMERA
Feature Summary
Do not pull the cable. If you pull the cable, it will make
electrical problems such as disconnection.
1. No Picture after providing power. May be the power supply voltage
abnormity, please check the power supply voltage and pole whether exactitude.
Please check all the connecting cable and monitors whether be connected
correctly or not.
2. The picture level direction have flowing interference ripples. May be caused
by the power supply AC ripples, it need filter the wave of the power supply.
Check the monitor and peripheral equipments used.
4. The picture smear too mass . The power supply’s voltage unstable.
Connecting cables not connect correctly or have high impedance.
To prevent fire or shock hazarded. Do not expose the
unit rain to rain or moisture.
The symbol is intended to alert the user to the presence of
important important operating and maintenance (servicing)
Instructions in the literature accompanying the appliance.
The symbol is intended to alert the user to the presence of
uninsulated ‘dangerous voltage’ within the product’s enclosure
that may be of sufficient Magnitude to constitute a risk of
electric shock to persons.
Installation this camera at safety place where is no water,
If the camera has some problems with water accidently.
You have to contact A/S centre that sold the camera to you.
The camera should be worked within a range of the
allowable temperature that refers to specification.
♣
♣
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER
OR BACK NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO OUALIFIED
SERVICE PERSONNEL.
3. The picture background color changes continuously. The fluorescent lamp’s
electromagnetic field cause color roll. This is proper phenomenon of the
cameras. Reduce the fluore scent lamp numbers or increase the distance
between the camera and the fluorescent lamps can improve it. Use power
supply external sync. camera can solve it.
* Gama Characteristic
Camera Gama characteristic is 0.45.
* Auto Electronic Shutter (AES)
Built-in auto electronic shutter function. The
color camera’s AES speed can reach 1/100,000s.
* Switch the output signal by OSD button
Press “left” key after 5 seconds then release : CVBS
Press “right” key after 5 seconds then release : TVI
Press “up” key after 5 seconds then release : AHD
Press “down” key after 5 seconds then release : CVI
Please contact the nearest A/S centre if you find out any
Problems. Please do not ignore any small problems they
can become a big problem.
* Sensor (CMOS)
1/2.9" SONY 6MP CMOS sensor
* Auto Gain Control (AGC)
Built-in auto gain control (AGC) circuit. The color camera
can get high definition picture in low Lux condition.
* Scanning Mode
NTSC or PAL mode.
♣
♣
♣
♣
♣
♣
Note:
●Please note the camera’s operating temperature and its using environment
requirement. Avoid using the camera at too high or too low temperatures. The
operating temperature is -30~+60℃. (Recommendatory operating temperature is -
10~+50℃.)
●Never make the camera face the sun or bright object. Otherwise, it will damage
the CMOS.
CAUTION:
RISK OF ELECTRIC. DO NOT OPEN
CAUTION: To prevent electric shocks and risk of fire hazards, do NOT
use other than specified power source.
