DELTA DORE TYBOX 21 User manual

TYBOX 21 Quick Setup Guide (also for TYBOX 23 & TYBOX 24): OR INSTALLER & USER

Before you begin please note the following & for any technical queries please contact your area representative through your merchant:

•The wireless models are PRE-ASSOCIATED, simply connect the receiver and it is ready to operate.

•Remove front cover by hand to reveal the battery housing and discard the blue tab to activate.

•The unit is battery powered and has volt free & 2 0v contacts. In most cases wiring is directly to the thermostat input in the boiler

via the RT 24V input. Refer to the wiring diagrams below or boiler documentation for more information (For Tybox24 see receiver);

1. Set the Temperatures for the Thermostat

On the face of the thermostat you will find three buttons. MODE + & -. All functions are performed with these buttons.

a. Option 1: simple increase & decrease

Should you wish to simply operate the unit to increase and decrease temperature (or if you are using it in conjunction with a time clock

and only require one temperature) then press MODE until you are in the menu. From here use + & - to adjust the temperature up

and down to your preferred temp (recommended: 19°C)

b. Option 2: three temperature options

Should you require a little more control then you can input independent temperatures and switch to the preferred one by simply

pressing MODE to inform the boiler what temperature you want;

On/Day/Comfort – recommended: 19°C

Off/Night/Setback – recommended: 14°C

Off/Holiday/Frost Protection – recommended: 8°C

2. Advanced Menus

To access the advance menu press and hold MODE for 10 seconds whilst the display is in , then to navigate through the menu you simply press MODE one

time per advanced option.

There are /4 advanced options and they are as follows;

•The menu, Set point and room temp display.

Displays the target (Set Point) temperature, room temperature will appear on display before an adjustment is made ACTORY SETTING – 01

Displays the room temperature, target (Set Point) temperature will appear while adjustment is being made – 00

To change between 00 and 01 simply press the + button

•The 0.0°C menu

This menu enables the user to fix any disparity between the temperature the unit is measuring and the actual room temperature (if any). These

parameters can be adjusted up to +/- 5.0°C by simply using the + & - buttons.

ACTORY SETTING 0.0°C

•The menu, Tamperproof function.

Keypad unlocked ACTORY SETTING – 01

Keypad locked – 00

To change between 00 and 01 simply press the + button

•The menu, Programmer Function (Wireless models only).

Thermostat - ACTORY SETTING – 00

Thermostat + Accessory (i.e. window contact MICRO COX) – 01

Thermostat + Programmer – 02

To change between 00 and 02 simply press the + button

NB: None of the settings are permanent and can be changed to your requirements by accessing the advanced menu again and adjusting to your new desired setting.

Wireless Configuration: 23, 24

Remember: the product comes PRE-ASSOCIATED; the following information is in the event that association is lost or configuration is restored to factory settings.

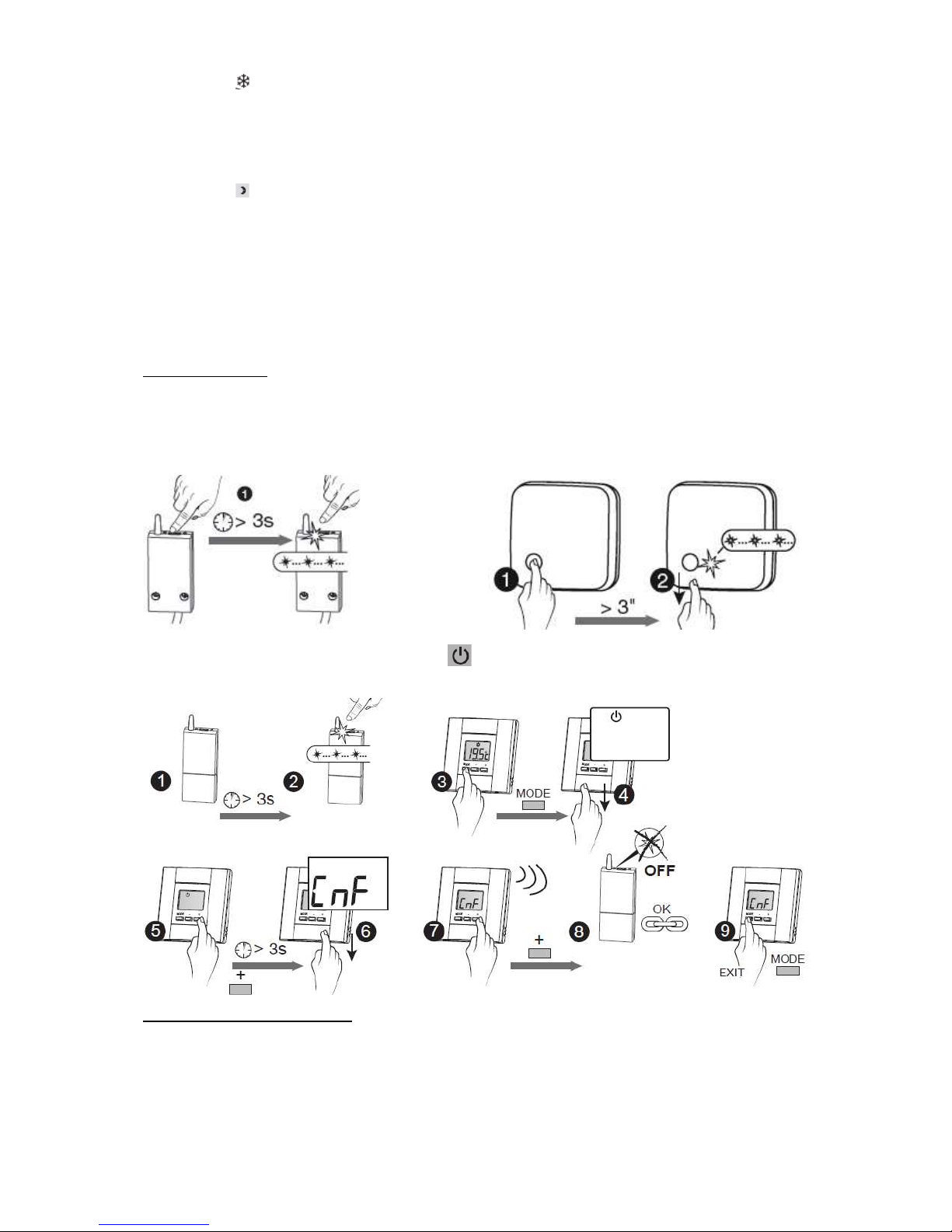

1. On the receiver, press and HOLD the button for seconds, until the LED begins to flash.

23 Receiver 24 Receiver

2. On the thermostat, press the MODE button until the display shows the symbol, then press and hold the + button until the display reads Cn , finally press

the + button once to confirm (if performed correctly the receiver should stop flashing at this point) and the MODE button will enable you to exit the association

process.

Additional Information: Receiver Button unctions

Reverse the relay contact (NO/NC) = Press and HOLD for 10 seconds (audible click)

Delete All Wireless Associations = Press and HOLD for 30 seconds (LED rapid flash & off)
