Dell PowerEdge C5230 User manual

www.dell.com | support.dell.com

Dell PowerEdge C5230

Getting Started

With Your

System

Mise en route de votre système

Introdução ao uso do sistema

Introducción al sistema

KTTDFA00.book Page 1 Thursday, September 26, 2013 11:31 PM

KTTDFA00.book Page 2 Thursday, September 26, 2013 11:31 PM

www.dell.com | support.dell.com

Dell PowerEdge C5230

Getting Started

With Your

System

Regulatory Model B04S

KTTDFA00.book Page 1 Thursday, September 26, 2013 11:31 PM

Notes, Cautions, and Warnings

____________________

Trademarks used in this text: Dell™, the DELL logo, and PowerEdge™ are trademarks of Dell Inc.

Intel

andIntel

Xeon

areregisteredtrademarksofIntelCorporationintheU.S.andothercountries.

Microsoft

and Windows

are either trademarks or registered trademarks of Microsoft Corporation

in the United States and/or other countries. Red Hat

and Red Hat Enterprise Linux

are registered

trademarks of Red Hat, Inc. in the United States and/or other countries. SUSE™ is a trademark of

Novell Inc. in the United States and other countries. Citrix

, Xen

, and XenServer

are either

registeredtrademarksortrademarksofCitrixSystems,Inc.intheUnited Statesand/orothercountries.

VMware

is a registered trademarks or trademarks of VMWare, Inc. in the United States or other

countries.

Regulatory Model B04S

2013 - 09 P/N KTTDF Rev. A00

NOTE:

A NOTE indicates important information that helps you make better use of

your system.

CAUTION:

A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING:

A WARNING indicates a potential for property damage, personal

injury, or death.

KTTDFA00.book Page 2 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

This server is intended for installation only in restricted access locations as

defined in Cl. 1.2.7.3 of IEC 60950-1: 2001 where both these conditions

apply:

• Access can only be gained by service persons or by users who have been

instructed about the reasons for the restrictions applied to the location and

about any precautions that shall be taken.

• Access is through the use of a tool or lock and key, or other means of

security, and is controlled by the authority responsible for the location.

Installation and Configuration

Unpacking the System

Unpack your system and identify each item.

Installing the Tool-Less Rail Solution

CAUTION:

Restricted Access Location

WARNING:

Before performing the following procedure, review and follow the

safety instructions that came with the system.

WARNING:

Whenever you need to lift the system, get others to assist you. To

avoid injury, do not attempt to lift the system by yourself.

WARNING:

The system is not fixed to the rack or mounted on the rails. To avoid

personal injury or damage to the system, you must adequately support the system

during installation and removal.

WARNING:

To avoid a potential electrical shock hazard, a third wire safety

grounding conductor is necessary for the rack installation. The rack equipment

must provide sufficient airflow to the system to maintain proper cooling.

CAUTION:

When installing rails in a square-hole rack it is important to ensure

that the square peg slides through the square holes.

CAUTION:

Square studs must be flush with the rack posts to install properly.

KTTDFA00.book Page 3 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

Pull on the latch release buttons on the end piece midpoints to open the

rail latches.

Figure 1-1. Unlocking the Rail Latches

Align the end pieces of the rails on the vertical rack flanges to seat the pegs

in the bottom hole of the first U and the top hole of the second U. Engage

the back end of the rail until the latch locks in place.

Figure 1-2. Aligning the Rails on the Rack

Repeat steps 1 and 2 to position and seat the front end piece on the

vertical flange.

NOTE:

The rails can be used in both square-hole and round-hole racks.

NOTE:

To remove the rails, pull on the latch release button on the end piece

midpoint and unseat each rail.

Front

Back

KTTDFA00.book Page 4 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

Installing the System

Empting the System Chassis

Unplug the power cable from the power supply unit.

Figure 1-3. Unplugging the Power Cable from the Power Supply Unit

Pull out the power supply unit handle.

Figure 1-4. Releasing the Power Supply Unit Handle

Press down on the release latch



WARNING:

Before installation, it is recommended that you remove the sleds and

power supplies from the system to reduce weight.

KTTDFA00.book Page 5 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

Pull the power supply unit out of the system



Figure 1-5. Removing the Power Supply Unit

Press the release latch down



Pull the sled out of the system



Figure 1-6. Removing the Sled

KTTDFA00.book Page 6 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

Installing the System Into the Rack

Slide the system into the rack.

If present, remove the chassis stabilizer shipping bracket (optional) from

the rack.

Tighten the captive thumbscrews to secure the ears of the system to the

front of the rack.

Figure 1-7. Securing the Chassis on the Rails

WARNING:

Whenever you need to lift the system, get others to assist you. To

avoid injury, do not attempt to lift the system by yourself.

NOTE:

To transport systems already installed in the rack, ensure that the two

chassis stabilizer shipping brackets (optional) are in place.

NOTE:

Make sure the latch release mechanism is engaged correctly.

KTTDFA00.book Page 7 Thursday, September 26, 2013 11:31 PM

Installation and Configuration

Populating the System

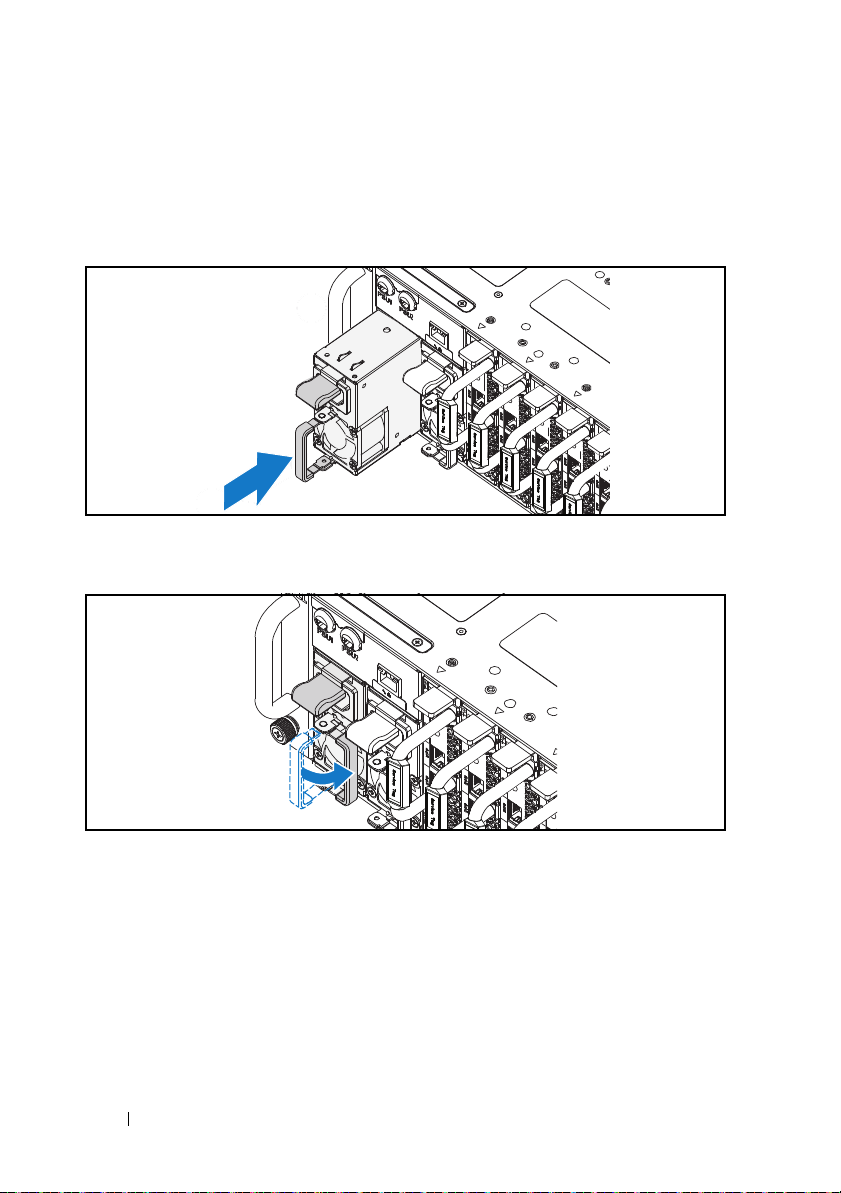

Push the power supply unit into the system until flush with the case and

the release latch locks.

Figure 1-8. Installing the Power Supply Unit

Close the power supply unit handle.

Figure 1-9. Securing the Power Supply Unit Handle

Plug the chassis power cable into the power supply unit.

KTTDFA00.book Page 8 Thursday, September 26, 2013 11:31 PM
