Dell PowerEdge 1655MC Manual

www.dell.com | support.dell.com

Dell™ PowerEdge™ 1655MC Systems

Replacing the Server

Module Board

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you

how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Computer Corporation is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Power Edge are trademarks of Dell Computer Corporation.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and

names or their products. Dell Computer Corporation disclaims any proprietary interest in trademarks and trade names

other than its own.

June 2003 P/N J1678 Rev. A00

Contents 3

Contents

Required Tools. . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Parts Kit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-1

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Turning Off the Server Module . . . . . . . . . . . . . . . . . . 1-2

Verifying the Hard-Drive Mirroring Mode . . . . . . . . . . . . 1-3

Manually Deconfiguring Mirrored Mode . . . . . . . . . . . . . 1-4

Replacing the Server Module Board . . . . . . . . . . . . . . . 1-6

Removing the Server Module . . . . . . . . . . . . . . . . . 1-6

Opening the Server Module . . . . . . . . . . . . . . . . . . 1-7

Removing Memory Modules . . . . . . . . . . . . . . . . . . 1-8

Removing a Processor . . . . . . . . . . . . . . . . . . . . 1-10

Removing the Server Module Board . . . . . . . . . . . . . 1-11

Installing the Server Module Board . . . . . . . . . . . . . 1-12

Installing the Processor . . . . . . . . . . . . . . . . . . . 1-12

Connecting the Hard-Drive Module to the

Server Module Board . . . . . . . . . . . . . . . . . . . . 1-13

Installing Memory Modules . . . . . . . . . . . . . . . . . 1-14

Closing the Server Module. . . . . . . . . . . . . . . . . . 1-14

Installing a Server Module . . . . . . . . . . . . . . . . . 1-15

Verifying the System Setup Options . . . . . . . . . . . . . . 1-15

Running the PERC 4/im DOS Utility . . . . . . . . . . . . . . 1-16

Manually Configuring the Mirroring Mode . . . . . . . . . . . 1-16

Programming the Service Tag . . . . . . . . . . . . . . . . . 1-18

4Contents

Figures

Figure 1-1. Turning Off the Server Module . . . . . . . . 1-3

Figure 1-2. Removing and Installing a Server Module . . . 1-6

Figure 1-3. Opening and Closing a Server Module . . . . . 1-7

Figure 1-4. An Open Server Module . . . . . . . . . . . . 1-8

Figure 1-5. Server Module Board Connectors . . . . . . . 1-9

Figure 1-6. Removing and Installing a

Memory Module . . . . . . . . . . . . . . . 1-9

Figure 1-7. Removing and Installing the Heat Sink . . . 1-10

Figure 1-8. Removing and Installing a Processor . . . . 1-11

Figure 1-9. Removing and Installing

the Server Module Board . . . . . . . . . . 1-12

Tables

Table 1-1. Mirrored Mode Messages and Actions . . . . . 1-4

Replacing the Server Module Board 1-1

This document provides instructions for replacing a server module board and enabling the

mirroring function.

Required Tools

• PS/2 keyboard

• Monitor

• #2 Phillips screwdriver

• Flat-tip screwdriver

• A remote system with HyperTerminal version 6.3

• Null modem cable (PN 7W449)

• USB diskette drive (PN 5M964)

• Planar replacement utility diskette

Parts Kit

• Server module board (PN C1438)

• Server module blank (PN 4P731)

• Spare SCSI cables (PN 4T053)

• Spare processors:

– 1.13 GHz (PN 6F246)

– 1.26 GHz (PN 8T137)

– 1.4 GHz (PN 6T332)

• Spare terminator (PN 2G042)

• Spare memory modules:

– 128 MB (PN 3K151)

– 256 MB (PN 3K153)

– 512 MB (PN 3K154)

– 1 GB (PN 3K155)

• Spare heat sink (PN 7W270)

1-2 Replacing the Server Module Board

www.dell.com | support.dell.com

Before You Begin

Schedule system maintenance time with the customer and remind them that they may

want to back up all files on the hard drives of the affected server modules.

The customer may have mirroring from server module to server module or have a server

module communicating with other server modules. Explain that if you bring a server

module down for maintenance, errors may occur. This allows the customer to take the

necessary steps to deconfigure their system before you begin maintenance.

NOTE: Perform the upgrade on one server module at a time. Do not proceed to

another server module until you have completed the upgrade on the current module.

Determine the server module’s hard-drive configuration.

• If you do not know the configuration or if the server module has two hard drives and

you do not know whether the mirroring function is enabled, see "Verifying the Hard-

Drive Mirroring Mode."

• If the server module has only one hard drive, see "Replacing the Server Module Board."

Turning Off the Server Module

1Select the server module to be replaced.

2Ensure that all applications are closed.

3Shut down the operating system and turn off the server module by pressing the power

button on the front of the server module. See Figure 1-1.

4Ensure that you have access to a keyboard and monitor (KVM, crash cart, or console

redirection).

Replacing the Server Module Board 1-3

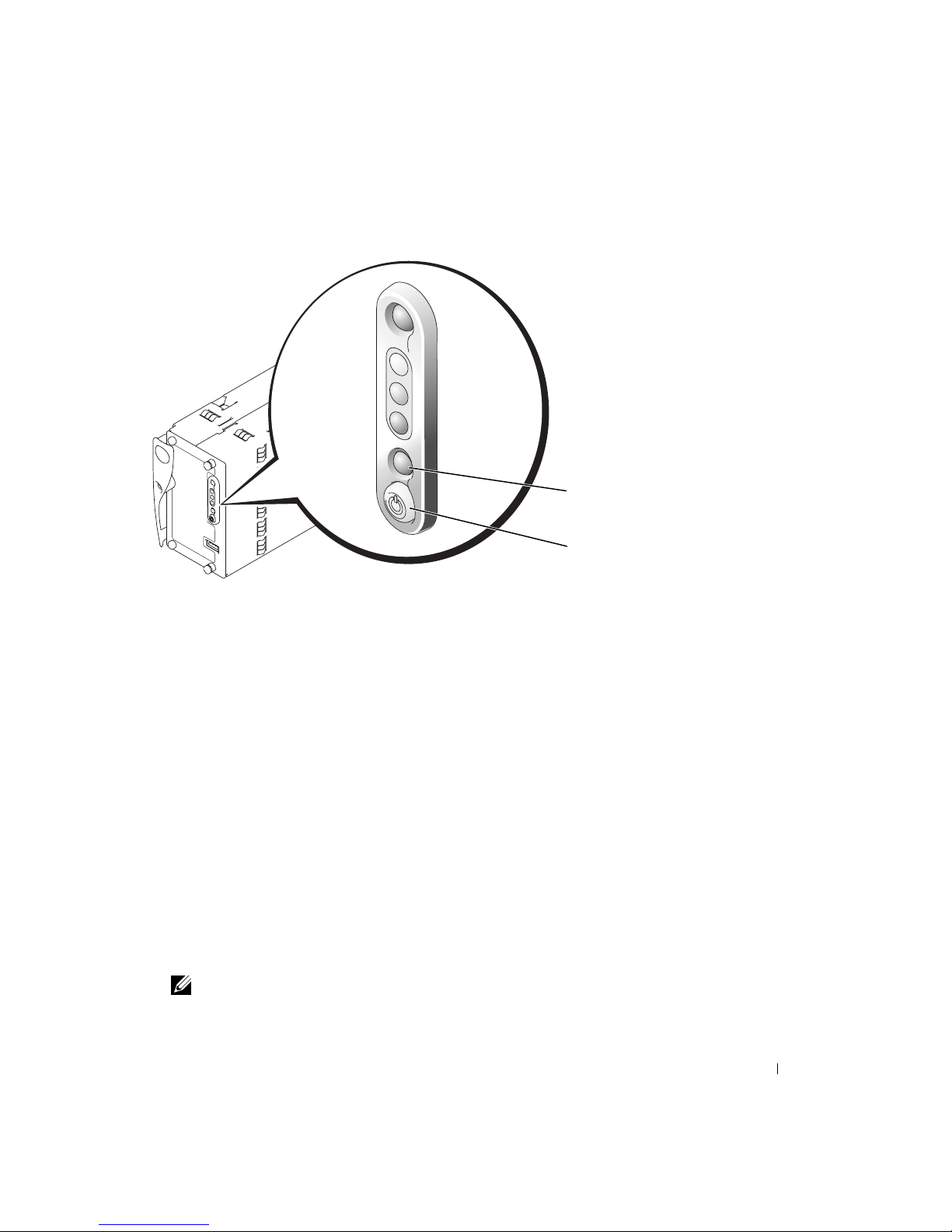

Figure 1-1. Turning Off the Server Module

Verifying the Hard-Drive Mirroring Mode

1Ensure that the server module is turned on. See Figure 1-1.

2Monitor the POST progress.

When the POST reaches the PERC 4/im, either one or two SCSI drives are listed with

their IDs (nonmirrored mode) or one SCSI drive is listed as a virtual disk (mirrored

mode).

The following is an example of the display if there are two drives installed in

nonmirrored mode. If this display is seen during POST, proceed to "Turning Off the

Server Module" and then "Replacing the Server Module Board."

NOTE: Only one drive is listed if only one drive is installed in the server module.

power indicator

power button

HBA ID LUN VENDOR PRODUCT REV SYNC WIDE CAPACITY

0 0 0 Fujitsu MAN3184MP 5507 160.0 16 18211 MB

0 1 0 Fujitsu MAN3184MP 5A01 160.0 16 18211 MB

0 7 0 LSI Logic 1020/1030 1000c00 320.0 16

1-4 Replacing the Server Module Board

www.dell.com | support.dell.com

The following is an example of the display if two drives are installed in mirrored mode:

Table 1-1 lists the possible messages displayed for mirrored mode and the actions

required.

Manually Deconfiguring Mirrored Mode

1Press <Ctrl><Alt><Delete> to reboot the server module.

The following message is displayed during POST:

Press CTRL-M to start LSI logic configuration utility

NOTE: If you are using console redirection, you must press <Esc><Ctrl><M>.

2Press <Ctrl><M> or <Esc><Ctrl><M> to access the LSI utility.

3Press <Enter> to access the Adapter Properties Menu.

HBA ID LUN VENDOR PRODUCT REV SYNC WIDE CAPACITY

0 0 0 Dell VIRTUAL DISK 1000 16 18203 MB

0 7 0 LSI Logic 1020/1030 1000c00 320.0 16

Table 1-1. Mirrored Mode Messages and Actions

Message Action

Logical drive optimal Go to "Replacing the Server Module Board."

Logical drive

resynchronizing

Go to "Manually Deconfiguring Mirrored Mode."

NOTICE: If this message is displayed, press

<Ctrl><Alt><Delete> immediately before the server module

boots to the operating system.

Logical drive degraded A hard drive is faulty. See "Troubleshooting Hard Drives" in your

Installation and Troubleshooting Guide.

Replacing the Server Module Board 1-5

4Select the Mirroring Properties Menu and press <Enter> to view or modify the

mirroring mode.

The two installed SCSI drives are listed with their SCSI IDs:

NOTE: SCSI ID 0 may be secondary and SCSI ID 1 may be primary in some cases.

5Write down which SCSI ID is primary and which one is secondary.

6Select the primary drive and press the space bar to change the Status field to No.

Repeat this step for the secondary drive.

NOTE: Both the primary and secondary Status fields should be No.

7Press <Esc> to exit the Mirroring Properties Menu.

8Select Save changes and exit this menu and then press <Enter>.

9Press <Esc> to exit the Adapter Properties Menu.

10 Press <Esc> to exit the Main Menu.

11 Select Exit the Configuration Utility and press <Enter>.

The server module reboots. During POST, the two SCSI drives are displayed as

nonmirrored, as shown in the following example:

12 Go to "Replacing the Server Module Board."

SCSI ID Device Identifier Mirrored Pair Status

0 Fujitsu MAN3184MP 5507 Primary

1 Fujitsu MAN3184MP 5A01 Secondary

HBA ID LUN VENDOR PRODUCT REV SYNC WIDE CAPACITY

0 0 0 Fujitsu MAN3184MP 5507 160.0 16 18211 MB

0 1 0 Fujitsu MAN3184MP 5A01 160.0 16 18211 MB

0 7 0 LSI Logic 1020/1030 1000c00 320.0 16

1-6 Replacing the Server Module Board

www.dell.com | support.dell.com

Replacing the Server Module Board

The following procedures are required to replace the server module board. You must follow

the procedures in the order given.

Removing the Server Module

CAUTION: See your System Information Guide for complete information about

safety precautions, working inside the computer, and protecting against

electrostatic discharge.

1Ensure that the server module's power is off.

The blinking green power-on indicator shows that power is available to the system. If

the power-on indicator is solid green, press the module's power button to turn off the

module. See Figure 1-1.

2Using a #2 Phillips screwdriver, loosen the captive screw that secures the server

module's ejector handle to the front of the server module. See Figure 1-2.

3Grasp the server module's handle and rotate the handle down to eject the server

module from the chassis. See Figure 1-2.

4Grasp the server module and slide it out of the chassis. See Figure 1-2.

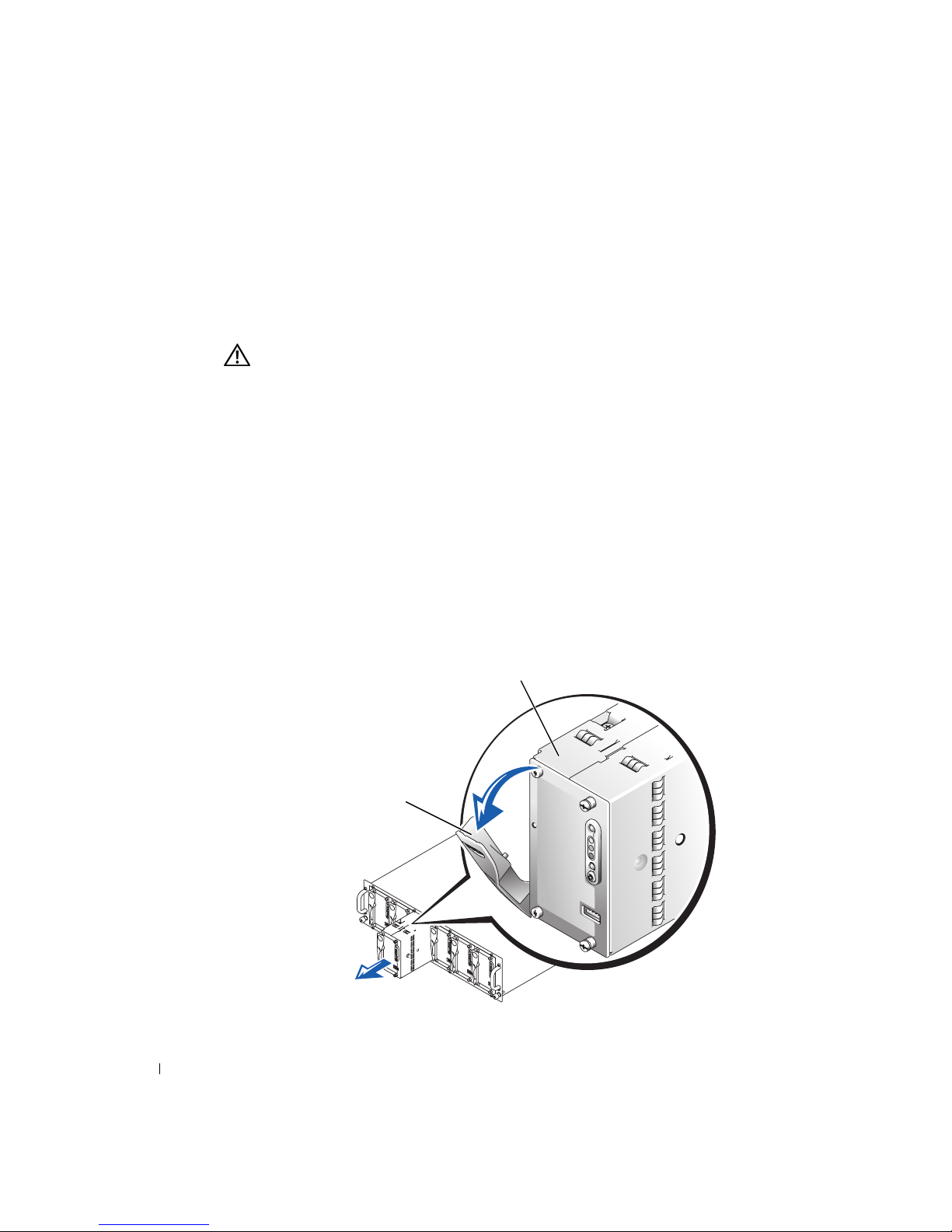

Figure 1-2. Removing and Installing a Server Module

server module handle

server module

Other manuals for PowerEdge 1655MC
