DEAR CUSTOMER

Discovering De Dietrich products means experiencing unique emotions.

The attraction is immediate from the moment you set eyes on the product.

The sheer quality

of the design shines through, thanks to the timeless style and outstanding

finishes which make each component an elegant and refined masterpiece

in its own right, each one in perfect harmony with the others.

Next, comes the irresistible urge to touch it.

De Dietrich’s design makes extensive use of robust

and prestigious materials. By combining state-of-the-art technology with top

quality materials,

De Dietrich

produces beautifully crafted products to help you get the most from the

culinary arts, a passion shared by all lovers of cooking and fine food.

We hope that you enjoy using this new appliance.

Thank you for choosing a De Dietrich product.

CONTENTS

Safety and important precautions ....................................................3

Installation ..........................................................................................6

Unpacking ............................................................................................6

Building in ............................................................................................6

Connection............................................................................................6

Use ......................................................................................................7

Control panel glossary..........................................................................7

Power management..............................................................................8

Choice of cookware ..............................................................................8

Cooking zone selection ........................................................................8

Switching on and off ............................................................................9

Power setting........................................................................................9

Horizone / Duozone............................................................................10

Setting the timer..................................................................................10

Elapsed time key ................................................................................10

Locking the controls............................................................................11

Clean lock function ............................................................................11

ICS function ........................................................................................11

Recall function ..................................................................................11

Switch function ..................................................................................12

Boil function ......................................................................................12

Horizone Play ....................................................................................12

Grill / Griddle function ........................................................................12

Safety devices and recommendations................................................13

Care....................................................................................................15

Problems ..........................................................................................16

Environment......................................................................................17

Customer service..............................................................................18

These instructions are also available on the brand’s web site.

Please read this advice carefully before installing and using your appliance. These

instructions are intended to protect your safety and the safety of others. Keep this

manual with the appliance. If you sell or give the appliance to someone else, make

sure that you also give them this manual.

• With a view to constantly improving our products, we reserve the right to make

changes to their technical, functional or aesthetic characteristics in line with

technological progress.

In order to easily locate the make, model number, etc. of your appliance, we

recommend that you note this information on the “After-Sales Service Department

and Customer Support” page.

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

This appliance can be used by

children over 8 years old and

persons with reduced

physical, sensory or mental

capabilities or without

experience and knowledge if

they have been correctly

informed or trained in the use

of the appliance in a safe way

and understand the hazards

involved.

Children must not be allowed

to play with the appliance.

Cleaning and maintenance

must not be carried out by

children without supervision.

Children under 8 years old

must be kept away from the

hob unless they are

supervised at all times.

The appliance and its

accessible parts become hot

during use.

Precautions must be taken to

avoid touching the heating

elements.

Metal objects such as knives,

forks, spoons and lids must

not be placed on the cooking

surface as they may become

hot.

Your hob is equipped with a

child safety device that locks

its operation after use or

during cooking (See « Child

Safety use» section).

Your appliance complies with

applicable European

Directives and regulations.

In order to avoid interference

between your cooking hob

and a heart pacemaker, the

pacemaker must be designed

and programmed in

compliance with the

regulations that apply to it. Ask

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

the pacemaker manufacturer

or your GP.

Leaving oil or fat to cook

unattended on a hob can be

dangerous and lead to fire.

NEVER attempt to extinguish

a fire with water. Instead,

switch off the appliance, then

cover the flame with a lid or

fire blanket.

CAUTION: cooking must be

monitored. Short cooking

requires constant surveillance.

Danger of fire: do not store

objects in the cooking zones.

If the surface is cracked, turn

off the appliance to avoid the

risk of electric shock.

Do not use your hob until you

have replaced the glass top.

Avoid hard shocks from

cookware: although the

vitroceramic glass worktop is

very sturdy, it is not

unbreakable.

Do not place hot lids flat on

your cooking hob. A suction

effect may damage the

vitroceramic surface. Avoid

dragging cookware across the

surface, which could damage

the decorative finish on the

vitroceramic top in the long

term.

Never use aluminium foil for

cooking. Never place items

wrapped in aluminium foil or

packaged in aluminium dishes

on your cooking hob. The

aluminium will melt and

permanently damage your

appliance.

Do not store cleaning products

or inflammable products in the

cabinet underneath the hob.

If the power cable is damaged,

it should be replaced by the

manufacturer, its after-sales

service department or a

similarly qualified person, so

as to avoid danger.

Ensure that the power cables

of any electrical appliances

plugged in close to the hob are

not in contact with the cooking

zones.

Never use a steam cleaner to

clean your cooking hob.

The appliance is not designed

to be switched on using an

IMPORTANT SAFETY ADVICE AND PRECAUTIONS

external timer or separate

remote control system.

After use, turn off the hob

using its control device and do

not rely on the pan detector.

WARNING: Only use hob

protectors designed by the

manufacturer of the cooking

appliance or listed as suitable

in the user guide, or included

with the appliance. The use of

unsuitable protectors could

cause accidents.

•1INSTALLATION

1.1 UNPACKING

Remove all the protective packing

pieces. Check and respect the

appliance’s characteristics that appear

on the nameplate (1.1.1).

Note the service and standard

references shown on this plate in the

boxes below for future reference.

1. 2 BUILDING INTO A BASE UNIT

Check that the air intakes and outlets are

free of obstruction (1.2.1). Comply with

the information concerning the fitting

dimensions (in millimetres) of the base

unit destined to receive the hob.

- Fitting into the worktop

See diagram (1.2.2 / 1.2.4)

- Fitting flush with the worktop

See diagram (1.2.3 / 1.2.5)

Except for models

Check that air circulates correctly

between the front and the back of your

hob.

If you are installing the hob above a

drawer (1.2.6) or above a built-in oven

(1.2.7), comply with the dimensions

provided on the illustrations to ensure a

sufficient air outlet at the front. Apply the

seal all around the edge of the hob

(1.2.8), before fitting.

Fit the hob into the base unit (1.2.9).

If your hob is located above your

oven, the hob’s thermal safety

devices can impede the simultaneous

use of the hob and the oven’s pyrolysis

programme. Your hob is equipped with

Horizone

Play

gik

an overheating prevention safety

system. This safety device can trigger,

for example, when the hob is installed

over an oven that is not sufficiently

insulated. The code «F7» then appears

in the control zone. In such

circumstances we recommend that you

increase the hob’s ventilation by creating

an opening in the side of the cabinet (8 x

5 cm).

1. 3 ELECTRICAL CONNECTIONS

These hobs must be connected

to the mains via an all-pole cut-

off device that complies with

current installation regulations. A

disconnection device must be

incorporated into the fixed wiring.

Identify the type of cable of your hob

according to the number of wires and

colours:

- 5-wire cable (1.3.1 et 1.3.2) :

a) green/yellow, b) blue, c) brown, d)

black, e) grey.

When power is first supplied to your hob,

or after an extended power outage, an

indicator light will appear on the control

panel. Wait approximately 30 seconds or

press any key on the control panel to

make the information disappear and use

your hob (this display is normal and is

reserved for use by After-Sales Service,

where applicable). In all cases, it should

be disregarded.

Service: Type:

jlmo

•2USE

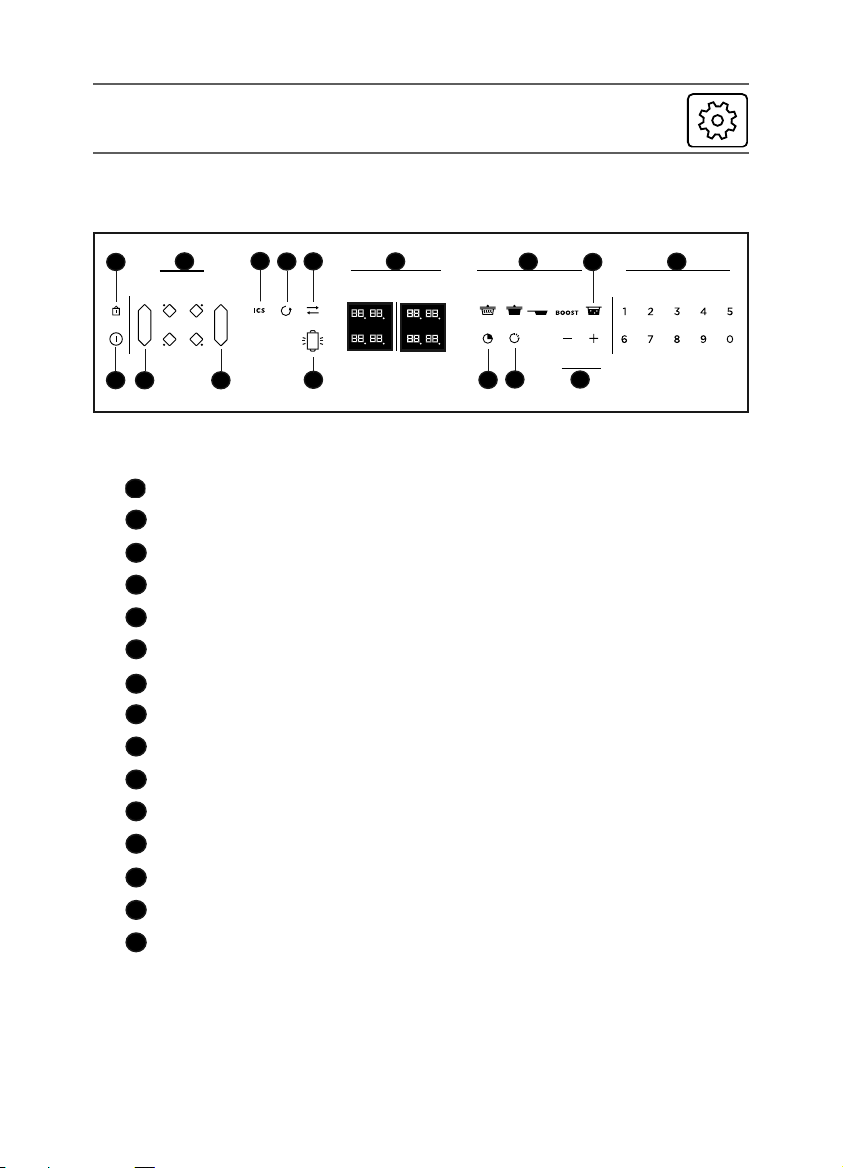

Control panel glossary

= Switch on and off

= Locking / Clean Lock

= Choice of cooking zone

= DuoZone or Horizone

= Display

= Pre-selection

= Power / time setting

= Timer

= Elapsed time function

= ICS function

= Recall function

= Switch function

= Boil function

= Grill function

= Choice of numeric panel

power / time

•2USE

2.1 POWER MANAGEMENT

Model only

The total power consumed by your hob

must be consistent with the power of

your electrical installation.

By default, the hob’s power is set to its

highest level.

To increase or reduce the power level:

- When applying power for the first time

(within 30 seconds) press any key and

the maximum power level will be

displayed (2.1.1).

To reduce the power, press the – key

(2.1.2) until the desired power setting is

reached.

To confirm, give a short press on the

and buttons together (2.1.3).

- At any other time, if your hob is in

standby (with or without residual heat),

press and hold the and

buttons together to change the power.

Available power levels:

Ensure that the power selected is

compatible with the hob's fuses.

Depending on the power level selected,

the division of power between the

cooking zones will be affected.

hob power in

Fuses / Circuit

breaker (A)

7,4 32

4,6 20

3,6 13

3 13

Power Management

2.2 CHOICE OF COOKWARE

Most cookware is compatible with

induction. Only glass, terracotta,

aluminium without a special base,

copper and some non-magnetic

stainless steels do not work with

induction cooking.

We suggest that you choose

cookware with a thick, flat

bottom. The heat will be distributed

better and cooking will be more uniform.

Never leave an empty pan to heat

unattended.

Avoid putting cookware on the

control panel.

2.3 COOKING ZONE SELECTION

There are several cooking zones

available. Select one which is suitable,

based on the size of the pan. If the base

of the cookware is too small, the power

indicator will start to flash and the

cooking zone will not work, even if the

cookware’s material is recommended for

induction. Take care not to use pans

which are smaller in diameter than the

cooking zone (see table)

Diameter of

bottom of

cookware

10 to 18 cm

11 to 22 cm

12 to 24 cm

15 to 32 cm

18 cm, oval

fish kettles

11 to 22 cm

Max. power of

cooking zone

(Watts)

2400

2800

3700

2800

Diameter of

cooking zone

16 cm

18 cm

23 cm

28 cm

Horizone

Duozone

1/2 zone

•2USE

2.5 SETTING THE POWER

Press the +or – key (2.5.1) or use

numeric keypad to adjust your

power level between 1 and 19 or 1 and

14 (model ). In this case you can

enter the number corresponding the

desired power setting directly (2.5.2).

Pressing the «0» key switches the hob

off.

When switching on, you can go directly

to maximum power (apart from boost)

by pressing the "–" key for the zone.e .

Power presets

There are four keys available that

provide direct access to pre-set power

levels:

= power 2 - Keep warm

= power 10 - Simmer

= power 19 - Sear

BOOST = maximum power (2.5.3)

These power values can be modified,

except for BOOST.

Proceed as follows:

The hob must be switched off.

- Press and hold or or

to select it.

- Set the new power setting by pressing

on the +or -button.

- A beep will confirm your action after a

few moments.

Note: Power levels must be between

1 and 3 for

4 and 11 for

12 and 19 for

For model the pre-set power level

are as follows:

= power 2 - Keep warm

= power 8 - Simmer

= power 14 - Sear

Power Management

Model only

Available power levels:

When several cooking zones are

used at the same time, the hob manages

the power distribution, so as not to

exceed its total power.

When you use maximum power (Boost)

on several cooking zones at the same

time, position pans to achieve the best

positioning and avoid arrangements

(2.3.1 - 2.3.2 - 2.3.3 - 2.3.4 - 2.3.5.)

2.4 SWITCHING ON/OFF

Press the On/Off key . "0" flashes

in each zone for 8 seconds (2.4.1). If

no pan is detected, select a zoner

(2.4.2). If a pan is detected, the «0»

flashes with a dot. You can then set the

power level. The cooking area heats up

automatically.

Switching off a zone on the hob

Press and hold the key for zone , a

long beep sounds and the display goes

off or an "H" appears (residual heat).

Press the On/Off key to switch the hob

off completely.

Power Management

Hob power

in kW

Cooking

zone

16 cm

Cooking

zone

18 cm

Cooking

zone

23 cm

7,4 2000 W 2800 W 3100 W

4,6 2000 W 2550 W 2800 W

3,6 2000 W 2400 W 2600 W

3 2000 W 2100 W 2200 W

This manual suits for next models

Table of contents

Other DeDietrich Hob manuals

DeDietrich

DeDietrich G30 Quick start guide

DeDietrich

DeDietrich DTi705 Quick start guide

DeDietrich

DeDietrich DPI7766XP User manual

DeDietrich

DeDietrich Cooking hob Quick start guide

DeDietrich

DeDietrich DPE3601X Quick start guide

DeDietrich

DeDietrich G30 User manual

DeDietrich

DeDietrich dpi7688xt User manual

DeDietrich

DeDietrich DPI7884XT User manual

DeDietrich

DeDietrich G30 User manual

DeDietrich

DeDietrich DTi1049 User manual

DeDietrich

DeDietrich DTI1137X Operating manual

DeDietrich

DeDietrich Cooking hob Quick start guide

DeDietrich

DeDietrich Cooking hob Specification sheet

DeDietrich

DeDietrich DPG7340 Series Quick start guide

DeDietrich

DeDietrich DTG764X Quick start guide

DeDietrich

DeDietrich Induction Hob User manual

DeDietrich

DeDietrich DTI789V User manual

DeDietrich

DeDietrich DTV716 Quick start guide

DeDietrich

DeDietrich "Le Piano" User manual

DeDietrich

DeDietrich G30 User manual

DeDietrich

DeDietrich DPI7540B User manual

DeDietrich

DeDietrich DPV 265 HB User manual

DeDietrich

DeDietrich DTI305 User manual

DeDietrich

DeDietrich DPG7549 Series User manual

Popular Hob manuals by other brands

Siemens

Siemens EX875KYV1E INFORMATION FOR USE

AEG

AEG CERAMIC HOB 6010 K Installation and operating instructions

VALERA

VALERA CT 70A datasheet

Zanussi

Zanussi ZGF 6420 Instruction booklet

Gaggenau

Gaggenau CI 273 use and care manual

G3 Ferrari

G3 Ferrari Energy user manual

Pkm

Pkm IN4B instruction manual

Award

Award H903BG user manual

Zanussi

Zanussi VCH 5005 RZ Instruction booklet

Miele

Miele KM 523 Operating and installation instructions

Hotpoint

Hotpoint IS67V8CCXT/E manual

AEG

AEG HK854870XB user manual

Cookology

Cookology SEP600BK instruction manual

Bauknecht

Bauknecht Hob Instructions for use

Zanussi

Zanussi ZGM 782 Instruction booklet

dipo INDUCTION

dipo INDUCTION DIBK218S quick start guide

Miele

Miele KM 5987 Operating and installation instructions

Miele

Miele KM 360 G installation instructions
