DataCard CE840 User manual

CE840™ Instant Issuance System

Quick Install Guide

2 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

1. Select a Location for the Printer

• Install the printer in a location that is clean and well

ventilated, free of vibration or shock.

• For venting and clearance, choose an area that is

approximately 27 inches (686 mm) wide, 31 inches

(788 mm) deep, and at least 27.4 inches (696 mm) high.

Refer to the printer’s Installation and Administrator’s

Guide for complete site requirements.

• Do not install the printer in direct sunlight.

• Install the system in a secure location.

• Install the system in a location that has access to two

AC outlets and a network port.

Refer to the printer’s Installation and Administrator’s Guide

found on the Owner’s Library CD for detailed installation

instructions.

3 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

2. Unpack and Secure the System

a. Remove the printer and the embosser from their

shipping cartons.

Printer

Embosser

4 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

b. Unlock the printer.

c. Unlock the embosser and remove the indent ribbon and

topping foil cartridges.

5 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

d. Remove the foam “T” and block inserts used to secure

the embosser topping and transport mechanisms during

shipping.

6 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

e. Secure the embosser to the work surface (if required).

Refer to the printer’s Installation and Administrator’s

Guide for detailed installation instructions and

measurements.

Bolt

Washer

Work

Surface

Lock Nut

7 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

3. Assemble the Printer and Embosser

a. Locate the interconnect cable in the cable routing

area of the embosser, and make sure that it remains

accessible.

b. Slide the printer locking lever inside the embosser to the

left to move the mounting lock to the unlocked position.

c. Lift the printer over the embosser and align the pins on

the embosser with the holes on the underside of the

printer.

d. Press down carefully, but rmly, on the printer to

position it.

e. Push the printer locking lever to the right to lock the

printer to the embosser. Make sure that the printer is

locked securely to the embosser.

Interconnect

Cable

Printer Locking

Lever

8 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

f. Connect the interconnect cable from the embosser to

the lower data port on the printer.

4. Connect the Power Cords

a. Connect the printer power cord into the printer and into

the power supply.

b. Plug the power supply cord into the power outlet.

Interconnect

Cable

Data

Port

9 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

c. Connect the embosser power cord into the embosser

and into the power supply.

d. Plug the power supply cord into the power outlet.

10 CE840 Instant Issuance System

CE840 Instant Issuance System Quick Install Guide

5. Load Supplies

Supplies are ordered separately.

a. Load the indent ribbon onto the cartridge.

Do not separate

Table of contents

Other DataCard Printer manuals

DataCard

DataCard select series User manual

DataCard

DataCard CP40 User manual

DataCard

DataCard CE870 Service manual

DataCard

DataCard SD260 Instruction Manual

DataCard

DataCard RP90 User manual

DataCard

DataCard 275 User manual

DataCard

DataCard SP75 Plus User manual

DataCard

DataCard CD820 User manual

DataCard

DataCard CR805 User manual

DataCard

DataCard CR500 Product information sheet

DataCard

DataCard MPR5000 User manual

DataCard

DataCard Datacard SP35 User manual

DataCard

DataCard CR805 User manual

DataCard

DataCard ImageCard series Manual

DataCard

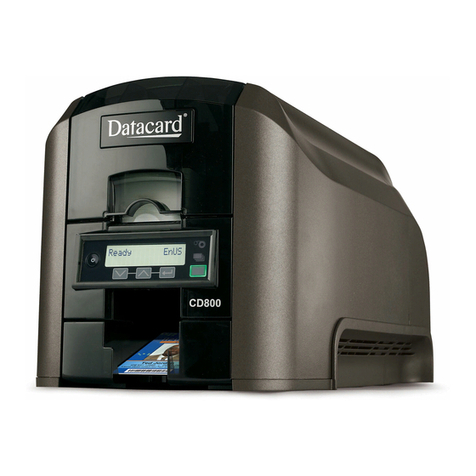

DataCard CD800 Instructions for use
