1. System overview
living connect® is an electronic radiator thermostat
for homes. It is controlled by a central device called a
Danfoss LinkTM CC.
Danfoss LinkTM CC can also control floor heating and
on/off switches in the building.
Please refer to the separate Danfoss LinkTM CC and
room sensor Danfoss LinkTM RS manuals for more
information.
living connect®uses Z-Wave wireless
technology. More information is
available at www.danfoss.com/living
2. Overview of display and control buttons
See page 15.
Danfoss LinkTM CC Danfoss LinkTM RS
living connect®
living connect®
6
UK
TR
SI
HR

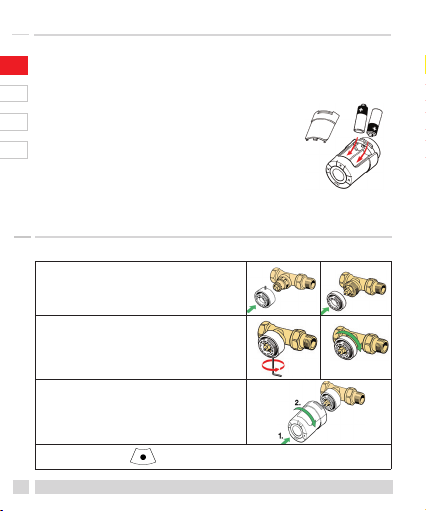

3. Installation - step by step
3.1 Preparation
living connect® is supplied with adapters for Danfoss
RA valves and valves with M30X1.5 (K) connections
(014G0002), two alkaline AA batteries and a 2 mm
Allen key.
Inserting the batteries
Remove the battery cover and insert
the two batteries.
Ensure that the batteries are correctly
inserted. Mmust flash on the display before
installation, if this is not the case, see reinstallation
mode page 10.
3.2 Installation of living connect®
RA K
1. Start by mounting the the adapter.
2. Tighten the RA adapter using the
Allen key.
Tighten the K adapter by hand
(max. 5 Nm).
3. Screw the thermostat onto the
adapter and hand-tighten (max.
5 Nm).
4. Press and hold for approx. 3 seconds to fix the thermostat.
2mm
Key
Danfoss Heating Solutions 7
UK
TR
SI
HR
3. Installation - step by step
3.3 Configuring Danfoss LinkTM CC
For practical reasons, it is recommended that the
Danfoss LinkTM CC is connected to a battery pack
(014G0262).This makes the device mobile, and it can
then easily be positioned at a distance of up to 1.5 m
from each radiator thermostat that is to be added to
the system.
Remove the front cover from the Danfoss LinkTM CC
by carefully levering it off, starting with the bottom
corners. Press and hold down the setup button using
a ballpoint pen for approximately three seconds to
start the installation menu (the start-up phase may
take several minutes).
For Help, press ?in the lower right corner.
For installation without a battery pack, please see
www.danfoss.com/living.
living connect®
8
UK
TR
SI
HR
3. Installation - step by step
1. Configure the rooms
in which the radiator
thermostats have been
installed.
2. Add a new room.
3. Edit or enter the
room name.
Press to confirm.
Note – a list of common room names
can be found using this button
Danfoss Heating Solutions 9
UK
TR
SI
HR
3. Installation - step by step
3.4 Connecting to Danfoss LinkTM CC
Each thermostat must be connected to the Danfoss
LinkTM CC. This is best done by standing beside each
thermostat with the Danfoss LinkTM CC (connected to
the recommended 014G0262 battery
pack).
1. The“Configure room”
menu is displayed.
Select “Room devices”.
2. Select “Add a device”.
3. Press Begin Registration,
and then press and release
on the thermostat.
4. Repeat for each device.
5. Once all devices have been
registered and the Danfoss LinkTM CC
is placed in its final position, perform
a network test (see separate Danfoss
LinkTM CC manual).
living connect®
10
UK
TR
SI
HR
4. Technical settings
4.1 Reinstallation mode
If the thermostat has been removed from the radiator
and needs to be reinstalled (after being used), it is
necessary to activate installation mode to prevent
damage to the thermostat.
To enter installation mode:
Press until Mis displayed.
Press to withdraw the spindle.
Mflashes.
Reinstall the thermostat on the valve.
Press for approx. 3 seconds to exit.
Please also refer to section 6 regarding removal of the thermostat from the
radiator valve.
4.2 Testing the connection
Press for at least 3 seconds until Mis
displayed.
Press until LI is displayed.
Press to make the connection.
LI disappears when the connection is made.
If no connection can be made, the alarm
and antenna symbols flash together.
Refer to“Troubleshooting”at
www.danfoss.com/living
