Danfoss TP4000 Range User manual

TP4000 Range

Electronic programmable room thermostat

Danfoss Heating

MAKING MODERN LIVING POSSIBLE

Installation Guide

TP4000

For a large print version of these instructions

please call Marketing on 0845 121 7400.

Danfoss can accept no responsibility for possible errors in catalogues, brochures, and other

printed material. All trademarks in this material are property of the respective companies.

Certification Mark

Danfoss Heating 3

TP4000 Range

Electronic Programmable Room Thermostat

Installation Guide

Index

1.0 Product Speciﬁcation.........................................................................4

2.0 Installation..............................................................................................5

2.1 Thermostat Wiring (Hard wired model only)........................5

2.2 RX Receiver Wiring (RF models only) ......................................6

3.0 Commissioning (RF models only) ................................................6

4.0 TP4000/TP4000 RF Programming...............................................7

TP4000

1.0 Product Speciﬁcation

Please Note:

This product should only be installed by a qualiﬁed

electrician or competent heating installer and should

be in accordance with the current edition of the IEEE

wiring regulations.

Thermostat features TP4000 TP4000 RF

Power supply 2 x AA/MN1500/LR

alkaline cells

2 x AA/MN1500/LR

alkaline cells

Memory back-up 1 min for battery change

Switching action of

output relay

1 x SPDT, Type 1B N/A

Switch rating of relay

contact

3(1)A, 10-230Vac N/A

Transmission frequency

(RF Models)

433.92MHz

Transmission range 30m max

Temperature range Oﬀ, 5-30°C

Dimensions, mm 110 wide, 88 high, 28 deep

Design standard EN60730-2-9 EN300220

Rated impulse voltage 2.5kV

Ball hardness test 75°C

Control pollution

situation

Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 min. per month

Important note RF products: Ensure that there are no large metal

objects, such as boiler cases or other large appliances, in line of

sight between the transmitter and receiver as these will prevent

communication between thermostat and receiver.

Danfoss Heating 5

2.0 Installation

· First, remove the wallplate from the back of the unit.

· From the top left hand corner of the wallplate, there must be

clearances of at least 150mm to the right, 15mm to the left,

30mm above and 100mm below in order to mount the plug-in

module.

· Fix at a height of approximately 1.5m from the ﬂoor, away from

draughts or heat sources such as radiators, open ﬁres or direct

sunlight.

2.1 Thermostat Wiring (Hard wired model only)

OFF

COM ON

N/C N/O

!Some existing thermostats will have a Neutral and/or Earth wire

connected. These are not required by the TP4000 and must NOT be

connected to any TP4000 terminals. Instead they should be made

electrically safe and coiled in the recess at the back of the TP4000.

TP4000

3.0 Commissioning (RF models only)

If the thermostat and the receiver have been supplied together

in a combined pack, the units have been paired in the factory

and no commissioning is required (RX1 only).

To make the RX receiver learn the thermostat’s signal, follow steps 1-5

below.

Step 1

TP4000-RF - Reset the unit by pressing the recessed reset button.

Step 2

Press and hold V and + buttons for 3 seconds

(TP4000 RF now transmits unique signal

continuously for 3 minutes).

RX1 RX2 & RX3

1234

ELECTRONICS

COM ZONE

1 ON

ZONE

1 OFF

ELECTRONICS

BC123456

NLZONE

1 ON

ZONE

1 OFF

ZONE

2 ON

ZONE

3 ON

COM

TERMINAL 6

RX3 ONLY

2.2 RX Receiver Wiring (RF models only)

1) For mains voltage operated systems link terminal 2 to mains live supply.

2) Power supply to unit must not be switched by timeswitch.

IMPORTANT

On initial installation, or if the batteries have been removed

from the unit for more than 1 minute before beginning

programming or commissioning theTP4000 unit; it is essential

that the RESET button be pressed to ensure the factory preset

programmes are set and the system is fully operational.

Danfoss Heating 7

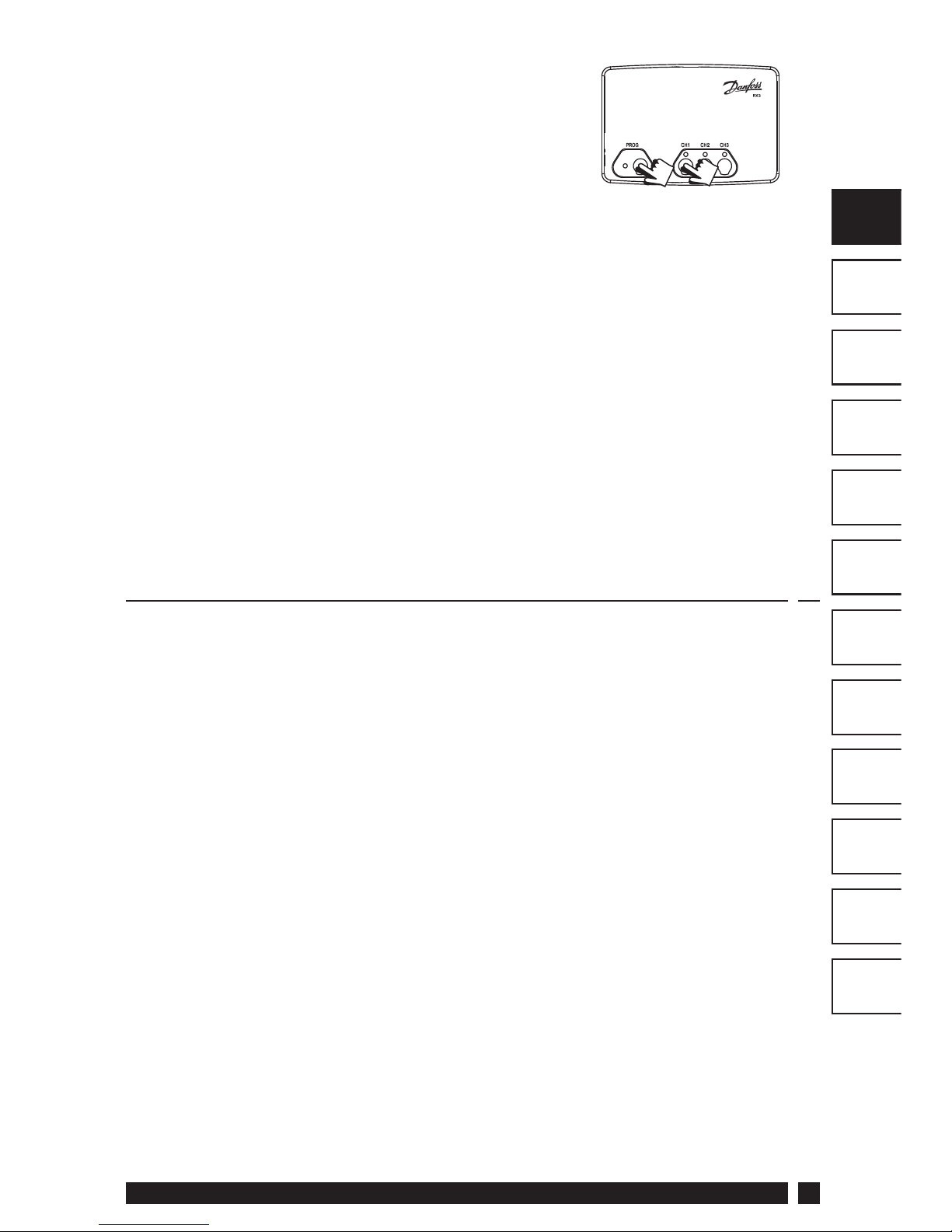

Step 3

RX1 - Press and hold buttons PROG and CH1

for 3 seconds until green light ﬂashes once.

Step 4

RX2 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 - perform steps 1-2 and then press PROG and CH2 on RX2.

RX3 (if applicable)

Stat 1 - perform steps 1-3 and 5.

Stat 2 - perform steps 1-2 and then press PROG and CH2 on RX3

then step 5.

Stat 3 - perform steps 1-2 and then press PROG and CH3 on RX3.

Step 5

TP4000-RF - Press V or Λto select temperature - the unit will revert

back to operating mode.

4.0 TP4000/TP4000 RF Programming

For details of this function, please refer to the user instructions.

TP4000

Index

1.0 Spéciﬁcations ........................................................................................9

2.0 Installation........................................................................................... 10

2.1 Câblage............................................................................................ 10

2.2 Câblage du récepteur RX (modèles RF uniquement)..... 11

3.0 Mise en service (modèles RF uniquement).................................. 11

4.0 Programmation TP4000/TP4000-RF........................................ 12

TP4000 Range

Thermostat d’ambiance électronique programmable

Instructions d’installation

Danfoss Heating 9

1.0 Spéciﬁcations

Remarque:

Ce produit doit être installé exclusivement par un électricien

qualiﬁé ou un installateur de chauﬀage compétent et doit

être conforme à la version en vigueur des réglementations de

câblage IEEE.

Caractéristiques TP4000 TP4000 RF

Alimentation 2 piles alcalines x

AA/MN1500

2 piles alcalines x

AA/MN1500

Réserve mémoire 1 minute, pour changer les piles

Type de contact

1 x SPDT, Type 1B S/O

Caractéristique de

contact 3(1)A, 10-230Vac S/O

Fréquence de l’émetteur

(modèles RF) S/O 433.92MHz

Portée de l’émetteur

(modèles RF) S/O 30m max

Plage de températures Oﬀ, 5-30°C

Dimensions, mm 110 larg, 88 haut, 28 épaiss

Normes de fabrication EN60730-2-9 EN300220 for RF

Tension de choc

nominale 2.5kV

Essai à la bille 75°C

Niveau de recyclage Degré 2

Précision de la

température ±1°C

Précision de l’horloge ±1 min. par mois

Note importante concernant les systèmes RF : Veiller à ce qu’aucun

gros objet métallique (caisson de chaudière ou autre gros appareil

domestique) ne fasse obstacle aux communications entre le thermostat

et le récepteur.

TP4000

2.0 Installation

• Retirez tout d’abord la plaque murale de l’arrière de l’appareil.

• Par rapport au coin gauche supérieur de la plaque murale, vous

devez disposer d’espacements d’au moins 150 mm à droite, 15

mm à gauche, 30 mm au-dessus et 100 mm en-dessous aﬁn de

pouvoir monter le module enﬁchable.

• Fixez l’appareil à une hauteur d’environ 1,5 m du sol, à l’écart des

courants d’air ou des sources de chaleur telles que radiateurs,

feux ouverts ou lumière directe du soleil.

2.1 Câblage

OFF

COM ON

N/C N/O

Certains thermostats existants compteront un câble Neutre et/ou Terre

connecté. Ces derniers ne sont pas nécessaires au modèle TP4000 et NE

doivent PAS être connectés à l’une des bornes du TP4000. Ils doivent

en revanche être isolés et enroulés dans le renfoncement à l’arrière du

TP4000.
