Danfoss W894A User manual
W894A
Proportional Level Controller
BLN-95-8974-5 Issued: March 1992
DESCRIPTION
The W894A Proportional Level Controller provides auto-
matic slope control of paving, curbing, grading and similar
mobile equipment. The Controller measures deviation from
agravityreferenceandsuppliesatwo-wireoutputfordriving
a servovalve such as the MCV113. The W894A operates in
12 Volt electrical systems.
Two modules are housed in the case of the Controller with
plug-in electrical interconnections. The transducer sensing
module electromagnetically measures the deviation of the
equipment it is mounted on from a gravity reference. The
amplifier module accepts the signals from the slope sensing
moduleandusesthedeviationtoprovideacorrectiveoutput
to keep the equipment at the prescribed slope.
FEATURES
• Rugged aluminum housing
• Adjustable sensitivity
• RUN/STANDBY switch permits operator to switch to
manual control
• Deviation meter with zero center shows deviation from
setpoint in RUN or STANDBY positions
• Reverse polarity and short circuit protection
• Moisture and corrosion resistant
• Accepts a remote slope setpoint adjuster
• Withstands vibration and shock
ORDERING INFORMATION
SPECIFY
1. Model Number W894A. See Table A.
2. Accessories
TABLE A.
ACCESSORIES
Order the necessary parts from the list below:
1. MCV113 Servovalve
2. Q625A Remote Setpoint (hand-held setpoint with inte-
gral coiled cord and MS connector).
3. Q625A Remote Setpoint (panel-mount setpoint with ter-
minal strip).
4. KW01001 Cable (two-foot coiled cable that extends to
ten feet. Has straight connector on one end and spade
lugsontheother. Mateswiththefive-pinW894Aconnec-
tor and the panel-mount Q625A Remote Setpoint)
5. KW01013 Cable (two-foot coiled cable that extends to
ten feet. Has right angle connector on one end and
straight connector on the other. Mates with the ten-pin
W894A connector and an MS3102A18-1P plug).
6. KW01012 Cable (four-foot coiled cable that extends to
twenty feet. Has right angle connector on one end and
straight connector on the other. Mates with the ten-pin
W894A connector and an MS3102A18-1P plug).
ORDER NUMBER DESCRIPTION
W894A1053 12Vdc, Drives MCV113
Hot Side Switching
© Danfoss, 2013-09 BLN-95-8974-5 1
2
TECHNICAL DATA
ELECTRICAL
INPUT VOLTAGE
11 to 15 Vdc
OUTPUT VOLTAGE
5.4 to 6.2 Vdc with a 12 Vdc input into a 32 ohm load. A
nullmeter reading atthe red/white divisionindicates a 3
Vdc output.
POWER CONSUMPTION
4.5 watts maximum
PROPORTIONAL GAIN
Withgainpotentiometersettomaximum,gainwillbe1.7
to 2.7 Vdc per 0.3% slope error input.
BLOCK DIAGRAM
Schematic of Transducer and Amplifier Sections of the W894A. 1183
Typical System Connections. 206C
CONNECTION DIAGRAM
BLN-95-8974-5
3
DIMENSIONS
Dimensions of the W894A in Millimeters (Inches).
1182
The amplifier section of the W894A supplies an excitation of
1.4 V-ac (440 Hz square wave) across Pins A and B of the
W894A’s internal MS connector to the transducer. See the
BlockDiagram. As the machineis tilted off theproper slope,
the rotor rotates with respect to the secondary coils. As the
rotormovestowardonesecondaryandawayfromtheother,
the voltage induced in the coil toward the rotor is increased,
the opposite being true of the other secondary. At the full
10%-from-nullslope(theratedmaximumrange),thevoltage
acrossthesecondaryclosertotherotoris5.3V-ac,whilethe
other voltage is 4.2 V-ac.
THEORY OF OPERATION
The ac signals from the secondaries are applied to two
bridge rectifiers in the amplifier section, where each is
converted to dc. At null the voltages across both capacitors
are equal. When a change in secondary voltage is intro-
duced, the voltages across the capacitors are offset,
inducingadifferentialbetweenthereference(whichmaybe
a remote setpoint command) and the junction between the
capacitors. This differential serves as the positive or nega-
tive correction signal that is amplified and then supplied to
the servovalves to close the control loop. Control action
drives the machine to a position such that the sensor error
signal to the amplifier section is reduced to null.
ENVIRONMENTAL
OPERATING TEMPERATURE
-18°to 77°C (0°to 170°F)
STORAGE TEMPERATURE
-40°to 77°C (-40°to 170°F)
HUMIDITY
After being placed in a controlled atmosphere of 95%
humidity at 49°C (120°F) for 10 days, the W894A will
perform within specification limits.
RAIN
After being showered from all directions by a high
pressure hose down, the W894A will perform within
specification limits. This test fulfills NEMA 4 specifica-
tions.
VIBRATION
Withstands a vibration test designed for mobile equip-
ment consisting of two parts:
1. Cycling from 5 to 2000 Hz in each of the 3 axes.
2. Resonance dwell for one million cycles for each
resonance point in each of the 3 axes.
SHOCK
50 g's for 11 milliseconds. Three shocks in both direc-
tions of the 3 mutually perpendicular axes for a total of
18 shocks.
WEIGHT
3.4 Kg (7 pounds, 8 ounces)
DIMENSIONS
See the Dimension Drawing.
BLN-95-8974-5
4BLN-95-8974-5
CUSTOMER SERVICE
NORTH AMERICA
ORDER FROM
Danfoss (US) Company
Customer Service Department
3500 Annapolis Lane North
Minneapolis, Minnesota 55447
Phone: (763) 509-2084
Fax: (763) 559-0108
DEVICE REPAIR
For devices in need of repair or evaluation, include a
description of the problem and what work you believe
needs to be done, along with your name, address and
telephone number.
RETURN TO
Danfoss (US) Company
Return Goods Department
3500 Annapolis Lane North
Minneapolis, Minnesota 55447
EUROPE
ORDER FROM
Danfoss (Neumünster) GmbH & Co.
Order Entry Department
Krokamp 35
Postfach 2460
D-24531 Neumünster
Germany
Phone: 49-4321-8710
Fax: 49-4321-871-184
Other Danfoss Controllers manuals
Danfoss
Danfoss NovoCon S User manual
Danfoss
Danfoss ERC 213 User manual
Danfoss
Danfoss EKC 202 User manual
Danfoss
Danfoss VLT AutomationDrive FC 302 User manual
Danfoss
Danfoss PK37 User manual
Danfoss
Danfoss AFQM 2 User manual
Danfoss
Danfoss Icon Series User manual
Danfoss
Danfoss AME 20 User manual
Danfoss
Danfoss AME 55QM User manual
Danfoss
Danfoss AMV 150 User manual
Danfoss
Danfoss Optyma Plus OP-MPS User manual
Danfoss
Danfoss 101N0715 User manual
Danfoss
Danfoss VLT FC Series Spare Brake IGBT User manual
Danfoss
Danfoss ACI 30-1 User manual
Danfoss
Danfoss PN 25 User manual
Danfoss
Danfoss AME 435 QM User manual
Danfoss
Danfoss EIM 336 User manual
Danfoss
Danfoss AME 85 QM User manual
Danfoss

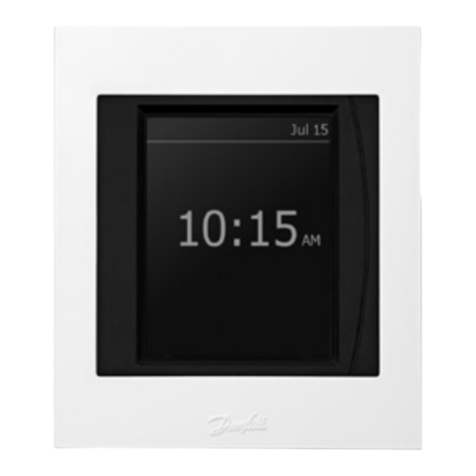

Danfoss Link CC User manual
