1Safety

1.1 Safety

1.1.1 Warnings

When reading this manual you will come across different symbols that require special attention. The symbols used are the following:

NB!

Indicates something to be noted by the reader

Indicates a general warning

Indicates a high voltage warning

The examples and diagrams in this manual are included solely for illustrative purposes. The information contained in this manual is subject to change at

any time and without prior notice. In no event will responsibility or liability be accepted for direct, indirect or consequential damages resulting from the

use or application of this equipment.

WARNING - ELECTRICAL SHOCK HAZARD

MCD 500 soft starters contain dangerous voltages when connected to mains voltage. Only a competent electrician should carry out the

electrical installation. Improper installation of the motor or the soft starter may cause equipment failure, serious injury or death. Follow

this manual and local electrical safety codes.

Disconnect the soft starter from mains voltage before carrying out repair work.

It is the responsibility of the user or person installing the soft starter to provide proper grounding and branch circuit protection according

to local electrical safety codes.

Do not connect power factor correction capacitors to the output of MCD 500 soft starters. If static power factor correction is employed,

it must be connected to the supply side of the soft starter.

The motor can be stopped by means of digital or bus commands while the soft starter is connected to the mains, if the soft starter is in Auto On mode.

1. If personal safety considerations make it necessary to ensure that no unintended start occurs,

these stop functions are not sufficient.

2. A motor that has been stopped may start if faults occur in the electronics of the soft starter, or a temporary fault in the supply mains or the

motor connection ceases.

AUTO-START

Use the auto-start feature with caution. Read all the notes related to auto-start before operation.

MCD 500 Operating Instruction 1 Safety

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Equipment containing electrical components may not be disposed of together with domestic

waste.

It must be collected separately as electrical and electronic waste according to local and cur-

rently valid legislation.

1 Safety MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

2Introduction

The MCD 500 is an advanced digital soft start solution for motors from 7 kW to 800 kW. MCD 500 soft starters provide a complete range of motor and

system protection features and have been designed for reliable performance in the most demanding installation situations.

2.1.1 Feature List

Models for all connection requirements

• 21 A to 1600 A (in-line connection)

• In-line or inside delta connection

• Internally bypassed up to 215 A

• Mains voltage: 200 - 525 VAC or 380 - 690 VAC

• Control voltage: 24 VAC/VDC, 110 - 120 VAC or 220 - 240 VAC

User-friendly LCP

• Loggings

•Real-timegraphs

•SCRconductionbargraph

Tools

• Application setups

• Date and time stamped event log with 99 entries

•8mostrecenttrips

• Counters

•Protectionsimulation

• Output signal simulation

Inputs and Outputs

• Local or remote control input options

(3 x fixed 1 x programmable)

• Relay outputs (3 x programmable)

• Analog programmable output

• 24 VDC 200 mA supply output

Start and run modes

• AAC - Adaptive Acceleration Control

• Constant current

• Current ramp

•Kickstart

•Jog

• Emergency run operation

Stop modes

• AAC - Adaptive Acceleration Control

• Timed voltage ramp soft stop

•DCbrake

•Softbrake

•Emergencystop

Other features

• Auto start/stop timer

• Second order thermal model

• Battery backup of clock and thermal model

• Optional DeviceNet, Modbus or Profibus communication mod-

ules

Comprehensive protection

• Wiring/Connection/Supply

-Motor connection

-Phase sequence

-Power loss

-Individual phase loss

-Mains frequency

• Current

-Excess start time

-Current imbalance

-Undercurrent

-Instantaneous overcurrent

•Thermal

-Motor thermistor

-Motor overload

-Bypass relay overload

-Heatsink temperature

• Communication

-Network comms

-Starter comms

•External

-Input trip

•Starter

-Individual shorted SCR

-Battery/Clock

MCD 500 Operating Instruction 2 Introduction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

2.1.2 Type Code

MCD 5 -- - -

Current rating

0021 = 21 A, AC53b 3-30:330

0037 = 37 A, AC53b 3-30:330

0043 = 43 A, AC53b 3-30:330

0053 = 53 A, AC53b 3-30:330

0068 = 68 A, AC53b 3-30:570

0084 = 84 A, AC53b 3-30:570

0089 = 89 A, AC53b 3-30:570

0105 = 105 A, AC53b 3-30:570

0131 = 131 A, AC53b 3-30:570

0141 = 141 A, AC53b 3-30:570

0195 = 195 A, AC53b 3-30:570

0215 = 215 A, AC53b 3-30:570

0245 = 245 A, AC53a 3-30:50-6

0360 = 360 A, AC53a 3-30:50-6

0380 = 380 A, AC53a 3-30:50-6

0428 = 428 A, AC53a 3-30:50-6

0595 = 595 A, AC53a 3-30:50-6

0619 = 619 A, AC53a 3-30:50-6

0790 = 790 A, AC53a 3-30:50-6

0927 = 927 A,AC53a 3-30:50-6

1200 = 1200 A, AC53a 3-30:50-6

1410 = 1410 A, AC53a 3-30:50-6

1600 = 1600 A, AC53a 3-30:50-6

Mains voltage

T5 = 200 - 525 VAC

T7 = 380 - 690 VAC

IP rating

00 = IP00

20 = IP20

Control voltage

CV1 = 24 VAC/VDC

CV2 = 110-120 VAC or 220-240 VAC

B = Bypassed

C = Non-bypassed

Frame size

G1 = 0021 ~ 0105 A

G2 = 0131 ~ 0215 A

G3 = 0245 A

G4 = 0360 A ~ 0927 A

G5 = 1200 A ~ 1600 A

Not used

= Not selectable

177HA382.11

2 Introduction MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

3Installation

3.1 Mechanical Installation

1MCD5-0021B - MCD5-0245C: Allow 100 mm (3.94 inches) between soft starters.

MCD5-0360C - MCD5-1600C: Allow 200 mm (7.88 inches) between soft starters.

2MCD5-0021B - MCD5-0215B: Allow 50 mm (1.97 inches) between the soft starter and solid surfaces.

MCD5-0245C: Allow 100 mm (3.94 inches) between the soft starter and solid surfaces.

MCD5-0360C - MCD5-1600C: Allow 200 mm (7.88 inches) between the soft starter and solid surfaces.

3The soft starter may be mounted on its side. Derate the soft starter's rated current by 15%.

4Soft starters may be mounted side by side with clearance of 50 mm (1.97 inches) on both sides.

MCD 500 Operating Instruction 3 Installation

MG.17.K2.02 - VLT®is a registered Danfoss trademark

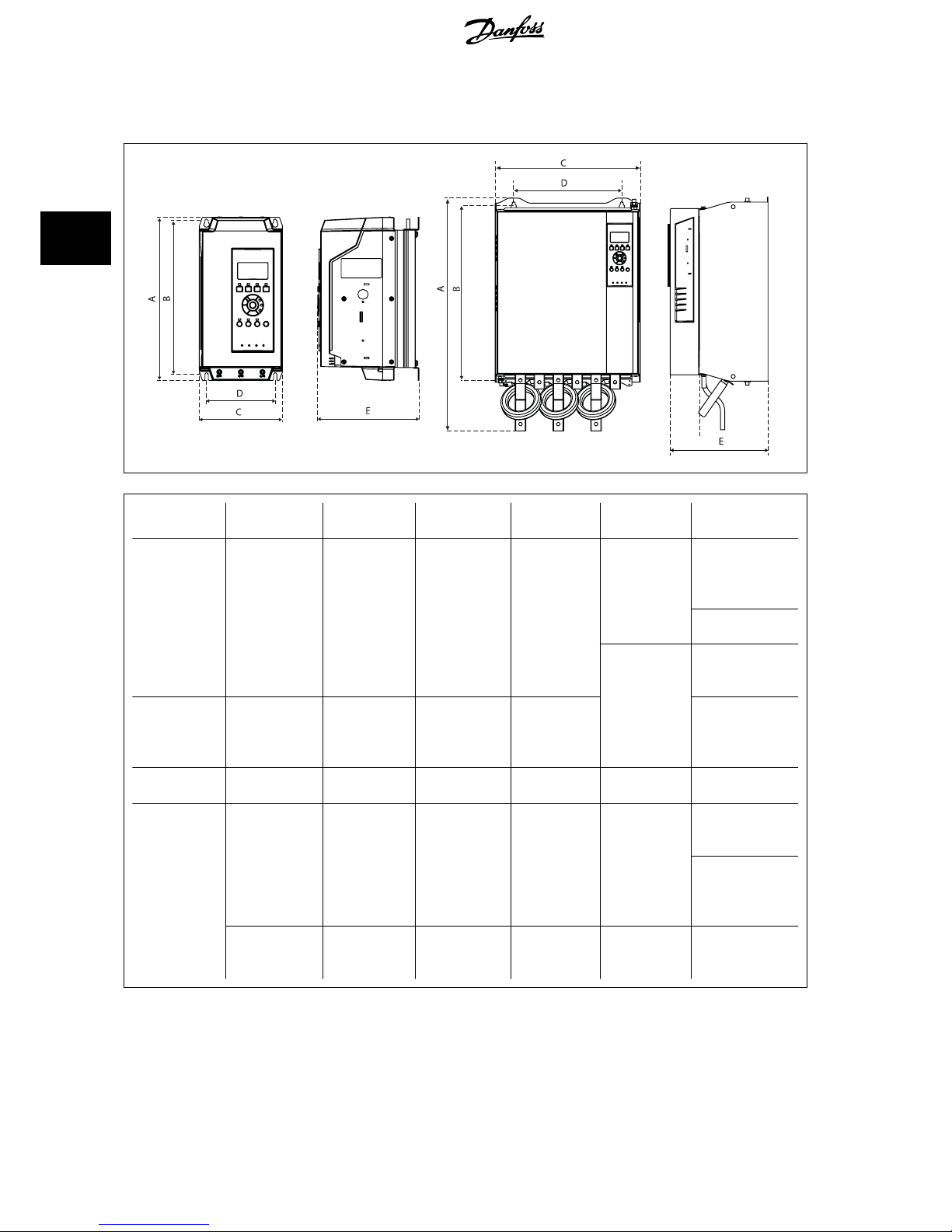

3.2 Dimensions and Weights

177HA514.10

Model A mm

(inches)

B mm

(inches)

C mm

(inches)

D mm

(inches)

E mm

(inches)

Weight kg

(lbs)

MCD5-0021B

295

(11.6)

278

(10.9)

150

(5.9)

124

(4.9)

183

(7.2)

4.2

(9.3)

MCD5-0037B

MCD5-0043B

MCD5-0053B

MCD5-0068B 4.5

(9.9)

MCD5-0084B 213

(8.14)

4.9

(10.8)

MCD5-0089B

MCD5-0105B

MCD5-0131B

438

(17.2)

380

(15.0)

275

(10.8)

248

(9.8)

250

(9.8)

14.9

(32.8)

MCD5-0141B

MCD5-0195B

MCD5-0215B

MCD5-0245C 460

(18.1)

400

(15.0)

390

(15.4)

320

(12.6)

279

(11.0)

23.9

(52.7)

MCD5-0360C

689

(27.1)

520

(20.5)

430

(16.9)

320

(12.6)

302

(11.9)

(77.2)

MCD5-0380C

MCD5-0428C

MCD5-0595C

(99.2)

MCD5-0619C

MCD5-0790C

MCD5-0927C

MCD5-1200C 856

(33.7)

727

(28.6)

585

(23.0)

500

(19.7)

364

(14.3)

120

(264.6)

MCD5-1410C

MCD5-1600C

3 Installation MCD 500 Operating Instruction

MG.17.K2.02 - VLT®is a registered Danfoss trademark

Other manuals for vlt soft starter mcd 500

Table of contents

Other Danfoss Controllers manuals

Danfoss

Danfoss VACON 100 industrial User manual

Danfoss

Danfoss AMI 140 Series User manual

Danfoss

Danfoss VLT Compact Starter MCD 201 User manual

Danfoss

Danfoss ADAP-KOOL AK-PC 783 Guide

Danfoss

Danfoss AK-PC 420 User manual

Danfoss

Danfoss MCI 15 User manual

Danfoss

Danfoss AME 410 User manual

Danfoss

Danfoss AVQM Series User manual

Danfoss

Danfoss AK-CC 750 series User manual

Danfoss

Danfoss AFQM 2 User manual

Danfoss

Danfoss VLT 5000 Series User manual

Danfoss

Danfoss AK-SM 850 User manual

Danfoss

Danfoss MCO 350 User manual

Danfoss

Danfoss A333 Series Installation instructions manual

Danfoss

Danfoss 102 User manual

Danfoss

Danfoss vlt aqua Guide

Danfoss

Danfoss ECL Comfort 110 User manual

Danfoss

Danfoss ECL Comfort 300 User manual

Danfoss

Danfoss MCD Series User manual

Danfoss

Danfoss AME 335 User manual

Danfoss

Danfoss ASV-PF User manual

Danfoss

Danfoss VLT DMS 300 User manual

Danfoss

Danfoss ECL Comfort 210 Installation instructions manual

Danfoss

Danfoss EKE 1B User manual

Popular Controllers manuals by other brands

Digiplex

Digiplex DGP-848 Programming guide

YASKAWA

YASKAWA SGM series user manual

Sinope

Sinope Calypso RM3500ZB installation guide

Isimet

Isimet DLA Series Style 2 Installation, Operations, Start-up and Maintenance Instructions

LSIS

LSIS sv-ip5a user manual

Rockwell Automation

Rockwell Automation 1769-L31 installation instructions

Airflow

Airflow Uno hab Installation and operating instructions

ABB

ABB ACS580-01 drives Hardware manual

Panasonic

Panasonic GM1 Series Reference manual

Emerson

Emerson SW93 owner's manual

AutoAqua

AutoAqua Smart ATO micro SATO-120P manual

Panasonic

Panasonic FP? Positioning Unit RTEX Technical manual

Samson

Samson Type 5824 Mounting and operating instructions

Alpha IP

Alpha IP MIOB 21001 manual

Siemens

Siemens OpenAir GMA 1 Series Mounting instructions

Surecom

Surecom SR-629 user manual

Fishman

Fishman TriplePlay installation guide

Regulus

Regulus SRS1 T Installation and operation manual

Danfoss vlt soft starter mcd 500 User manual

Popular Controllers manuals by other brands
