Danby DAC5012M Assembly instructions

Danby Products Limited, Ontario, Canada N1H 6Z9

Danby Products Inc., Findlay, Ohio, USA 45840

Model • Modèle • Modelo

•Owner’s Use and Care Guide

•Guide d’utilisation et soin de Propriètaire

•Guía a utilizar y a cuidar del Proprietario

AIR CONDITIONER

CLIMATISEUR

AIRE ACONDICIONADO

V1 10.11

DAC5012M

Contents

CAUTION:

PRECAUTION:

Read and follow all safety rules and operat-

ing instructions before first use of this prod-

uct.

Veuillez lire attentivement les consignes de

sécurité et les instructions d’utilisation avant

l’utilisation initiale de ce produit.

CLIMATISEUR

Guide d'utilisation et d'entretien ........................

• Bienvenue ...........................................................

• Consignes de Sécurité Importantes ....................

• Installation ...........................................................

• Consignes d’utilisation ........................................

• Soins et Entretien ...............................................

• Dépannage ..........................................................

• Garantie ...............................................................

2-13

3-4

4-8

AIR CONDITIONER

Owner’s Use and Care Guide .............................

• Welcome .............................................................

• Important Safety Information ...............................

• Installation ...........................................................

• Operation Instructions .........................................

• Care and Maintenance ........................................

• Troubleshooting ...................................................

• Warranty ..............................................................

Model • Modèle • Modelo DAC5012M

13-23

14-15

15-19

24-34

25-26

27-30

AIRE ACONDICIONADO

Guía a utilizar y a cuidar del Proprietario..........

• Bienvenida ...........................................................

• Instruciónes de Seguridad Importantes ..............

• Instrucciones d’instalación ..................................

• Instruciónes Operadoras .....................................

• Limpieza y Mantenimiento ..................................

• Solución Sugeridad .............................................

• Garantia................................................................

PRECAUCION

Lea y observe todas las reglas de seguridad

y las instrucciones de operación antes de

usar este producto por primera vez.

Welcome

Thank you for choosing a Danby appliance to provide you and your family with all of the “Home Comfort” requirements

of your home, cottage, or office. This Owner’s Use and Care Guide will provide you with valuable information necessary

for the proper care and maintenance of your new appliance. If properly maintained, your Danby appliance will give you

many years of trouble free operation. Please take a few moments to read the instructions thoroughly and familiarize

yourself with all of the operational aspects of this appliance.

For easy reference, may we suggest you attach a copy of your sales slip/receipt to this page, along with the following

information, located on the manufacturers nameplate on the side of the unit.

NOTE: THIS UNIT IS NOT DESIGNED FOR “THROUGH-THE-WALL” INSTALLATION.

Model Number:

Serial Number:

Date of Purchase:

This information will be necessary if your unit requires servicing and/or for general inquiries. To contact a Customer

Service Representative, call Danby TOLL FREE: 1-800-263-2629

WARNING

Improper connection of the grounding plug can result in risk of

Fire, Electric Shock and/or injury to Persons associated with the

appliance. Check with a qualified service representative if in doubt

that the appliance is proplery grounded.

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ELECTRICAL

SPECIFICATIONS

FOR YOUR SAFETY: Read these instructions carefully before operating the unit.

1) All wiring must comply with local and national electrical codes and must

be installed by a qualified electrician. If you have any questions

regarding the following instructions, contact a qualified electrician.

2) Check available power supply and resolve any wiring problems

BEFORE installing and operating this unit.

3) This 115V air conditioner uses 7.1 or less nameplate amps and may be

used in any properly wired, general purpose household receptacle.

4) For your safety and protection, this unit is grounded through the power

cord plug when plugged into a matching wall outlet. If you are not sure

whether your wall outlet is properly grounded, please consult a qualified

electrician.

5) The wall outlet must match the 3-prong plug on the service cord

supplied with the unit. DO NOT use plug adapters. If it is necessary to

use an extension cord to connect your air conditioner, use an

approved “air conditioner” extension cord only (available at most

local hardware stores).

6) The rating plate on the unit contains electrical and other technical data.

The rating plate is located on the right side of the unit, above the power

cord.

POWER SUPPLY CORD NOTE: Your unit’s device may differ from the one shown.

This room air conditioner is equipped with a power supply cord required by

ULC. This power supply cord contains state-of-the-art electronics that

sense leaking current. If the cord is crushed, the electronics detect leaking

current and power will be disconnected in a fraction of a second.

To test your power supply cord:

1. Plug power supply cord into a grounded 3 prong outlet.

2. Press RESET (on some devices, a green light will turn on).

3. Press TEST (listen for a click; Reset button will trip, and on some

devices, a green light will turn off).

4. Press and release RESET (listen for a click; Reset button will latch, and

on some devices, a green light will turn on). The power supply cord is

ready for operation.

LCDI

TEST

RESET

POWER

B A

Important Safety Information

READ AND FOLLOW ALL SAFETY INSTRUCTIONS

ENERGY SAVING TIPS

FOR YOUR SAFETY: Read these instructions carefully before operating the unit.

Your Danby appliance is designed to be highly efficient in energy

savings. Follow these recommendations for greater efficiency.

1) Select a thermostat setting that suits your comfort needs and leave at

that chosen setting.

2) The air filter is very efficient in removing airborne particles. Keep the air

filter clean at all times. (usually cleaned every 2 weeks depending on

indoor air quality).

3) Use drapes, curtains or shades to keep direct sunlight from penetrating

and heating the room, but do not allow drapes or curtains to obstruct

the air flow around the unit.

4) Start your air conditioner before the outdoor air becomes hot and

uncomfortable, to avoid an initial period of discomfort while the unit is

cooling off the room.

5) When outdoor temperatures are cool enough, use HIGH or LOW FAN

only. This circulates indoor air, providing some cooling comfort, and

utilizes less electricity than when operating on a cooling setting.

Installation Instructions

Lower sash must open sufficiently to allow a clear vertical opening of 13-

1/2 inches (343 mm). Side louvers and the rear of the AC must have clear

air space to allow enough airflow through the condenser, for heat removal.

The rear of the unit must be outdoors, not inside a building or garage.

NOTE: SAVE CARTON and these INSTALLATION INSTRUCTIONS for

future reference. The carton is the best way to store unit during winter, or

when not in use.

Some assembly is required. Please read these instructions

carefully.

ELECTRIC SHOCK HAZARD

To avoid the possibility of personal

injury, disconnect power to the unit

before installing or servicing.

NOTE: Your air conditioner is designed

for installation in a standard double hung

window with an opening width of

22 8/16” - 38 2/16” (FIG. 1)

INTERIOR

WALL

STOOL

SILL

OFFSET EXTERIOR

WALL

22 8/16” - 38 2/16”

13 1/2”

(343mm)

Fig. 1

MOUNTING HARDWARE

2/5"screws 4

QUANTITY

4/5"screws 6

Sash Lock 1

TOOLS NEEDED:

• Phillips Screw Driver

• Drill (If pilot holes are needed)

*Also please see www.danby.com

for video instructions.

Installation Instructions

WARNING

When handling unit, be careful to

avoid cuts from sharp metal edges

and aluminum fins on front and rear

coils.

HOW TO INSTALL NOTE: Top Rail and Sliding Panels at each side are offset to provide the

proper pitch to the rear of (5/16"). This is necessary for proper condensed

water utilization and drainage. If you are not using the Side Panels for

any reason, this pitch to the rear must be maintained to allow water build

up in humid conditions to drain outside.

1Place unit on floor, a bench or a table. There is a Left and Right Window

Filler Panel - be sure to use the proper panel for each side.When installed

the flange for securing the panel in place to the window sill will be facing

into the room.

A. Remove the backing from the top mounting rail seal strip and attach the

seal strip to the bottom of the top mounting rail, along the front edge.

Top Mounting Rail

Remove

backing

from seal

strip

Top Mounting Rail

Seal strip

FRONT VIEW

B. Attach the top mounting rail onto the top of the case with 2/5" screws.

2/5” Screws

Top Mounting Rail

Installation Instructions

HOW TO INSTALL

(cont)

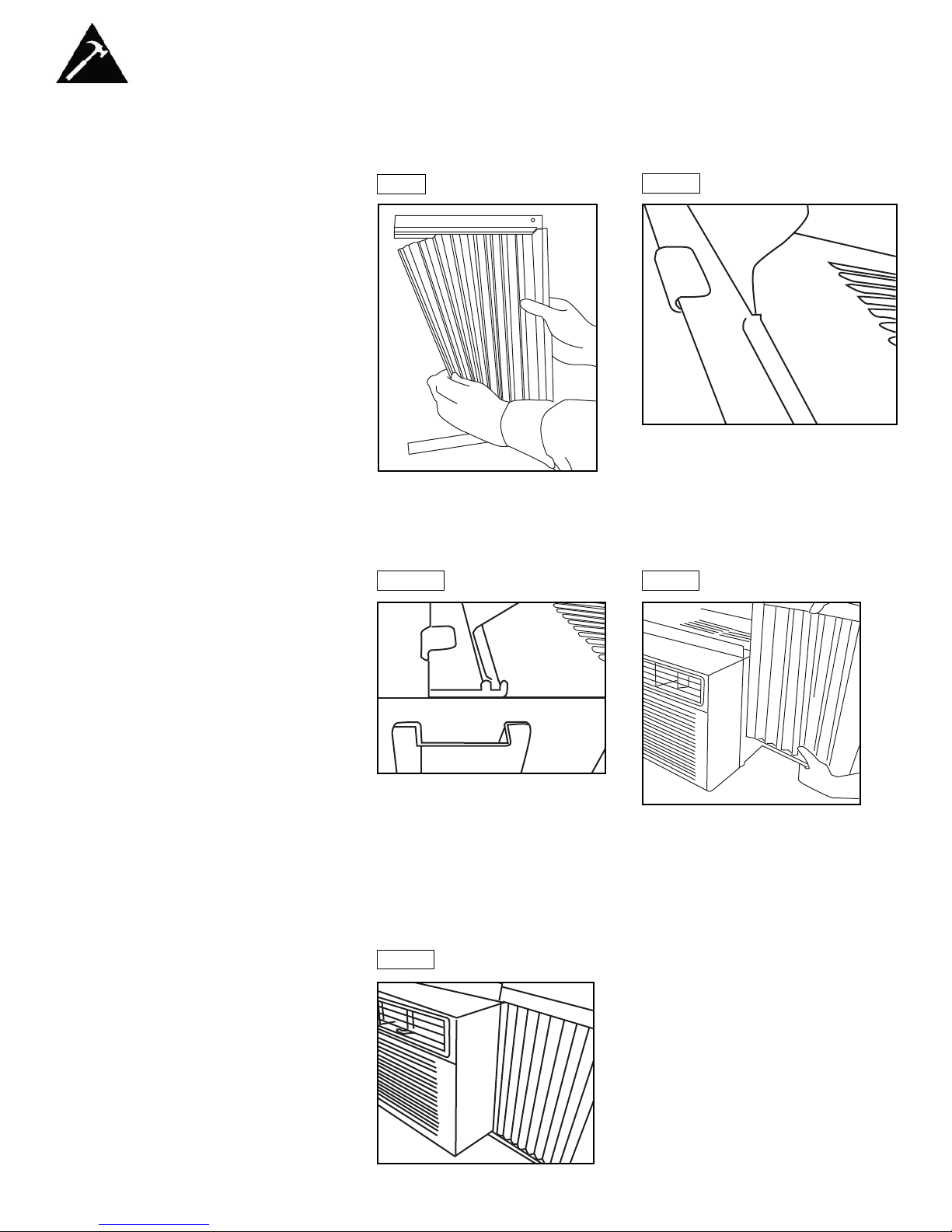

C. Hold the Accordion Panel in one hand and gently pull back the

center to free the open end. See Figure 2.

Fig. 2 Fig. 3A

D. Slide the free end (“I”section) of the panel into the cabinet as shown in

Figures 3A, 3B & 4. Slide the panel down. Be sure to leave enough

space to slip the top and bottom of the frame into the rails on the

cabinet.

Fig. 3B Fig. 4

E. Once the panel has been installed on the side of the cabinet, make

sure it sits securely inside the frame channel by making slight

adjustments. Slide the top and bottom ends of the frame into the top

and bottom rails of the cabinet. Figure 5.

F. Slide the panel all the way in and repeat on the other side.

Fig. 5

Installation Instructions

HOW TO

INSTALL (cont)

Keep a firm grip on the air conditioner, carefully place the unit into the win-

dow opening so the bottom of the air conditioner frame is against the win-

dow sill (FIG. 6 & FIG. 6A). Carefully close the window behind the top rail

of the unit.

Fig. 6 Fig. 6A

Bottom Rail

Inside Window Sill

Outside

Extend the side panels out against the window frame (FIG. 7).

3Fig. 7

4Drive 4/5” (19 mm) locking screws through frame holes into window sash

(FIG. 8/9).

Fig. 8 Fig. 9

5To secure lower sash in place, attach right angle sash lock with 4/5”

(19mm) screw as shown (Fig.10).

Fig. 10

Installation Instructions

HOW TO

INSTALL (cont)

Cut foam seal and insert in the space between the upper and lower

sashes. (Fig.11).

Fig. 11

1 1/2” min

(38mm)

IF AC IS BLOCKED BY

STORM WINDOW

Add wood as shown in Fig.12 or remove storm window before air

conditioner is installed.

Fig. 12

STORM

WINDOW

FRAME

OR OTHER

OBSTRUCTION

SASH

BOARD

THICKNESS

AS REQUIRED,

FOR PROPER

PITCH TO

REAR, ALONG

ENTIRE SILL.

FASTEN WITH

NAILS OR

SCREWS.

If Storm Window Frame must remain, be sure the drain holes or slots are

not caulked or painted shut. Accumulated Rain Water or Condensation

must be allowed to drain out.

REMOVING AC FROM

WINDOW

• Turn AC off, and disconnect power cord.

• Remove sash seal from between windows, and unscrew safety lock.

• Remove screws installed through frame and frame lock.

• Close (slide) side panels into frame.

• Keeping a firm grip on air conditioner, raise sash and carefully “rock”

air conditioner backward to drain any condensate water in base of unit.

Be careful not to spill any remaining water while lifting unit from window.

Store parts WITH air conditioner.

Please always wait 3 minutes when turning unit off and then on again, and when changing from cool to fan

and back to cool. This prevents the compressor from overheating and possible circuit breaker tripping.

Cool Mode

The desired cool setting is selected by rotating the knob to the right to the appropriate location.

“hi cool ” has maximum cooling effect and airflow.

“lo cool ” has minimum cooling effect and airflow.

Note: If your unit is equipped with a vent handle, keep it closed for maximum efficiency.

Fan Mode

Rotate the knob to the left to select your choice of fan speeds for air circulation.

Note: When selecting a fan speed, the compressor will not run.

AUGER WHEEL

Air Directional Louvers

Air directional louvers control air flow direction. Your air conditioner has

the louver type described below.

Auger T ype

Rotate the Auger Wheels until the desired Left/Right direction is obtained.

Thermostat

The thermostat is used to set the desired room temperature when the unit is being operated

in the “COOL MODE” .

To change the room temperature, rotate the thermostat switch to the desired setting. After

the set temperature is achieved the thermostat will automatically start and stop the compressor

in order to maintain the desired set temperature.

Rotate the thermostat selector clockwise for higher cool settings. Higher cool settings will

provide lower room temperature.

Rotate the thermostat selector counter clockwise for lower cool settings. Lower cool settings

will provide higher room temperature.

WARNING

Operating Instructions

Table of contents

Languages:

Other Danby Air Conditioner manuals

Danby

Danby Diplomat DAC7037M User manual

Danby

Danby DAC10010E Assembly instructions

Danby

Danby DAC0100B5WDB User manual

Danby

Danby DESIGNER DPAC10011BL Assembly instructions

Danby

Danby DPAC9008 User manual

Danby

Danby DAC080EB7WDB-RF User manual

Danby

Danby DPAC7297 User manual

Danby

Danby DAC060BEUWDB Assembly instructions

Danby

Danby DAC050MCB3GDB Assembly instructions

Danby

Danby DPA080UB1GDB User manual

Danby

Danby DPA120E1WDB-6 User manual

Danby

Danby DAC060EB6WDB User manual

Danby

Danby DAC145EB6WDB-RF User manual

Danby

Danby DAC5020 User manual

Danby

Danby DAC5277EE User manual

Danby

Danby DPAC5011 Assembly instructions

Danby

Danby Diplomat DPAC5070 User manual

Danby

Danby DPTA090HEB1WDB User manual

Danby

Danby DPAC 7099 Assembly instructions

Danby

Danby DTAC080BAUWDB User manual

Danby

Danby DAC080BAUWDB Assembly instructions

Danby

Danby DAC100EB9WDB User manual

Danby

Danby Premiere DAC15009EE Assembly instructions

Danby

Danby Designer DPAC11012 User manual

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Daikin

Daikin FCFV50A Operation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Daikin

Daikin FXLQ20MAVE Operation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual
