Daikin VRV FXA40LVE User manual

SYSTEM Air Conditioners

OPERATION MANUAL

English

Deutsch

Français

Español

Italiano

ΕλληνικÜ

Nederlands

Portugues

Russian

Taiwanese

Chinese

MODELS

Wall-mounted type

FXA20LVE FXA20LVEC (KFR-22G)

FXA25LVE FXA25LVEC (KFR-28G)

FXA32LVE FXA32LVEC (KFR-36G)

FXA40LVE

FXA50LVE

FXA63LVE

FXAQ20MVE

FXAQ25MVE

FXAQ32MVE

FXAQ40MVE

FXAQ50MVE

FXAQ63MVE

FXAQ20MHV1

FXAQ25MHV1

FXAQ32MHV1

FXAQ40MHV1

FXAQ50MHV1

According to GB4706. 32-96 GB4706. 32-96

cover.fm Page 1 Friday, June 4, 2004 6:51 PM

1English

Thank you for purchasing this Daikin air condi-

tioner.

Carefully read this operation manual before using

the air conditioner. It will tell you how to use the

unit properly and help you if any trouble occurs.

This manual explains about the indoor unit only.

Use it along with the operation manual for the

outdoor unit. After reading the manual, file it away

for future reference.

HOW TO ADJUST THE HORIZONTAL

FAN DIRECTION ANGLE

Hold the tabs on edge louvers (horizontal air outlet

direction adjustment flaps) down slightly and

adjust left and right to match the room conditions

or your preference.

Stop the horizontal flaps at a position where you

can hold the tabs and adjust it left and right.

MAINTENANCE

(FOR SERVICE PERSONNEL)

ONLY A QUALIFIED SERVICE PERSON IS

ALLOWED TO PERFORM MAINTENANCE

IMPORTANT!

• BEFORE OBTAINING ACCESS TO TERMI-

NAL DEVICES, ALL POWER SUPPLY

CIRCUITS MUST BE INTERRUPTED

•To clean the air conditioner, be sure to stop

operation, and turn the power switch off. Other-

wise, an electric shock and injury may result.

•Do not wash the air conditioner with water.

Doing so may result in an electric shock and

fire.

•Be careful with a scaffold or staging.

Caution must be exercised because of work at a

high place.

NOTE

•

Do not remove the air filter except when cleaning.

This may cause breakage.

HOW TO CLEAN THE AIR FILTER

Clean the air filter when the display shows “ ”

(TIME TO CLEAN AIR FILTER).

•It will display that it will operate for a set amount

of time.

•Increase the frequency of cleaning if the unit is

installed in a room where the air is extremely

contaminated.

Drain pipe

Name plate

Air inlet

(front and top of main unit)

Air filter (Inside intake vent)

Refrigerant pipe

Interconnecting

electric cable

Remote controller

Horizontal flaps

(vertical air outlet direction adjustment

flaps)

Louver

(horizontal air outlet direction adjustment

flaps)

Air outlet Ground wire

Provided to ground the

indoorunit to preventelectric

shock and ensure safety

(Indoor unit model name)

3PN02401-8Q_Eng.fm Page 1 Thursday, June 17, 2004 8:38 AM

English 2

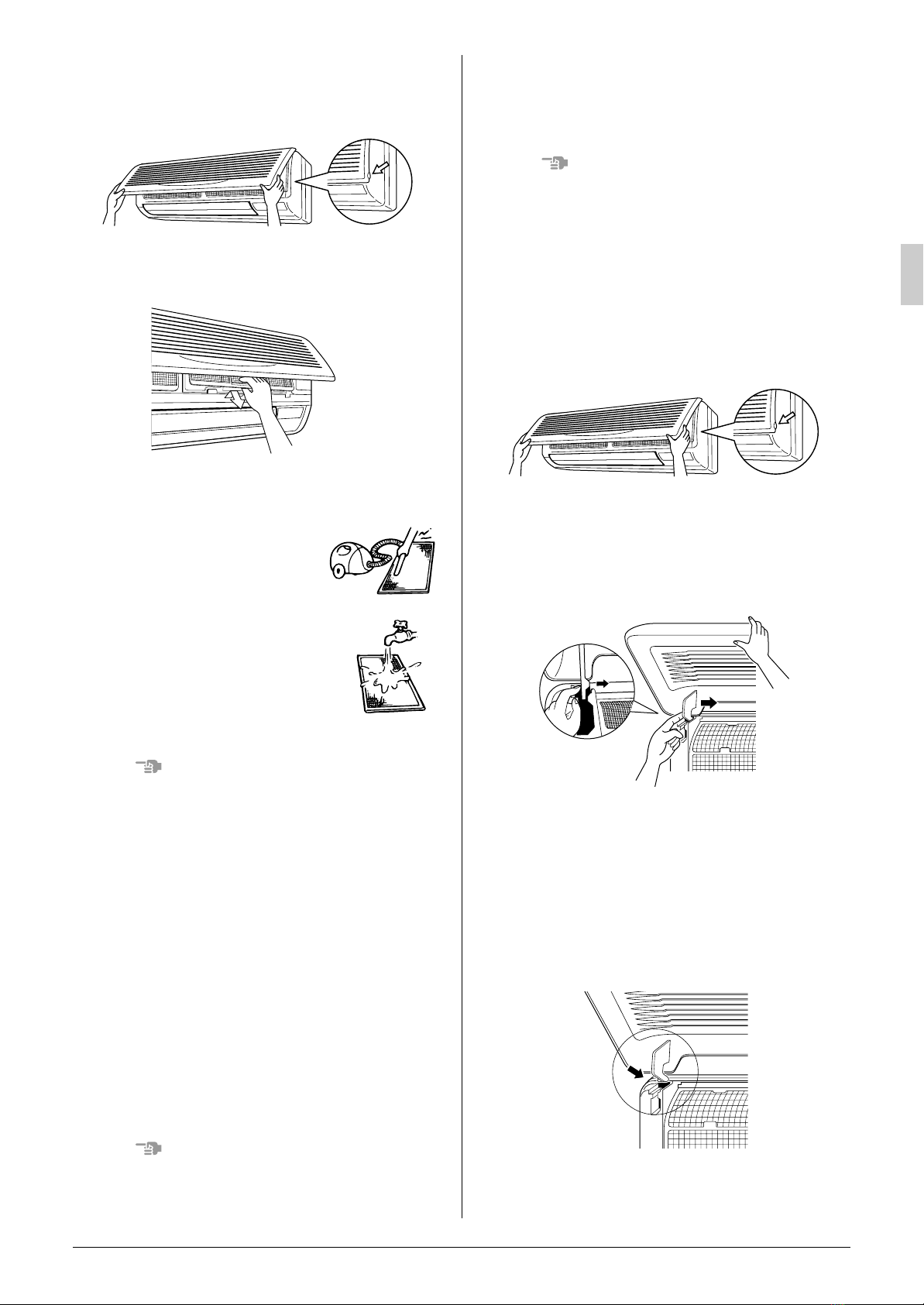

1. Open the front panel.

Place your fingers on the panel protrusions on

the left and right sides of the main unit and

open until the panel stops.

2. Pullout the air filter.

Push up the tab in the center of the air filter

slightly then pull out in a downward direction.

3. Clean the air filter.

Use vacuum cleaner A) or wash the air filter

with water B).

A) Using a vacuum cleaner

B) Washing with water

When the air filter is very

dirty, use soft brush and

neutral detergent

Remove water and dry in the shade.

NOTES

•Do not wash it with hot water of more than 50°C,

as doing so may result in discoloration and/or

deformation.

•Do not expose it to fire, as doing so may result

in burning.

4. Attach the air filter.

Once cleaning is done be sure to replace the

air filter as it was.

5. Press the FILTER SIGN RESET button on

the remote controller.

The “TIME TO CLEAN AIR FILTER”display

vanishes.

HOW TO CLEAN THE AIR OUTLET AND

EXTERIOR

•Clean with soft cloth.

•When it is difficult to remove stains, use water or

neutral detergent.

NOTES

•Do not use gasoline, benzene, thinner, polish-

ing powder, liquid insecticide. It may cause dis-

coloring or warping.

•Do not use water or air of 50°C or higher for

cleaning air filters.

HOW TO CLEAN THE FRONT PANEL

You can remove the front panel to clean it.

NOTES

•Hold the front panel firmly so that it does not fall.

•Do not use water over 50 °C, benzine, gasoline,

thinner, or other volatile substances, polishing

powder, or hard scrub brushes to clean the

panel.

•Make sure the front panel is solidly in place.

1. Open the front panel.

Place your fingers on the panel protrusions on

the left and right sides of the main unit and

open until the panel stops.

2. Remove the front panel.

Push the axes on either side of the front panel

towards the center of the main unit and

remove.

(

You can also remove it by sliding the front panel

either to the left or right and pulling it forward.

)

3. Clean the front panel.

•Wipe gently with a soft wet cloth.

•Only use neutral cleaning agents.

•After washing off, wipe off any excess water

and dry in a shaded location.

4. Attach the front panel.

Set the keys of the front panel into the slots

and push them in all the way.

Close the front panel slowly in this state.

3PN02401-8Q_Eng.fm Page 2 Thursday, June 17, 2004 8:38 AM

3PN02401-8Q EM04A021 (0407) HT

cover.fm Page 2 Friday, June 4, 2004 6:51 PM
