Daikin RNE50LV1 User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

5.0 kW Class

Outdoor Unit

Non-Inverter

Pair Type

Si011415E

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

RNE50LV1

RNE50MV1

RNE50MV14

RNE50MV1V

Si011415E

Removal Procedure 1

Table of Contents

1. Outer Panels ...........................................................................................2

2. Outdoor Fan / Fan Motor.........................................................................4

3. Electrical Component ASSY ...................................................................6

4. Sound Blanket / Partition Plate ...............................................................9

5. Capillary Tube .......................................................................................10

6. Compressor...........................................................................................12

Note: The illustrations may be slightly different depending on the model.

Outer Panels Si011415E

2Removal Procedure

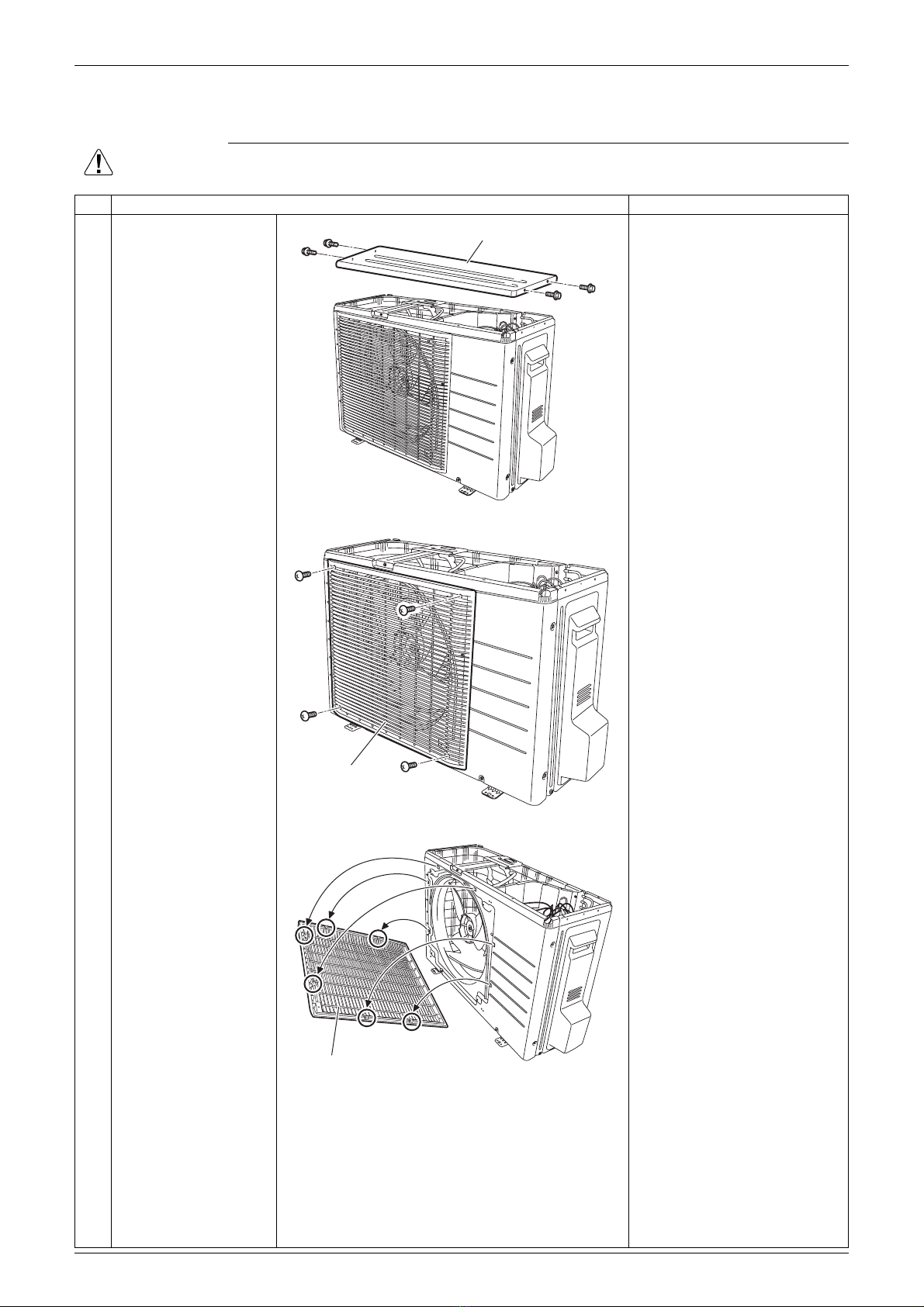

1. Outer Panels

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1Remove the 4 screws

and remove the top

panel.

2Remove the 4 screws

of the discharge grille.

3Unfasten the 6 hooks

and remove the

discharge grille.

Top panel

(R21442)

Discharge grille

(R21443)

Discharge grille

(R21444)

Si011415E Outer Panels

Removal Procedure 3

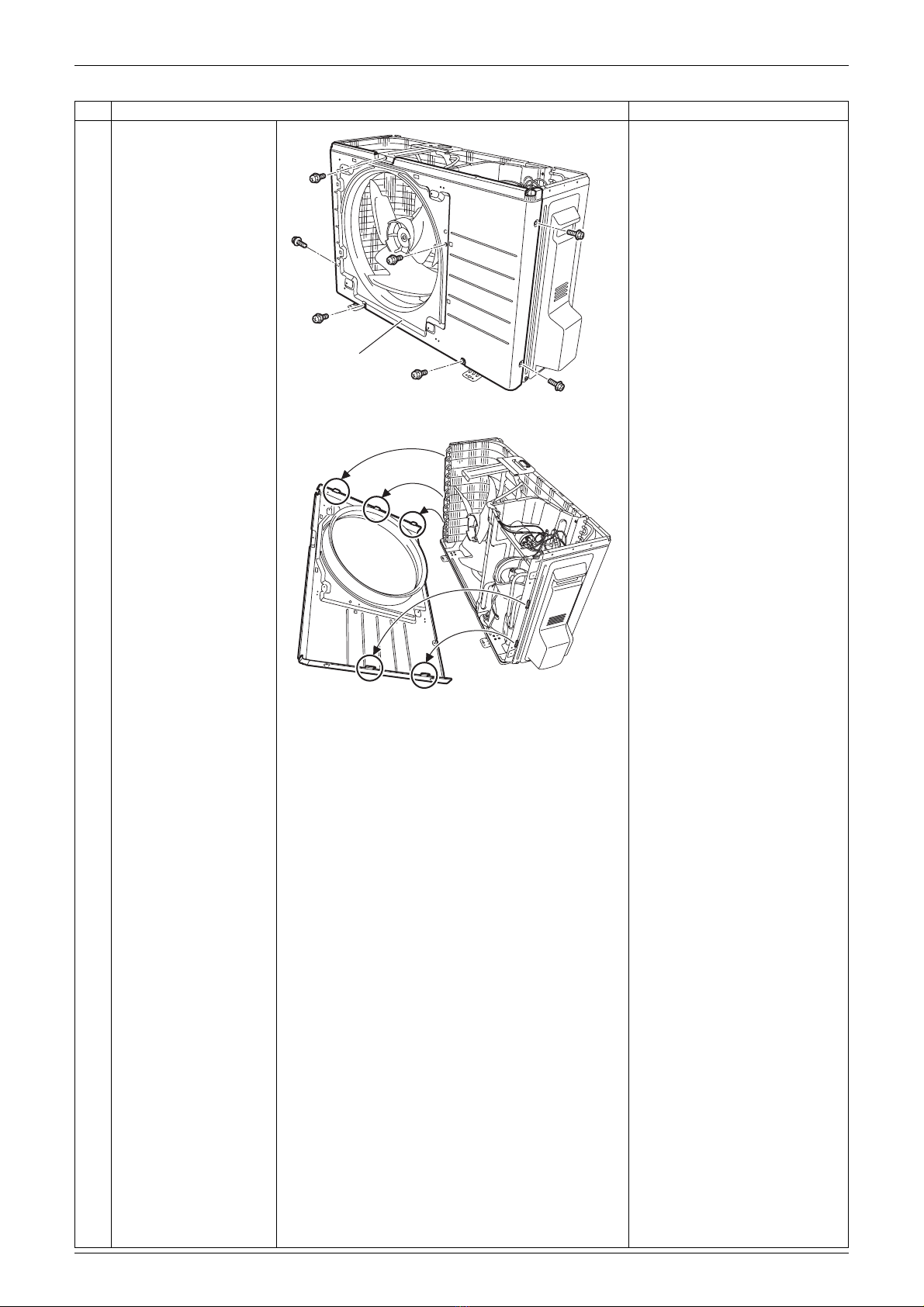

4Remove the 7 screws

of the front panel.

5Unfasten the 2 right

side hooks, then the 3

left side hooks to

remove the front panel.

Step Procedure Points

Front panel

(R21445)

(R21446)

Outdoor Fan / Fan Motor Si011415E

4Removal Procedure

2. Outdoor Fan / Fan Motor

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

Pull out the 2 terminals

(red, white) from the

capacitor (C1R).

Pull out the terminal 6

(black) from the

magnetic relay (K1M).

Cut the clamp and

release the fan motor

lead wire from the

groove.

4Remove the nut and

remove the outdoor fan.

Nut size: M6

When reassembling, align

the mark of the outdoor

fan with the D-cut section of

the motor shaft.

Capacitor Magnetic relay

K1M

C1R

to fan motor:

white

to fan

motor: red

Groove

Fan motor

lead wire

Clamp

to fan motor:

black

(R21447)

Nut

Outdoor fan

D-cut

(R21448)

10 mm

(0.39 inch)

(R18954)

Si011415E Outdoor Fan / Fan Motor

Removal Procedure 5

5Remove the screw and

remove the fan motor

fixing frame.

Be careful so as not to

damage the top part of the

outdoor heat exchanger fins.

When reassembling, put the

fan motor lead wire through

the back of the fan motor so

as not to be entangled with

the outdoor fan.

When reassembling, fit the 2

lower hooks into the bottom

frame.

6Unfasten the 2 hooks

on the fan motor fixing

frame and release the

fan motor lead wire.

7Remove the 4 screws

and remove the fan

motor.

Screw size: M4 × 12

Step Procedure Points

Fan motor fixing frame

(R21449)

(R21450)

Lead wire Outdoor fan

(R3249)

(R21452)

Hook

Fan motor

lead wire

(R21451)

Fan motor

(R21453)

Electrical Component ASSY Si011415E

6Removal Procedure

3. Electrical Component ASSY

Warning Be sure to wait for 10 minutes or more after turning off all power supplies before

disassembling work.

Step Procedure Points

1. Remove the right side panel.

When reassembling, make

sure to fit the 3 hooks.

Remove the screw of

the stop valve cover.

Slide the stop valve

cover downward and

remove it.

3Remove the 3 screws

and remove the wire

fixture.

Stop valve

cover

(R21454)

(R21455)

Wire fixture

(R21456)

Si011415E Electrical Component ASSY

Removal Procedure 7

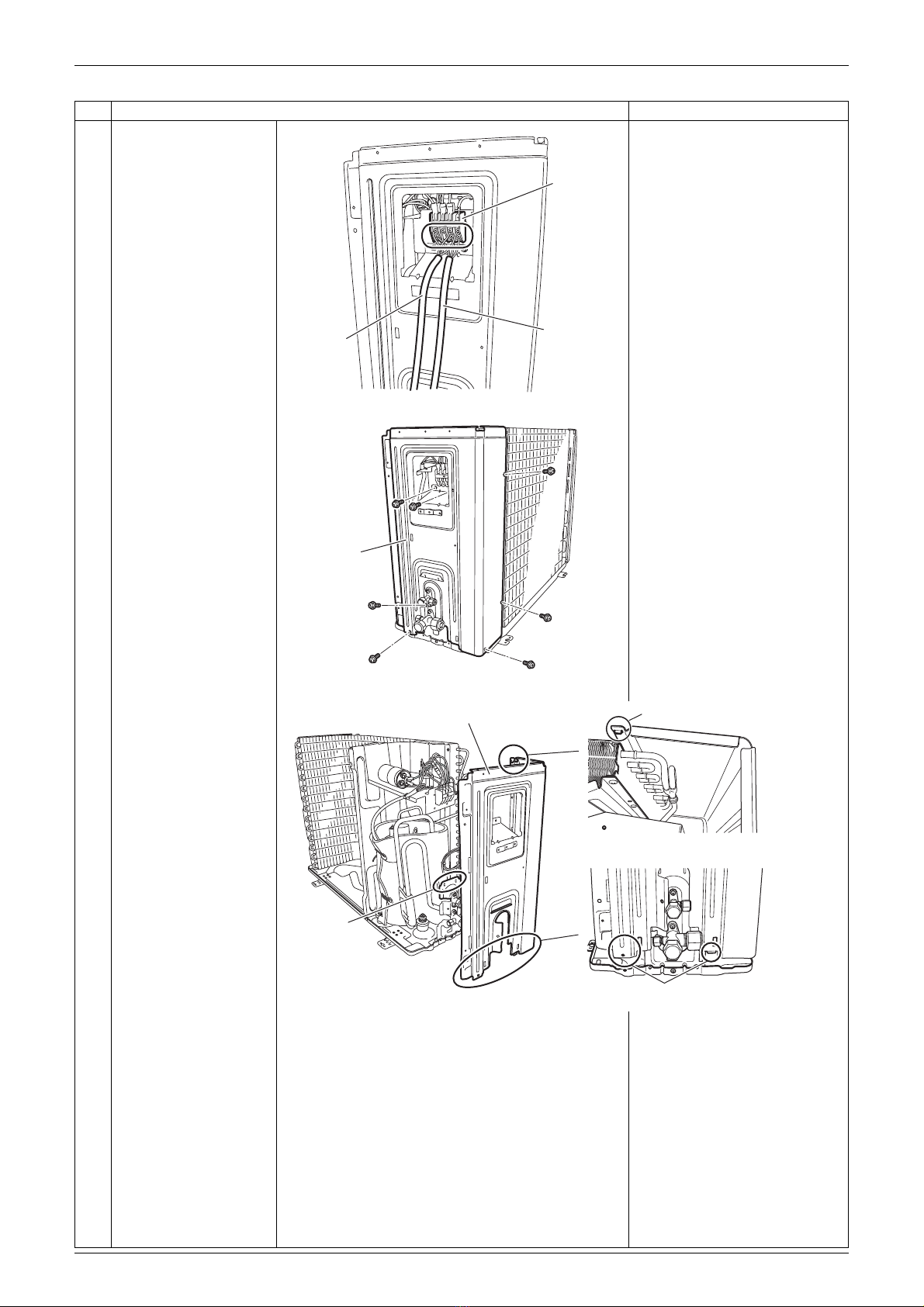

4Remove the 7 screws

on the terminal board

and disconnect the

connecting wire and

power supply wire.

5Remove the 7 screws

of the right side panel.

6Unfasten the 4 hooks

and remove the right

side panel.

Step Procedure Points

Connecting

wire

Power

supply wire

Terminal

board

(R21457)

Right side

panel

(R21458)

Hook

Right side panel

Hook

(R21459)

Electrical Component ASSY Si011415E

8Removal Procedure

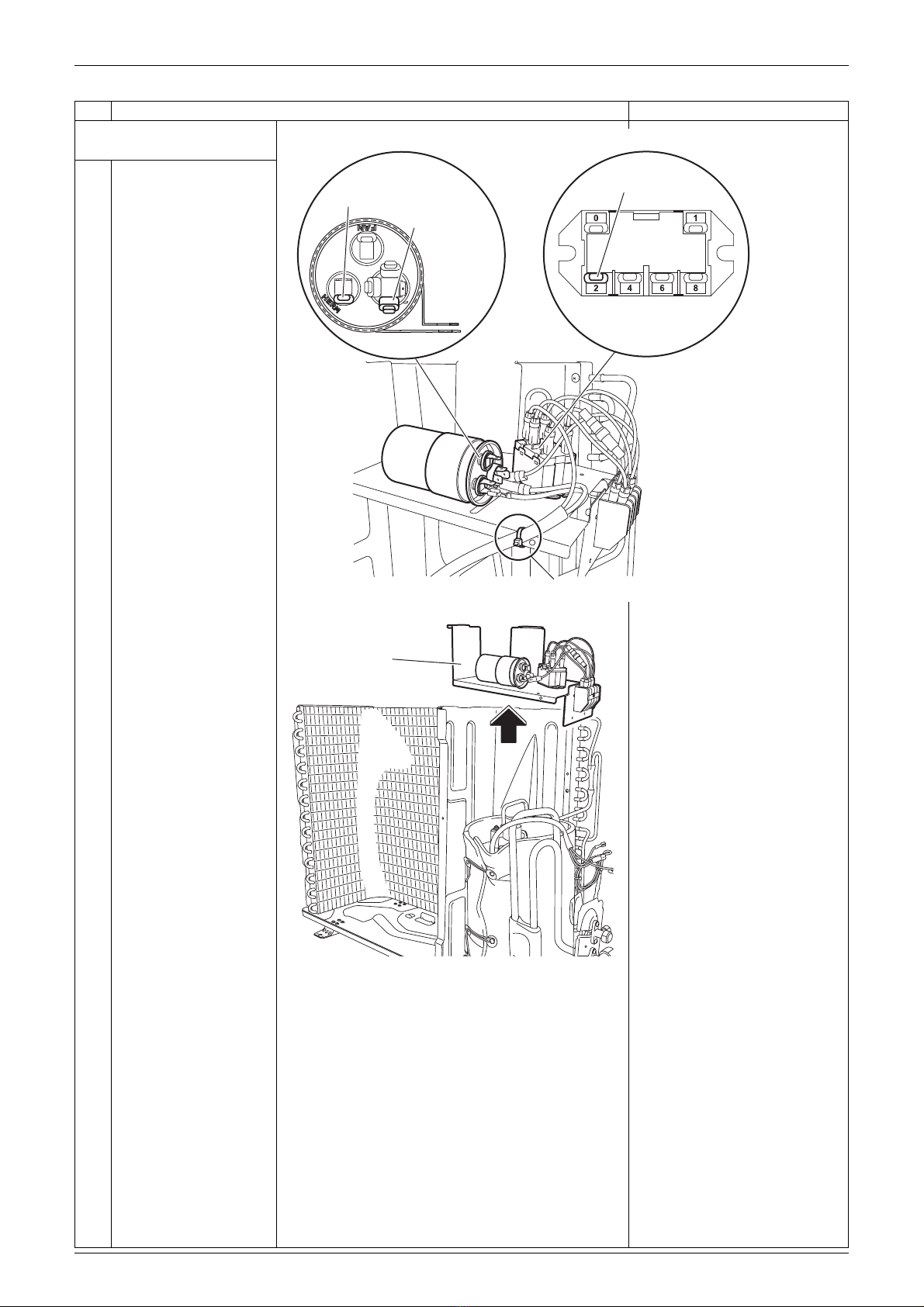

2. Remove the electrical

component ASSY.

Pull out the 2 terminals

(yellow, red) from the

capacitor (C1R).

Pull out the terminal 2

(blue) from the

magnetic relay (K1M).

Cut the clamp.

4Lift the electrical

component ASSY up

and remove it.

Step Procedure Points

Clamp

Capacitor Magnetic relay

C1R

K1M

to compressor

(S): yellow to compressor

(R): red

to compressor

(C): blue

(R21460)

Electrical

component

ASSY

(R21461)
