Daikin RN60HV1A User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

Outdoor Unit

Non-Inverter

Pair Type

6.0 kW Class

Si011087

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

RN60HV1A

RN60JV1

Si011087

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels ........................................................................2

2. Removal of Outdoor Fan / Fan Motor .....................................................5

3. Removal of Electrical Component ASSY ................................................7

4. Removal of Sound Blankets..................................................................11

5. Removal of Capillary Tube....................................................................12

6. Removal of Compressor ASSY (Pattern 1)...........................................13

7. Removal of Compressor ASSY (Pattern 2)...........................................15

Note: The illustrations may be slightly different depending on the model.

Removal of Outer Panels Si011087

2Removal Procedure

1. Removal of Outer Panels

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the top panel. Piping may be slightly

different from the

illustrations.

1 Remove the 8 screws

of the top panel.

2 Pull the suction grille to

unfasten the hook.

Take care not to cut your

finger by the fins of the

outdoor heat exchanger.

3 Lift up and remove the

top panel.

Top panel

(R5423)(R5423)

(R5424)

Suction

grille

(R5425)

(R5426)

Si011087 Removal of Outer Panels

Removal Procedure 3

4 Unfasten the hooks with

a flat screwdriver and

remove the suction

grille.

2. Remove the front panel

(2).

1 Remove the screw and

remove the front panel

(2).

When reassembling, fit the 5

hooks.

3. Remove the piping cover

(front).

1 Remove the screw and

remove the piping cover

(front).

Step Procedure Points

Hook

(R5427)

Front

panel

(2)

(R12807)

(R12808)

Piping cover

(front)

Hook Hook

(R13234)

Removal of Outer Panels Si011087

4Removal Procedure

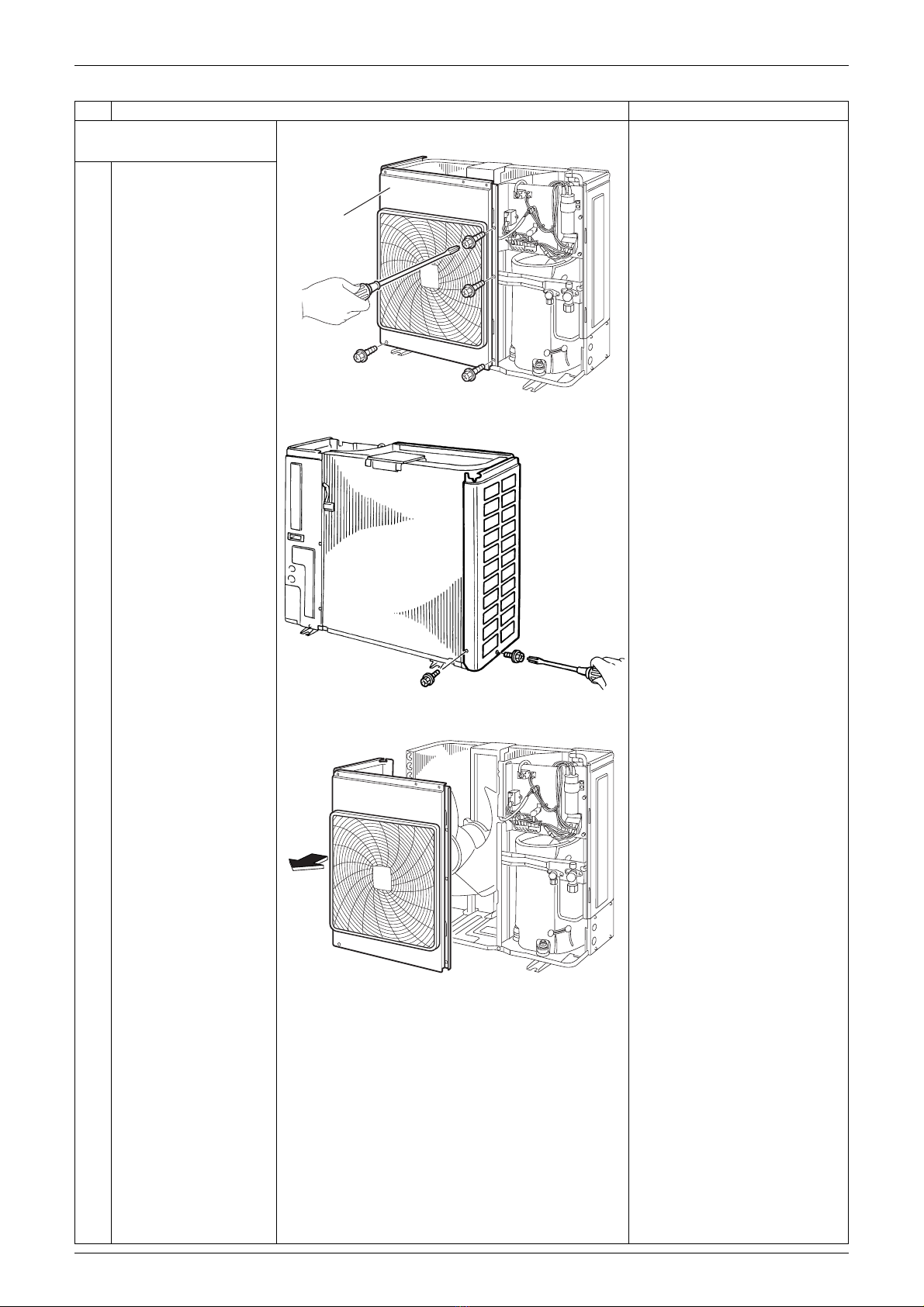

4. Remove the front panel

(1).

1 Remove the 6 screws

and remove the front

panel (1).

Step Procedure Points

Front panel (1)

(R12810)

(R5432)

(R8322)

Si011087 Removal of Outdoor Fan / Fan Motor

Removal Procedure 5

2. Removal of Outdoor Fan / Fan Motor

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1 Disconnect the relay

connector for the fan

motor.

Preparation

Remove the front panel

according to the "Removal of

Outer Panels".

2 Unfasten the hook with

a flat screwdriver.

Put the fan motor lead wire

through the back of the fan

motor when reassembling so

as not to be entangled with

the outdoor fan.

3 Release the fan motor

lead wire from the

partition plate.

(R15492)

Hook

(R5436)

(R3249)

Lead wire Outdoor fan

(R12812)

Partition plate

Removal of Outdoor Fan / Fan Motor Si011087

6Removal Procedure

4 Remove the nut and

remove the outdoor fan.

Nut size : M8

When reassembling, fit the

D-cuts of the lock washer

and the shaft of fan motor.

5 Remove the 4 screws

and remove the fan

motor.

Be sure to remove the lower

screws first. If the upper

screws are removed first, the

fan motor may tilt or fall

because the center of its

gravity is toward the front.

It may cause injuries.

M5 × 16

Step Procedure Points

Lock washer

Nut

(R15404)

13 mm

(R12301)

(R12834)

D-cut

Lock washer

(R12835)

(R5439)

Si011087 Removal of Electrical Component ASSY

Removal Procedure 7

3. Removal of Electrical Component ASSY

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the side panel. Preparation

Remove the top panel, front

panel (1) (2), and piping

cover (front) according to the

"Removal of Outer Panels".

1 Remove the 9 screws

and remove the right

side panel.

Right side

panel

(R15402)

(R15488)

Hook

(R5442)

Removal of Electrical Component ASSY Si011087

8Removal Procedure

2. Remove the electrical

component ASSY.

1 Disconnect the 2

terminals from the fan

motor capacitor

(C12R).

2 Detach the outdoor

temperature sensor.

Remove the sensor fixing

plate.

3 Disconnect the

terminals of the outdoor

temperature thermostat

(S1T).

Step Procedure Points

(R16172)

White

Red

Fan motor capacitor (C12R)

(R12813)

Outdoor

temperature

sensor

(R12814)

(R15481)

Outdoor

temperature

thermostat

(S1T)

to X11A: orange

to X11A: black

S1T (R15472)

to K1M(4): white
