Daikin RK15KEVM User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

1.5 kW Class

Outdoor Unit

Inverter

Pair Type

Si001159

Service Manual

Removal Procedure

Outdoor Unit

Applicable Model

zCooling Only

RK15KEVM

Si001159

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels ........................................................................2

2. Removal of Outdoor Fan / Fan Motor .....................................................4

3. Removal of Electrical Box / PCBs ...........................................................6

4. Removal of Sound Blankets..................................................................19

5. Removal of Electronic Expansion Valve ASSY.....................................21

6. Removal of Compressor .......................................................................22

Removal of Outer Panels Si001159

2Removal Procedure

1. Removal of Outer Panels

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Appearance features

Take care not to cut your

finger by the fins of the

outdoor heat exchanger.

2. Remove the panels.

The stop valve cover is

united with the shield plate.

When reassembling, make

sure to fit the 3 hooks.

1Remove the screw of

the stop valve cover.

Pull down the stop

valve cover and remove

it.

(R10707)

(R14768)

(R14769)

Stop valve

cover

(R14606)

Shield plate

Hook

Si001159 Removal of Outer Panels

Removal Procedure 3

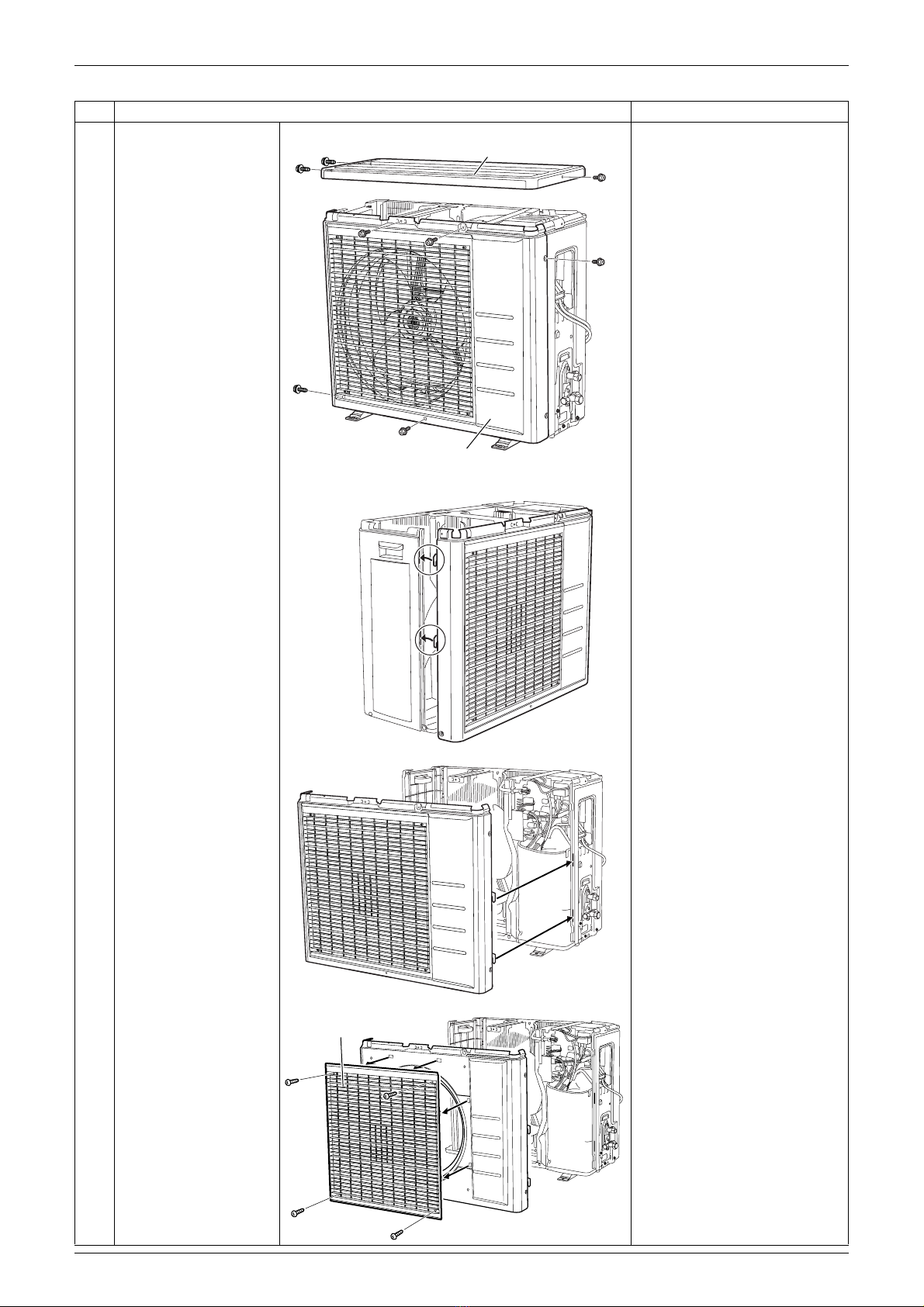

2Remove the 3 screws

(right: 1 screw, left: 2

screws) and remove the

top panel.

3Remove the 5 screws

of the front panel.

4Lift up the left side and

unfasten the hooks.

5Unfasten the right side

hooks and remove the

front panel.

Remove the 4 screws

of the discharge grille.

Unfasten the 6 hooks

and remove the

discharge grille.

Step Procedure Points

(R14771)

Top panel

Front panel

(R14772)

(R14773)

(R14774)

Discharge grille

Removal of Outdoor Fan / Fan Motor Si001159

4Removal Procedure

2. Removal of Outdoor Fan / Fan Motor

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the outdoor fan. Preparation

Remove the panels

according to the “Removal

of Outer Panels”.

Nut size: M6

Remove the nut of the

outdoor fan.

Remove the outdoor

fan.

When reassembling, align

mark of the outdoor fan

with D-cut section of the

motor shaft.

2. Remove the fan motor.

1Disconnect the

connector for the fan

motor [S70].

2Release the fan motor

lead wire from the

hooks.

(R14775)

Shaft

D-cut

Nut

Outdoor

fan

10 mm

(R12236)

(R14776)

Fan motor lead wire [S70]

Si001159 Removal of Outdoor Fan / Fan Motor

Removal Procedure 5

3Remove the screw and

remove the fan motor

fixing frame.

When reassembling, put the

fan motor lead wire through

the back of the fan motor so

as not to be entangled with

the outdoor fan.

4Release the fan motor

lead wire from the

hooks.

5Remove the 3 screws

to remove the fan

motor.

Step Procedure Points

(R14777)

Fan motor fixing frame

(R3249)

Lead wire Outdoor fan

(R14778)

(R14779)

Fan motor

Removal of Electrical Box / PCBs Si001159

6Removal Procedure

3. Removal of Electrical Box / PCBs

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Remove the right side

panel.

Preparation

Remove the panels

according to the “Removal

of Outer Panels”.

1Unhook the outdoor

temperature thermistor.

2Release the outdoor

temperature thermistor

from the groove.

3Remove the screws

and release the

connecting wires.

(R14780)

Outdoor temperature thermistor

(R14781)

(R14782)

Si001159 Removal of Electrical Box / PCBs

Removal Procedure 7

4Remove the 3 screws

and remove the wire

clamp.

5Remove the screw on

the rear side of the right

side panel.

6Remove the 4 screws

on the right side panel.

Step Procedure Points

(R14783)

Wire

clamp

(R14784)

Right

side

panel

(R14785)

Removal of Electrical Box / PCBs Si001159

8Removal Procedure

7Unfasten the hook on

the rear side.

When reassembling, make

sure to fit the hook.

8Unfasten the hook

above the electrical

box.

9Unfasten the hook, and

remove the right side

panel.

Step Procedure Points

Hook

(R14786)

(R14787)

(R14788)

Right

side

panel

Hook
