Daikin RE25JV1 User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

2.5/3.5 kW Class

Outdoor Unit

Non-Inverter

Pair Type

Si01-752

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

RE25JV1

RE35JV1

Si01-752

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels ........................................................................2

2. Removal of Bellmouth .............................................................................4

3. Removal of Electrical Components ASSY ..............................................5

4. Removal of Outdoor Fan / Fan Motor .....................................................6

5. Removal of Sound Blanket......................................................................8

6. Removal of Partition Plate.......................................................................9

7. Removal of Compressor .......................................................................10

Note: The illustrations may be slightly different depending on the model.

Removal of Outer Panels Si01-752

2Removal Procedure

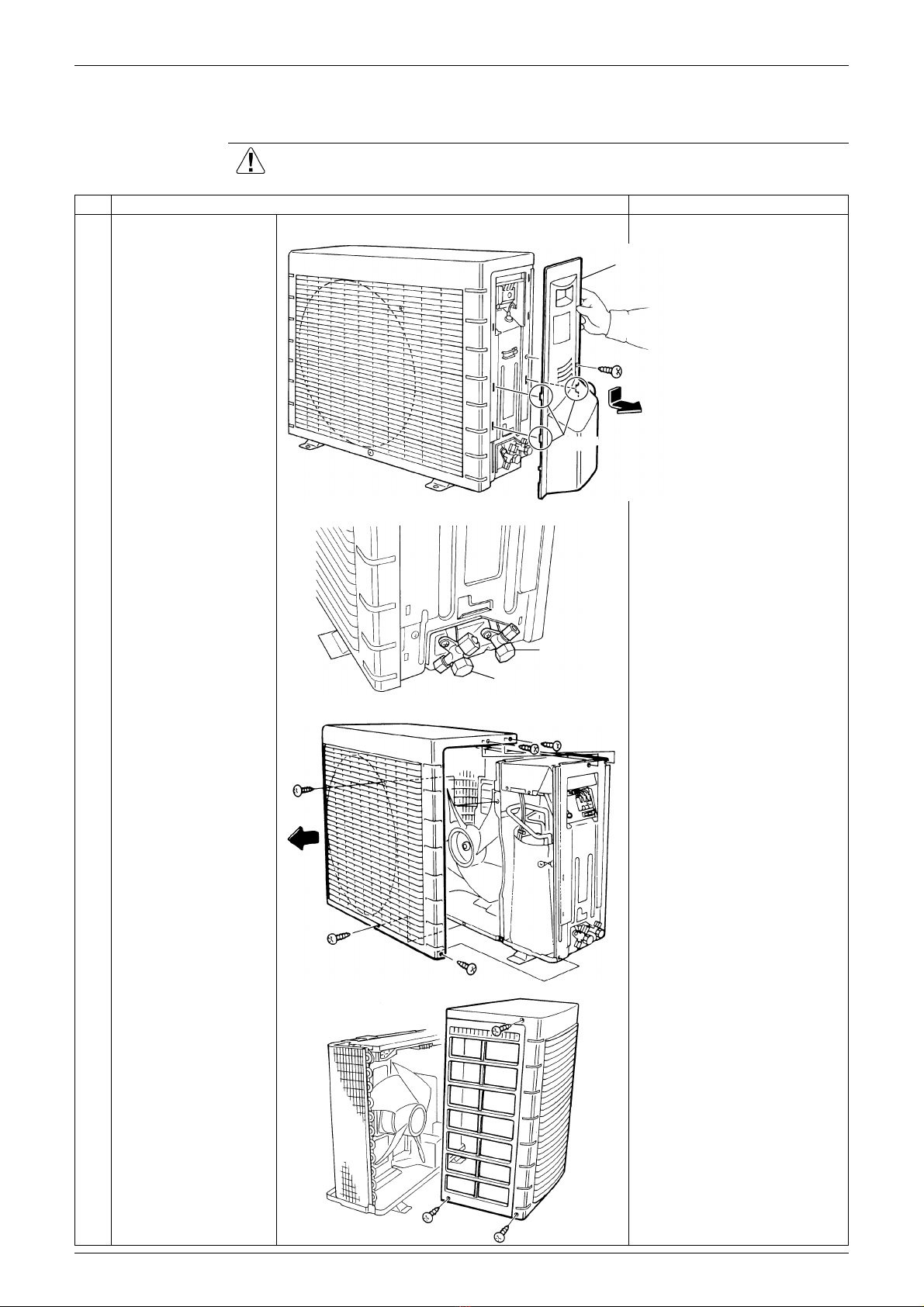

1. Removal of Outer Panels

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1Remove the screw and

remove the stop valve

cover.

As the stop valve cover has

3 hooks, slide the cover

downward to remove.

2The top panel and the

front panel are

constructed in a

monoblock.

Remove the 3 screws

at the right side and the

2 screws at the front

side.

3Remove the 3 screws

at the left side.

Hook

(R1847)

Stop valve

cover

(R12889)

Stop valve

(liquid)

Stop valve (gas)

(R1849)

(R12820)

Si01-752 Removal of Outer Panels

Removal Procedure 3

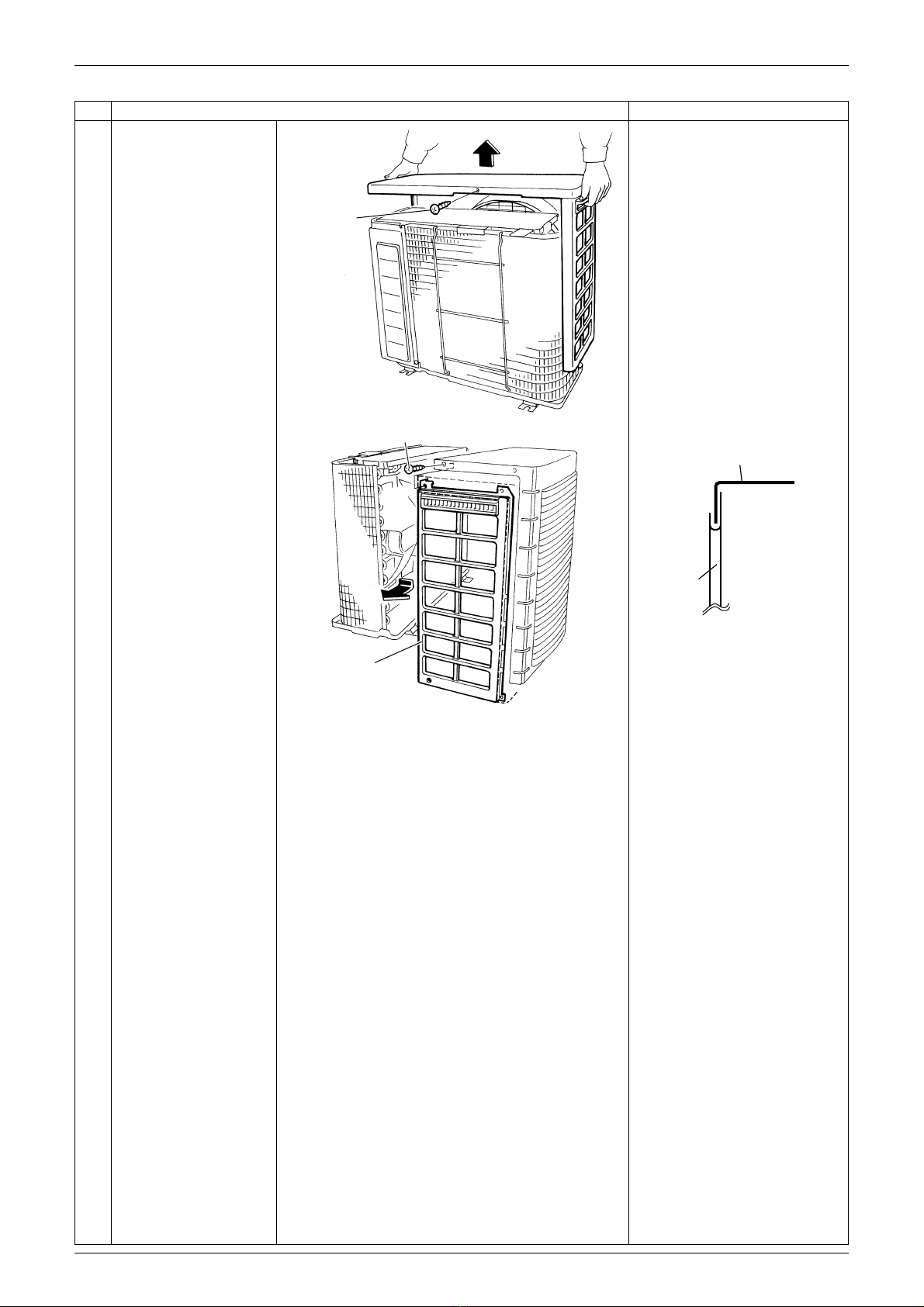

4Remove the screw at

the rear of the top

panel. Once lift the

panel ASSY and then

remove it forward.

The left side plate and the

bellmouth can be removed

all at once.

When restoring the panel

ASSY, move it horizontally

and get it down for the easy

work.

5Remove the screw and

remove the left side

panel.

Sectional view

Step Procedure Points

Screw

(R1851)

Screw

Left side panel

(R12821)

Top panel

(R1853)

Left side

panel

Removal of Bellmouth Si01-752

4Removal Procedure

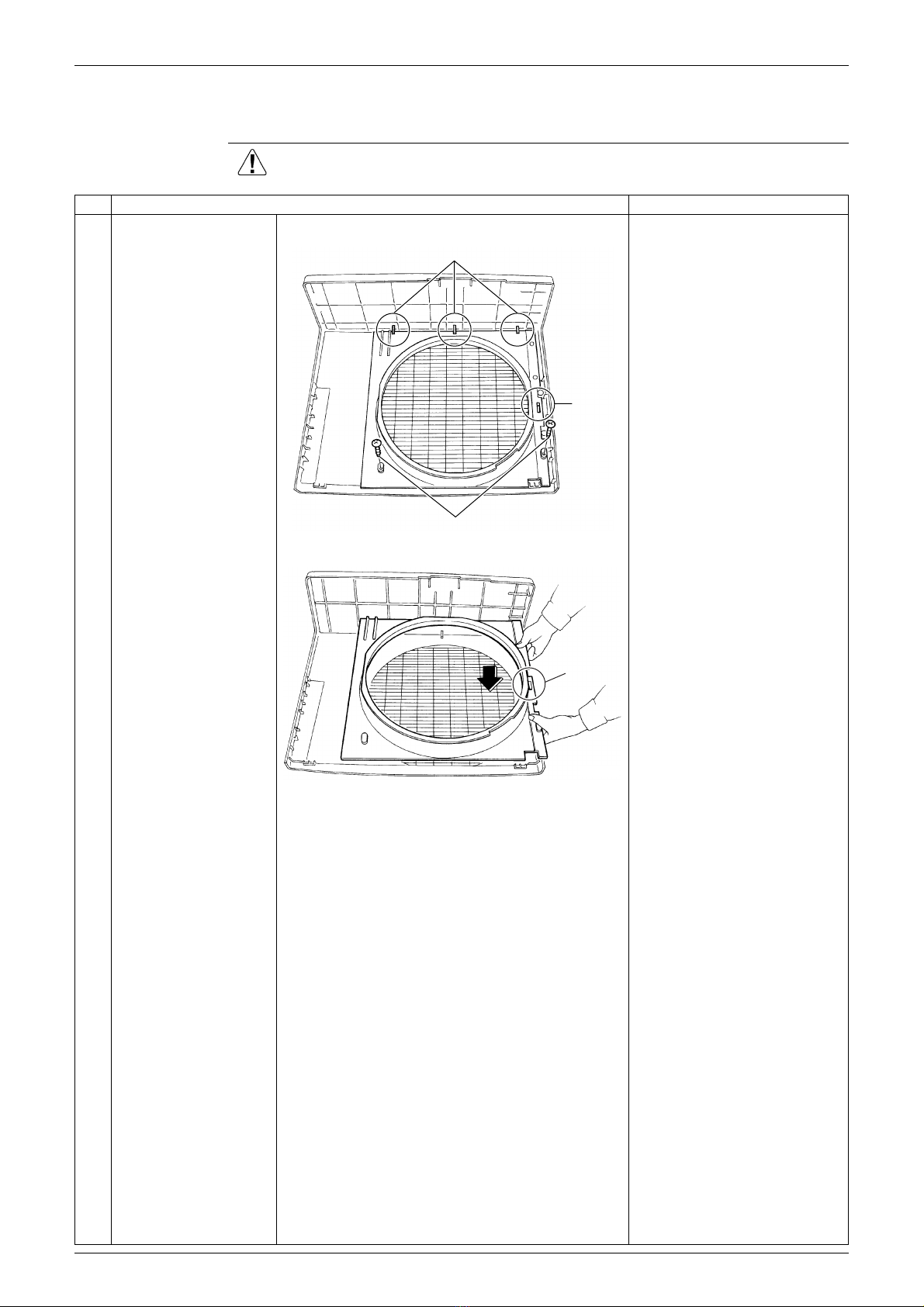

2. Removal of Bellmouth

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1The bellmouth is

attached with 2 screws

and 4 hooks.

2Remove the 2 screws

and slide the bellmouth

in the arrow direction to

disengage the hook B.

Remove the bellmouth.

Hook A

Hook B

Screw

(R1854)

(R12796)

Hook B

Si01-752 Removal of Electrical Components ASSY

Removal Procedure 5

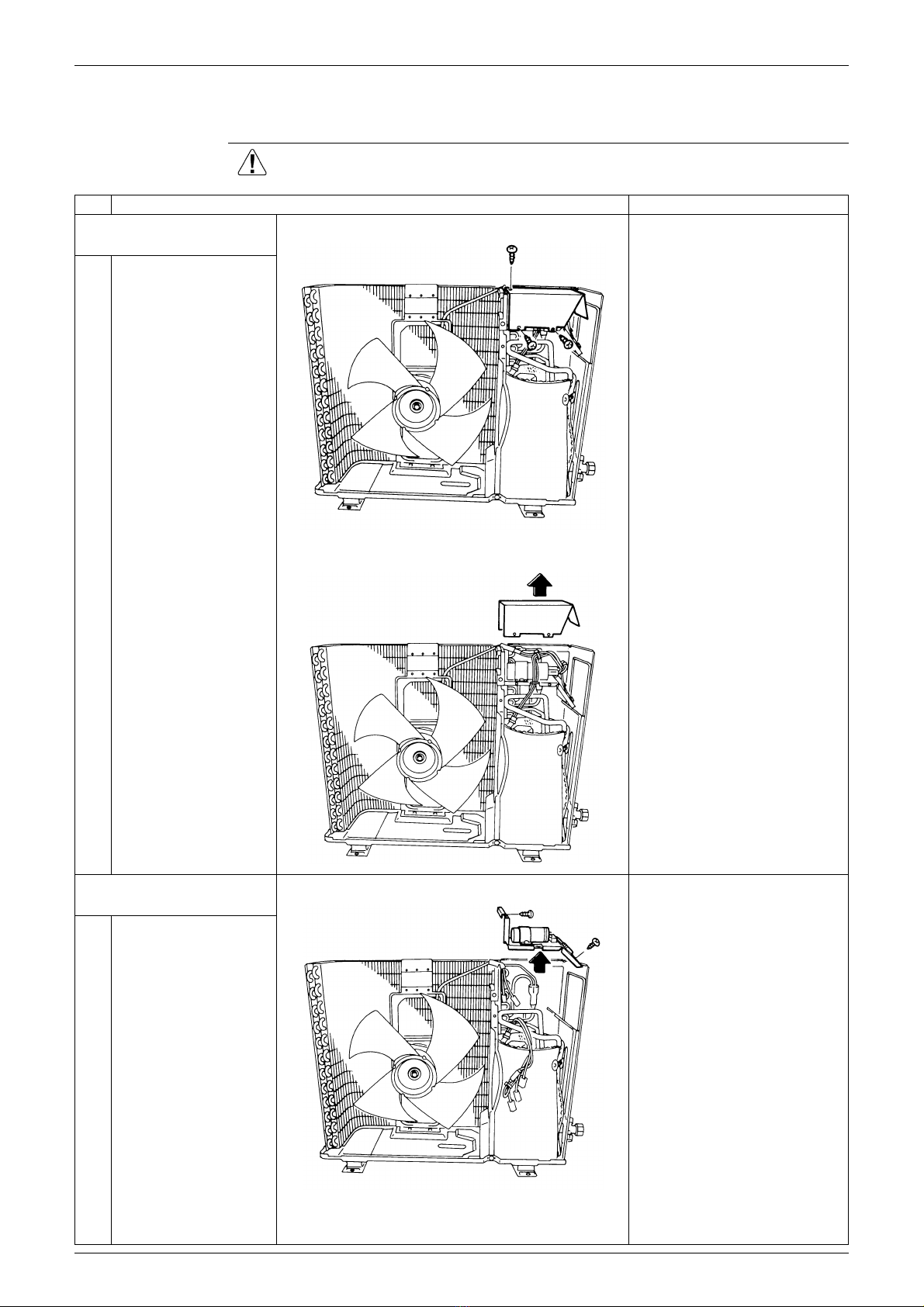

3. Removal of Electrical Components ASSY

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1. Remove the drip proof

plate.

1Remove the 3 screws

of the drip proof plate.

2Remove the drip proof

plate.

2. Remove the electrical

components ASSY.

1Disconnect all the

harnesses.

2Remove the 2 screws

of electrical

components ASSY.

3Remove the electrical

components ASSY.

(R1857)

(R1858)

(R1859)

Removal of Outdoor Fan / Fan Motor Si01-752

6Removal Procedure

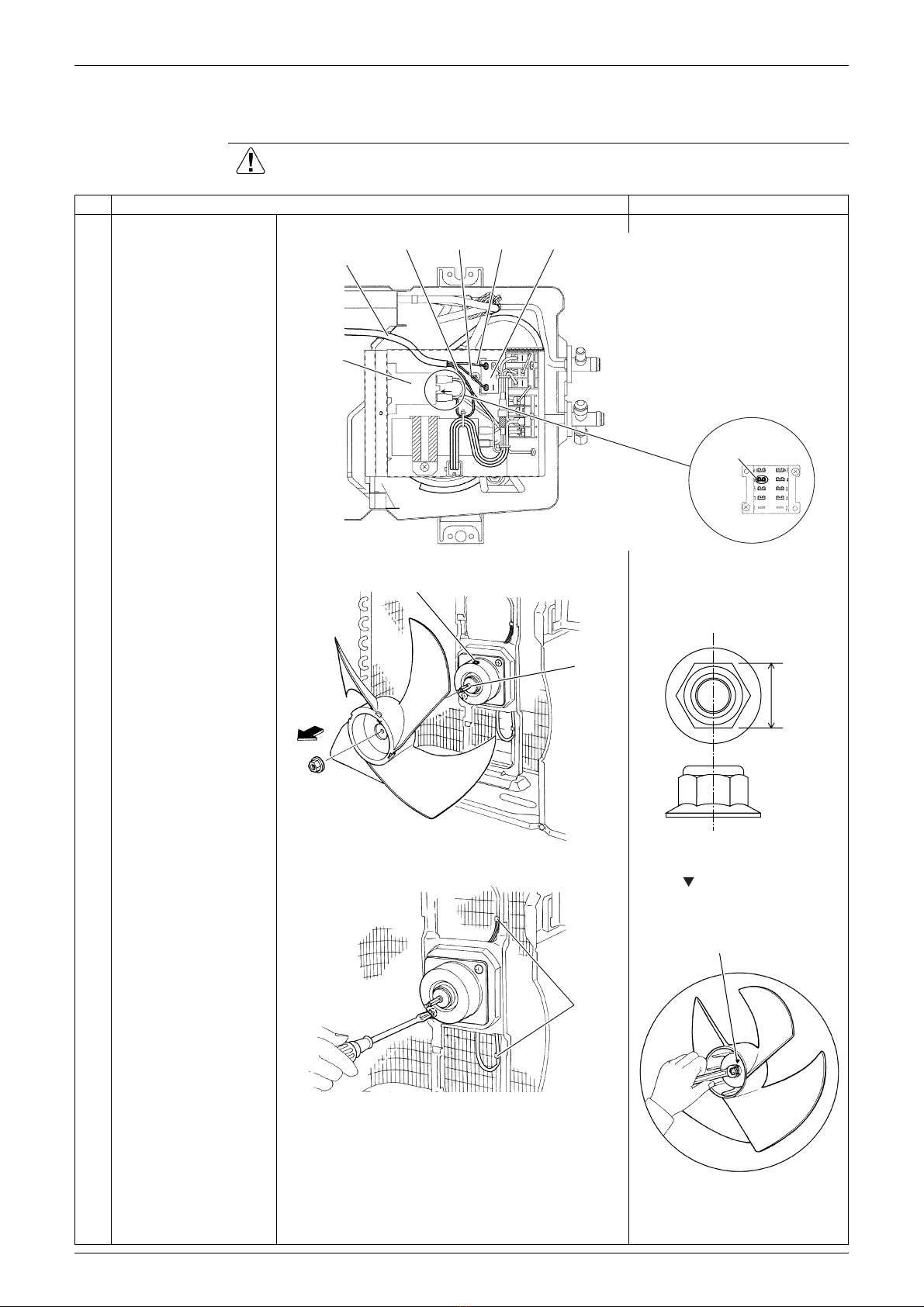

4. Removal of Outdoor Fan / Fan Motor

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1Disconnect the 3

terminals of the fan

motor lead wire.

(2 from the fan motor

capacitor, 1 from the

magnetic contactor)

Nut size: M6

When reassembling, align

the mark of the outdoor

fan with the D-cut section of

the motor shaft.

The fan motor should be

restored so that the mark z

will be at upper side.

2Remove the nut and

remove the outdoor fan.

Open the 2 hooks and

release the fan motor

lead wire.

Remove the 2 screws

of the fan motor.

Fan motor

lead wire: black

Fan motor capacitorRedWhiteBlack

Fan motor

lead wire

Magnetic

contactor

View from A

(R12890)

10 mm

(R12236)

(R1861)

TMark

(R12797)

D cut

zMark

(R12798)

Hoo

Si01-752 Removal of Outdoor Fan / Fan Motor

Removal Procedure 7

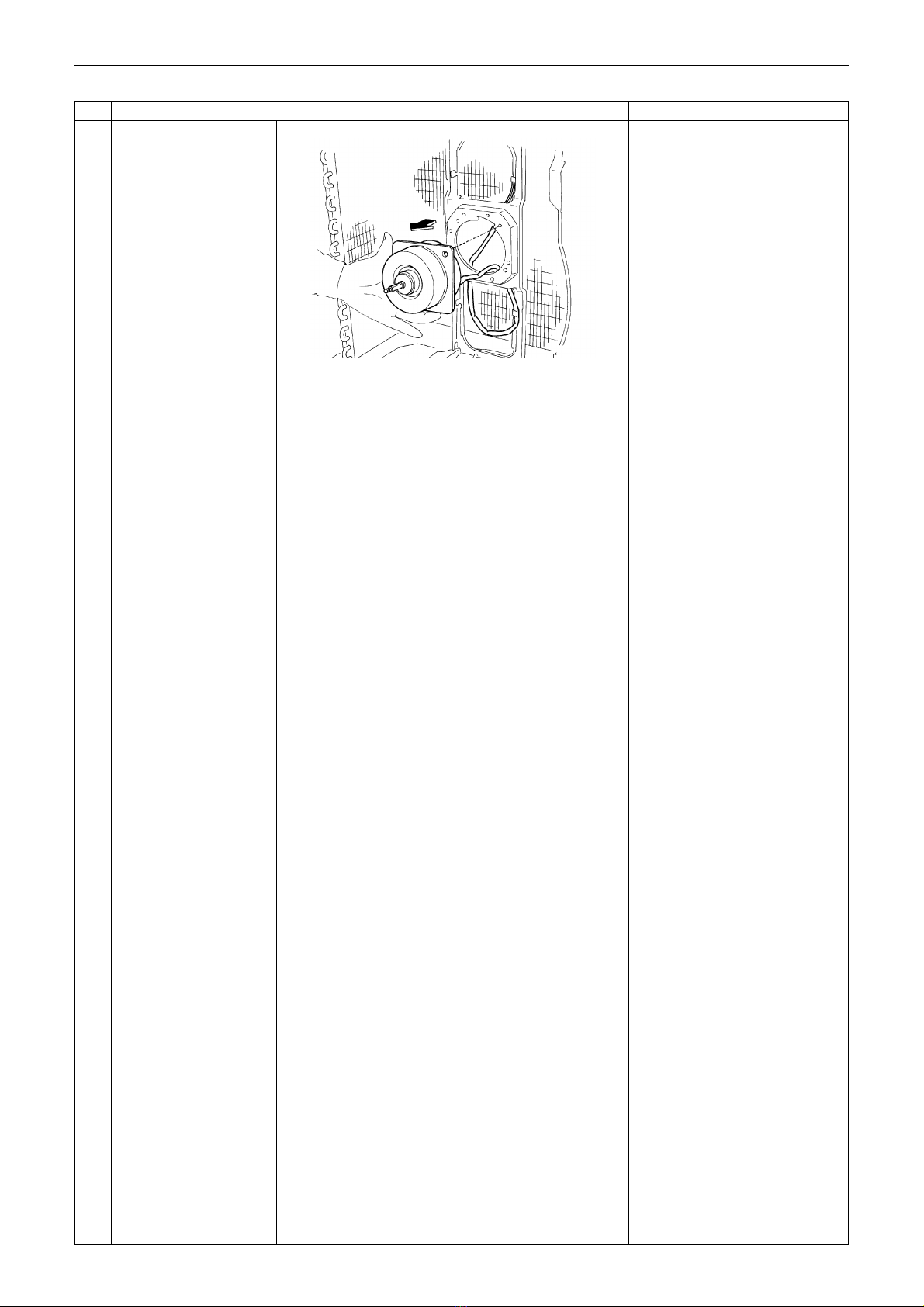

5Remove the fan motor.

Step Procedure Points

(R12799)

Removal of Sound Blanket Si01-752

8Removal Procedure

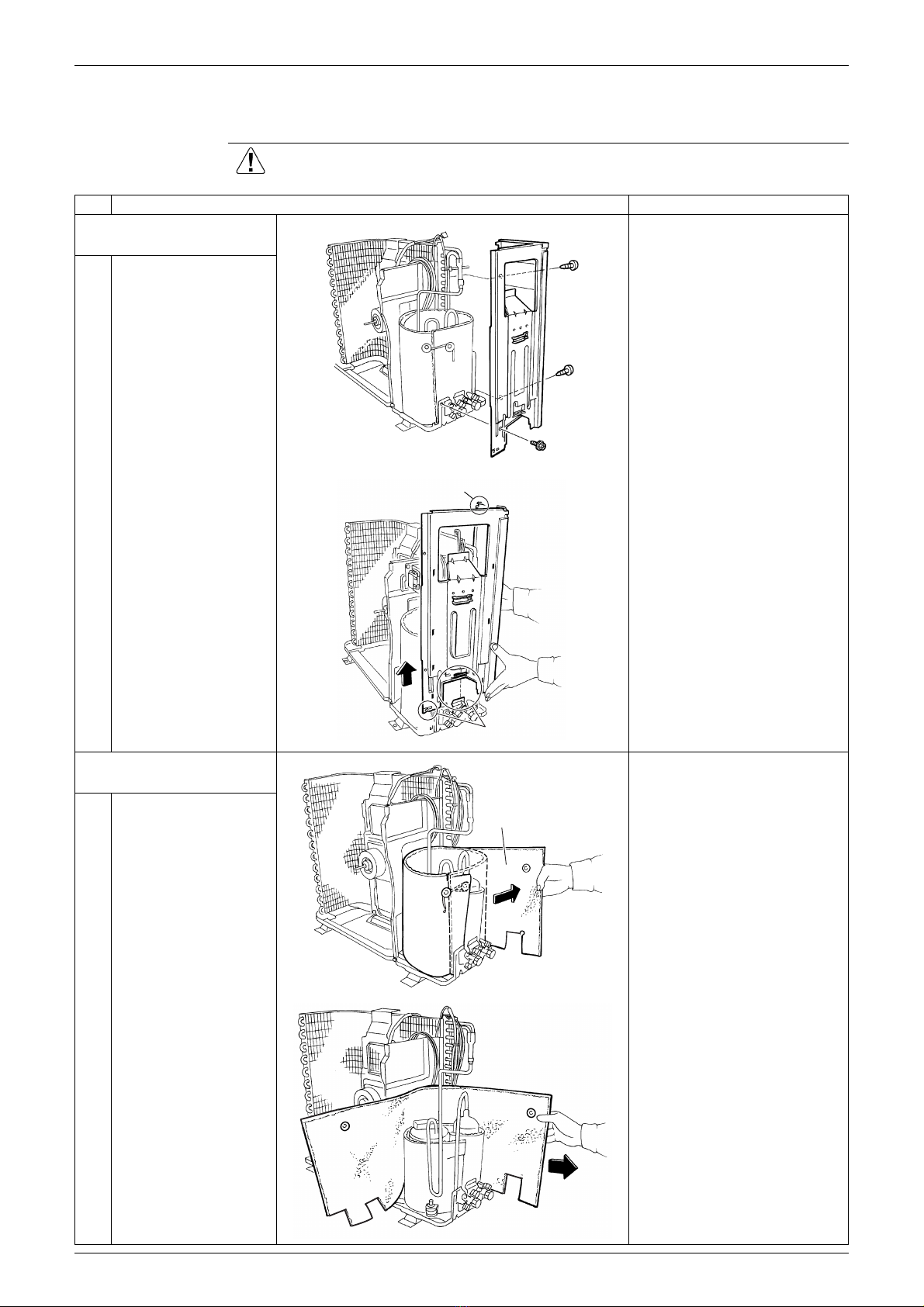

5. Removal of Sound Blanket

Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies

before disassembling work.

Step Procedure Points

1. Remove the right side

panel.

1Remove the 3 screws

of the right side panel.

2Lift up and remove the

right side panel.

When reassembling, fit the 3

hooks.

2. Remove the sound

blanket.

Since the piping ports are

torn easily, remove the

sound blanket carefully.

When restoring, the sound

blanket should pass the

internal side of the piping.

Some models also have a

sound blanket (top).

1Untie the string and

open the sound blanket

(body).

2Pull out the sound

blanket (body).

(R12822)

(R12823)

Hook

(R12824)

Sound blanket (body)

(R12837)
