Daikin RE12JV2S User manual

REMOVAL

PROCEDURE

SERVICE MANUAL

12000/18000 Btu/h Class

Outdoor Unit

Non-Inverter

Pair Type

Si01-983

Service Manual

Removal Procedure

Outdoor Unit

zCooling Only

RE12JV2S

RE18JV2S

Si01-983

Removal Procedure 1

Table of Contents

1. Removal of Outer Panels / Fan Motor.....................................................2

2. Removal of Electrical Components .......................................................10

3. Removal of Sound Blankets..................................................................14

4. Removal of Capillary Tube (Pattern 1)..................................................15

5. Removal of Capillary Tube (Pattern 2)..................................................16

6. Removal of Compressor ASSY.............................................................17

Note: The illustrations may be slightly different depending on the model.

Removal of Outer Panels / Fan Motor Si01-983

2Removal Procedure

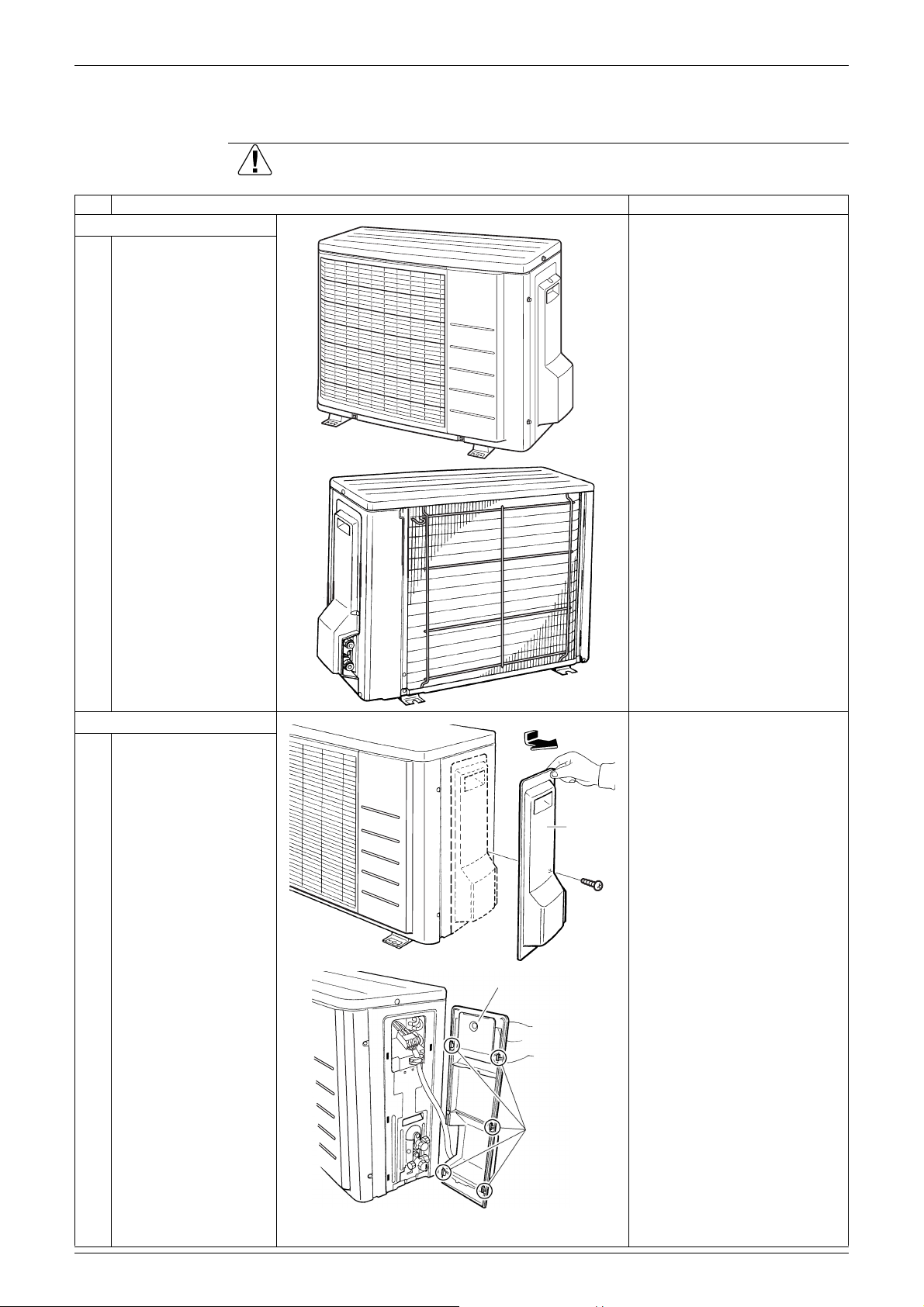

1. Removal of Outer Panels / Fan Motor

Procedure Warning Be sure to wait for 10 minutes or more after turning off all power

supplies before disassembling work.

Step Procedure Points

1. Appearance features

Take care not to cut your

finger by the fins of the

outdoor heat exchanger.

2. Remove the panels.

The stop valve cover is

united with the shield plate.

When reassembling, make

sure to fit the 5 hooks.

1Remove the screw of

the stop valve cover.

Pull down the stop

valve cover and remove

it.

(R15226)

(R16332)

Stop

valve

cover

(R7188)

Shield plate

Hook

(R15256)

Si01-983 Removal of Outer Panels / Fan Motor

Removal Procedure 3

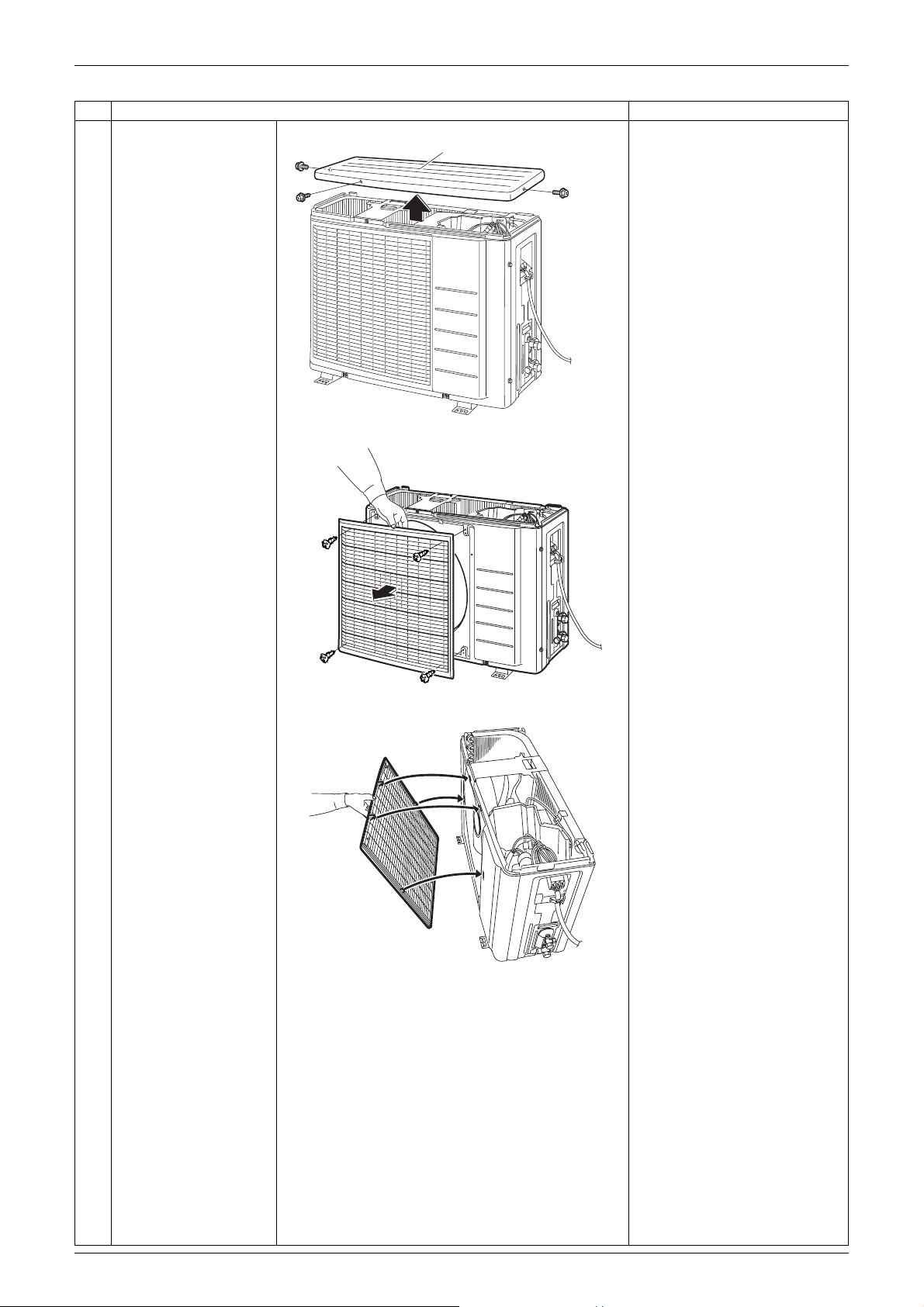

2Remove the 3 screws

and remove the top

panel.

3Remove the 4 screws

and remove the

discharge grille.

The discharge grille has 4

hooks.

Step Procedure Points

Top panel

(R15227)

(R15257)

(R16411)

Removal of Outer Panels / Fan Motor Si01-983

4Removal Procedure

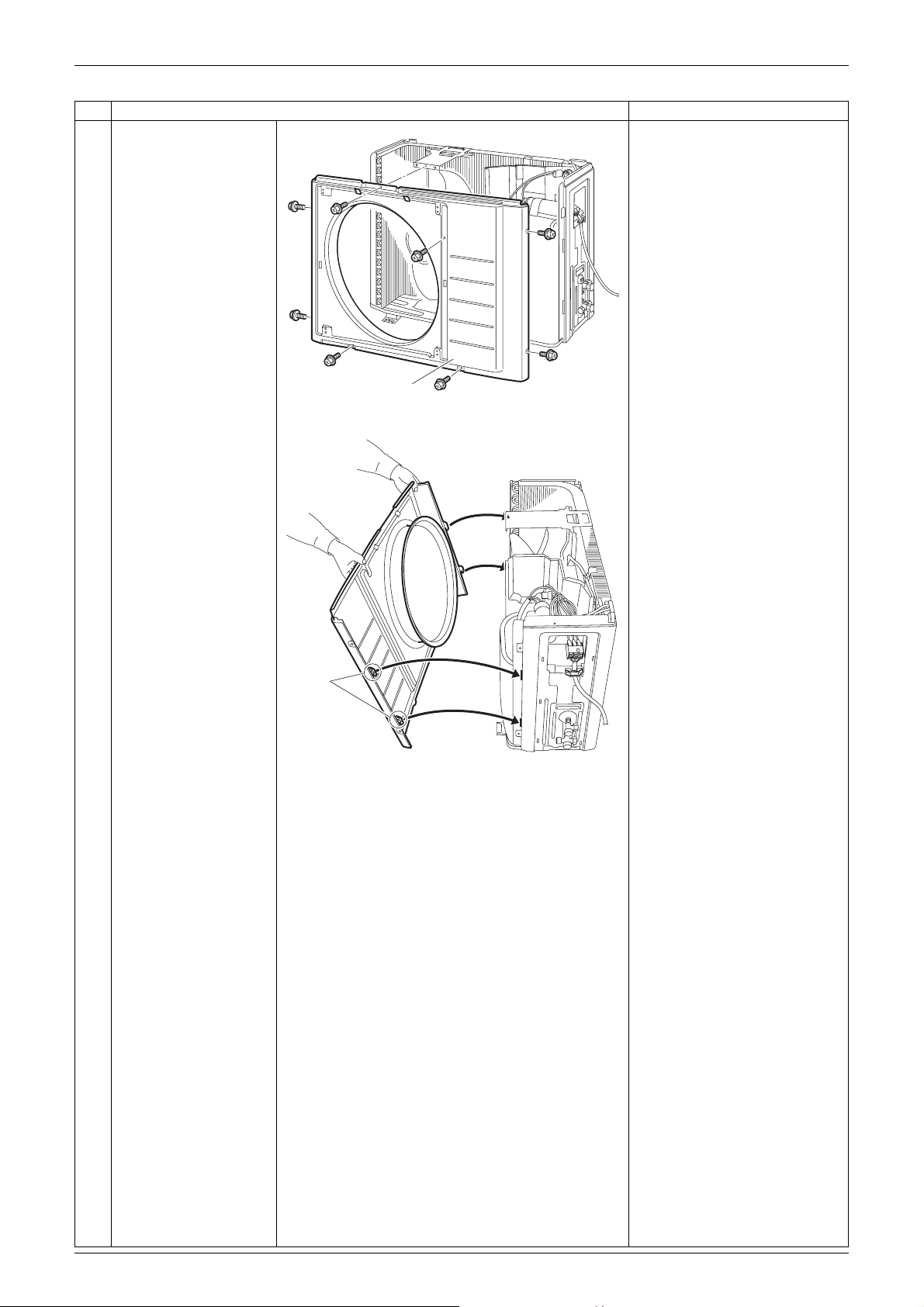

4Remove the 8 screws

and remove the front

panel.

5Unfasten the hooks.

Pull and remove the

front panel.

The front panel has 4 hooks.

Step Procedure Points

(R15228)

Front panel

Hook

(R16412)

Si01-983 Removal of Outer Panels / Fan Motor

Removal Procedure 5

3. Remove the fan motor. Nut size: M6

1Remove the nut of the

outdoor fan.

2Remove the outdoor

fan.

Align the mark of the

outdoor fan with the D-cut

section of the motor shaft

when reassembling.

3Pull out the 2 terminals

(red, white) from the fan

capacitor (C2R).

Fan capacitor (C2R)

Terminal board (X1M)

4Pull out the terminal

(black) from the

terminal board X1M (2).

5Release the fan motor

lead wire from the hook.

Step Procedure Points

(R15230)

Outdoor fan

10 mm

(R12236)

D-cut

(R7197)

(R16573)

Fan capacitor

Terminal

board

Hook

(R16409)

to fan motor

(white)

to fan motor

(red)

to terminal board

X1M(1): red

(R15260)

to fan motor

(upper: black)

X1M

(2)

Removal of Outer Panels / Fan Motor Si01-983

6Removal Procedure

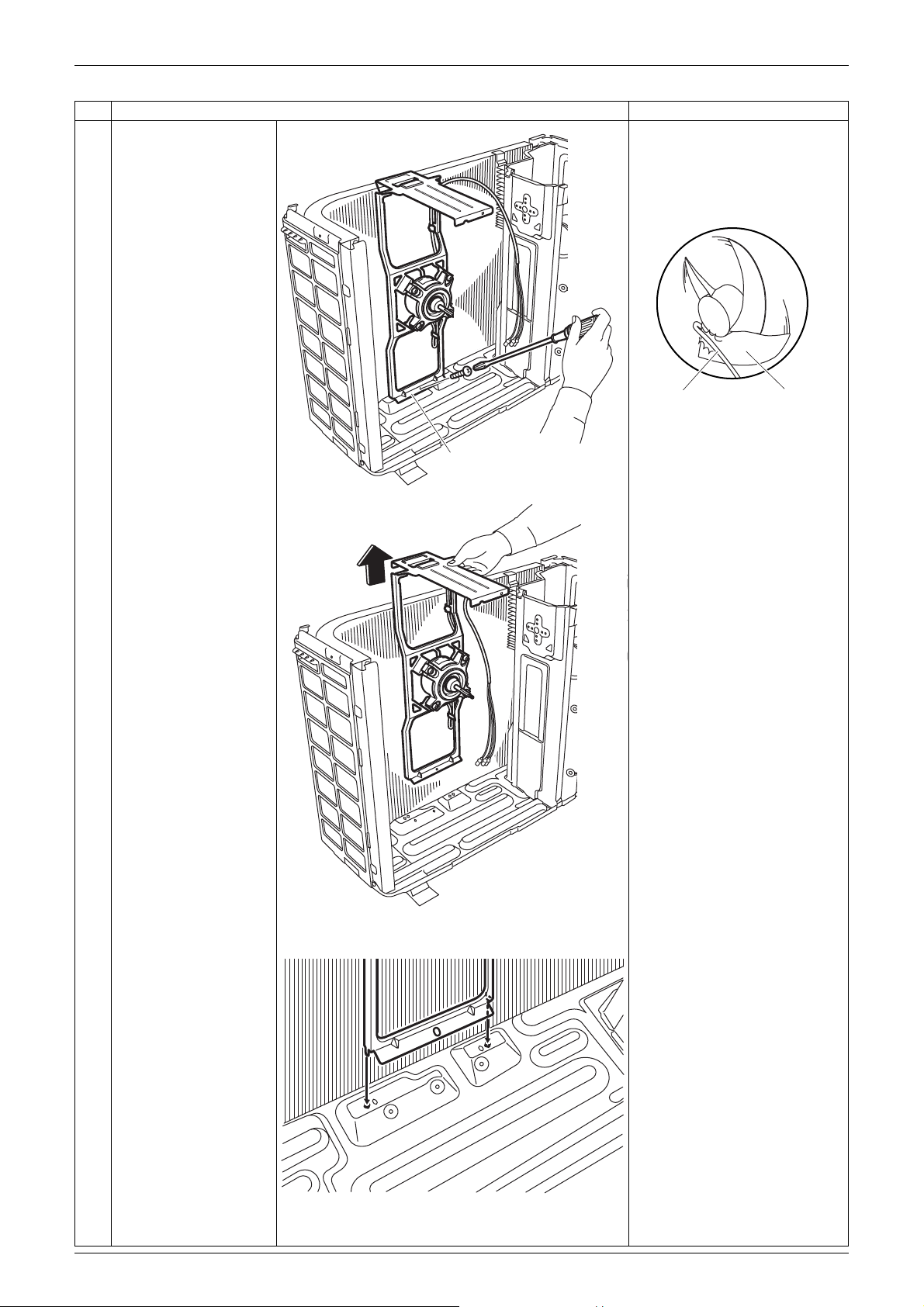

6Remove the screw and

remove the fan motor

fixing frame.

Put the fan motor lead wire

through the back of the fan

motor when reassembling so

as not to be entangled with

the outdoor fan.

When reassembling, fit the

lower hooks into the bottom

frame.

Step Procedure Points

(R15232)

Fan motor fixing frame

(R15233)

(R3249)

Lead wire Outdoor fan

(R7206)

Si01-983 Removal of Outer Panels / Fan Motor

Removal Procedure 7

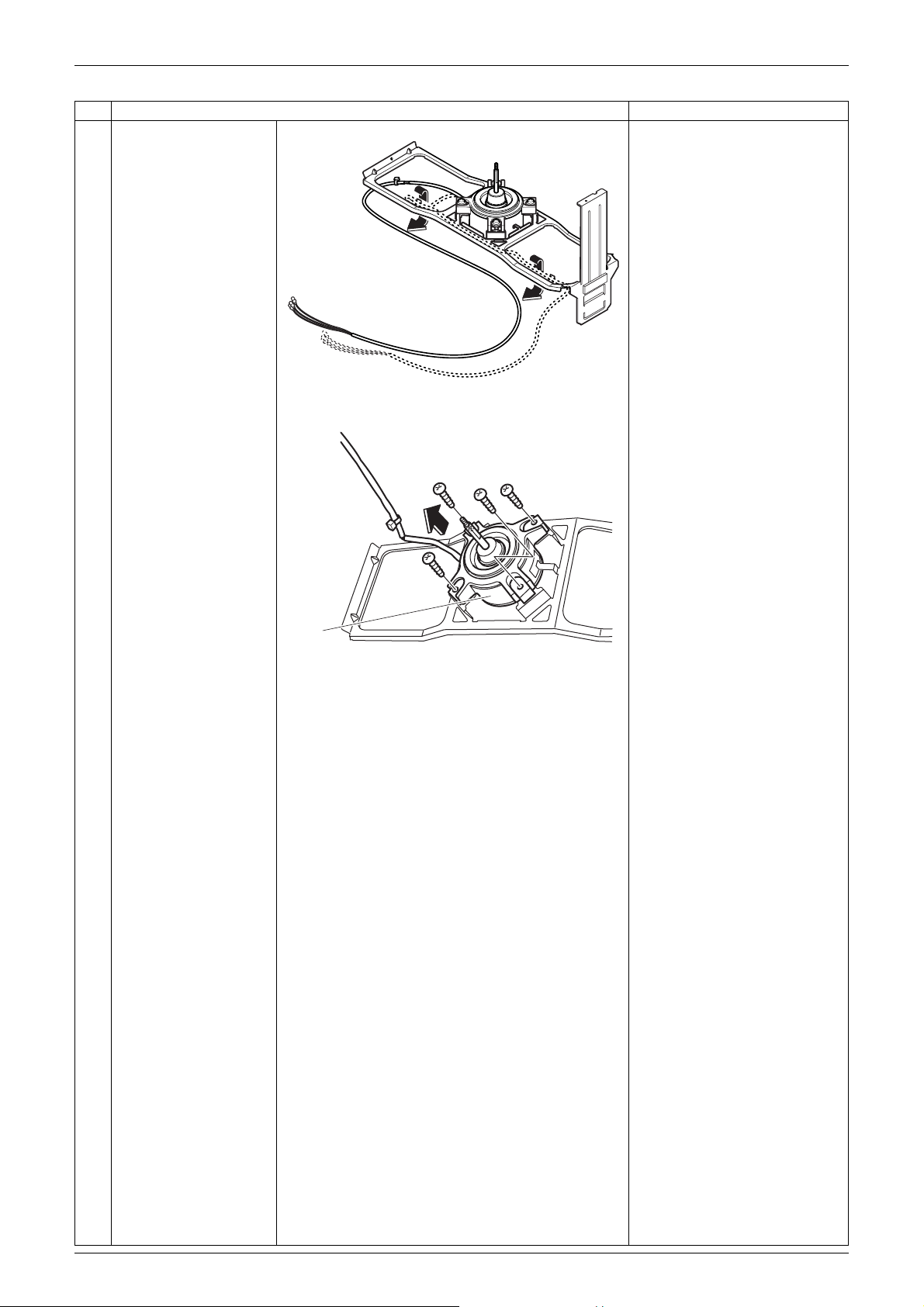

7Release the fan motor

lead wire from the

hooks.

8Remove the 4 screws

and remove the fan

motor.

Step Procedure Points

(R15234)

(R15235)

Fan

motor

Removal of Outer Panels / Fan Motor Si01-983

8Removal Procedure

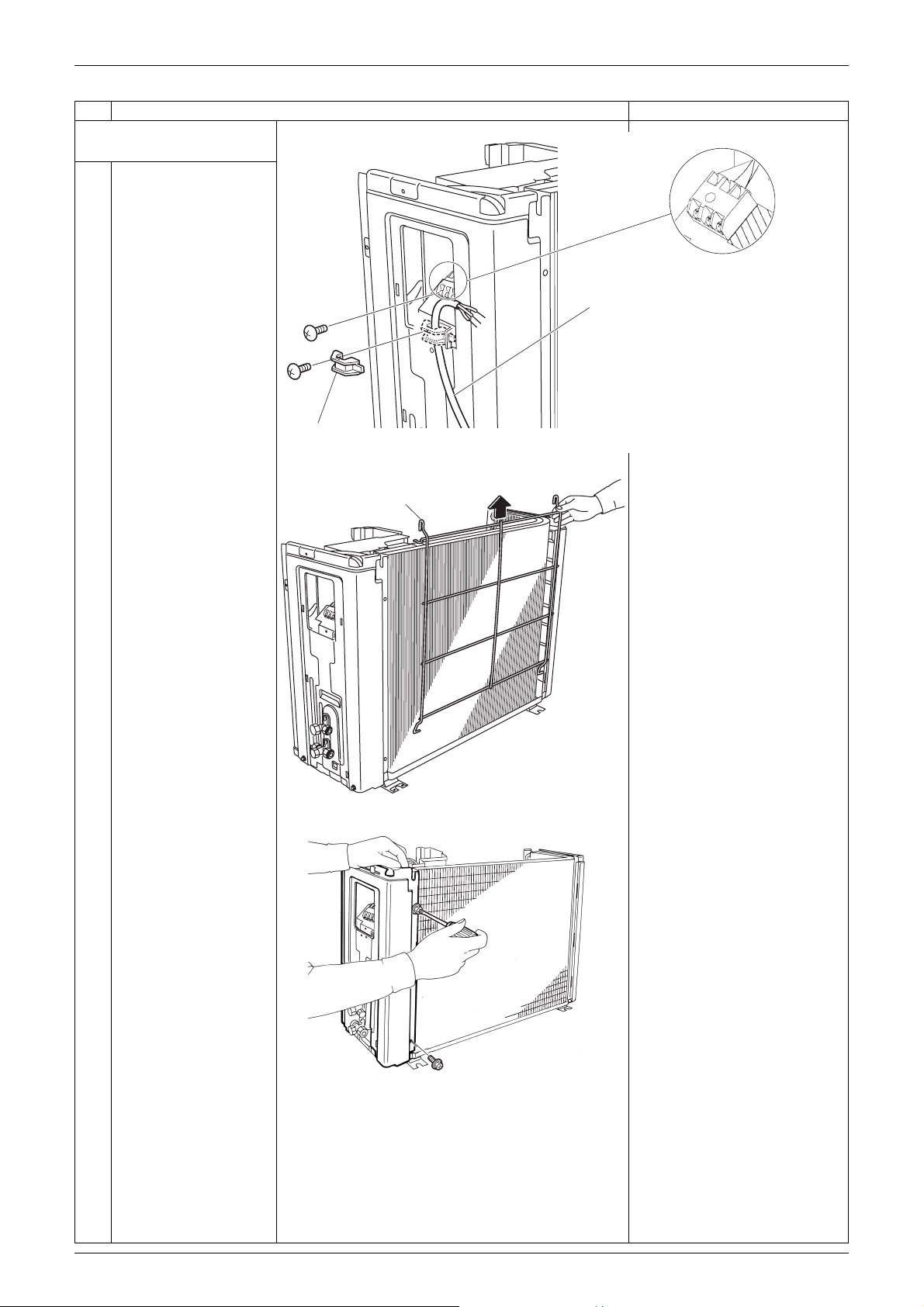

4. Remove the right side

panel.

1Remove the 3 screws

and disconnect the

connecting wire.

2Remove the screw and

remove the wire clamp.

3Lift up and remove the

guard net.

4Remove the 2 screws

on the rear side.

Step Procedure Points

(R15377)

Wire

clamp

Connecting

wire

Guard net

(R8284)

(R15237)
