Daikin FVXG-K Instruction manual

Air Conditioning

Technical Data

Floor standing unit with radiant heat panel

EEDEN13-100

FVXG-K

• Split - Sky Air • Indoor Unit 1

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

TABLE OF CONTENTS

FVXG-K

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

4 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

5 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Centre of Gravity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

• Split - Sky Air • Indoor Unit

1 Features

IndoorUnit Split-Sk FVXG-KFloorstand

• The aluminium part of the front panel of the Nexura indoor unit has

the capability of warming up, just like a traditional radiator, to add

even more comfort on cold days

• Quietanddiscrete, Nexura offers youthe bestin heating andcooling,

in comfort and design

• The indoor unit distributes air at the sound of a whisper. The noise

produced amounts to barely 22dB(A) in cooling and 19dB(A) in

radiant heat mode. In comparison, the ambient sound in a quiet room

amounts to 40dB(A) on average.

• Comfortable vertical auto swing ensures draughtfree operation and

prevents ceiling soiling

• Online controller (optional): control your indoor unit from any location

via smartphone, laptop, pc, tablet or touch screen

• Can be installed against a wall or recessed

• Its low height enables the unit to fit perfectly beneath a window

• Weekly timer can be set to start heating or cooling anytime on a daily

or weekly basis

• Split - Sky Air • Indoor Unit 3

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

2 Specifications

Standard Accessories : Installation plate; Quantity : 1;

Standard Accessories : Thermal insulation (thermal insulation tube); Quantity : 1;

Standard Accessories : Insulation sheet; Quantity : 2;

Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;

Standard Accessories : Remote control holder; Quantity : 1;

Standard Accessories : Drain hose; Quantity : 1;

Standard Accessories : Batteries; Quantity : 2;

Standard Accessories : Wireless remote control; Quantity : 1;

Standard Accessories : Operation manual; Quantity : 1;

Standard Accessories : Installation manual; Quantity : 1;

2-1 Technical Specifications FVXG25K FVXG35K FVXG50K

Power input - 50Hz Cooling Nom. kW 0.019 0.210 0.032

Heating Nom. kW 0.022 0.02 0.035

Casing Colour Fresh white (6.5Y 9.5/0.5)

Dimensions Unit Height/Width/Depth mm 600/950/215

Packed unit Height/Width/Depth mm 761/1,030/314

Weight Unit kg 22

Packed unit kg 28

Packing Weight kg 6

Heat exchanger Length mm 665

Rows Quantity 2

Fin pitch mm 1.2

Stages Quantity 18

Tube type ø6.35 Hi-XU tube

Fin Type Multi slit fin

Fan Type Cross flow fan

Air flow rate Cooling High m³/min 8.9 9.1 10.6

cfm 314 321 374

Nom. m³/min 8.9 9.1 10.3

cfm 314 321 -

Low m³/min 5.3 7.3

cfm 187 258

Silent operation m³/min 4.5 6.0

cfm 159 212

Heating High m³/min 9.9 10.2 12.2

cfm 349 360 431

Nom. m³/min 7.8 8.0 10.0

cfm 275 282 353

Low m³/min 5.7 5.8 7.8

cfm 201 205 275

Silent operation m³/min 4.7 5.0 6.8

cfm 166 177 240

Fan motor Model KFD-280-40-8H

Speed Steps 5 + silent, + auto

Cooling High/Medium/Low/Silent operation rpm 1,350/1,140/940/850 1,390/1,170/950/860 1,630/1,440/1,250/1,100

Heating High/Medium/Low/Silent operation rpm 1,430/1,190/950/840 1,470/1,210/960/870 1,700/1,450/1,200/1,080

Output High W 32

Sound power level Cooling Nom. dBA 52 58

Heating Nom. dBA 55 56 58

Sound pressure

level Cooling High/Nom./Low/Silent operation dBA 38/32/26/23 39/33/27/24 44/40/36/32

Heating Super high/High/Nom./Low/Silent operation/Radiant

heat dBA -/39/32/26/22/19 -/40/33/27/23/19 -/46/40/34/30/26

Refrigerant Type R-410A

Piping connections Liquid OD 6.35

Gas OD 9.50 12.70

Drain 18

Temperature control Microcomputer control

Air direction control Right, left, upwards

Air filter Type Removable / washable / mildew proof

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

• Split - Sky Air • Indoor Unit

2 Specifications

Notes

(1) 220V

(2) 230V

(3) 240V

(4) SL: The silent fan level of the air flow rate setting

(5) When connected to a multi outdoor unit, the sound pressure level in silent operation and radiant heat equals above values+ 1dB.

2-2 Electrical Specifications FVXG25K FVXG35K FVXG50K

Power supply Phase 1~

Frequency Hz 50

Voltage V 220-240

Current Nominal running

current(RLA)-50Hz Cooling A 0.10 (1) / 0.09 (2) / 0.09 (3) 0.11 (1) / 0.10 (2) / 0.10 (3) 0.17 (1) / 0.16 (2) / 0.15 (3)

Heating A 0.11 (1) / 0.11 (2) / 0.10 (3) 0.12 (1) / 0.12 (2) / 0.11 (3) 0.18 (1) / 0.17 (2) / 0.17 (3)

Wiring connections - 50Hz For power supply Remark 3 for power supply, 4 for interunit wiring (Earth wire included)

• Split - Sky Air • Indoor Unit 5

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

3 Options

3 - 1 Options

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

• Split - Sky Air • Indoor Unit

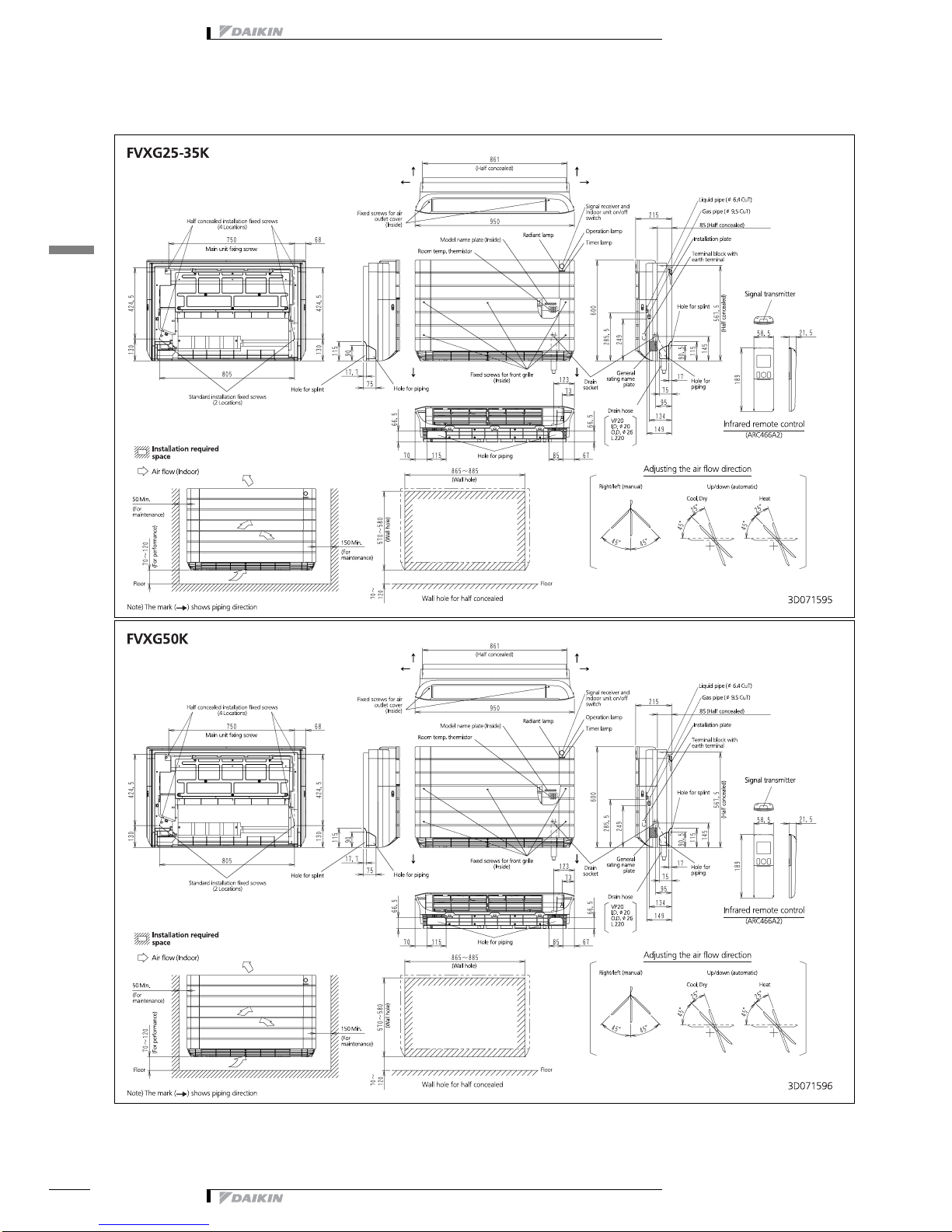

4 Dimensional drawings

4 - 1 Dimensional Drawings

• Split - Sky Air • Indoor Unit 7

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

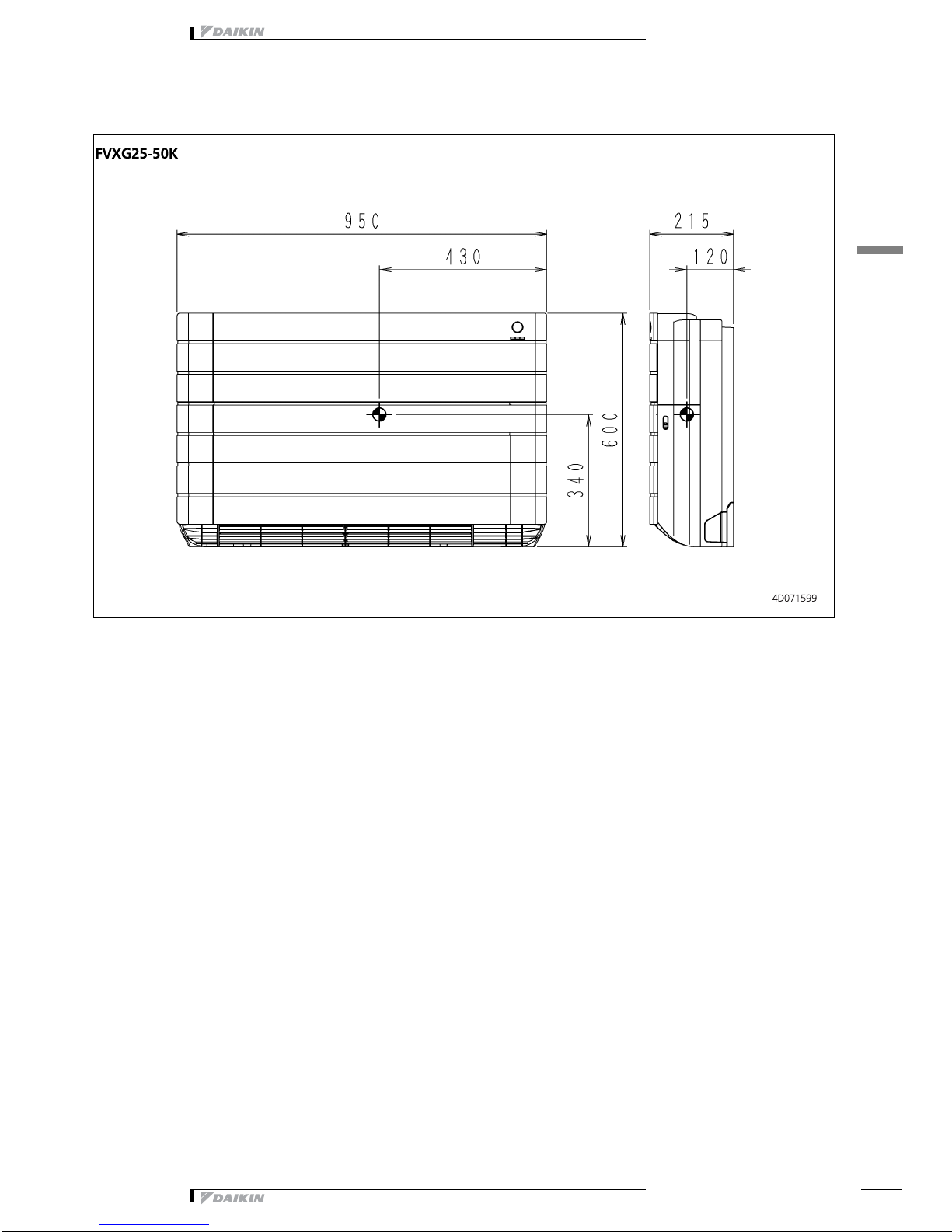

5 Centre of gravity

5 - 1 Centre of Gravity

• Indoor Unit • Floor standing unit with radiant heat panel • FVXG-K

• Split - Sky Air • Indoor Unit

6 Piping diagrams

6 - 1 Piping Diagrams
