Daikin FUQ-B8 Instruction manual

FUQ-B8

Technical Data

Air Conditioners

EEDEN12-100

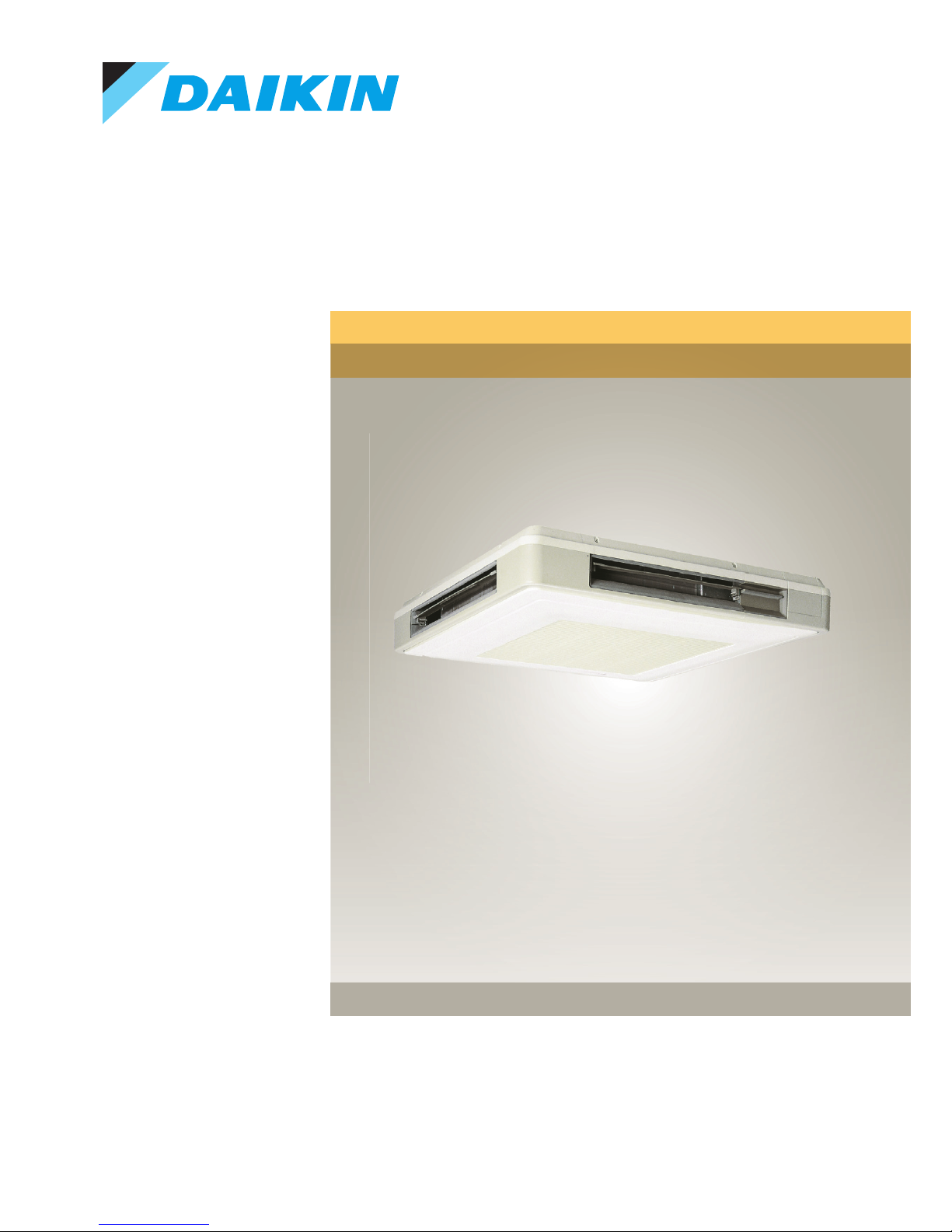

4-way blow ceiling suspended unit

• Split - Sky Air®• Indoor Unit 1

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

TABLE OF CONTENTS

FUQ-B8

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

3 Safety device settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety Device Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

4Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

5 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Piping Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

8 External connection diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

External Connection Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

9 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

10 Air flow patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Air Flow Pattern - Cooling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Air Flow Pattern - Heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

• Split - Sky Air®• Indoor Unit

1 Features

IndoorUnit Split-Sk FUQ-B84-wayblow

• Seasonal efficiency, optimized for all seasons.

• Seasonal efficiency gives an indication on how efficient an air

conditioner operates over an entire heating or cooling season.

• Heat pumps are all-in-one heating & cooling solutions for residential

& commercial applications. They extract thermal energy from the

ambient air and are therfore more energy efficient and emit far less

CO2 than comparable fossil fuel based boiler systems.

• Can be installed in both new and existing buildings

• Air can be discharged in any of 4 directions

• Different air flow configurations can be easily selected via the remote

control for an even more comfortable space

• Air can be discharged in 5 different angles between 0 and 60º

• Auto swing function ensures efficient air and temperature distribution

• Possibility to shut 1 or 2 flaps for easy installation in corners

• Air flow distribution for ceiling heights up to 3.5m without capacity

loss

• Vertical auto swing moves the discharge flaps up and down for

efficient air and temperature distribution throughout the room

• Standard drain pump with 500mm lift

2 steps

• Split - Sky Air®• Indoor Unit 3

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

2 Specifications

Standard Accessories :Operation manual;

Standard Accessories : Installation manual;

Standard Accessories : Drain hose;

Standard Accessories : Clamp metal;

Standard Accessories : Insulation for fitting;

Standard Accessories : Sealing pad;

Standard Accessories : Clamps;

Standard Accessories : Screws;

Standard Accessories : Washer;

Standard Accessories : Joint;

Standard Accessories : Holding plate;

2-1 Technical Specifications FUQ71B8 FUQ100B8 FUQ125B8

Power input Cooling Nom. kW 0.180 0.289

Heating Nom. kW 0.160 0.269

Casing Colour White

Material Resin

Dimensions Unit Height/Width/Depth mm 165/895/895 230/895/895

Packed unit Height/Width/Depth mm 230/960/960 295/960/960

Weight Unit kg 25 31

Packed unit kg 31 38

Heat exchanger Length mm 2,101

Rows Quantity 3

Fin pitch mm 1.5

Passes Quantity 8 12

Face area m² 0.265 0.353

Stages Quantity 6 8

Empty tubeplate hole Quantity 0 4 0

Tube type Cross fin coil (Multi louver fins and N-hix tubes)

Fan Type Turbo fan

Quantity 1

Air flow rate Cooling High m³/min 19 29 32

Low m³/min 14 21 23

Heating High m³/min 19 29 32

Low m³/min 14 21 23

Fan motor Model QTS48A10M QTS50B15M

Speed Steps 2

Output High W 45 90

Phase x Voltage V 1 x 220-240

Sound power level Cooling High/Low dBA 56/51 59/54 60/55

Heating High/Low dBA 56/51 59/54 60/55

Sound pressure level Cooling High/Low dBA 40/35 43/38 44/39

Heating Super high/High/Low dBA -/40/35 -/43/38 -/44/39

Refrigerant Type R-410A

Piping connections Liquid Type/OD mm Flare connection/9.52

Gas Type/OD mm Flare connection/15.9

Drain I.D. 20/O.D. 26

Heat insulation Heat resistant foamed polyethylene, regular foamed polyethylene

2-2 Electrical Specifications FUQ71B8 FUQ100B8 FUQ125B8

Power supply Name V1

Phase 1~

Frequency Hz 50

Voltage V 220-240

Current - 60Hz Nominal running current A -

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

• Split - Sky Air®• Indoor Unit

3 Safety device settings

3 - 1 Safety Device Settings

∼

• Split - Sky Air®• Indoor Unit 5

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

4 Options

4 - 1 Options

∼

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

• Split - Sky Air®• Indoor Unit

5 Dimensional drawings

5 - 1 Dimensional Drawings

∼

• Split - Sky Air®• Indoor Unit 7

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

6 Piping diagrams

6 - 1 Piping Diagrams

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

• Split - Sky Air®• Indoor Unit

7 Wiring diagrams

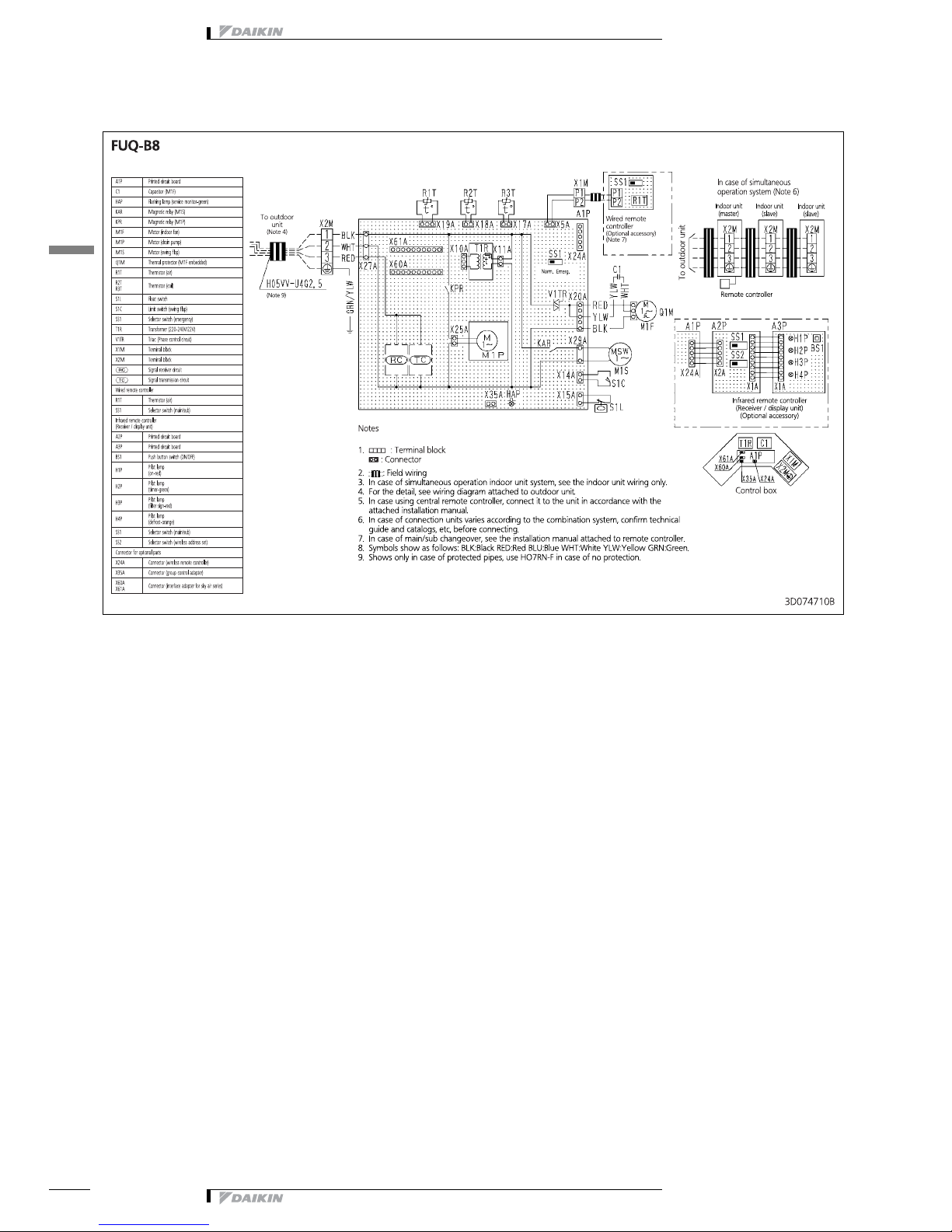

7 - 1 Wiring Diagrams - Single Phase

• Split - Sky Air®• Indoor Unit 9

• Indoor Unit • 4-way blow ceiling suspended unit • FUQ-B8

8 External connection diagrams

8 - 1 External Connection Diagrams

∼

∼∼
