Daikin FTXG20LS Instruction manual

Air Conditioning

Technical Data

Wall mounted unit

EEDEN15-100

FTXG-LS, FTXG-LW

• Split - Sky Air • FTXG-LS, FTXG-LW 1

• Indoor Unit • FTXG-LS, FTXG-LW

TABLE OF CONTENTS

FTXG-LS, FTXG-LW

1Features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FTXG-LS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

FTXG-LW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

2 Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Electrical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3Options. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

4 Dimensional drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5 Centre of gravity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

6 Piping diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

7 Wiring diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Wiring Diagrams - Single Phase . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

8 Sound data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Sound Pressure Spectrum . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

• Indoor Unit • FTXG-LS, FTXG-LW

• Split - Sky Air • FTXG-LS, FTXG-LW

1 Features

1 - 1 FTXG-LS

IndoorUnit

• Remarkable blend of iconic design and engineering excellence with

an elegant finish in silver and anthracite

• Daikin Emura has been awarded with Reddot design award 2014 by

an international jury, thanks to its excellent design

• Designed to perfectly balance technological leadership and the

beauty of aerodynamics

• Seasonal efficiency values up to A+++

• Online controller (optional): control your indoor from any location with

an app, via your local network or internet

• Whisper quiet in operation: the operating of the unit can hardly be

heard. The sound pressure level goes down to 19dBA!

Econo mode 2 area

intelligent eye Energy saving

during standby

mode

Night set mode Fan only Comfort mode Powerful mode Auto cooling-

heating

changeover

Whisper quiet

Indoor unit

silent operation 3-D air flow Vertical auto

swing Horizontal auto

swing Auto fan speed Fan speed

steps Dry programmeTitaniumapatite

photocatalytic

air purification

filter

Weekly timer

24 hour timer Infraredremote

control Wired remote

control Centralised

control Online

controller via

app

Auto-restart Self diagnosis Multi model

application VRV for

residential

application

• Split - Sky Air • FTXG-LS, FTXG-LW 3

• Indoor Unit • FTXG-LS, FTXG-LW

1 Features

1 - 2 FTXG-LW

• Remarkable blend of iconic design and engineering excellence with

an elegant finish in matt crystal white

• Daikin Emura has been awarded with Reddot design award 2014 by

an international jury, thanks to its excellent design

• Designed to perfectly balance technological leadership and the

beauty of aerodynamics

• Seasonal efficiency values up to A+++

• Online controller (optional): control your indoor from any location with

an app, via your local network or internet

• Whisper quiet in operation: the operating of the unit can hardly be

heard. The sound pressure level goes down to 19dBA!

Econo mode 2 area

intelligent eye Energy saving

during standby

mode

Night set mode Fan only Comfort mode Powerful mode Auto cooling-

heating

changeover

Whisper quiet

Indoor unit

silent operation 3-D air flow Vertical auto

swing Horizontal auto

swing Auto fan speed Fan speed

steps Dry programmeTitaniumapatite

photocatalytic

air purification

filter

Weekly timer

24 hour timer Infrared remote

control Wired remote

control Centralised

control Online

controller via

app

Auto-restart Self diagnosis Multi model

application VRV for

residential

application

• Indoor Unit • FTXG-LS, FTXG-LW

• Split - Sky Air • FTXG-LS, FTXG-LW

2 Specifications

2-1 Technical Specifications FTXG20LS FTXG25LS FTXG35LS FTXG50LS FTXG20LW FTXG25LW FTXG35LW FTXG50LW

Power input Cooling Nom. kW 0.023 (1) / 0.023 (2) /

0.023 (3) 0.033 (1) / 0.033 (2) /

0.033 (3) 0.023 (1) / 0.023 (2) /

0.023 (3) 0.033 (1) / 0.033 (2) /

0.033 (3)

Heating Nom. kW 0.031 (1)/

0.031(2)/

0.031 (3)

0.033(1)/

0.033(2)/

0.033 (3)

0.042(1)/

0.042(2)/

0.042 (3)

0.043(1)/

0.043(2)/

0.043 (3)

0.031(1)/

0.031(2)/

0.031 (3)

0.033(1) /

0.033(2) /

0.033 (3)

0.042(1) /

0.042(2) /

0.042 (3)

0.043(1) /

0.043(2) /

0.043 (3)

Casing Colour Silver White

Dimensions Unit Height/Width/

Depth mm 303 (3)/998/212

Packed unit Height/Width/

Depth mm 322/1,101/389

Weight Unit kg 12

Packed unit kg 16

Packing Weight kg 4

Heat exchanger Length mm 610

Rows Quantity 2

Fin pitch mm 1.2

Stages Quantity 18

Tube type Ø6,35 Hi-XB

Fin Type Multi slit fin

Air filter Type Removable / washable / mildew proof

Fan Type Cross flow fan

Air flow rate Cooling High m³/min 8.9 10.9 8.9 10.9

cfm 313 385 313 385

Nom. m³/min 6.6 7.8 8.9 6.6 7.8 8.9

cfm 234 276 313 234 276 313

Low m³/min 4.4 4.8 6.8 4.4 4.8 6.8

cfm 155 168 239 155 168 239

Silent

operati

m³/min 2.6 2.9 3.6 2.6 2.9 3.6

cfm 9110212891102128

Heating High m³/min 10.2 11.0 12.4 12.6 10.2 11.0 12.4 12.6

cfm 361 388 438 446 361 388 438 446

Nom. m³/min 8.4 8.6 9.6 10.5 8.4 8.6 9.6 10.5

cfm 298 303 340 372 298 303 340 372

Low m³/min 6.3 6.9 8.1 6.3 6.9 8.1

cfm 223 245 284 223 245 284

Silent

operati

m³/min 3.8 4.1 5.0 3.8 4.1 5.0

cfm 133 144 176 133 144 176

Fan motor Model KFD-280-

40-8G1 KFD-280-

40-8G KFD-280-40-8G1 KFD-280-

40-8G KFD-280-40-8G1

Speed Steps 5 + silent, + auto

Cooling High/

Mediu

m/Low/

Silent

operati

rpm 1,440/1,140/840/600 1,710/

1,300/890/

640

1,710/

1,440/

1,160/740

1,440/1,140/840/600 1,710/

1,300/890/

640

1,710/

1,440/

1,160/740

Heating High/

Mediu

m/Low/

Silent

operati

rpm 1,620/

1,380/

1,100/760

1,720/

1,400/

1,100/760

1,910/

1,540/

1,180/800

1,940/

1,660/

1,330/920

1,620/

1,380/

1,100/760

1,720/

1,400/

1,100/760

1,910/

1,540/

1,180/800

1,940/

1,660/

1,330/920

Output Rated W 29

Soundpowerlevel Cooling dBA 54 59 60 54 59 60

Heating dBA 56 59 60 56 59 60

Sound pressure level Cooling High/Nom./Low/

Silent operation dBA 38/32/25/19 45/34/26/

20 46/40/35/

25 38/32/25/19 45/34/26/

20 46/40/35/

Heating High/Nom./Low/

Silent operation dBA 40/34/28/

19 41/34/28/

19 45/37/29/

20 47/41/35/

25 40/34/28/

19 41/34/28/

19 45/37/29/

20 47/41/35/

Control systems Infrared remote control ARC466A1

• Split - Sky Air • FTXG-LS, FTXG-LW 5

• Indoor Unit • FTXG-LS, FTXG-LW

2 Specifications

Standard Accessories : Installation manual; Quantity : 1;

Standard Accessories : Operation manual; Quantity : 1;

Standard Accessories : Infrared remote control; Quantity : 1;

Standard Accessories : Batteries; Quantity : 2;

Standard Accessories : Remote control holder; Quantity : 1;

Standard Accessories : Mounting plate; Quantity : 1;

Standard Accessories : Indoor unit fixing screws; Quantity : 2;

Standard Accessories : Titanium apatite photocatalytic air purification filter; Quantity : 2;

Standard Accessories : Screw cover; Quantity : 2;

Notes

(1) 220V

(2) 230V

(3) 240V

SL: The silent fan level of the air flow rate setting

When connected with multi-system outdoor unit, refer to the specifications of the multi outdoor unit to be connected.

Refrigerant Type R-410A

Piping connections Liquid OD 6.35

Gas OD 9.5 12.7 9.5 12.7

Drain 18

Heat insulation Both liquid and gas pipes

Temperature control Microcomputer control

Air direction control Right, Left, Horizontal, Downward

2-2 Electrical Specifications FTXG20LS FTXG25LS FTXG35LS FTXG50LS FTXG20LW FTXG25LW FTXG35LW FTXG50LW

Power supply Name V1

Phase 1~

Frequency Hz 50

Voltage V 220-240

Current Nominal running

current(RLA)-50Hz Cooling A 0.12 (1) / 0.12 (2) / 0.12

(3) 0.16 (1) / 0.16 (2) / 0.16

(3) 0.12 (1) / 0.12 (2) / 0.12

(3) 0.16 (1) / 0.16 (2) / 0.16

(3)

Heating A 0.15 (1) /

0.15 (2) /

0.15 (3)

0.16 (1) /

0.16 (2) /

0.16 (3)

0.21 (1) / 0.21 (2) / 0.21

(3) 0.15 (1) /

0.15 (2) /

0.15 (3)

0.16 (1) /

0.16 (2) /

0.16 (3)

0.21 (1) / 0.21 (2) / 0.21

(3)

Wiring connections -

50Hz For power supply Remark 3 for power supply, 4 for interunit wiring (Earth wire included)

2-1 Technical Specifications FTXG20LS FTXG25LS FTXG35LS FTXG50LS FTXG20LW FTXG25LW FTXG35LW FTXG50LW

• Indoor Unit • FTXG-LS, FTXG-LW

• Split - Sky Air • FTXG-LS, FTXG-LW

3 Options

3 - 1 Options

• Split - Sky Air • FTXG-LS, FTXG-LW 7

• Indoor Unit • FTXG-LS, FTXG-LW

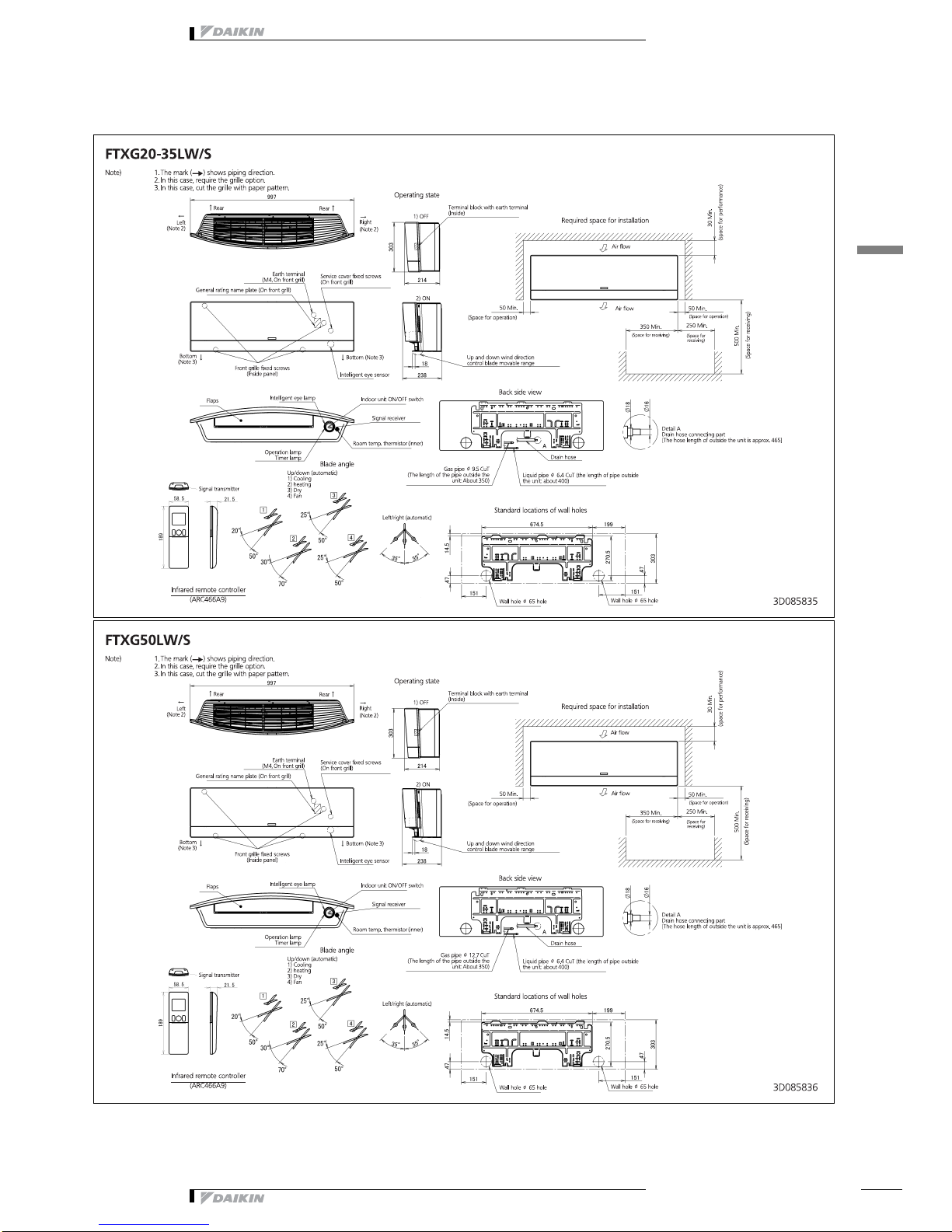

4 Dimensional drawings

4 - 1 Dimensional Drawings

• Indoor Unit • FTXG-LS, FTXG-LW

• Split - Sky Air • FTXG-LS, FTXG-LW

5 Centre of gravity

5 - 1 Centre of Gravity

㻡㻟㻢㻚㻡

㻝㻢㻟㻚㻣

㻥㻥㻣㻚㻤

㻢㻜㻚㻟

㻡㻟㻢㻚㻡

㻟㻜㻝㻚㻤

)7;*/:6

'%
