DaikinInverterDuctedHeatPump

FTQ

ATRADITIONAL CENTRAL‐AIR SYSTEM MADE BETTER WITH

DAIKIN CONSTANT COMFORT INVERTER TECHNOLOGY.

ENERGY EFFICIENCY –UPTOSEER20AND HSPF12

INDIVIDUAL COMFORT AND CONTROL

BUILT‐IN RELIABILITY

Allmajorcomponentsareengineeredandmanufacturedby

Daikin,ensuringmaximumperformance,reliabilityand

efficiency.Fromtheinternalmotorsandcompressorstothe

exterioranti‐corrosiontreatmentandselfdiagnosticfunction,

Daikinsystemsarebuiltwithdurabilityandbackedbyoneofthe

bestwarrantiesintheindustry.

TheDaikinInverterDuctedHeatPumplineisacost‐effectivealternativetotraditionalhigh‐

efficiencygasfurnace/ACsystems.ThesenewDaikinproductsprovidemorecomfortdueto

DaikinConstantComfortinvertertechnology.DaikinInverterDuctedsystemsofferupto

100%heatingcapacitywhentheoutsidetemperatureisaslowas14°F(systemscanoperate

inheatingmodedownto0°F),makingthemcheapertorunthantraditionalheat‐pump

systemsinmostclimates.Theyarealsomorecompactandquieterthantraditionalunits.

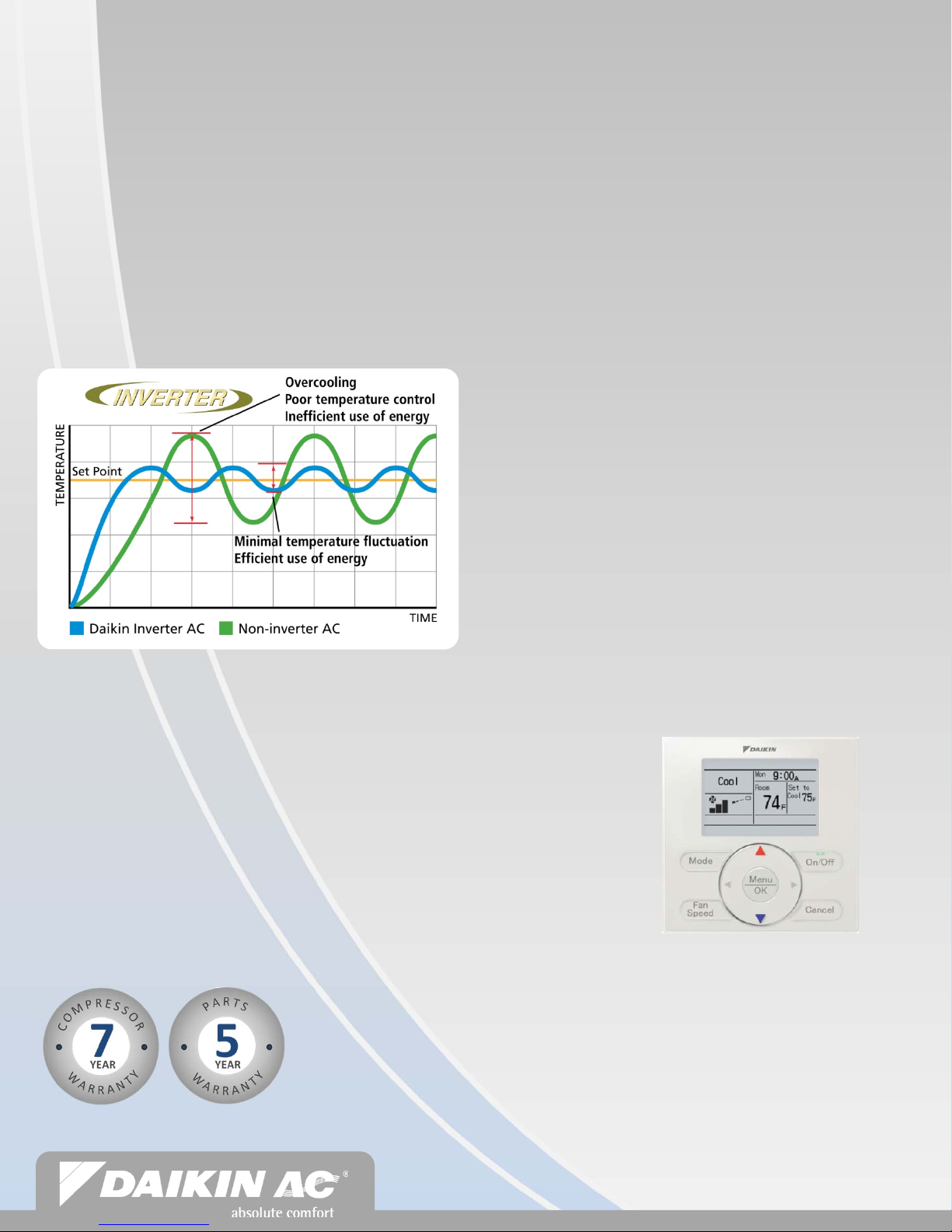

Integratedwithaninverter“variablespeed”

compressor,systemsdeliverthecapacity

requiredtomaintaindesiredroomconditions,

reducingenergyconsumptionby30%

comparedtotraditionalfixedspeedsystems.

Thistechnologyminimizestemperature

fluctuationsandprovidescontinuouscooling

andheatingcomfortwithmaximumenergy

savings.

DaikinInverterDuctedsystemsarealso

energyefficient:

•UptoSEER20,andHSPF12

•CEETierIIrated(42MBHisratedTier1)

Thewiredremotecontroller(BRC1E71)isprovidedasanaccessory,

andcanbereplacedwithothercontrolsolutions.Thewallmounted

controllerfeaturesabacklitLCDdisplayaswellasintuitivemenuswith

displaysavailableinEnglish,French,orSpanishlanguages.Other

functionsincludesetpointrangelimit,independentoccupiedand

unoccupied(setback)heatingandcoolingsetpoints,auto‐changeover

withcoolingandheatingsetpoints,andadvancedschedulingfunctions

(7‐Day).

ADVANCED FEATURES THAT MAKE A DIFFERENCE

EasyInstallation

ADaikinInverterDuctedoutdoorunitisnotaslargeandbulkyastheoutdoorunitona

conventionalsystem.Morethanoneofthecompactandlightweightunitscanbefittedinthe

bedofastandardpickuptruck.

Reducedinstallationtimewithintegratedelectronicexpansion

valveandprintedcircuitboards

Volt‐freefloatswitchintegrationoption

Corrosion‐resistantcoatingonoutdoorunitheatexchanger

Indoorfancoilunitwithupfloworhorizontalright

configurations

HeatingandCoolingFanAutomodecanbe

configuredseparately

Dual‐voltage208‐230V/1/60Hzpower

supply

Optionalelectricresistanceheat

Gravity‐feddrainconnection

Feel theDifference

Designedforsuperior heatingcapacityinlow‐ambientconditionsand

absolutecomfort,DaikinInverterDuctedunitsprovidecomfortable

heatingdownto0°F,withupto100%capacityavailableat

temperaturesaslowas14°F.Withtheabilitytooperateincooling

modefrom23°Fto115°F,thismakesinstallationeasierinmost

climatessinceadditionalsupplementalelectricheaterisnotrequired.

Hear theDifference

DaikinInverterDuctedsystemshavesound

reducingfeaturessuchascompressorsound

attenuators,butthey’realsoquieterthan

conventionalsystemsbecausetheyhavefewer

movingpartsandrarelyrunatfullspeed.

Utilizinginvertertechnologytomaintain

comfortsettings,Daikinsystemsmostoften

operateatlowspeedswithoutdoorsound

levelsinthemidtohigh50sdB(A).

Soundlevelsaslowas:

WashingMachine

Dryer

AverageHome

QuietLibrary

QuietBedroomatNight

NormalBreathing

StandardResidentialOutdoorUnit

NormalConversation

DaikinOutdoorUnit

Soundrecordingroom

Whisper

ThresholdofHearing

LEADING TECHNICAL PERFORMANCE

Options Part Number

Wired Controller BRC1E71

Simplified remotecontroller BRC2A71

Remotesensor KRCS01-4B

Electric HeaterConnectionKit KER26A60

Electric HeaterKits HKR-03,HKR-05C,HKR-06,HKR-08C,

HKR-10C,HKR-15C

Remodeling wiring adaptor KRP1C75 *1

Groupcontroladaptor KRP4A74 *2

Fixing box for options KRP1B101 *3

External control adaptor for outdoor unit DTA104A53 *2

System Performance

Model Name Indoor FTQ18PBVJU FTQ24PBVJU FTQ30PBVJU FTQ36PBVJU FTQ42PBVJU

Outdoor RZQ18PVJU9 RZQ24PVJU9 RZQ30PVJU9 RZQ36PVJU9 RZQ42PVJU9

CoolingCapacity (Rated) Btu/h 18,000 24,000 30,000 36,000 40,000

Cooling Capacity (Min - Max) Btu/h 9,000 – 18,000 9,000 – 24,000 12,000 – 30,000

12,000– 36,000

12,000– 42,000

Heating Capacity (Rated) Btu/h 20,000 27,000 34,000 40,000 47,000

Heating Capacity (Min - Max) Btu/h 9,000 – 20,000 9,000 – 27,000 12,000 – 34,000

12,000– 40,000

12,000– 47,000

SEER 20.0 19.0 19.5 18.0 17.0

EER 14.5 13.5 13.5 12.5 12.0

HSPF 12.0 11.5 10.0 9.5 9.0

Power Supply V/ph/Hz 208-230/1/60

Minimum Circuit Amps A 16.5 27.0

Maximum OvercurrentProtection A 20.0 30.0

Power Consumption- Cooling kW 1.19 1.68 2.06 2.65 3.05

Power Consumption- Heating kW 1.41 1.98 2.53 3.03 4.02

OperatingCurrent- Cooling A 1.2 1.3 1.8 2.2 2.8

OperatingCurrent- Heating A 1.2 1.3 1.8 2.2 2.8

Indoor Units - FTQ Unitary

Model Name FTQ18PBVJU FTQ24PBVJU FTQ30PBVJU FTQ36PBVJU FTQ42PBVJU

External Static Pressure “W.G. Up to 0.50

Airflow (H/M/L) CFM 600/510/420 800/680/560 1,000/850/700 1,200/1,020/840 1,400/1,190/980

Piping

Connections Liquid(O.D.) in. Ø 3/8 Ø 3/8 Ø 3/8 Ø 3/8 Ø 3/8

Gas (O.D.) in. Ø 5/8 Ø 5/8 Ø 5/8 Ø 5/8 Ø 5/8

Condensate

Drain in. Ø 1 Ø 1 Ø 1 Ø 1 Ø 1

Dimensions (H x W x D) in. 48-1/8x 22 x 26 58-1/4x 22 x 26

NetWeight lbs. 150.0 192.0 203.0

Outdoor Units - RZQ_PVJU9 Heat Pump

Model Name RZQ18PVJU9 RZQ24PVJU9 RZQ30PVJU9 RZQ36PVJU9 RZQ42PVJU9

Sound Pressure Level -

Cooling/Heating dB(A) 49/49 49/49 49/49 58/58 58/58

OperatingRange- Cooling °F DB 23 - 115 23 - 115 23 - 115 23 - 115 23 - 115

OperatingRange-Heating °FDB 0-77 0-77 0-77 0-77 0-77

OperatingRange - Heating °F WB 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60

Max. Piping Length ft. 98.0 230.0

Max. Piping Height ft. 98.0 164.0

Dimensions (H x W x D) in. 30-5/16 x 35-7/16x 12-5/8 52-15/16x 35-7/16x 12-5/8

NetWeight lbs. 150.0 283.0

*1 Need 24V AC power supply

*2 Need 16V DC power supply

*3 Fixing box is installed beside the unit

TIME‐SAVING INSTALLATION AND EASE

Connectedbyapairofrefrigerantlines,fewelectricalconnections,andlittletonoductwork,indoorand

outdoorunitscanbeeasilyinstalledinexistingspaceswithminordisruptionandofteninasingleday’s

work.Thecompactandlightweightdesignscombinedwithflexiblepipingandminimalwiringallow

installationwithminimaltimeandcosts.

Model name Electrical heater capacity

3kW 5kW 6kW 8kW 10kW 15kW

FTQ18PBVJU ◎○○ ×××

FTQ24PBVJU ◎○○○○ ×

FTQ30PBVJU ◎◎ ○○○ ×

FTQ36PBVJU ◎◎ ○○○ ×

FTQ42PBVJU ◎◎◎◎ ○○

※

◎Operation with Heat Pump Allowed ○Electric Heater Option Only ×Not Allowed

Toensurecontinuous heatingintheharshestclimates,Daikinprovideselectricheateroptionswiththe

capacitiesasfollow.ThisrepresentsDaikin’sfreeofmindguaranteetoensurefullcompatibilitywithin

thetotalsystemofferedandtopperformance.

EASE OF INSTALLATION

Space required for installation (in.)

H = 19” 1/8

Space required for installation (in.)

The installation of a secondary drain pan is necessary as shown below.

Always refer to installation manuals for details.

Connectedbyapairofrefrigerantlines,fewelectricalconnections,andlittletonoductwork,indoorand

outdoorunitscanbeeasilyinstalledinexistingspaceswithminordisruptionandofteninasingleday’s

work.Thecompactandlightweightdesignscombinedwithflexiblepipingandminimalwiringallow

installationwithminimaltimeandcosts.

ForFTQ18/24/30/36/42PBVJU

ForRZQ18/24/30/36/42PVJU9 For double-fan outdoor modules, the requirements are similar in some cases.

Always refer to installation manuals for details.

Distributor or Dealer Information: DaikinAC (Americas), Inc.

1645 Wallace Drive, Suite 110

Carrollton, TX 75006

www.daikinac.com

866.4DAIKIN

972.245.1510

For all equipment installation & application limitations please refer to the specific EngineeringData Books.

Daikin’s products are subject to continuous improvements. Daikin reserves the right to modify product design, specifications and information inthis brochurewithout notice

and without incurring any obligations.

www.daikindifference.com

•Alwaysusealicensedinstallerorcontractortoinstallthisproduct.Donottryto

installtheproductyourself.Improperinstallationcanresultinwaterorrefrigerant

leakage,electricalshock,fireorexplosion.

•UseonlythosepartsandaccessoriessuppliedorspecifiedbyDaikin.Aska

licensedcontractortoinstallthosepartsandaccessories.Useofunauthorized

partsandaccessoriesorimproperinstallationofpartsandaccessoriescanresultin

waterorrefrigerantleakage,electricalshock,fireorexplosion.

•ReadtheUser’sManualcarefullybeforeusingthisproduct.TheUser’sManual

providesimportantsafetyinstructionsandwarnings.Besuretofollowthese

instructionsandwarnings.

Foranyinquiries,contactyourlocalDaikinsalesoffice.

WARNINGS:

Organization:

DAIKININDUSTRIES,LTD.

AIRCONDITIONING MANUFACTURINGDIVISION

Scope of Registration:

THEDESIGN/DEVELOPMENTANDMANUFACTUREOF

COMMERCIAL AIR CONDITIONING, HEATING, COOLING,

REFRIGERATINGEQUIPMENT,COMMERCIALHEATING

EQUIPMENT,RESIDENTIALAIRCONDITIONING

EQUIPMENT,HEATRECLAIMVENTILATION,AIR

CLEANINGEQUIPMENT,MARINETYPECONTAINER

REFRIGERATIONUNITS,COMPRESSORSANDVALVES.

Organization:

DAIKININDUSTRIES

(THAILAND)LTD.

Scope of Registration:

THEDESIGN/DEVELOPMENT

AND MANUFACTUREOF AIR

CONDITIONERSANDTHE

COMPONENTSINCLUDING

COMPRESSORSUSEDFOR

THEM.

Daikin, Daikin AC Absolute Comfort, andits design, VRV, REFNET, Quaternity, Daikin Altherma are trademarks of Daikin Industries, LTD.

All of the Daikin Group's business

facilities and subsidiaries in Japan

are certified under the ISO 14001

International standard for

environmental management.

Use of the AHRICertified™mark indicates a manufacturer's

participation inthe certification program. Forverification of

certification for individual products, go to www.ahridirectory.org

CCFFTUSE12-06R
