INSTALLATION

MANUAL

R22 Split Series

Models

FDYM30CV1M FDYB30CV1M RY30CV1M

FDYM40CV1M FDYB40CV1M RY40CV1M

FDYM60CV1M FDYB60CV1M RY60CV1M

FDYM71CV1M FDYB71CV1M RY71CV1M

FDYM80CV1M RY80CV1M

FDYM90CV1M FDYB90CV1M RY90CV1M

FDYM90CV1M FDYB90CV1M RY90CY1M

FDYM100CV1M RY100CV1M

FDYM125CV1M FDYB125CV1M RY125CV1M

FDYM125CV1M FDYB125CV1M RY125CY1M

FDYM140CV1M FDYB140CV1M RY140CY1M

FDYM160CV1M FDYB160CV1M RY160CY1M

Installation Manual

R22 Split series

Manuel d’installation

Série split R22

Руководство По Установке

Cерия R22 с раздельной установкой

Kurulum Kılavuzu

R22 Split serisi

English

Français

Русский

Türkçe

Model A B C D E F G H I J K L M N O

FDYM30CV1M 31 741 702 662 10 765 72 261 411 351 225 211 232 212,8 114

FDYB30CV1M (1,2) (29,2) (27,6) (26,1) (0,4) (30,1) (2,8) (10,3) (16,2) (13,8) (8,9) (8,3) (9,1) (8,4) (4,5)

FDYM40CV1M 31 881 842 802 10 905 72 261 411 351 225 211 232 212,8 114

FDYB40CV1M (1,2) (34,7) (33,1) (31,6) (0,4) (35,6) (2,8) (10,3) (16,2) (13,8) (8,9) (8,3) (9,1) (8,4) (4,5)

FDYM60CV1M 31 1041 1002 962 10 1065 72 261 411 351 225 211 232 212,8 114

FDYB60CV1M (1,2) (41,0) (39,4) (37,9) (0,4) (41,9) (2,8) (10,3) (16,2) (13,8) (8,9) (8,3) (9,1) (8,4) (4,5)

FDYM71CV1M 31 1176 1137 1097 10 1200 72 261 411 351 225 211 232 212,8 114

FDYB71CV1M (1,2) (46,3) (44,8) (43,2) (0,4) (47,2) (2,8) (10,3) (16,2) (13,8) (8,9) (8,3) (9,1) (8,4) (4,5)

OUTLINE AND DIMENSIONS

Indoor Unit

All dimensions are in mm/(in)

Model A B C D E F G H I J K L M N

FDYM80CV1M 371,7 1007 959 920 410,0 295 600 339 121 213 64,0 100,0 239 214,0

(14,6) (39,6) (37,8) (36,2) (16,1) (11,6) (23,6) (13,3) (4,8) (8,4) (2,5) (3,9) (9,4) (8,4)

FDYM90CV1M 359 999 956 917 408,5 378 541 256 173 306 70,5 160,5 248 220,0

FDYB90CV1M (14,1) (39,3) (37,6) (36,1) (16,1) (14,9) (21,3) (10,1) (6,8) (12,0) (2,8) (6,3) (9,8) (8,7)

FDYM100CV1M 371,2 1312 1264 1225 562,5 315 638 401 183 233 217,0 169,2 251 237,8

(14,6) (51,7) (49,8) (48,2) (22,1) (12,4) (25,1) (15,8) (7,2) (9,2) (8,5) (6,7) (9,9) (9,4)

FDYM125CV1M 359 1115 1072 1033 466,5 378 541 256 173 306 128,5 160,5 248 220,0

FDYB125CV1M (14,1) (43,9) (42,2) (40,7) (18,4) (14,9) (21,3) (10,1) (6,8) (12,0) (5,1) (6,3) (9,8) (8,7)

FDYM140CV1M 359 1369 1326 1287 593,5 378 541 256 173 306 255,5 160,5 248 220,0

FDYB140CY1M (14,1) (53,9) (52,2) (50,7) (23,4) (14,9) (21,3) (10,1) (6,8) (12,0) (10,1) (6,3) (9,8) (8,7)

FDYM160CV1M 359 1569 1526 1487 693,5 378 541 256 173 306 355,5 160,5 248 220,0

FDYB160CV1M (14,1) (53,9) (60,1) (58,5) (27,3) (14,9) (21,3) (10,1) (6,8) (12,0) (14,0) (6,3) (9,8) (8,7)

Indoor Unit

61,0 (2,40)

24,5 (0,96)

61,0 (2,40)

15,0 (0,59)

474,0 (18,66)

15,0

(0,59)

40,0

(1,57)

40,0

(1,57)

40,0 (1,57)

156,0

(6,14)

40,0

49,0 (1,93)

39,0 (1,54) 40,0 (1,57)

142,0 (5,59) 143,0 (5,63)

26,0 (1,12)

41,0 (1,61)

90,5

(3,56)

100,0

(3,94)

187,5 (7,38)

All dimensions are in mm/(in)

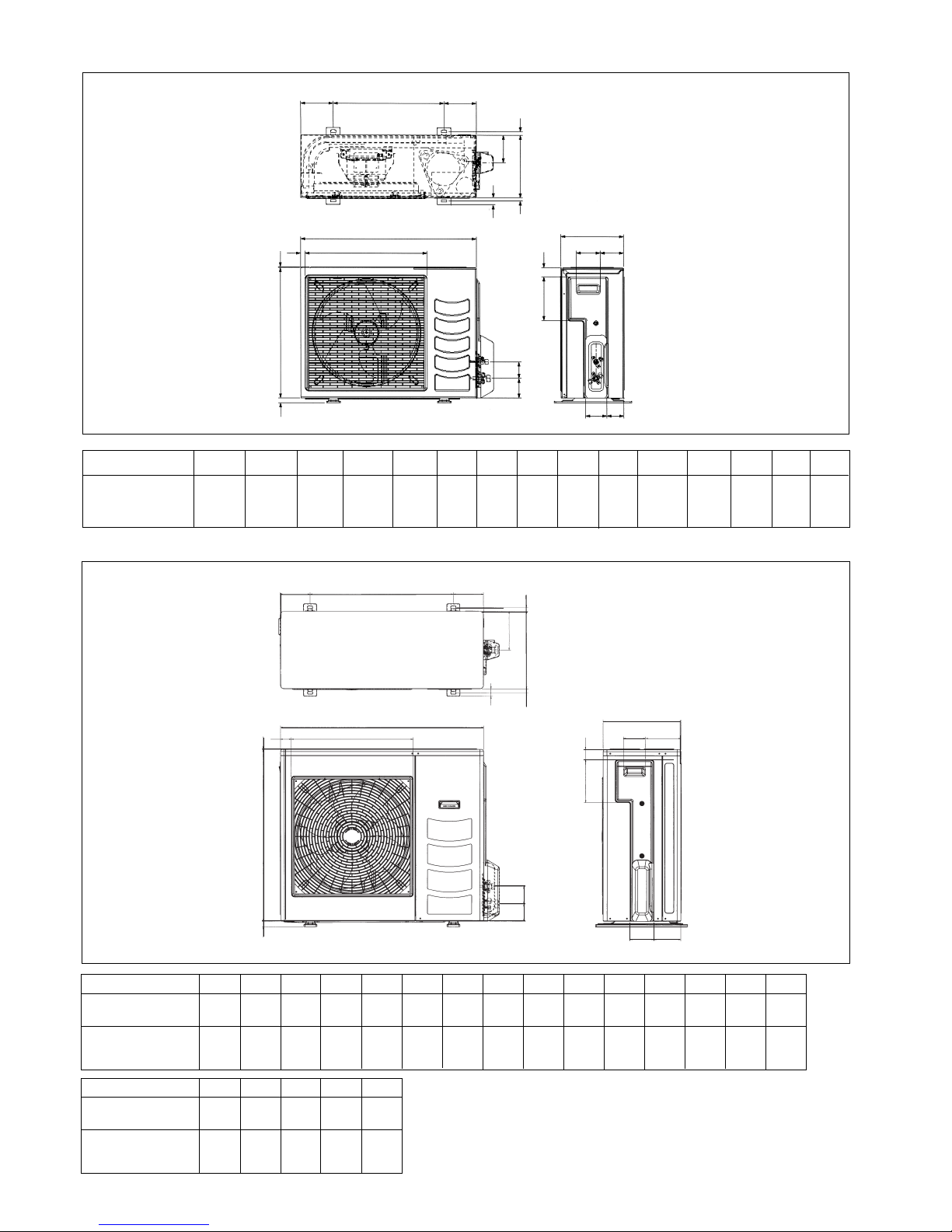

Outdoor Unit

All dimensions are in mm/(in)

Dimension A B C D E F G H I J K L M N O

RY30CV1M 700 521 250 485 175 36 95 93 86 68 441 130 111 15 18

RY40CV1M (27,5) (20,5) (9,8) (19,1) (6,8) (1,4) (3,7) (3,6) (3,3) (2,6) (17,3) (5,1) (4,3) (0,5) (0,7)

(1,2)

(0,1)

(0,7)

(2,6)

(3,1)

LKL

Dimension A B C D E F G H I J K L M N O

RY60CV1M 855 628 328 513 182 44 93 149 101 113 603 126 164 17 49

(33,7) (24,7) (12,9) (20,0) (7,1) (1,7) (3,7) (5,9) (4,0) (4,4) (23,7) (5,0) (6,4) (0,7) (1,9)

RY71CV1M 855 730 328 513 182 44 93 149 101 113 603 126 164 17 47

RY80CV1M (33,7) (28,7) (12,9) (20,2) (7,2) (1,7) (3,7) (5,9) (4,0) (4,4) (23,7) (5,0) (6,4) (0,7) (1,9)

All dimensions are in mm/ (in)

Outdoor Unit

Dimension P Q R S T

RY60CV1M 32 3 23 73 75

(1,3) (0,1) (0,9) (2,9) (3,0)

RY71CV1M 32 3 23 73 75

RY80CV1M (1,3) (0,1) (0,9) (2,9) (3,0)

iii

Outdoor Unit

Model A B C D E F G H J K L M N P

RY90CV1M/ RY90CY1M/

1030 850 400 390 414 827 72 196 91 488 448 141,5 746,5 82

RY100CV1M/ RY125CV1M/

(40,6) (33,5) (15,7) (15,4) (16,3) (32,6) (2,8) (7,7) (3,6) (19,2) (17,6) (5,6) (29,4) (3,2)

RY125CY1M/ RY140CY1M

All dimensions are in mm/(in)

Model A B C D E F G H J K L M N

RY160CY1M

1030 850 400 448 746,5 320 25 50 85 40 141.5 20 60

(40,6) (33,5) (15,7) (17,6) (29,4) (12,6) (1,0) (2,0) (3,3) (1,6) (5,6) (0,8) (2,4)

All dimensions are in mm/(in)

LEL

MDM

English

SAFETY PRECAUTIONS

!CAUTION

Please take note of the following important points when

installing.

• Do not install the unit where leakage of flammable gas

may occur.

If gas leaks and accumulates around the unit, it may

cause fire ignition.

• Ensure that the drainage piping is connected properly.

If the drainage piping is not connected properly, it may

cause water leakage which will dampen the furniture.

• Do not overcharge the unit.

This unit is factory pre-charged, Overcharge will cause

over-current or damage to the compressor.

• Ensure that the unit’s panel is closed after service or

installation.

Unsecured panels will cause the unit to operate noisily.

• Sharp edges and coil surfaces are potential locations which

may cause injury hazards. Avoid from being in contact

with these places.

• Before turning off the power supply set the remote

controller’s ON/OFF switch to the “OFF” position to

prevent the nuisance tripping of the unit. If this is not done,

the unit’s fans will start turning automatically when power

resumes, posing a hazard to service personnel or the user.

• Do not operate any heating apparatus too close to the air

conditioner unit. This may cause the plastic panel to melt or

deform as a result of the excessive heat.

• Ensure the color of wires of the outdoor unit and the

terminal markings are same to the indoors respectively.

• IMPORTANT : DO NOT INSTALL OR USE THE AIR

CONDITIONER UNIT IN A LAUNDRY ROOM.

!WARNING

• Installation and maintenance should be performed by

qualified persons who are familiar with local code and

regulation, and experienced with this type of appliance.

• All field wiring must be installed in accordance with the

national wiring regulation.

• Ensure that the rated voltage of the unit corresponds to

that of the name plate before commencing wiring work

according to the wiring diagram.

• The unit must be GROUNDED to prevent possible hazard

due to insulation failure.

• All electrical wiring must not touch the refrigerant piping

or any moving parts of the fan motors.

• Confirm that the unit has been switched OFF before

installing or servicing the unit.

• Disconnect from the main power supply before servicing

the air conditioner unit.

• DO NOT pull out the power cord when the power is ON.

This may cause serious electrical shocks which may result

in the fire hazards.

• Keep the indoor and outdoor units, power cable and

transmission wiring, at least 1m from TVs and radios, to

prevent distorted pictures and static. {Depending on the

type and source of the electrical waves, static may be heard

even when more than 1m away}.

This manual provides the procedures of installation to ensure a safe and good standard of operation for the air

conditioner unit.

Special adjustment may be necessary to suit local requirements.

Before using your air conditioner, please read this instruction manual carefully and keep it for future reference.

INSTALLATION MANUAL

Disposal requirements

Dismanteling of the unit, treatment of the refrigerant, oil and other parts shall be done in accordance with local and national

regulation.

INSTALLATION OF THE INDOOR UNIT

The indoor unit must be installed such that there is no short

circuit of the cool discharge. Respect the installation clearance.

Do not put the indoor unit where there is direct sunlight on unit.

The location is suitable for piping and drainage and it must be

have a large distance between a door and unit.

Ceiling Concealed Mounting

– Use the hanger supplied with the unit.

– Make sure that the wall is sufficiently strong to withstand the

weight.

Center distance of axle (see drawing below)

Ensure the slope of the drainange piping as shown in diagram below:

A mm (inch) L mm (inch)

FDYM30CV1M 741 225

FDYB30CV1M (29.2) (8.9)

FDYM40CV1M 881 225

FDYB40CV1M (34.7) (8.9)

FDYM60CV1M 1041 225

FDYB60CV1M (41.0) (8.9)

FDYM71CV1M 1176 225

FDYB71CV1M (46.3) (8.9)

FDYM80CV1M 959 339

(37.8) (13.3)

FDYM90CV1M 956 266

FDYB90CV1M (37.6) (10.5)

FDYM100CV1M 1264 401

(49.8) (15.8)

FDYM125CV1M 1076 266

FDYB125CV1M (42.4) (10.5)

FDYM140CV1M 1326 266

FDYB140CV1M (52.2) (10.5)

FDYM160CV1M 1526 266

FDYB160CV1M (60.1) (10.5)

10 mm (0.39)

During installation, provide clearance for servicing ease as shown

in diagram and table below:

C mm (inch) D mm (inch)

FDYM30CV1M

FDYB30CV1M

FDYM40CV1M

FDYB40CV1M 200 500

FDYM60CV1M (7.9) (19.7)

FDYB60CV1M

FDYM71CV1M

FDYB71CV1M

FDYM80CV1M 460 500

(18.1) (19.7)

FDYM90CV1M 450 500

FDYB90CV1M (17.7) (19.7)

FDYM100CV1M 610 540

(24.0) (21.3)

FDYM125CV1M 510 500

FDYB125CV1M (20.1) (19.7)

FDYM140CV1M 640 570

FDYB140CV1M (25.2) (22.4)

FDYM160CV1M 740 670

FDYB160CV1M (29.1) (26.4)

For unit installed with return duct and grille with built in air

filter, service space for A & B could be 200mm and 500mm

respectively.

INSTALLATION OF THE OUTDOOR UNIT

The outdoor unit must be installed such that there is no short circuit of the discharge air or obstruction to smooth air flow. Respect the

installation clearance. Select the coolest possible place where intake air should not be higher than the outside temperature (maximum

45°C).

Ensure that there are no obstruction of air flow into or out of the unit. Remove obstacles which block air intake or

discharge.

>1500mm

>300mm

RETURN AIR

SUPPLY AIR

When installing the

* unit without ducting

* or with short ducting (horizontal length <1.5m)

* or without grill,

install the unit at a height more than 2.5m so that the fan blades

can not be touched.

English

Note: If the obstacle is higher than 2 m or if there is any obstruction at the upper part of the unit allow more space than indicated in

the table above.

Return Air

Service

Access

Discharge

Air

Return Air

Obstacle

Outdoor Unit SL Series Clearance (in mm)

Obstacle

300 1000 300 500

REFRIGERANT PIPING

Maximum Pipe Length And Maximum Number Of Bends

When the pipe length becomes too long, both the capacity and reliability drop. As the number of bends increases, system piping

resistance to the refrigerant flow increases, thus lowering the cooling capacity. As a result, compressor reliability will be affected.

Always choose the shortest path and follow the recommendation as tabulated below:

Model FDYM30CV1M FDYM40CV1M FDYM60CV1M FDYM71CV1M FDYM80CV1M

Data FDYB30CV1M FDYB40CV1M FDYB60CV1M FDYB71CV1M

Maximum Length, A m (ft) 12 (39.4) 12 (39.4) 15 (49.2) 15 (49.2) 15 (49.2)

Maximum Elevation, B m (ft) 5 (16.4) 5 (16.4) 8 (26.2) 8 (26.2) 8 (26.2)

Maximum No. of Bends, C 10 10 10 10 10

Model FDYM90CV1M FDYM100CV1M FDYM125CV1M FDYM140CV1M FDYM160CV1M

Data FDYB90CV1M FDYB125CV1M FDYB140CV1M FDYB160CV1M

Maximum Length, A m (ft) 45 (147.6) 45 (147.6) 45 (147.6) 45 (147.6) 35 (114.8)

Maximum Elevation, B m (ft) 25 (82.0) 25 (82.0) 25 (82.0) 25 (82.0) 15 (49.2)

Maximum No. of Bends, C 10 10 10 10 10

The location must be well-ventilated, so that the unit can draw

in and distribute plenty of air thus lowering the temperature.

A place capable of bearing the weight of the outdoor unit as

well as isolating noise and vibration.

A place protected from the direct sunlight. Use an awning for

protection if necessary.

The installation location must not be susceptible to highly

concentrated dust, oil, salt or sulfide gas.

Piping Works And Flaring Technique

Do not use contaminated or damaged copper tubing. If any

piping, evaporator or condenser had been exposed or had been

opened for 15 seconds or more, vacuum the system. Generally,

do not remove plastic, rubber plugs and brass nuts from the

valves, fittings, tubings and coils until it is ready for connection.

If any brazing work is required, ensure that the nitrogen gas is

passed through piping and joints while the brazing work is

being done. This will eliminate soot formation on the inside

walls of the copper tubings.

Cut the pipe stage by stage, advancing the blade of pipe cutter

slowly. Extra force and deep cut will cause more

distortion of pipe and therefore extra burr.

Remove burrs from cut edges of pipes with a remover as shown

in Fig. R. This will avoid unevenness on the flare faces which

will cause gas leak. Hold the pipe on top position and burr

remover at lower position to prevent metal chips from entering

the pipe.

Insert the flare nuts mounted on the connection parts of both

indoor and outdoor unit, into the copper pipes.

The exact length of pipe protruding from the face of the flare

die is determined by the flaring tool.

Fix the pipe firmly on the flare die. Match the centers of both

the flare die and the flaring punch, and tighten flaring punch

fully.

1/4t

Cutting Copper Tube

Copper Tube

Swaging Block

Ø Tube, D A (mm)

Inch mm Imperial Rigid

1/4" 6.35 1.3 0.7

3/8" 9.52 1.6 1.0

1/2" 12.70 1.9 1.3

5/8" 15.88 2.2 1.7

3/4" 19.05 2.5 2.0

Piping Connection To The Units

Align the center of the piping and sufficiently tighten the flare

nut with fingers.

Finally, tighten the flare nut with torque wrench

until the wrench clicks.

When tightening the flare nut with the torque wrench,

ensure that the direction for tightening follows the arrow on

the wrench.

The refrigerant pipe connection are insulated by polyurethane

(ARMAFLEX type or similar).

Pipe Size, mm (in) Torque (Nm)

6.35 (1/4) 18

9.53 (3/8) 42

12.7 (1/2) 55

15.88 (5/8) 65

19.05 (3/4) 78

Spanar Torque Wrench

Indoor Piping Flare Nut

Flared Tube

Flare Joint

Fig. R

Remove Burr

Copper Tube

English

ELECTRICAL CONNECTION

Outdoor Coil Sensor

Terminal Strip

Indoor Unit

Terminal Strip

Outdoor Unit

Power Supply Cable

4WV

COMP

4WV

FDYM30CV1M/

FDYB30CV1M - RY30CV1M

FDYM40CV1M/

FDYB40CV1M - RY40CV1M

FDYM60CV1M/

FDYB60CV1M - RY60CV1M

FDYM71CV1M/

FDYB71CV1M - RY71CV1M

There must be a all pole switch

with a minimum 3 mm contact gap and

fuse / circuit breaker as recommended

in the fixed installation circuits.

IMPORTANT: * These values are for information only, they should be checked and selected to comply with the local and/or national

codes and regulations. They are also subjected to the type of installation and size of conductors.

Heat Pump Units

Outdoor Coil Sensor

Terminal Strip

Indoor Unit

Terminal Strip

Outdoor Unit

Power Supply Cable

4WV

COMP

4WV

FDYM80CV1M - RY80CV1M

There must be a all pole switch

with a minimum 3 mm contact gap and

fuse / circuit breaker as recommended

in the fixed installation circuits.

Heat Pump Units

Indoor unit

FDYM30CV1M FDYM40CV1M FDYM60CV1M FDYM71CV1M

FDYB30CV1M FDYB40CV1M FDYB60CV1M FDYB71CV1M

Outdoor unit RY30CV1M RY40CV1M RY60CV1M RY71CV1M

Voltage range 220V–240V /1Ph /50Hz + !

Recommended fuse* A 10 10 16 20

Power supply cable size* mm21.5 1.5 2.5 2.5

Number of conductors 3 3 3 3

Interconnection cable size* mm21.5 1.5 2.5 2.5

Number of conductors 5 5 5 5

Indoor unit

FDYM80CV1M FDYM90CV1M FDYM100CV1M FDYM125CV1M

FDYB90CV1M FDYB125CV1M

Outdoor unit RY80CV1M RY90CV1M RY100CV1M RY125CV1M

Voltage range 220V–240V /1Ph /50Hz + !

Recommended fuse* A 25 30 35 35

Power supply cable size* mm24.0 4.0 4.0 4.0

Number of conductors 3 3 3 3

Interconnection cable size* mm22.5 1.5 1.5 1.5

Number of conductors 5 6 6 6

This manual suits for next models

Table of contents

Other Daikin Air Conditioner manuals

Daikin

Daikin Altherma EABH16DA6V User manual

Daikin

Daikin FTD-F User manual

Daikin

Daikin EWAQ006BAVP How to use

Daikin

Daikin RZQG100L9V1B User manual

Daikin

Daikin CTXF20TVMA User manual

Daikin

Daikin RXS09JEVJU User manual

Daikin

Daikin R32 Split Series User manual

Daikin

Daikin 2MKS40G2V1B User manual

Daikin

Daikin RXYQ72PAYD User manual

Daikin

Daikin SUPER MULTI NX FDXS12LVJU User manual

Daikin

Daikin RC50PRV16 User manual

Daikin

Daikin FTXS-K Instruction manual

Daikin

Daikin VRV FXHA32AVEB8 User manual

Daikin

Daikin FTXTJ30A2V1BW User manual

Daikin

Daikin FT25JV1A User manual

Daikin

Daikin FXSN50A2VEB User manual

Daikin

Daikin FXCQ20MVE9 Instruction manual

Daikin

Daikin CXTQ24TASBLUA User manual

Daikin

Daikin FTY22JVE1F User manual

Daikin

Daikin FTYN25DV3B ATY20DV2 User manual

Daikin

Daikin VRV FXAQ20ARVE6 User manual

Daikin

Daikin RKH35QRV16 User manual

Daikin

Daikin ARXF35E User manual

Daikin

Daikin Altherma 3 R ECH2O Product information sheet

Popular Air Conditioner manuals by other brands

Spheros

Spheros CC 355 instructions

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE owner's manual

Panasonic

Panasonic CS-E12HKEW operating instructions

nedis

nedis ACMB1WT7 quick start guide

Samsung

Samsung AR KV Series User & installation manual

Fujitsu

Fujitsu Inverter ASBA30JFC operating manual

Toshiba

Toshiba RAS-M10SMUV-E installation manual

Hitachi

Hitachi RAS-E24CAK instruction manual

CIAT

CIAT Magister 2 Series Installation, Operation, Commissioning, Maintenance

Bestron

Bestron AAC6000 instruction manual

Hisense

Hisense 7K Use and Installation Instructions

Frigidaire

Frigidaire FFRE0533S1E0 Use & care guide

Samsung

Samsung AS09HM3N user manual

Frigidaire

Frigidaire CRA073PU11 use & care

Soleus Air

Soleus Air GB-PAC-08E4 operating instructions

McQuay

McQuay MCK020A Technical manual

Webasto

Webasto Frigo Top 25 DS Instructions for use

Frigidaire

Frigidaire FAZ12ES2A installation instructions
